5 IN 1 MACHINE F-205

  • 5 IN 1 MACHINE F-205
Worktable dimensions with sliding table 1200 X 605mm
Max Spindle working Height 125mm
Tilting spindle moulder (optional) 90 ÷ 45°
Max. diameter of tool lowered under table at 90° ø240mm
Motor Power at 50 Hz (S6-40%) 5 kW / 6.6 HP
Motor Power at 60 Hz (S6-40%) 6 KW / 8 HP
  • Flexibility: The spindle moulder fence with three linear movements and mechanical numeric readout, allows easy machine set-ups without need for any tests, the first workpiece is already perfect!
  • The carriage with prismatic guideways and steel ball bearings allows the machine to be used for tenoning and profiling large sized parts.
  • Sturdiness: Cast iron spindle moulder with heavy structure, spindle moulder tilting device on 2 very strong precise "dove-tails" available on request.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • CASADEI

  • Product Code:

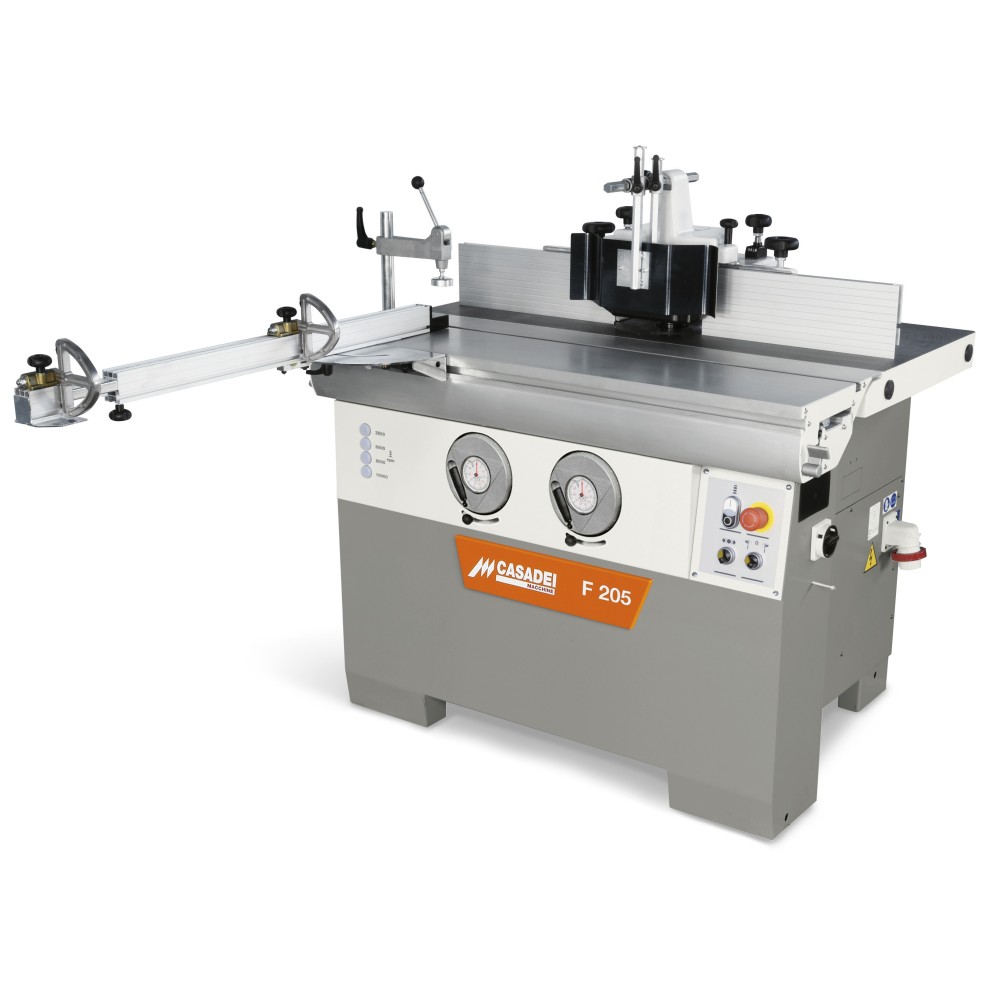

  • F-205 The F 205 spindle moulders are very sturdy machines with an excellent construction quality.



Download

Wood Working Machinery Category File.pdf [4.26MB]
