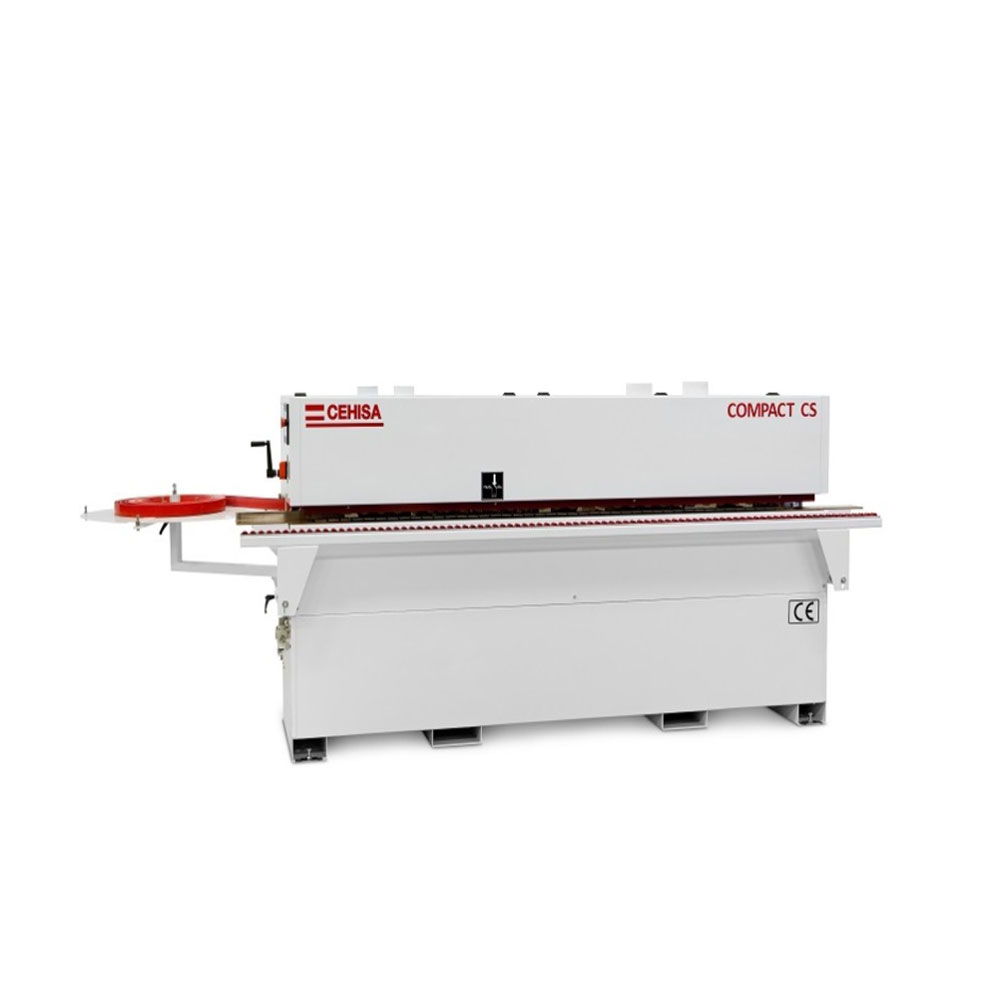

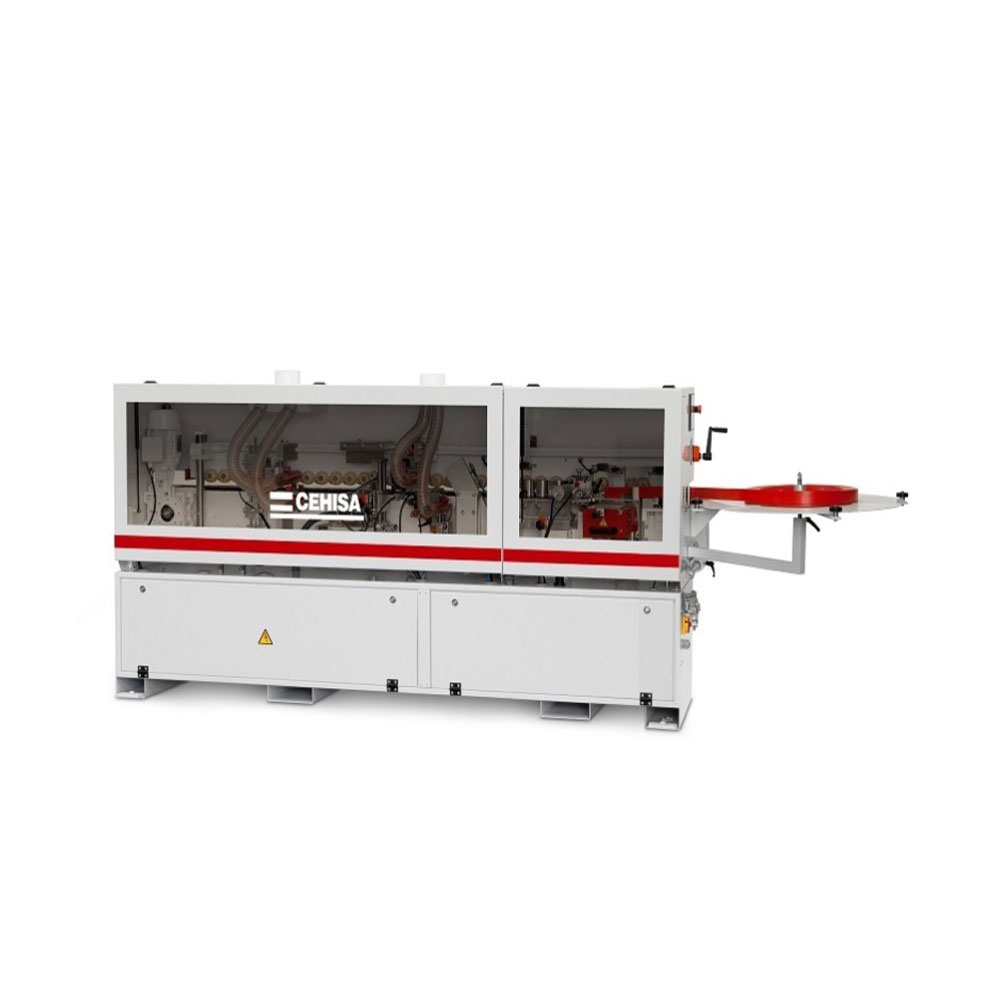

EDGEBAND COMPACT CS

Max/Min. Thickness of the panel 8 - 60 mm
Max/Min. Thickness of edgebanding 0,4 - 3 mm
Solid wood strips 5 mm (manual feed)
Minimum length of the panel 120 mm
Minimum width of the panel 75 mm (OPTIONAL 60mm)
Tooling speed 12000 rpm
Drag Chain speed 8 m/mi (5,5 m/mi with corner rounding)
Air pressure required 6-7 bar
Total electrical output 5,09 kw
Dimensions 3125 x1000x1310
Net weight 850 kg
  • The COMPACT CS edgebander in addition to the implementation of more powerful operating groups, a drag chain speed of 8 m/min, the possibilty to work 3mm thick edgebands, 60mm panels thick and up to 5mm solid wood strips, it adds the corner rounding group disegned to round the 4 corners of the panel edged with 2mm PVC / ABS band on up to 60mm thick panels in order to achieve its complete finishing.
  • Panels: Particle board, plywood, MDF... from 8 to 60mm thick.
  • Edges: Melamine, PVC, ABS, PP, wood, formica, acrylic... 0,4 to 3mm in rolls and up to 5mm in solid wood strips.
  • Adhesives: Hot melt EVA and PUR (optional).

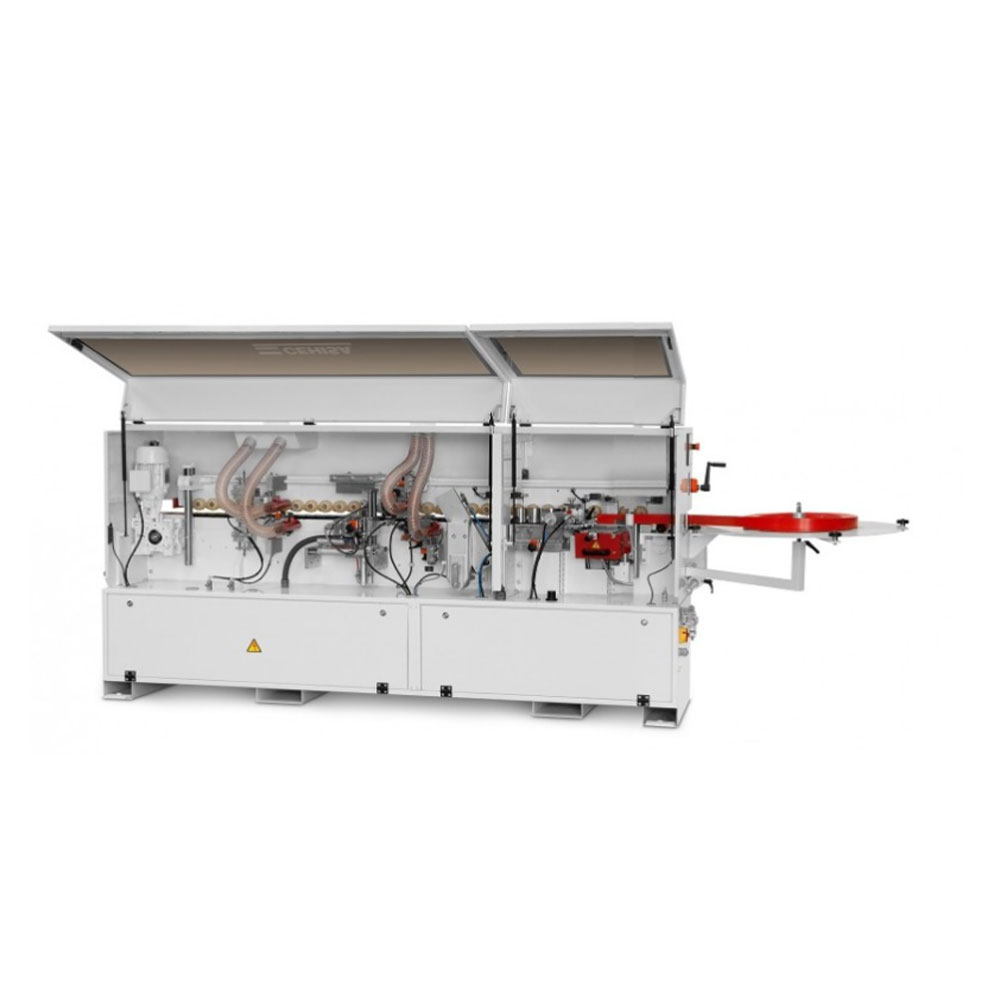

  • Equipment: High frecuency motors controlled by independent electronic inverters, gluepot, end trim, top & bottom trim, corner rounding and PLC controlled by a colour LCD touch screen.
  • Optional: DUOMELT, hot air blower, non-stick spray, cleaning agent spray, nesting, cabin lights..
