EDGEBAND FLEXY C

Panel height min/max 8 - 50 mm
Thickness of edgebanding min/max 0,4 - 2 mm
Mín. panel length, mm 120 mm
Mín. panel width, mm 75 mm (65 mm opcional)
Tooling speed 12000 rpm
Working speed 5,5 m/mi
Air pressure required 6-7 bar
Total electrical output 4,29 kw
Dimensions 2800x1200x1200 mm
Net Weight 590 kg

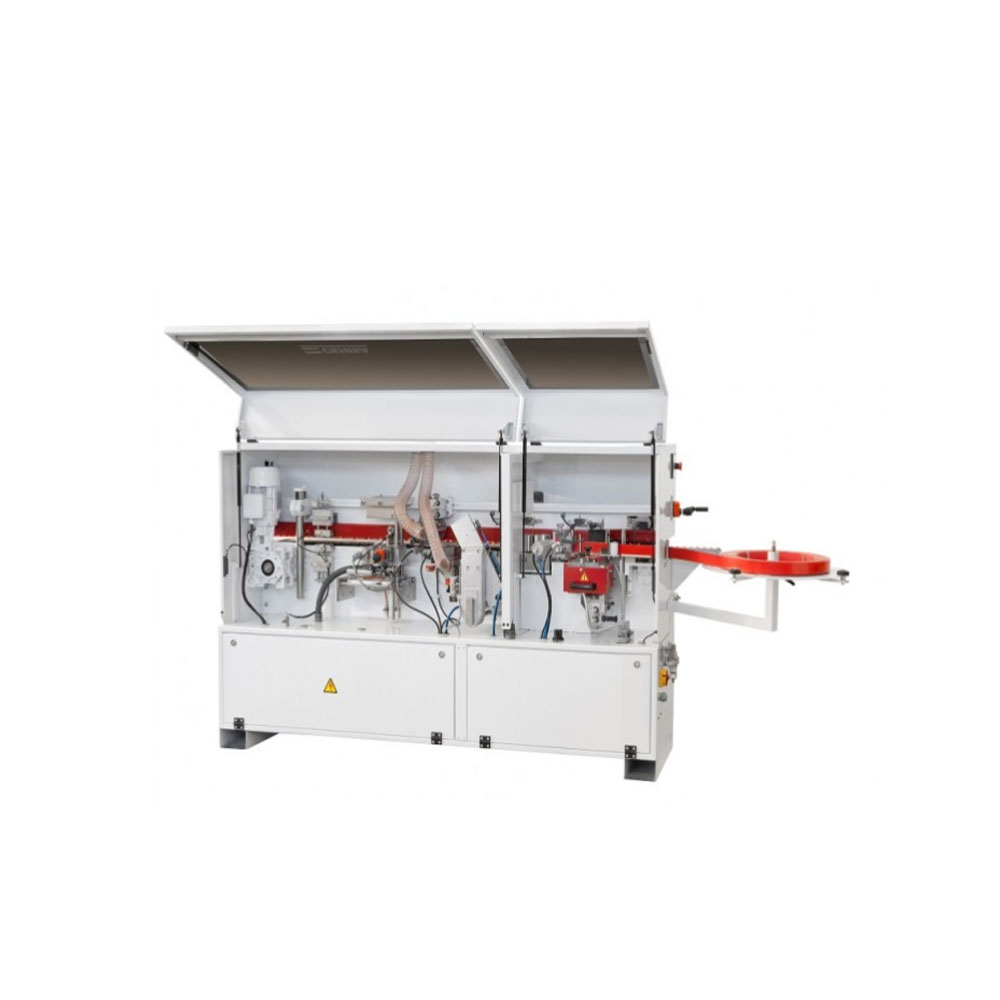

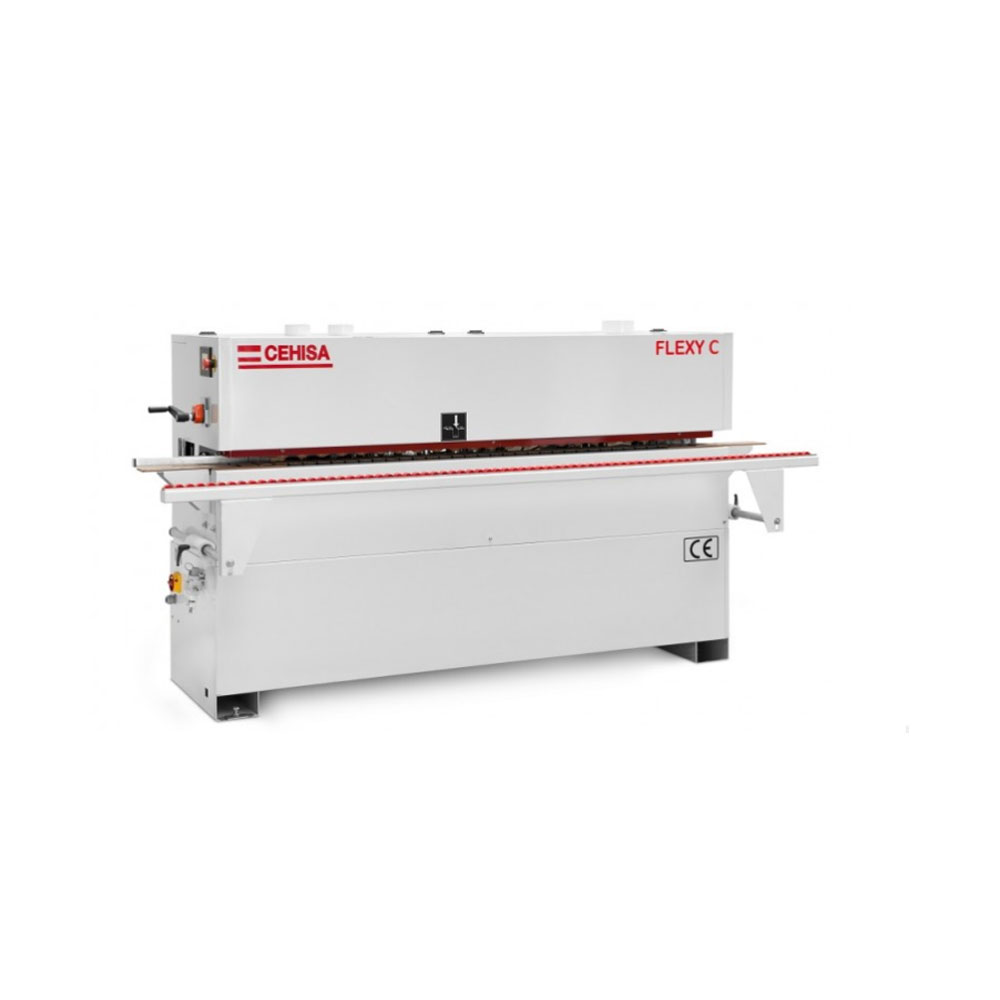

  • The FLEXY C edgebander in addition to the full cabin and the two sawblades end-trim, it adds the corner rounding group disegned to round the 4 corners of the panel edged with 2mm PVC / ABS band in order to achieve its complete finishing.
  • Panels: Particle board, plywood, MDF... from 8 to 50mm thick.
  • Edges: Melamine, PVC, ABS, PP, wood, formica, acrylic... 0,4 to 2mm in rolls.
  • Adhesives: Hot melt EVA and PUR (optional).
  • Equipment: High frecuency motors controlled by independent electronic inverters, gluepot, end trim, top & bottom trim, corner rounding and PLC controlled by a colour LCD touch screen.
  • All versions of this series allow the installation of buffing units and glue scraper as optional groups on the end of the machine.
