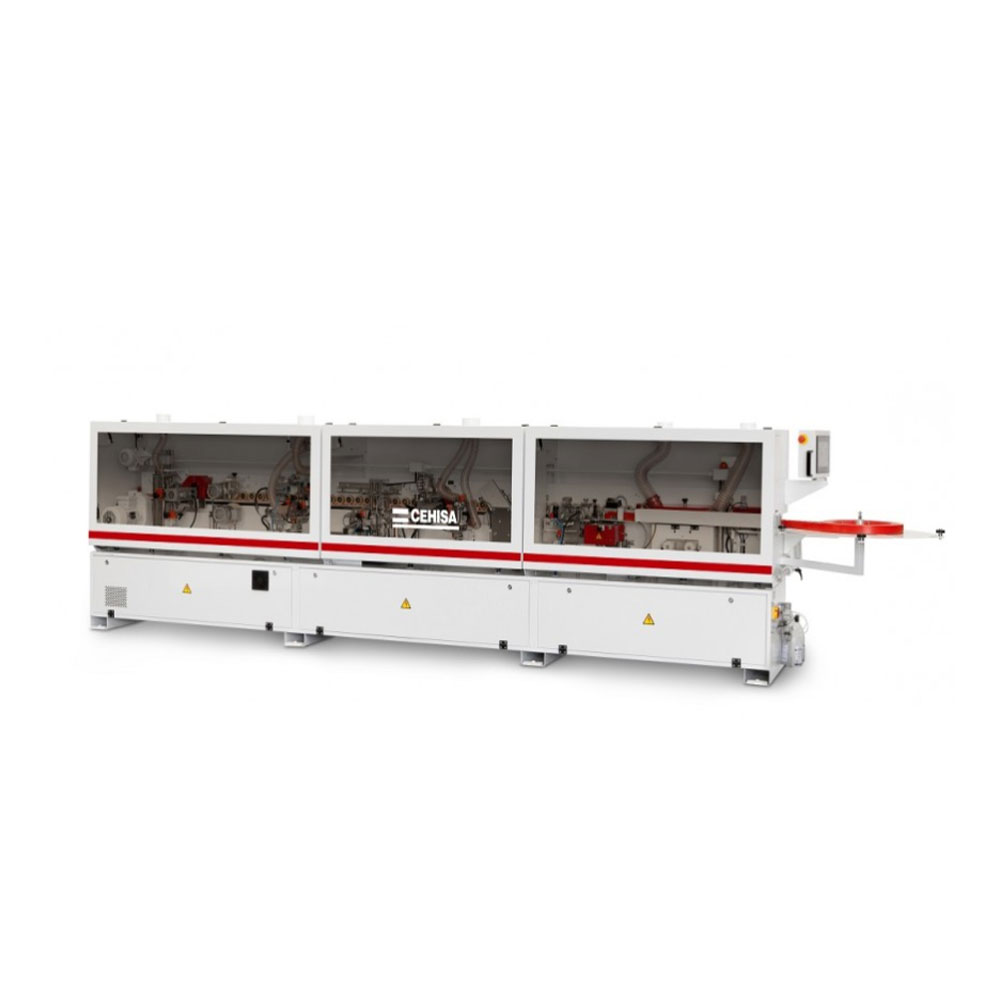

EDGEBAND PRO 13

  • EDGEBAND PRO 13
Max/Min. Thickness of the panel 8 - 60 mm
10 - 60 mm with corner rounding
Max/Min. Thickness of edgebanding 0,4 - 3 mm
Solid wood strips 8 mm (manual feed)
Optional automatic feed
Minimum length of the panel 120 mm
Minimum width of the panel 75 mm (OPTIONAL 60mm)
Tooling speed 12000 rpm
Drag Chain speed 14 m/mi (9 m/mi with corner rounding)
Air pressure required 6-7 bar
Total electrical output 15 kw
Dimensions 5424x680x1475
Net weight 1665 kg
  • The PRO is the "high end" of the mind industrial range of edge bander, meeting the latest developments in panels-edges-adhesives-finishing processes.
  • Boards: MCF, MDF, XPS, foam board, from, 8 to 60mm thick.
  • Edges: Impregnate paper, PVC, ABS, PP, acrylic, natural veneer, aluminium, with high gloss and 3D de 0,4 to 3,0mm in rolls and up to 8mm in solid wood strips.
  • Adhesives: Hotmelt EVA and Pur resins based (optional).
  • Equipment: Inverter controlled HF motors, pre-milling, gluepot, end trim, top & bottom trim, corner rounding, grooving, PLC, touch screen colour LCD.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • Cehisa

  • Product Code:
  • PRO 13
    • The PRO is the "high end" of the mind industrial range of edge bander, meeting the latest developments in panels-edges-adhesives-finishing processes.
