| Max/Min. Thickness of the panel | 8 - 60 mm |
| Max/Min. Thickness of edgebanding | 0,4 - 3 mm |
| Solid wood strips 8 mm (manual feed) | |
| Optional automatic feed | |
| Minimum length of the panel | 120 mm |
| Minimum width of the panel | 75 mm (OPTIONAL 60mm) |
| Tooling speed | 12000 rpm |
| Drag Chain speed | 14m/mi (9m/mi with corner rounding) |
| Air pressure required | 6-7 bar |
| Total electrical output | 9,2 kw |
| Dimensions | 3769x680x1475 |
| Net weight | 950 kg |

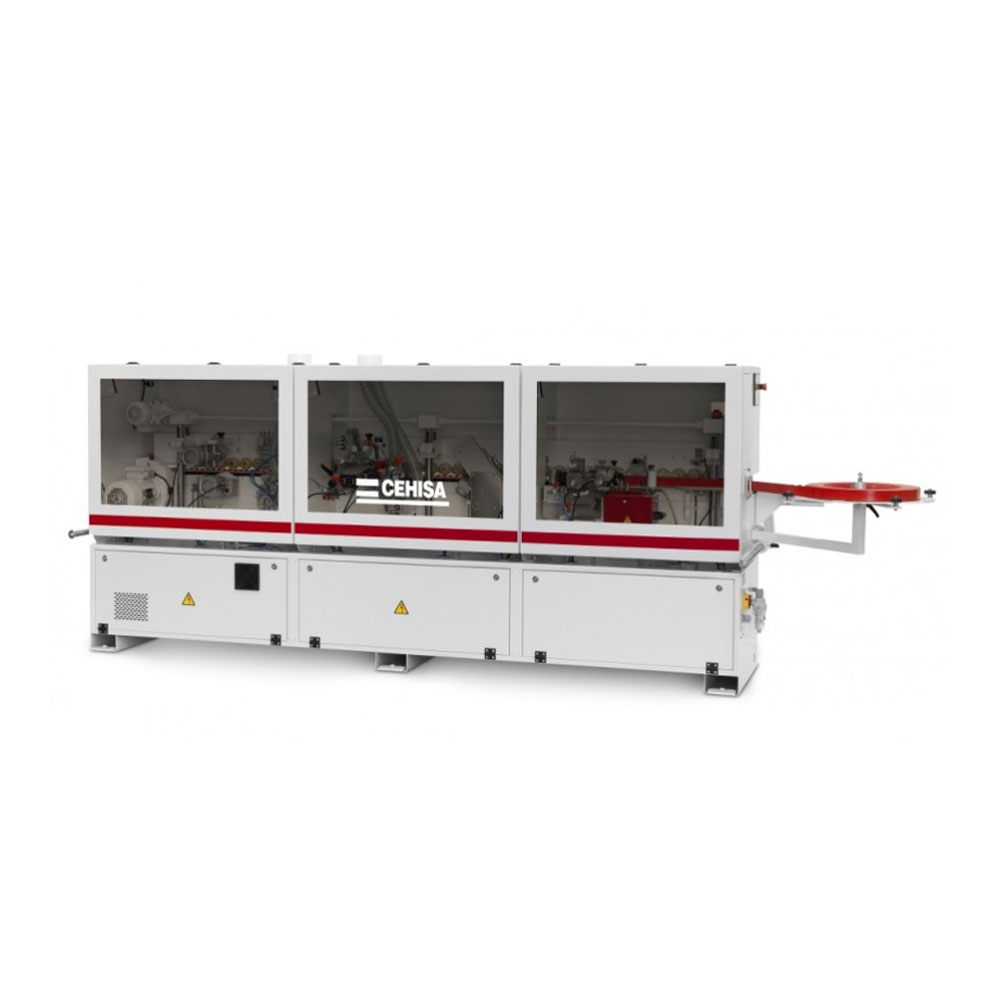

- The PRO is the "high end" of the mind industrial range of edge bander, meeting the latest developments in panels-edges-adhesives-finishing processes.
- Boards: MCF, MDF, XPS, foam board, from, 8 to 60mm thick.
- Edges: Impregnate paper, PVC, ABS, PP, acrylic, natural veneer, aluminium, with high gloss and 3D de 0,4 to 3,0mm in rolls and up to 8mm in solid wood strips.
- Adhesives: Hotmelt EVA and Pur resins based (optional).
- Equipment: Inverter controlled HF motors, gluepot end trim, top & bottom trim, PLC, touch screen colour LCD.
- Brand: Cehisa
- Product Code: PRO 9
- The PRO is the "high end" of the mind industrial range of edge bander, meeting the latest developments in panels-edges-adhesives-finishing processes.
