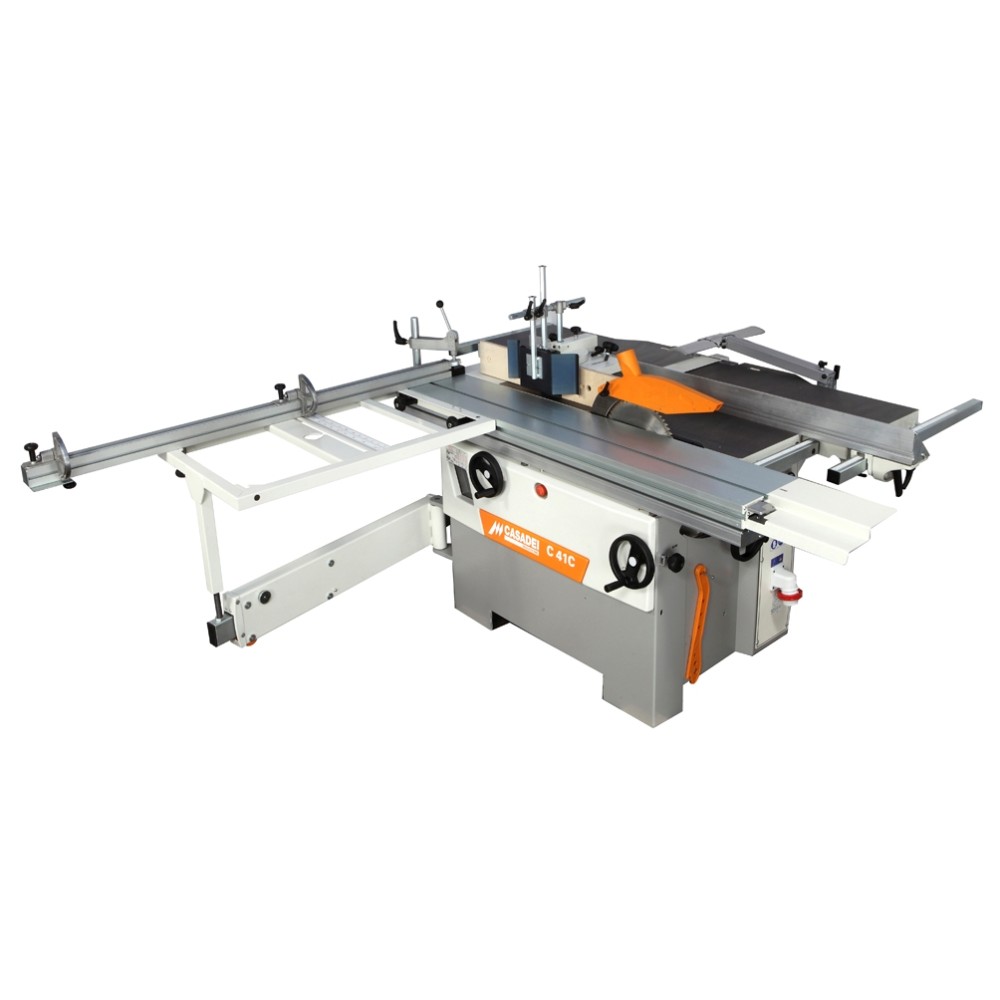

CIRCULAR SAW C 41 C

  • CIRCULAR SAW C 41 C
SURFACE PLANER
- Maximum working width 410 mm
Total length of surface tables 1800 mm
THICKNESSING PLANER
- Maximun working width 410 mm
- Min./max. working height 3,5/230 mm
- Feed speed on thicknesser 7 m/min
CIRCULAR SAW
- Max. squaring stroke with crosscutting frame 1660 mm
Max. diameter of saw blade with installed scoring unit 315 mm
Cutting width on rip fence 900 mm
SPINDLE MOULDER
Max. spindle working height 100 mm (70 ¾")
Spindle moulder speed at 50 Hz rpm 3500 / 7000 / 10000
MAIN TECHNICAL DATA
Motor power (no. 3 motors) at 50/60 Hz (HP) (S6-40%) 5 kW (6,6) / 6 kW (8)
  • Flexibility: the wide range of options available make the C 30 C and C41C combined machines suitable for any machining type.
  • Standard equipment includes 3 powerful independent motors, tilting saw blade, telescopic supporting arm and large dimensioned crosscutting frame to support large panels or heavy solid wood components.
  • Quick machining changeover.
  • Sturdiness: thick, monolithic steel frame guarantees great construction stability.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • CASADEI

  • Product Code:
  • C-41-C The universal combined machine models C 30 C - C 41 C are modern multi-function machines designed with the construction methods and technologies of professional machines.
