WORKING
THICKNESS MIN-MAX [MM]: |
mm 3÷170 | ||||||
| ABRASIVE BELTS DIMENSIONS [MM]: | 1.120/1.320x2.200 oppure 2.620 | ||||||
| STANDARD MAIN MOTOR POWER [KW (HP)]: | 11 (15) | ||||||
|
|
|||||||
| Unità | LxPxH | Kg | m^3 / h(25) | Ø Aspirazione | Versioni | ||
| 1 | 185x190x233 | 2120/2150 | 2290 | 180mm | 1R - 1K | ||
| 2 | 185x190x233 | 2420/2450/2550 | 4580 | 180mm | 2RR - 2RK - 2KK | ||
| 3 | 185x220x233 | 2690/2720/2820 | 6870 | 180mm | 3RRR - 3RRK - 3RKK (3WRK - 3TRK - 4RRRR) | ||
- Useful working width: mm 1100-1300
- Feed variable speeds: m/min 3,7-18
- Rollers diameter: mm 190/220
- Abrasive belt oscillation by electronic photocell
- Automatic star delta starters
- Automatic feed belt centering device
- Pad working pressure self-adjustment
- ON-OFF selector switch for rollers and pads
- Check control; self-diagnostic alarm control
Versions:
- 2RR - Two working units, roller & roller
- 2RK - Two working units, roller & combi
- 2RT - Two working units, roller & Roller Pad
- 3RRR - Three working units, roller, roller & roller
- 3RRK - Three working units, roller, roller & combi
- 3RRT - Three working units, roller, roller & pad
Main options available:
Electronic sectioned pad 43 segments type "CP" Constant pressure
New Touch-screen key board 7" wiht high resolution graphic, improved and simplyfied
Rollers diameter mm 220
Vacuum table devices
Satining brushing units
Independent motors
Main motors increased power to 26kW (35hp) each
Self-floating rectified presser bars (shoes)

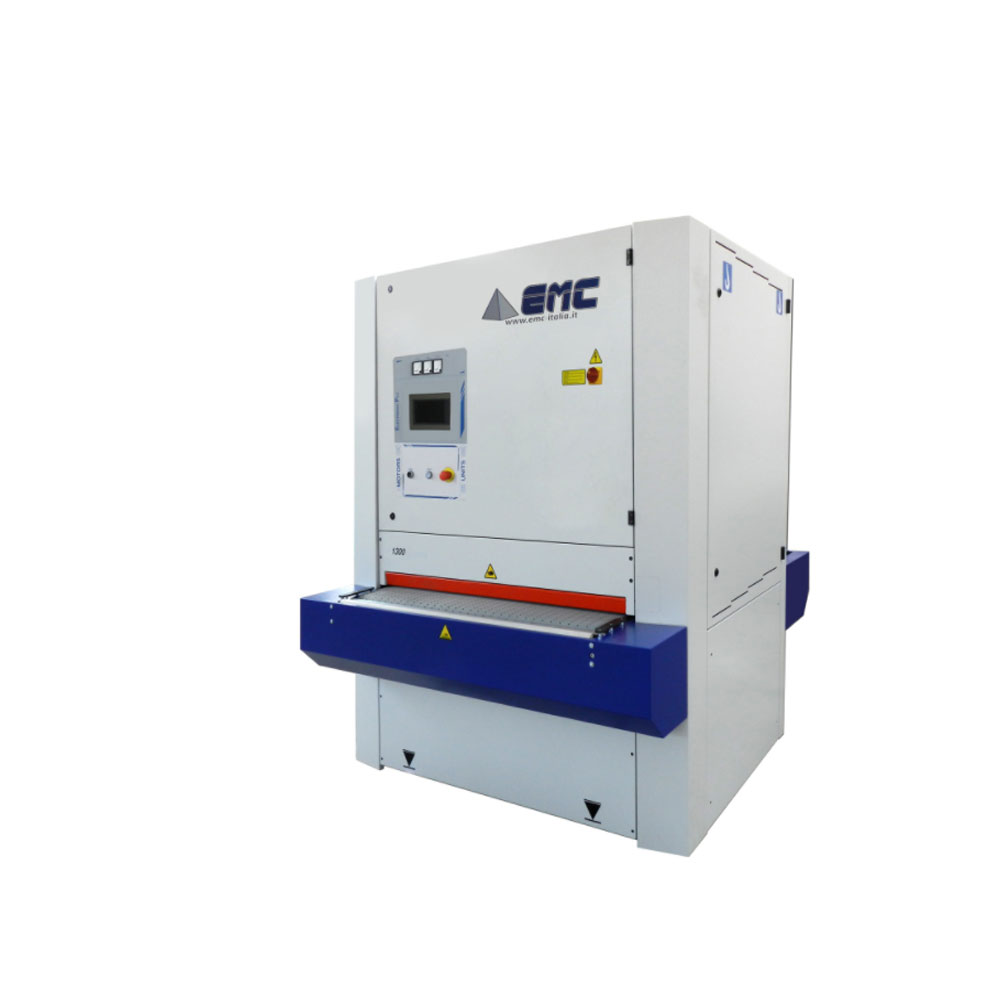

- Brand: EMC
- Product Code: 1100-1300
