Clylinder stroke |
700mm |
|
Adjustable feeding of the sawing carricage |
4-10 mt/min |
|
Blades tilting range by means of hand wheel |
+/- 45° |
|
Tilting fence on the working bench |
45°/90°/-45° |
|
Max. profile hight |
155mm |
|
Max. profile width |
250 mm |
|
Max. depth of cut in horizontal |
135 mm |
|
Max. depth of cut in vertical |
160 mm |
|
Motors Speed |
2800 rpm. |
|
self braking motors Sawblade's bore |
Ø 30 mm |
|
Motor Power |
2,2 KW (3 HP) - |
|
Working pressure |
7 bar |
|
Overall dimensions |
110x215x176 cm |
|
Weight |
650 kg |
- Machine totally enclosed
- Sliding of the sawing carriage by menas of ricirculating balls bearings on rectified and temperated guides
- Possibility to preform cuts at any intermediate degrees
-
Adjustable working bench in terms of hight and depth by means of hand wheels

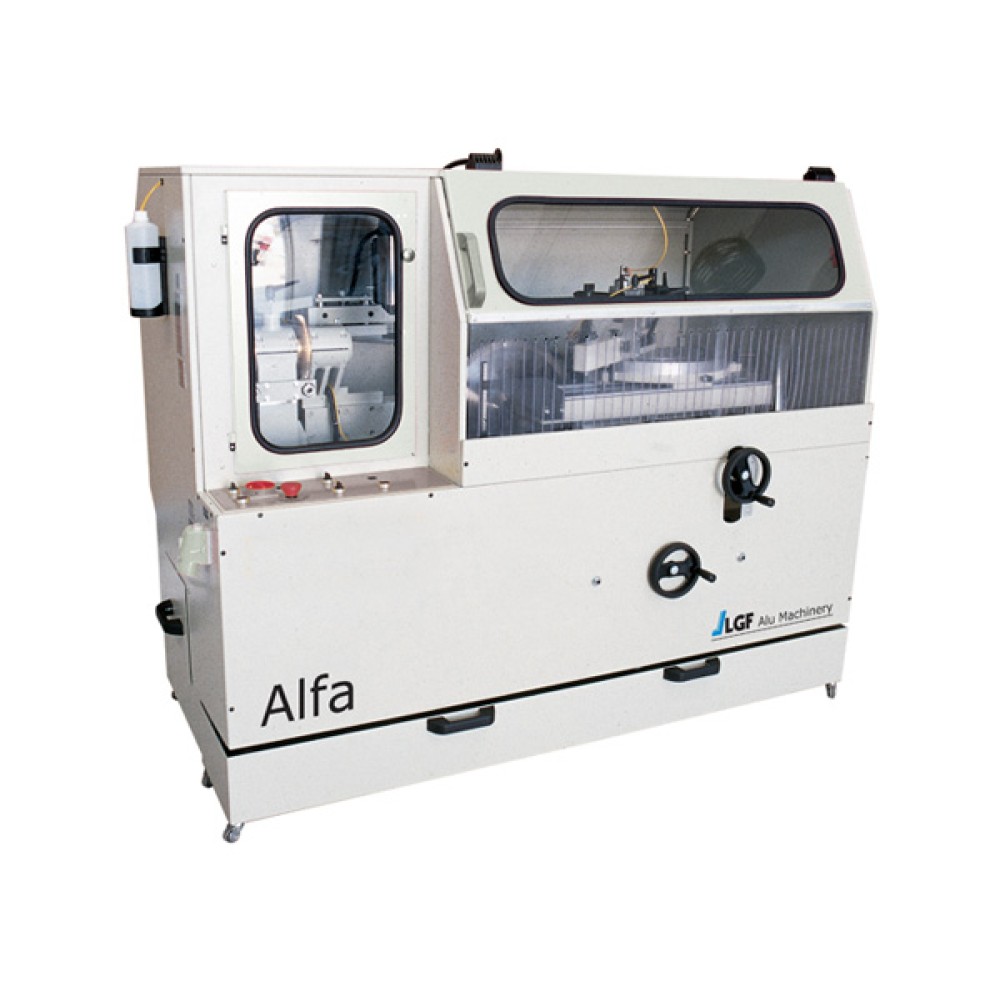

- Brand: LGF
- Product Code: ALFA
- Machine totally enclosed
- Sliding of the sawing carriage by menas of recirculating balls bearings on rectified and temperated guides
