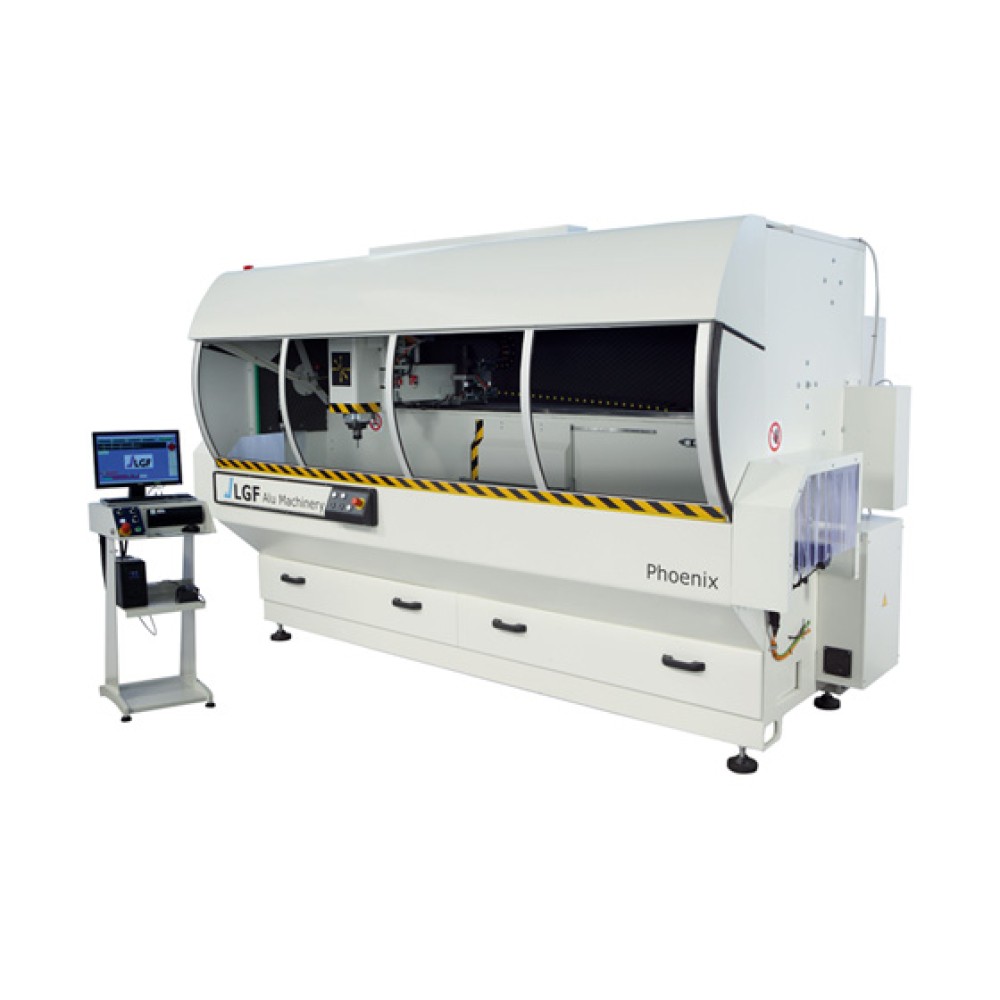

PHOENIX

  • PHOENIX

controlled axis

4

adjustable clamps with manual traversing

4

electro-spindle Power with cone type

5,5 KW (7,5 HP)

ISO

30

Free Speed

12000 rpm.

X axis lengths

2500/3000/4000 mm

Y axis stroke

400 mm

Z axis stroke

300 mm

Working tolerance

+/- 0,2 mm

X axis travelling speed

60 mt/min.

Y axis travelling speed

20 mt/min.

Z axis travelling speed

20 mt/min.

Working pressure

7 bar

Overall dimensions

378/428/633x194x213 cm

Weight

2085/2500/3100 Kg+B29:C43B46B30:C43B24:C43B30:C43

  • Solid electro-welded steel construction
  • Axis displacement on linear guides
  • Rotation of the work bench at 90°, 0°, -90°
  • Industrial PC control system with LGF dedicated software
  • Windows Interface
  • Automatic tools changer with 7 lodgings
  • Possibility to work bars longer than the machine

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • LGF

  • Product Code:
  • PHOENIX
    • Solid electro-welded steel construction
    • Axis displacement on linear guides
    • Rotation of the work bench at 90°, 0°, -90°
    • Industrial PC control system with LGF dedicated software
    • Windows Interface
