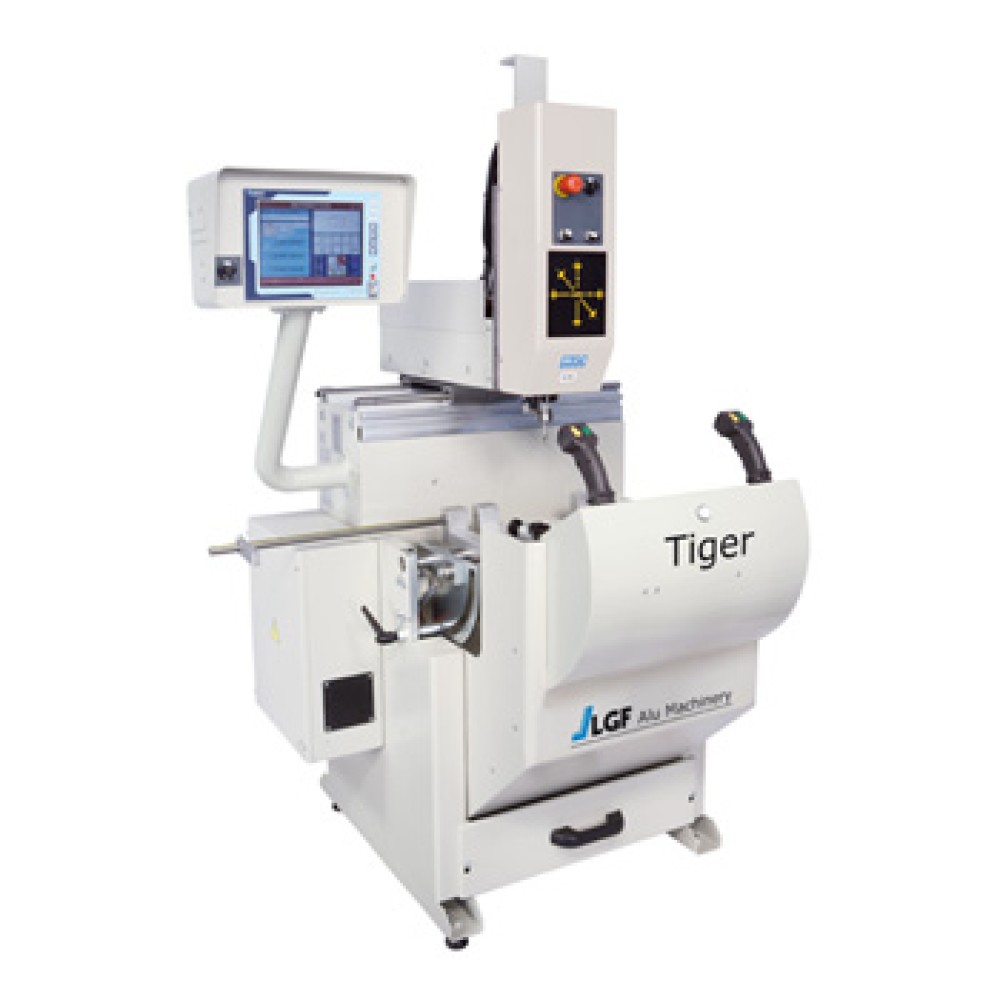

TIGER

  • TIGER

Motor Power

1,5 Kw (2 HP)

No of Phases

3 phase motor

Working capacity

470x200x190 mm (router bit L=50)

Working pressure

7 bar

Overall dimensions

115x135x186 cm

Weight

321 Kg

  • Particularly suitable for aluminum, light alloy, PVC and stainless steel profiles
  • Machine equipped with CNC control unit c/w 10" colour monitor and touch screen system
  • LGF software interface, intuitive and user friendly based on presetted macro
  • Possibility to append different programs in one
  • USB port to save/upload programs archives
  • Console equipped with double Joy-stick for desplacement of the controlled axis "X" - "Y" and "Z" (descend)
  • Pneumatic displacement of "Z" axis, with rising of the head (end of working cycle) by means of button on the console
  • Equipped with rotating bench and pneumatic displacement, by means of selector at 0° and -90°
  • Possibility to perform operations at any intermediate degrees with manual positioning and mechanical end stop on goniometer
  • Possibility to adjust spindle revolitions according to the type of material used
  • Possibility to vary the working speed during program execution

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • LGF

  • Product Code:
  • TIGER
    • Particularly suitable for aluminum, light alloy, PVC and stainless steel profiles
    • Machine equipped with CNC control unit c/w 10" colour monitor and touch screen system
    • LGF software interface, intuitive and user-friendly based on presetted macro
  • AED23,000.00
  • AED15,000.00
