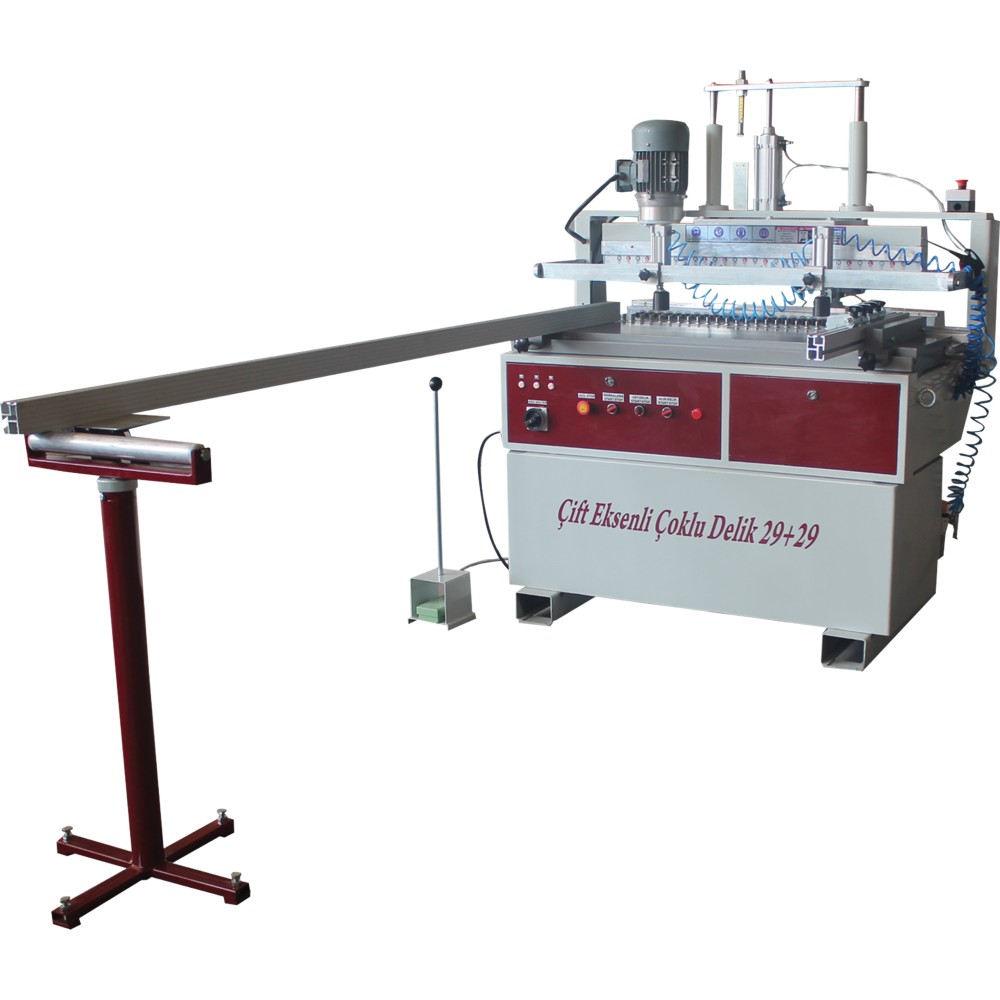

MULTI HEAD BORING SYSTEM ÇDM 29+29

  • MULTI HEAD BORING SYSTEM ÇDM 29+29

Table Size

1200 mm * 380mm

Aluminium Tray Length

700 mm / 2300 mm

Distance From Drills

32 mm * 29 = 896 mm

Drilling Lenght Vertical and Horizontal

100 mm / 125 mm

Drilling Vertical and Horizontal

32*29 ?anzuman

Fixed Press Pistons

2 adet hareketli

Voltage

380 - 400 V / 50-60 Hz

Power

3 Kw

Currnet

6 Amper

Motor Power

1,5 kW / 3000 devir - dakika

Revolute Per Minute

3000 devir / dakika

Air Pressure

5 - 7 ATU

Tray Height

850 mm

Transportation Dimension

1.350*1.000*1.650 mm

Weight ± 15 Kg

485 Kg

  • Cutter Drill Centers Between 32 Mm.
  • The Mdf (Material) Automatically Fixed By Pneumatically.
  • With Plc Unit, It Can Boring Horizontal And Vertical Simultaneosly.
  • You Can Boring Sensitevely Many Hole Which Diameter As You Want.
  • You Can Open Hinge Connection.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • UNIVER

  • Product Code:
  • CDM-29+29
    • Itt Has Gearbox System Which Have 2 Boring Head.
    • All Head Have 29 Drill.
