CATALOG NUMBER |
MODEL NO. | DESCRIPTION | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT | |
| LB. | KG | ||||||||||
| 41855 | 300 | 300PD, Tool Only, 115V 25-60Hz 38RPM | 38 | 115 | 50 - 60 | 1 | Universal | 15 | 1/2 HP | 94 | 43.0 |
| 41860 | 300 | Power Drive Only | 38 | 230 | 50 - 60 | 1 | Universal | 8 | 1/2 HP | 94 | 43.0 |
| 75075 | 300 | 300 Power Drive Only | 57 | 115 | 50 - 60 | 1 | Universal | 18 | 1/2 HP | 94 | 43.0 |
| 75435 | 300 | 300 Power Drive Only | 38 | 230 | 50 - 60 | 1 | Universal | 8 | 1/2 HP | 94 | 43.0 |
|
ACCESSORIES |
|||||||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | ||||||||
| LB. | KG | ||||||||||
| 10883 | 418 | Oiler with One Gallon Premium Thread Cutting Oil | 20 1/2 | 9.40 | |||||||
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" - 2" NPT | 10 1/2 | 4.80 | |||||||
| 97065 | 811A | 811A 1/8” - 2” NPT Die Head, Self-Opening, RH | 13 | 5.70 | |||||||
| 97075 | 815A | 815A 1/8" - 2" NPT Die Head, Self-Opening, RH | 13 | 5.90 | |||||||
| 42360 | 1206 | 1206 Stand | 31 | 14.10 | |||||||
| 42365 | 341 | 341 Reamer Assy | 6 3/4 | 3.20 | |||||||
| 42370 | 360 | 360 Cutter Assy | 8 1/2 | 3.90 | |||||||
| 42385 | 312 | 312 Lever Carriage Feed Kit | 3 | 1.40 | |||||||
| 42575 | 32 | #32 Transport Cart | 14 1/4 | 6.50 | |||||||
| 46660 | E-863 | E-863 Reamer Cone (L.H. & R.H.) | 7 | 3.20 | |||||||
| 68815 | 311 | 311 Carriage with Lever | 15 | 6.80 | |||||||
| 97365 | Jaw Insert Set f/ PL Coated Pipe (Pack of 3) | 1/2 | 0.20 | ||||||||
| 22638 | 1452 | 300PD Clip-On Tool Tray | 6 | 2.70 | |||||||
| 97070 | 811A | 811A 1/8” - 2” BSPT Die Head, Self-Opening, RH | 12 1/2 | 5.70 | |||||||
| 97080 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | 13 | 5.90 | |||||||
|
FREQUENTLY
PURCHASED DIES AND DIE HEADS
|
|||||||||||
|
CATALOG NUMBER |
DESCRIPTION | ||||||||||
| 36890 | 1/2" NPT 00-R Die Head | ||||||||||
| 36895 | 3/4" NPT 00-R Die Head | ||||||||||
| 36900 | 1" NPT 00-R Die Head | ||||||||||
| 37390 | 1/2" NPT 12-R Die Head | ||||||||||
| 37395 | 3/4" NPT 12-R Die Head | ||||||||||
| 37400 | 1" NPT 12-R Die Head | ||||||||||
| 37405 | 1-1/4" NPT 12-R Die Head | ||||||||||
| 37410 | 1-1/2" NPT 12-R Die Head | ||||||||||
| 37415 | 2" NPT 12-R Die Head | ||||||||||
| 37490 | 12R 1" NPT HIGH SPEED COMPLETE DIE HEAD | ||||||||||
| 37505 | 12R 2" NPT HIGH SPEED COMPLETE DIE HEAD | ||||||||||
| 37825 | 12R ½” NPT DIES | ||||||||||
| 37830 | 12R 3/4” NPT DIES | ||||||||||
| 37835 | 12R 1” NPT DIES | ||||||||||
| 37840 | 12R 1-1/4” NPT DIES | ||||||||||
| 37845 | 12R 1-1/2” NPT DIES | ||||||||||
| 37850 | 12R 2” NPT DIES | ||||||||||
| 37870 | 12R ½” NPT HIGH SPEED DIES | ||||||||||
| 37875 | 12R 3/4” HIGH SPEED NPT DIES | ||||||||||
| 37880 | 12R 1” NPT HIGH SPEED DIES | ||||||||||
| 37885 | 12R 1-1/4” HIGH SPEED NPT DIES | ||||||||||
| 37890 | 12R 1-1/2” HIGH SPEED NPT DIES | ||||||||||
| 37895 | 12R 2” NPT HIGH SPEED DIES | ||||||||||

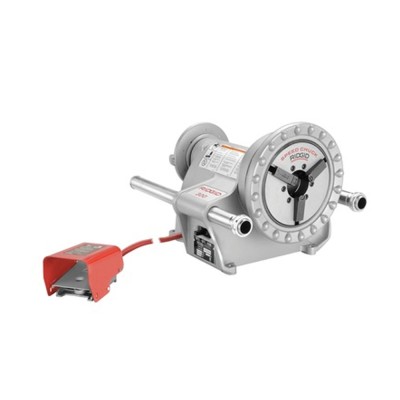

- RIDGID® speed chuck.
- Reversible 1/2 HP universal motor.
- Recessed On/Off/Reverse switch.
- Convert a 300 Power Drive to a portable threading machine.
- Ideal for use with RIDGID roll groovers.
- Brand: RIDGID
- Product Code: POWER DRIVE 300 ONLY
- Catalog Number: 41855 - 41860 - 75075 - 75435 - 10883
- Convert a 300 Power Drive to a portable threading machine.
