CATALOG NUMBER |
MODEL NO. | DESCRIPTION | TUBE SIZE CAPACITY (ACTUAL O.D.) (IN.) | BEND RADIUS (IN.) | WEIGHT | |
| LB. | KG | |||||
| 36117 | 403 | 403 Instrument Bender | 3/16 | 5/8 | 1 1/2 | 0.86 |
| 36122 | 404 | 404 Instrument Bender | 1/4 | 5/8 | 1 1/2 | 0.86 |
| 36092 | 405/408M * | 405/408M Instrument Bender | 5/16 | 15/16 | 2 3/4 | 1.18 |
| 36097 | 406 | 406 Instrument Bender | 3/8 | 15/16 | 2 3/4 | 1.18 |
| 36132 | 408 | 408 Instrument Bender | 1/2 | 1 1/2 | 5 1/2 | 2.45 |
|
|
||||||
|
ORDERING
INFORMATION - METRIC
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | TUBE SIZE CAPACITY (ACTUAL O.D.) (MM) | BEND RADIUS (MM) | WEIGHT | |
| LB. | KG | |||||
| 36112 | 406M | 406M Instrument Bender | 6 | 16 | 1 1/2 | 0.68 |
| 36092 | 405/408M * | 405/408M Instrument Bender | 8 | 24 | 2 3/4 | 1.18 |
| 36102 | 410M | 410M Instrument Bender | 10 | 24 | 2 3/4 | 1.18 |
| 36127 | 412M | 412M Instrument Bender | 12 | 38 | 5 1/2 | 2.45 |
- Designed for bending annealed copper, steel and stainless with a wall thickness less than or equal to 0.06" (1.5 mm) to a maximum of 180°.

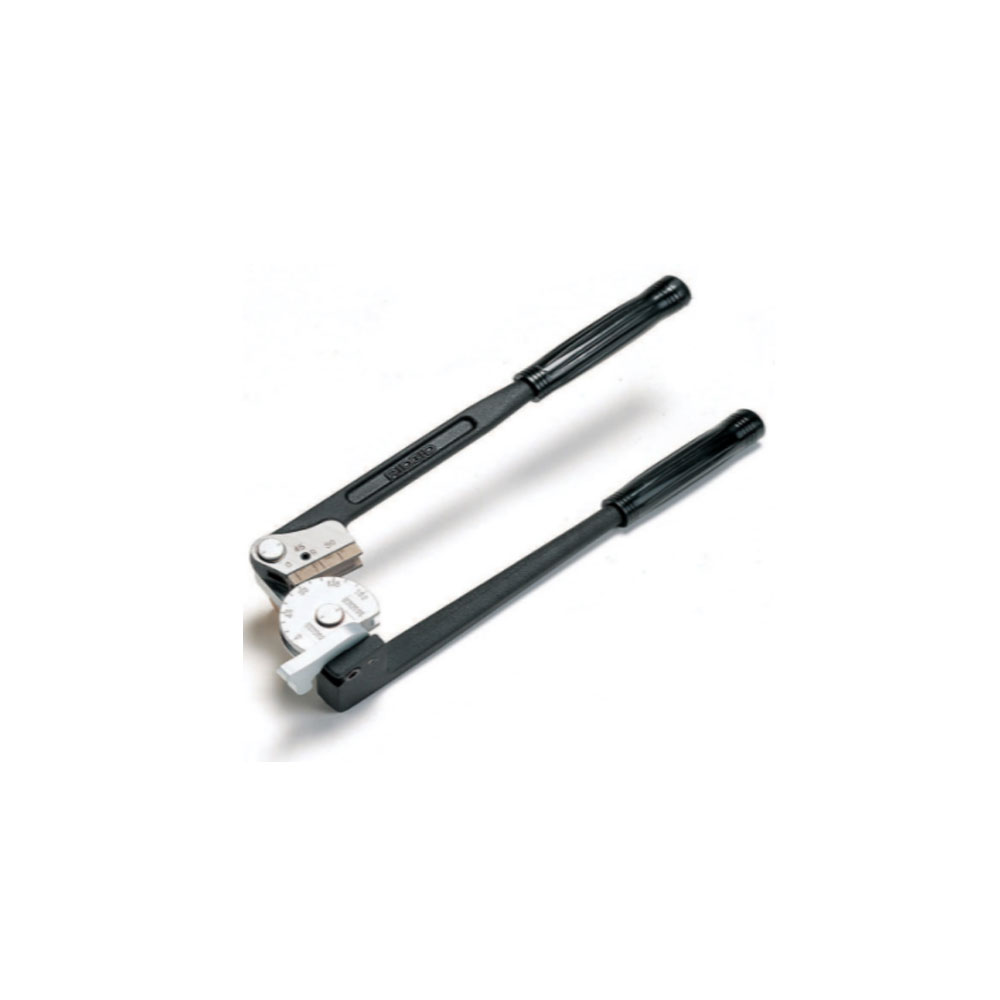

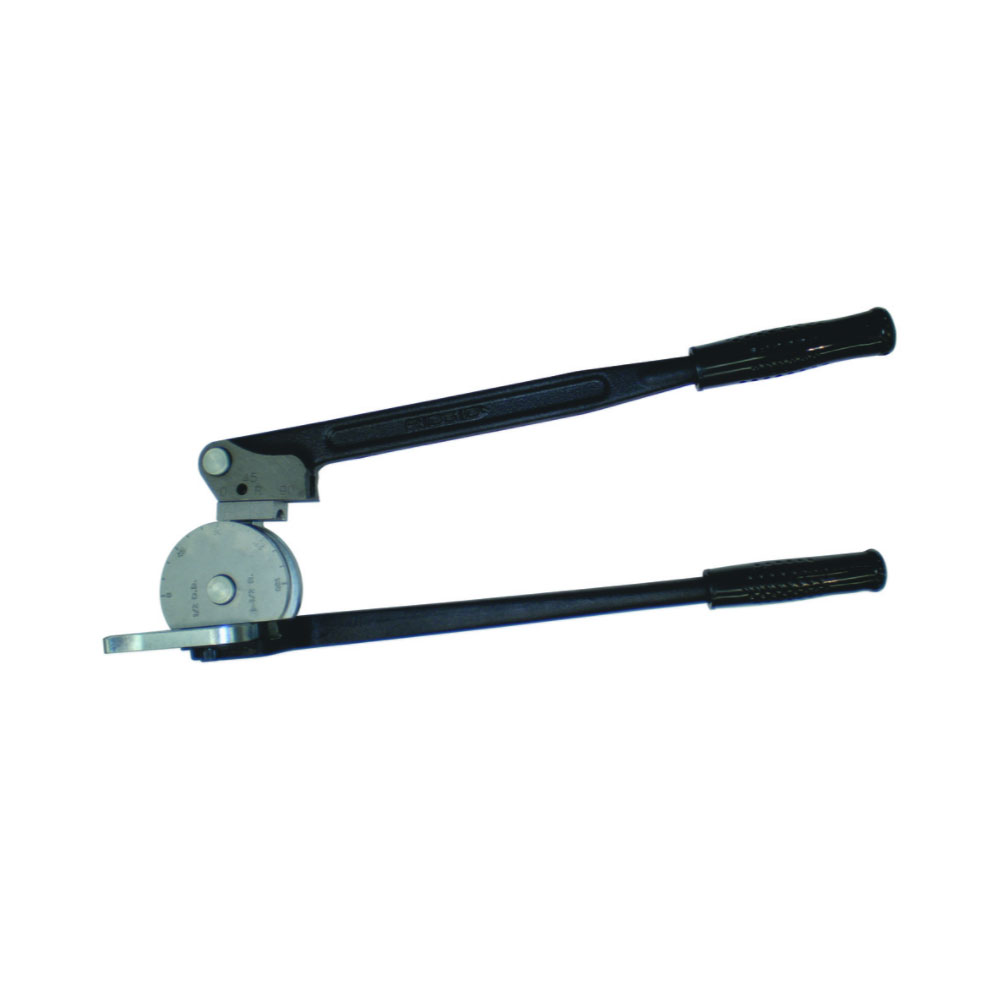

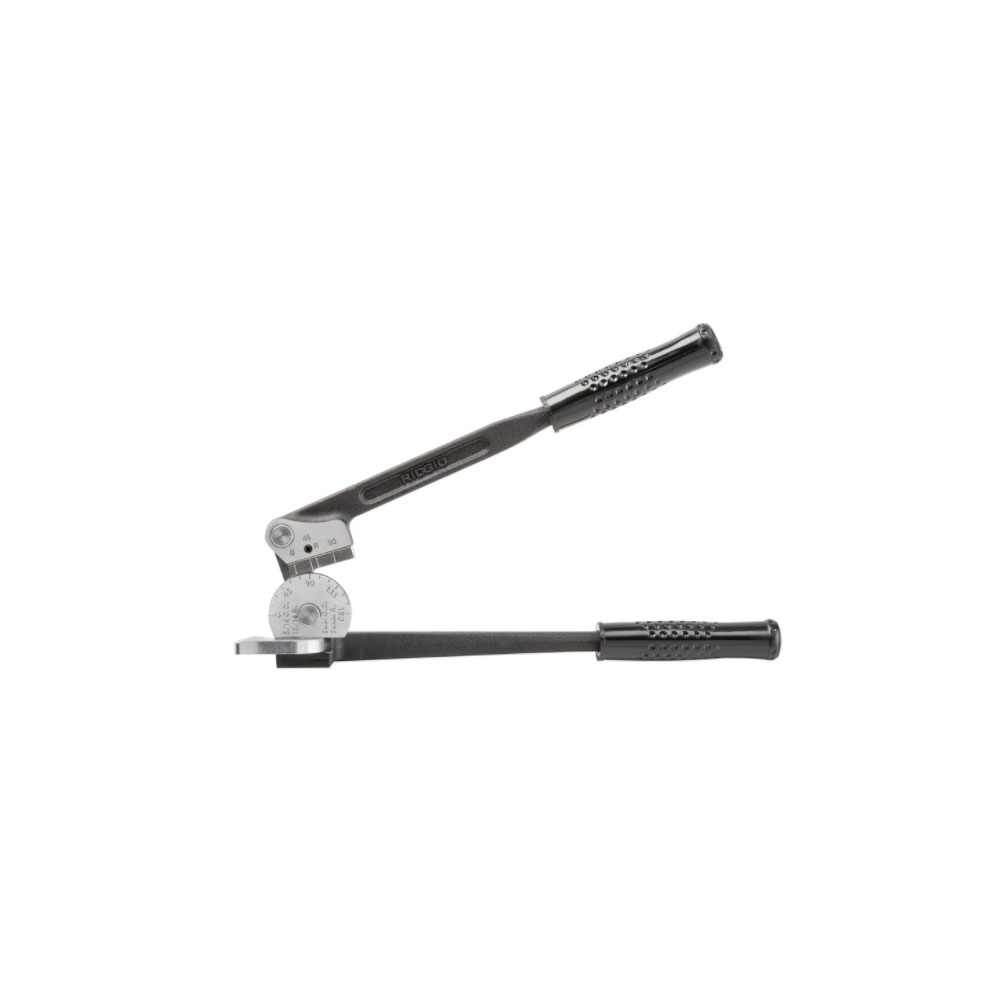

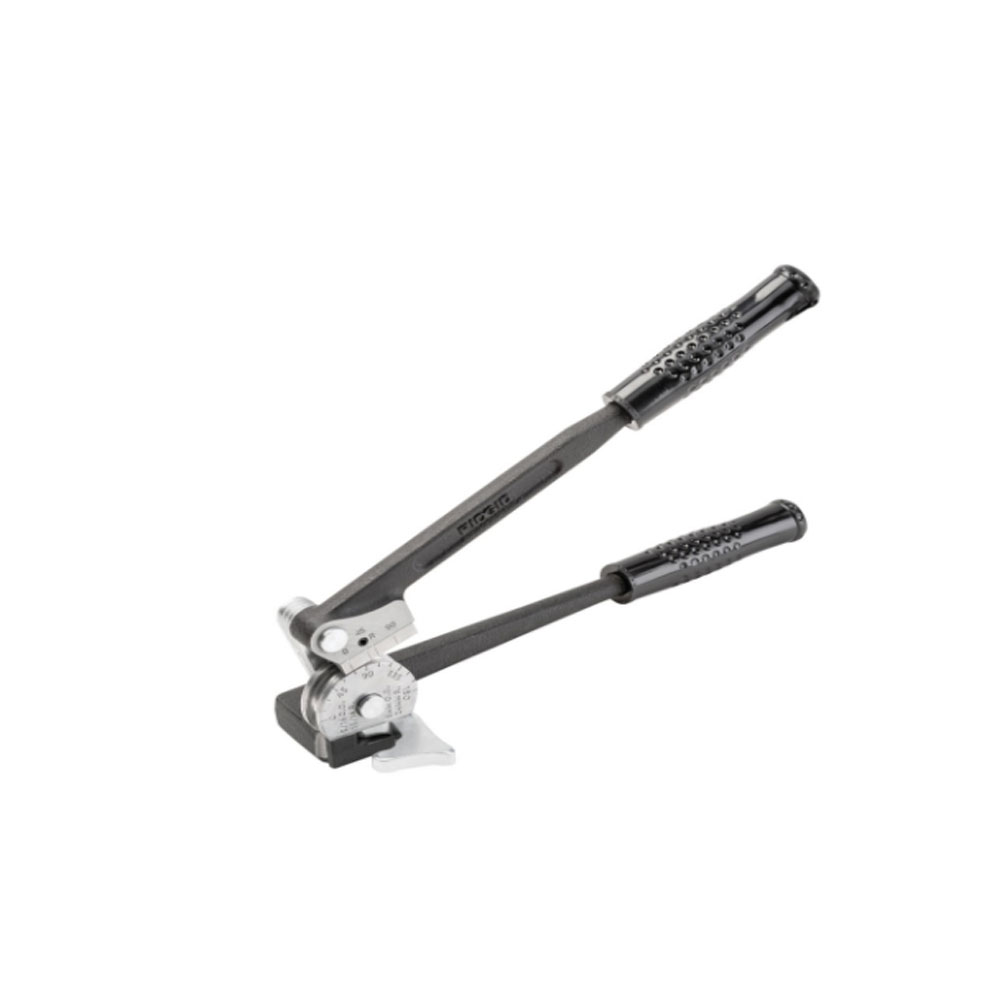

- Offset cushion grip handles for comfort when forming 180° bends. A 90° start angle and unique oil-absorbing shoe minimize bending effort while forming accurate bends.
- Inch and metric sizes.
- Brand: RIDGID
- Product Code: 400 Series Instrument Benders
- Catalog Number: 36117 - 36122
- Designed for bending annealed copper, steel and stainless with a wall thickness less than or equal to 0.06" (1.5 mm) to a maximum of 180°.
