CATALOG NUMBER |
MODEL NO. | DESCRIPTION | TUBE SIZE CAPACITY (ACTUAL O.D.) (IN.) | BEND RADIUS (IN.) | WEIGHT | |
| LB. | KG | |||||
| 38028 | 603 | 603 Heavy-Duty Instrument Bender | 3/16 | 5/8 | 1 3/4 | 0.78 |
| 38033 | 604 | 604 Heavy-Duty Instrument Bender | 1/4 | 5/8 | 1 3/4 | 0.76 |
| 38038 | 605/608M * | 605/608M Heavy-Duty Instrument Bender | 5/16 | 15/16 | 4 | 1.84 |
| 38043 | 606 | 606 Heavy-Duty Instrument Bender | 3/8 | 15/16 | 4 | 1.84 |
| 38048 | 608 | 608 Heavy-Duty Instrument Bender | 1/2 | 1 1/2 | 6 | 2.76 |
|
|
||||||
|
ORDERING
INFORMATION - METRIC
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | TUBE SIZE CAPACITY (ACTUAL O.D.) (MM) | BEND RADIUS (MM) | WEIGHT | |
| LB. | KG | |||||
| 38053 | 606M | 606M Heavy-Duty Instrument Bender | 6 | 16 | 1 3/4 | 0.76 |
| 38038 | 605/608M * | 605/608M Heavy-Duty Instrument Bender | 8 | 24 | 4 | 1.84 |
| 38058 | 610M | 610M Heavy-Duty Instrument Bender | 10 | 24 | 4 | 1.84 |
| 38063 | 612M | 612M Heavy-Duty Instrument Bender | 12 | 38 | 6 | 2.76 |
|
|
||||||

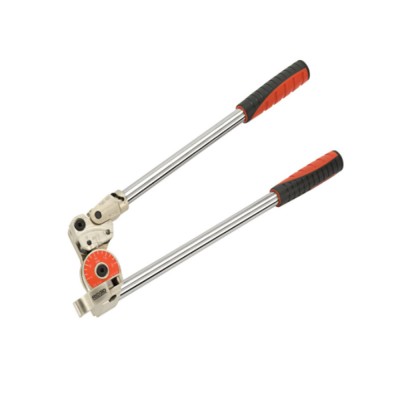

- The stainless steel specialist!
- High quality bending performance for stainless steel and other hard tubing such as steel and titanium.

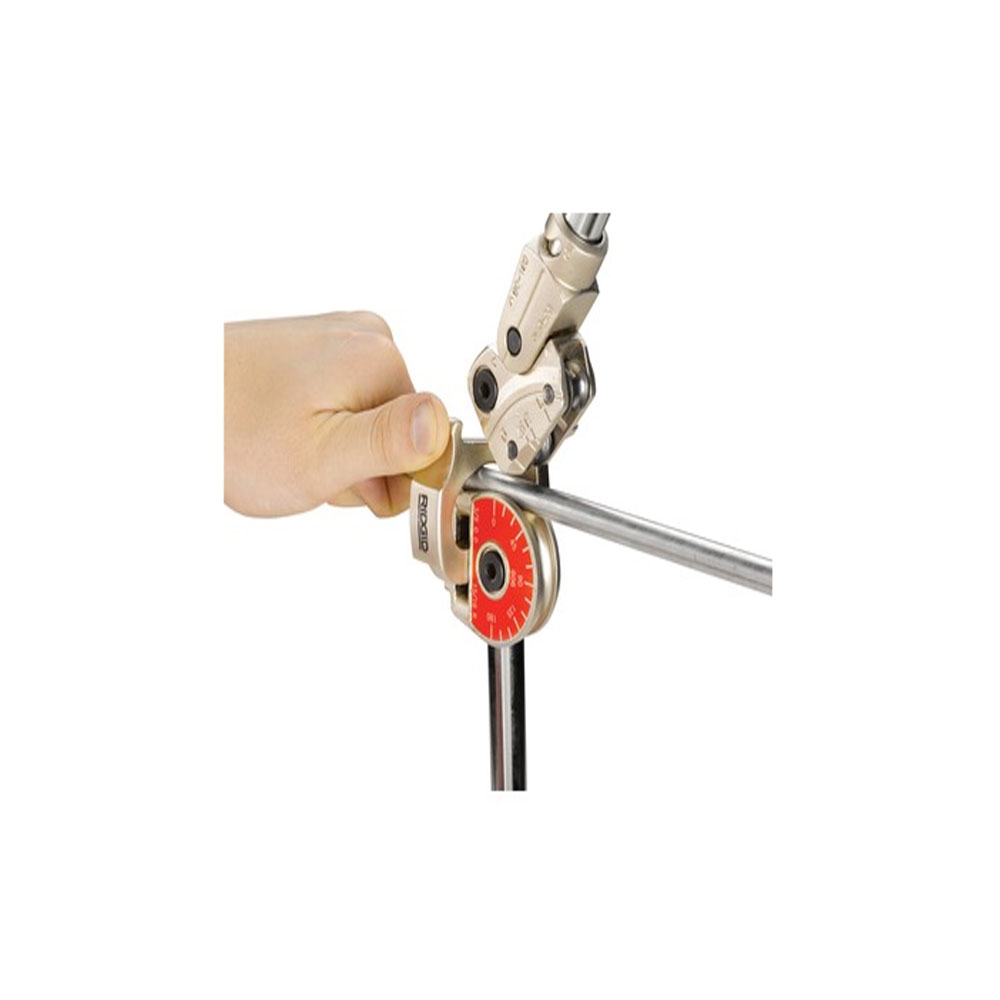

- Two-stage design allows for in-place bending from 90 ̊ to 180 ̊ without ever crossing handles. Lock/unlock with a half turn rotation of the bending handle.
- Extra long 16" (40 cm) handles increase leverage and roll dies in the bending form reduce force needed.
- Vise clamp built into bending form for extra stability.
- Inch and metric sizes.
- Brand: RIDGID
- Product Code: 600 Series Heavy-Duty
- Catalog Number: 38028 - 38033 - 38038 - 38043 - 38048
High quality bending performance for stainless steel and other hard tubing such as steel and titanium.
