| FT-103 TRANSMITTER | |||

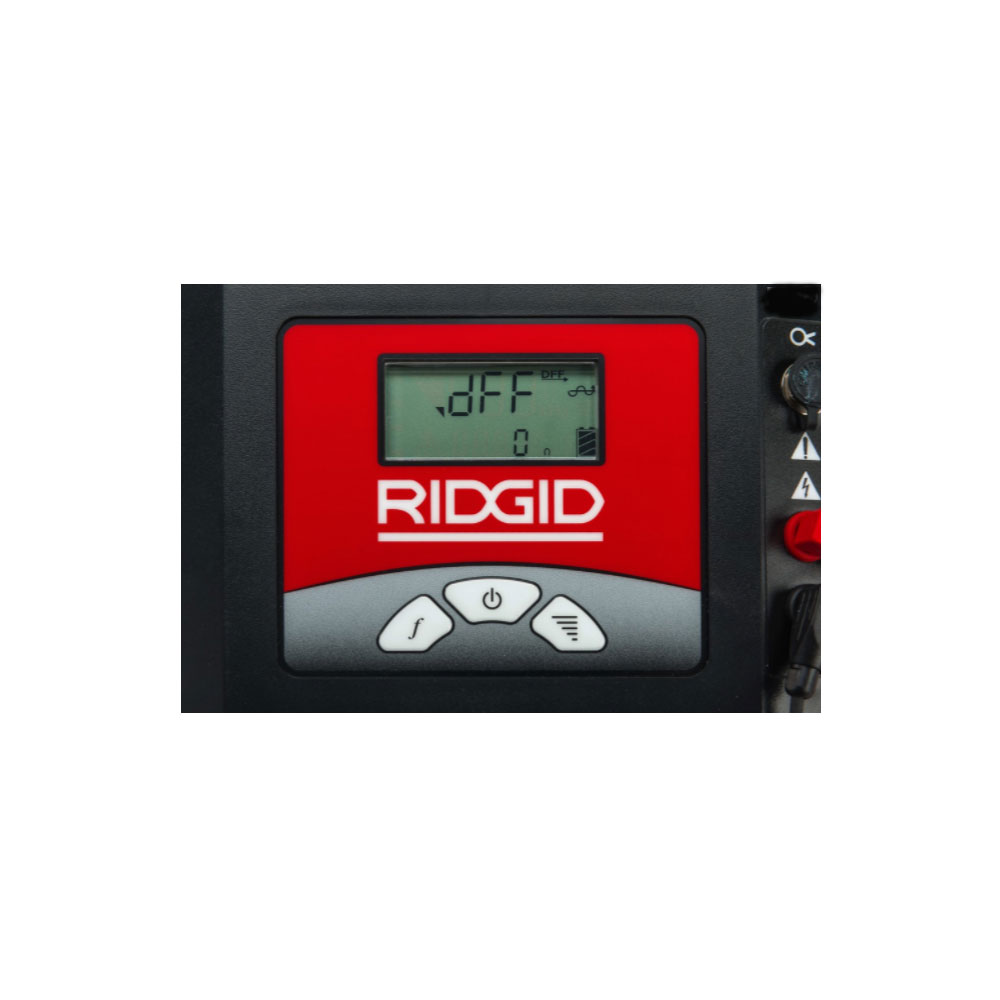

| Operating Frequencies | Direct Fault Finding: 797 Hz - “dFF” displayed | ||
| Path locating: 128 Hz, 1 kHz, 8 kHz, 33kHz, 93 kHz | |||
| Direct Connect: 128 Hz, 1 kHz, 8 kHz, 33kHz, 93 kHz | |||
| Inductive Clamp: 8 kHz, 33 kHz, 93 kHz | |||
| Broadcast Inductive: 33 kHz, 93 kHz | |||
| Load Range | 5 Ω to 2M Ω | ||
| Output Power | Up to 3 Watts (Low, medium and high settings) | ||
| Output Voltage | 5 Volts - 600 Volts | ||
| Power Supply | 8 × C-Cell Batteries (Included) | ||
| Dimensions (LxWxH) | 8.5" x 5.8" x 2.5" | ||
| FR-30 A-FRAME RECEIVER | |||
| Fault Finding Depth | Up to 20' (depending on conditions) | ||
| Fault Finding Length | Up to 3 miles (depending on conditions) | ||
| Display | Black and White LCD | ||
| Power Supply | 6 × AA Batteries | ||
| Dimensions (LxWxH) | 30.3" x 30.4" x 1.5" | ||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 56613 | A-Frame Fault Locator (FR-30) and Receiver (FT-103) | 5.2 | 2.3 |
|
ACCESSORIES |
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

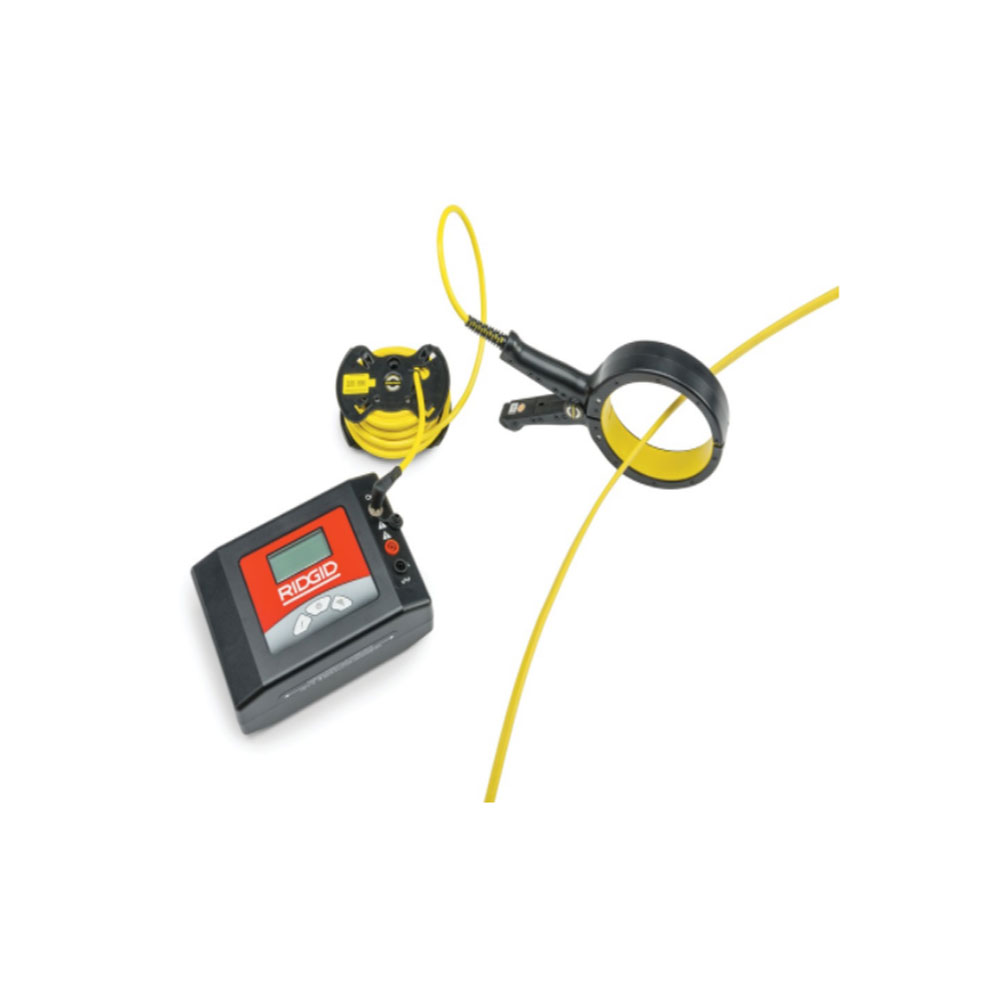

| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 2.0 | 0.90 |
| 22163 | SeekTech SR-60 Line Locator | 5.1 | 2.30 |
| 44473 | SR-24 Line Locator with Bluetooth® and GPS | 4.0 | 1.80 |
| 21893 | SeekTech SR-20 Line Locator | 4.0 | 1.80 |
- Purpose-built directional fault finder
- Locates insulation faults up to 2 megohms

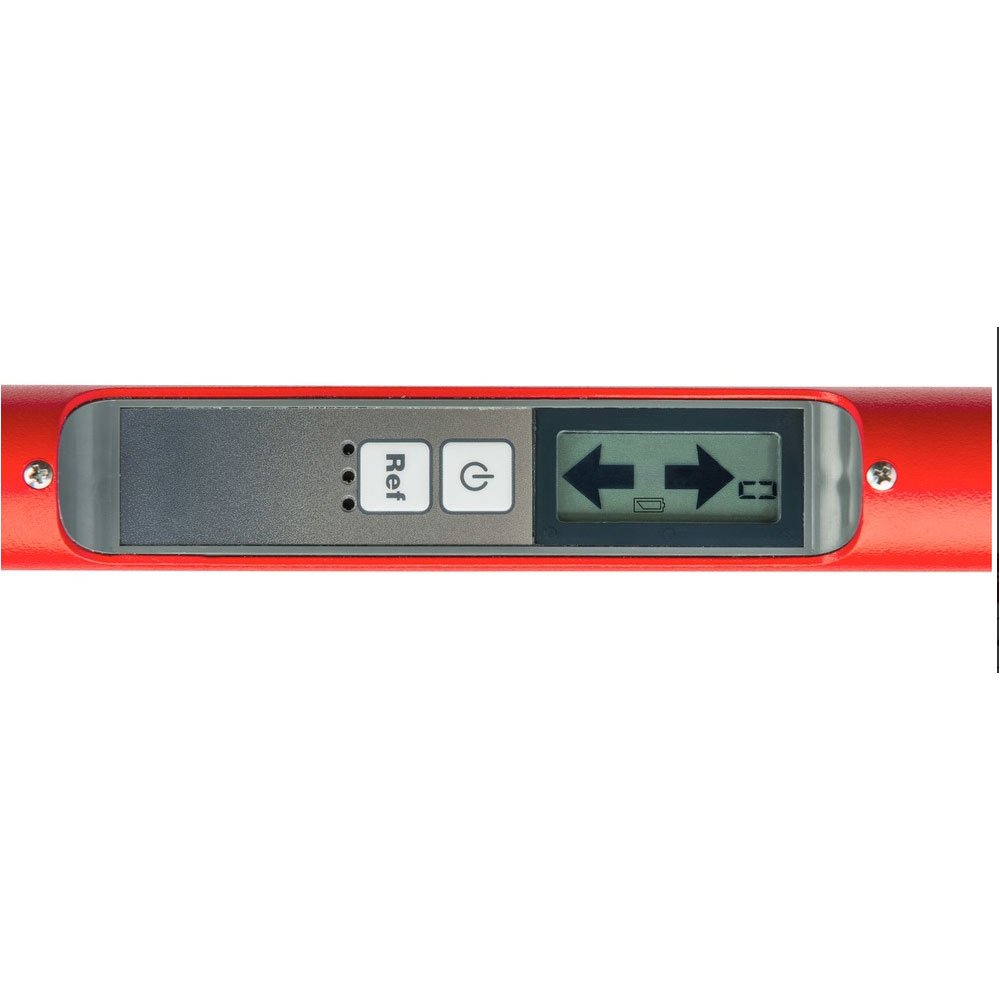

- Reference readout to determine fault location

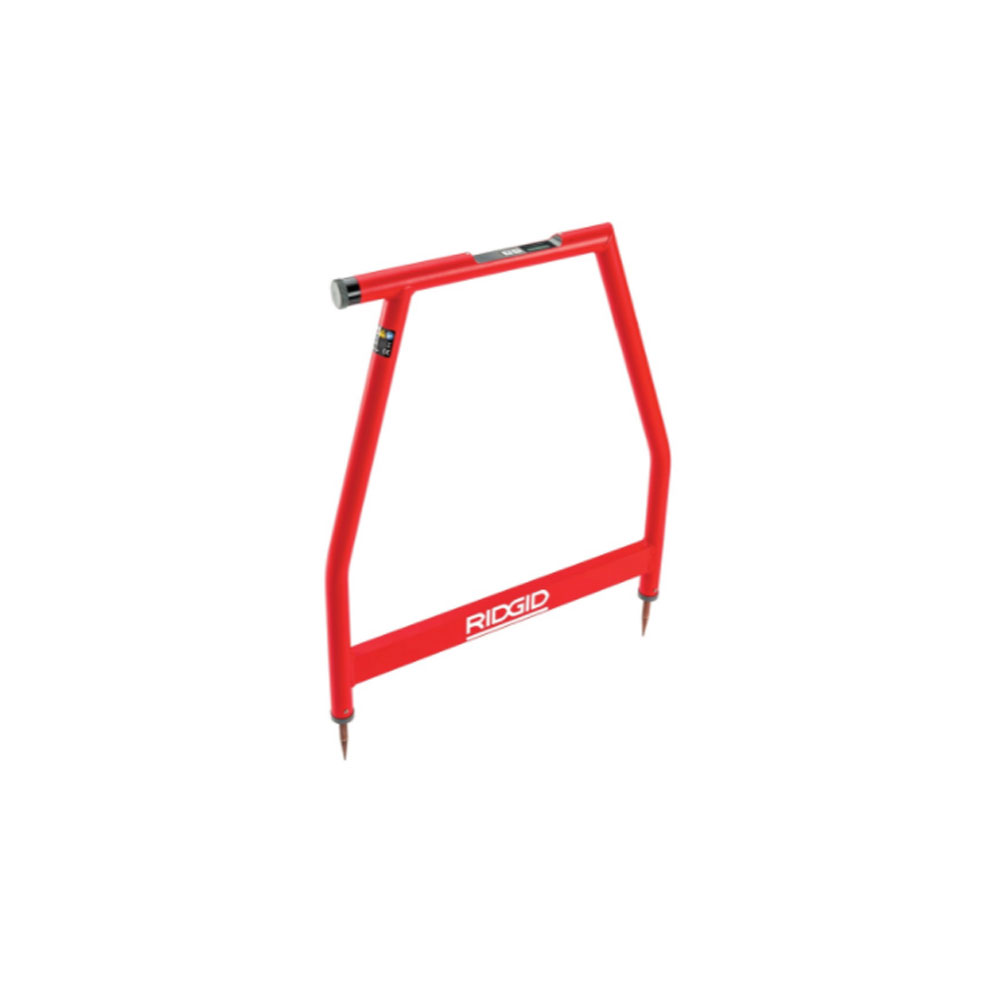

- Durable, lightweight powder-coated aluminum frame
- Weather proof membrane buttons
- Made in the U.S.A.
- Brand: RIDGID
- Product Code: A-Frame Fault Locator
- Catalog Number: 56613 - 20973 - 22163

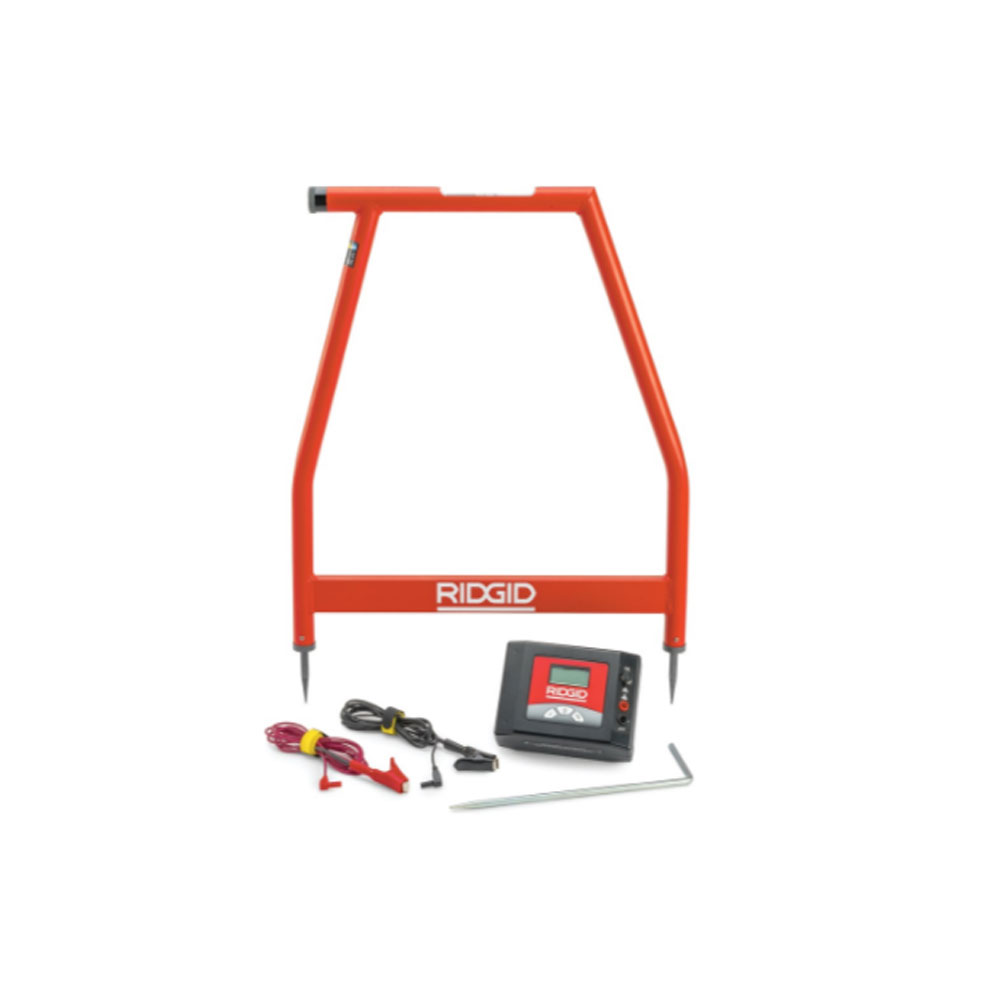

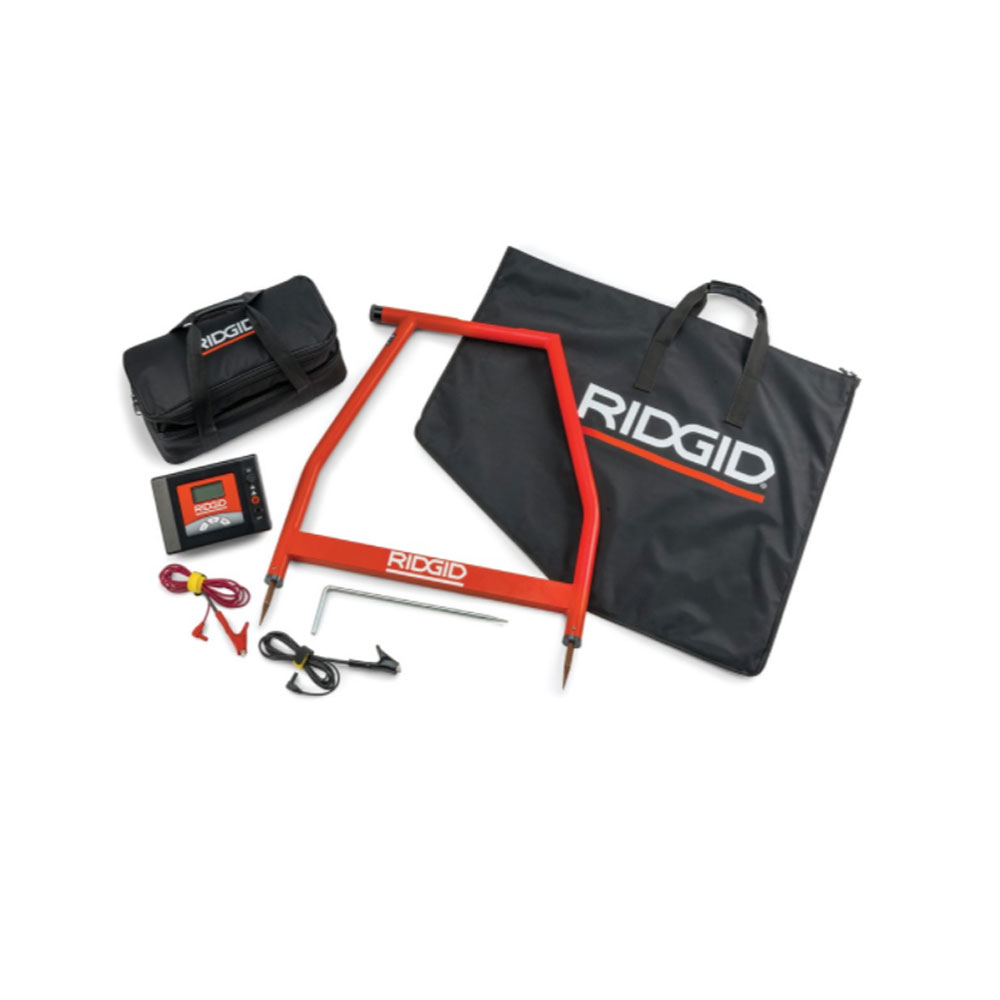

- The RIDGID® A-Frame Fault Locator is a purpose built system to simplify the location of ground faults in direct buried insulated wire.
