| Capacity | 4” pipe and larger, flat plate. | |||
| Pipe Wall/ Plate Thickness | Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm). | |||
| Bevel Angles | 37.5° (Standard - Included); 30° and 45° (with Optional Cutter Heads). | |||
| Cutter Head | Rated for most steel & stainless steel*. | |||
| Size | 15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H. | |||
| Land Width | 0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments. | |||
| Motor Type | Universal single-phase. | |||
| Motor RPM | 950 (no load). | |||
| Body | Steel frame | |||
| * Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials. | ||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 49298 | Portable Pipe Beveller w/37 1/2° Cutter Head, 115V | 56.50 | 24.00 | |
| 49303 | Portable Pipe Beveller w/37,5⁰ Cutter Head, 230V | 56.50 | 24.00 | |
| 55083 | Portable Pipe Beveller w/45° Cutter Head, 115V | - | - | |
| 55088 | Portable Pipe Beveller w/30° Cutter Head, 115V | - | - | |
| 55093 | Portable Pipe Beveller w/ 45° Cutter Head 230V * | 56.50 | 24.00 | |
| 55098 | Portable Pipe Beveller w/ 30° Cutter Head 230V * | 56.50 | 24.00 | |
| 53543 | Portable Pipe Beveller w/37,5° Cutter Head, 115 V | 56.50 | 24.00 | |
|
|
||||
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 48863 | 37-1/2° Cutter Head with Inserts | 2.50 | 1.10 | |
| 48858 | 30° Cutter Head with Inserts | 2.50 | 1.10 | |
| 48868 | 45° Cutter Head with Inserts | 2.50 | 1.10 | |
| 48873 | Pack of 6 Inserts, 1 Anti-Seize Grease, 2 Screws, Case | 2.50 | 1.10 | |
| 48883 | Anti-Seize Grease – 1 Tube | - | - | |
| 48888 | Torx Wrench T15/S7 | 0.05 | 0.02 | |
| 48893 | Spanner Wrench | 0.15 | 0.06 | |
| 48898 | 5/16 Hex Wrench | 0.17 | 0.08 | |
| 50633 | Crank Handle Assembly | - | - | |
| 55023 | TBM-36 Beveller TRISTAND Adapter | - | - | |
Speed
- Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
- Pipe is cool to touch immediately following bevelling.
Consistency
- Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
- Adjustable land width from 0" to 3/16" to fit welders’ requirements.
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
Simplicity
- Fast to set-up and operate.
- Patent-pending clamp system firmly secures tool to the pipe.
- Speed monitoring with led indicators for optimal cutter performance.
- Spark free operation.
- Brand: RIDGID
- Product Code: B-500
- Catalog Number: 49298 - 49303 - 55083

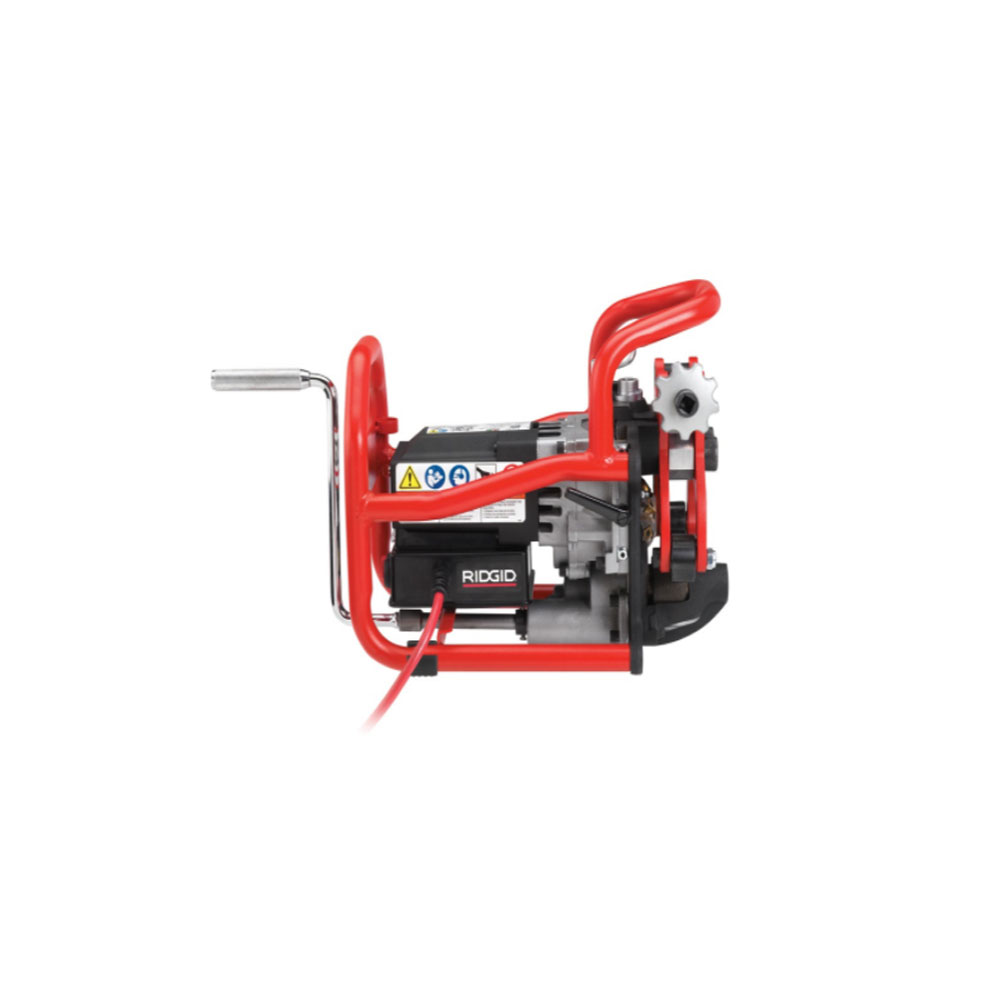

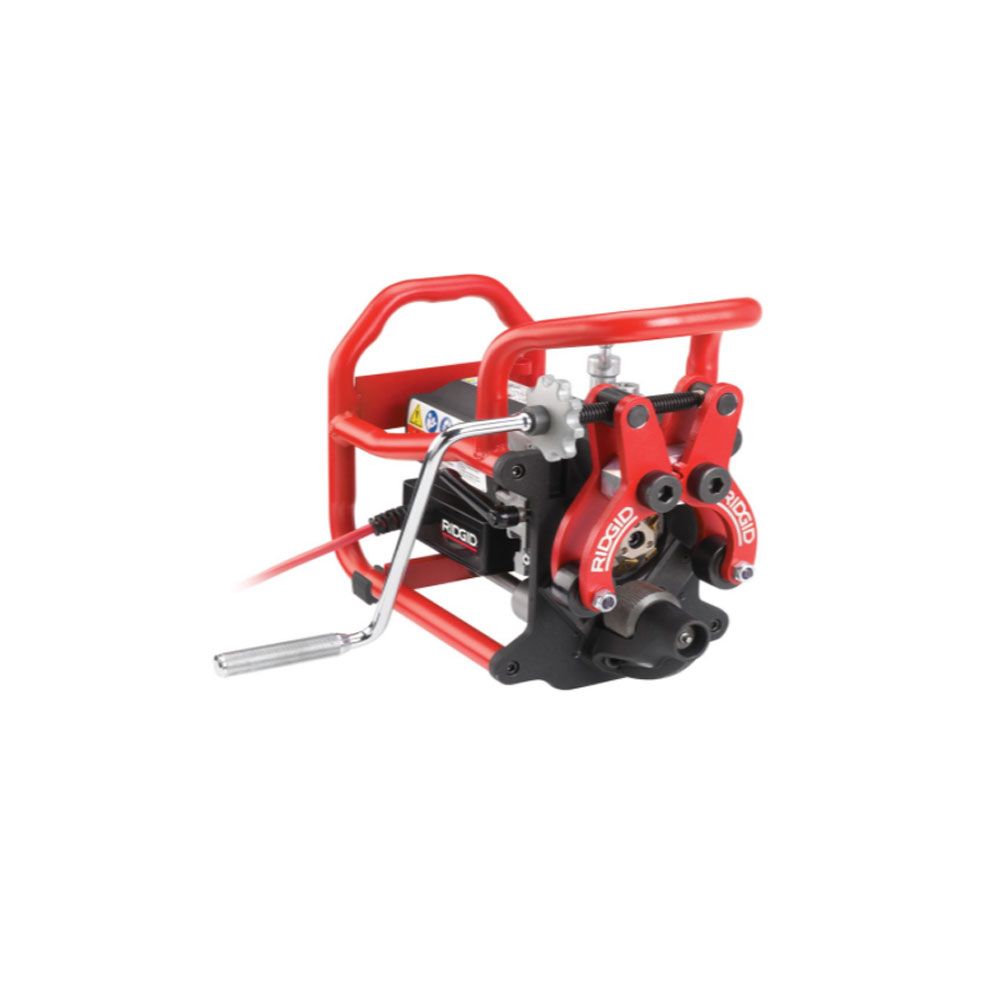

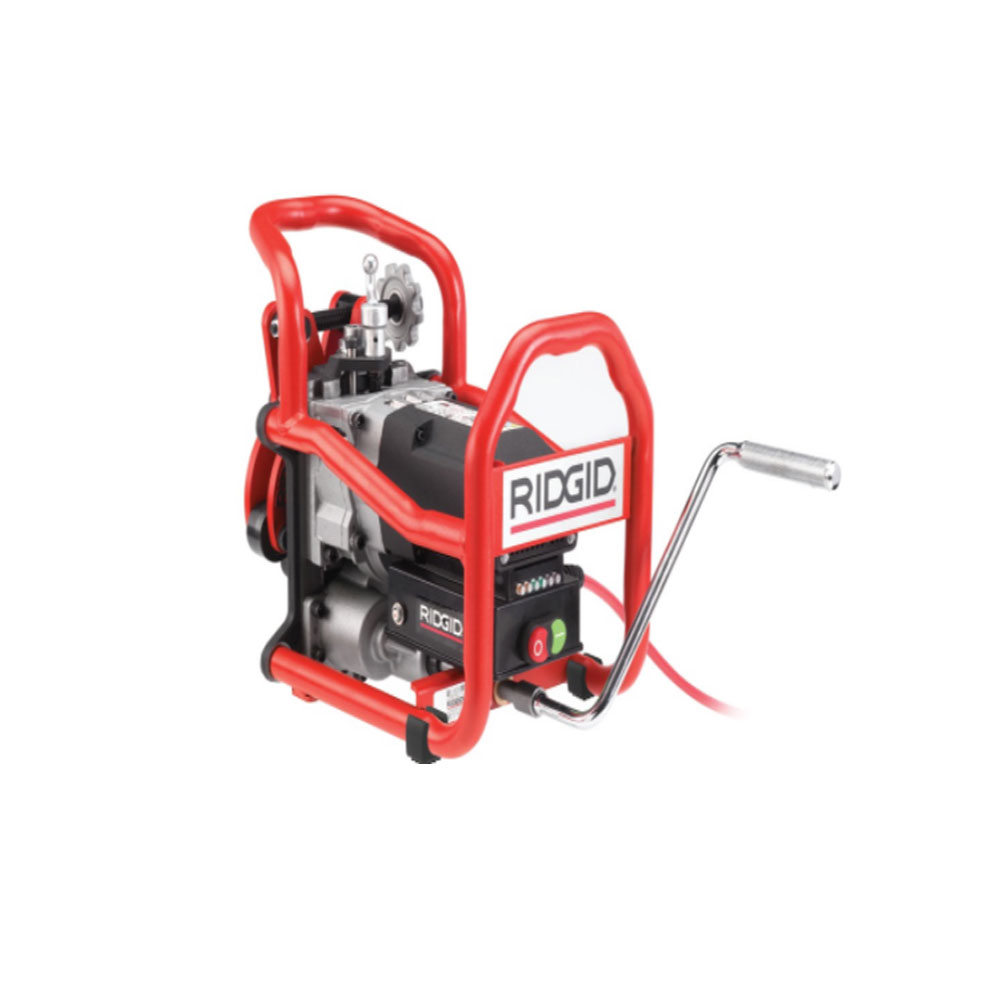

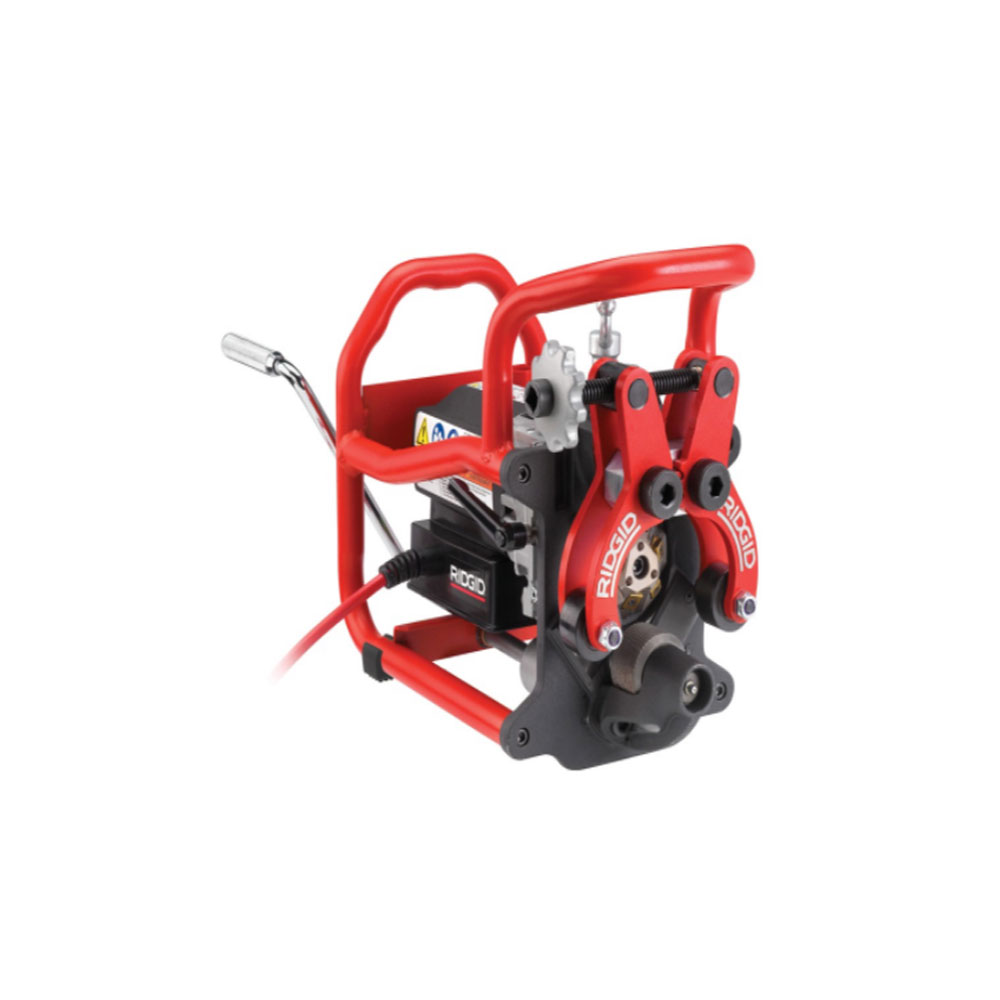

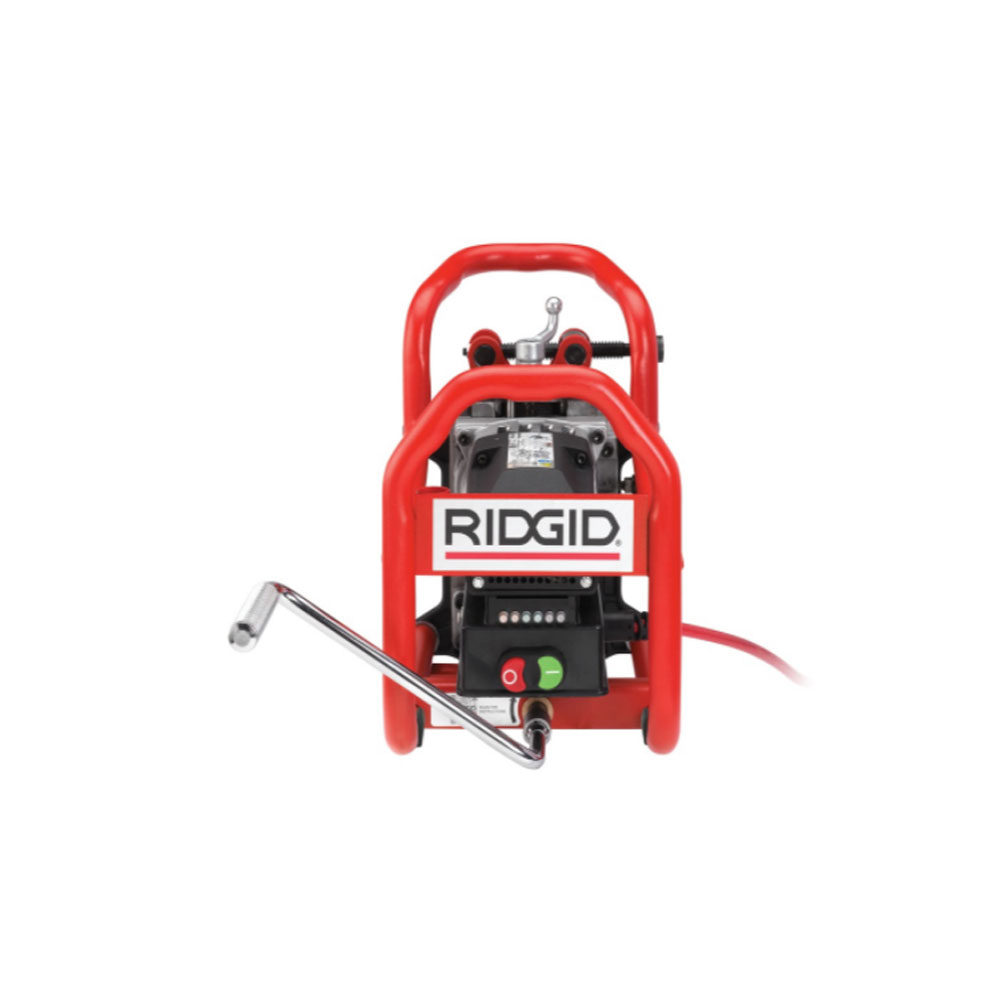

- The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.
