Weight (without battery) | 9.3 lb (4.2 kg) | ||
Dimensions (LxWxH) | 16” x 12.5” x 9.5” (406 x 319 x 242 mm) | ||
Power Source | 18V Advanced Lithium Battery or AC Power Cable | ||
Power Rating | 15 to 25 VDC, 25W | ||
Operating Temperature | 14°F to 122°F (-10°C to 50°C) | ||
Storage Temperature | -4°F to 140°F (-20°C to 60°C) | ||
Display | 6.5” (165 mm) Color LCD | ||
Display Resolution | 640 x 480 Pixels, VGA | ||
Video Format | MPEG4 (H.264) 30 FP | ||
Photo Format | JPEG | ||
Autolog Format | MPEG4 (H.264) Variable Frame Rate | ||
Audio | Integrated Microphone and Speaker | ||
Internal Storage | 128 GB SSD | ||
Transfer Method | USB Drive | ||
CATALOG NUMBER | DESCRIPTION | WEIGHT | |
LB. | KG | ||
54363 | CS65x Digital Reporting Monitor w/Wi-Fi | 9.3 | 4.2 |
55978 | CS65x w/2 Batteries and 1 Charger | 13.1 | 5.0 |
- Wi-Fi
Stream or record inspections to an iOS or Android phone or tablet with the free HQx Live companion app Storage Options
- Storage Options
Internal solid state drive provides ample storage of images and videos captured from multiple jobs
Dual USB ports makes for easy delivery of multiple copies of an inspection
- Internal GPS
Geotag media with positional information when available
- Water-resistant Keyboard
Easily add on-screen titles and annotate reports
- Daylight Viewable Display
Provides a crisp, clear, in-pipe image
- Brand: RIDGID
- Product Code: CS65x
- Catalog Number: 54363 - 55978

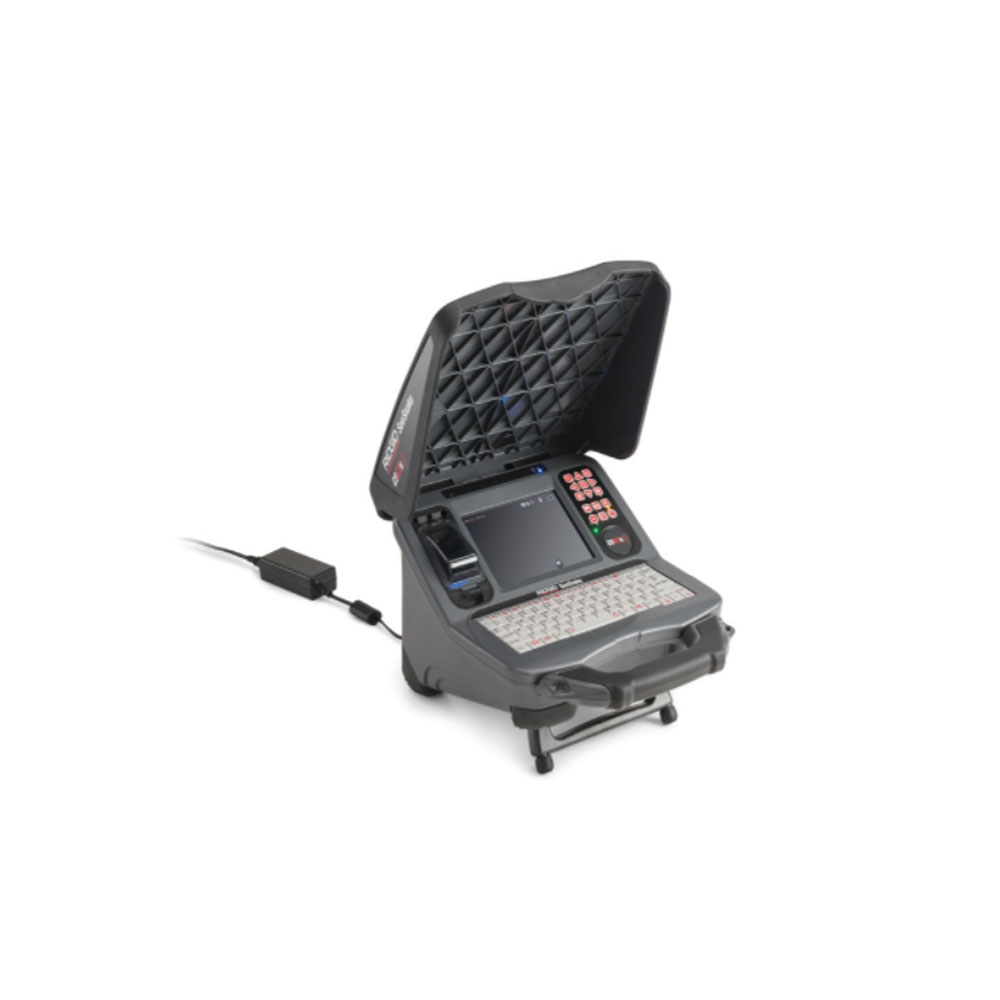

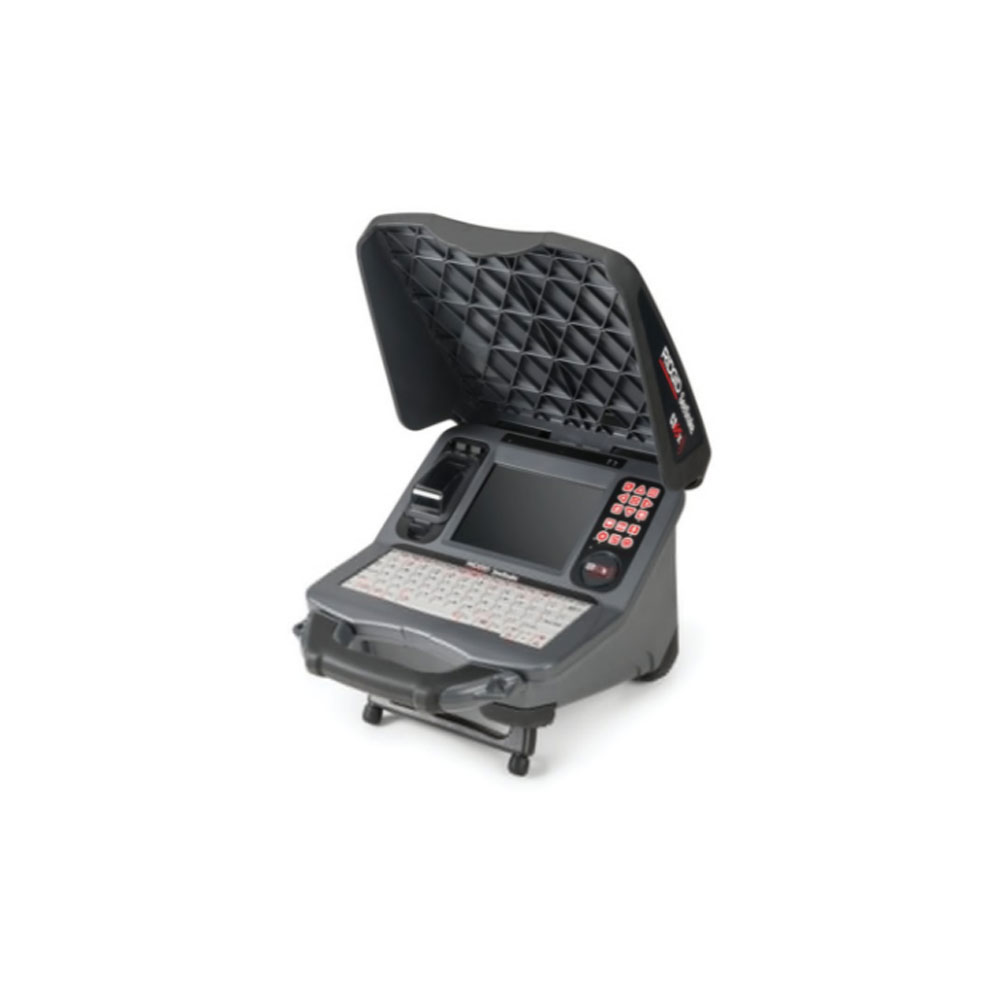

- Introducing our first digital reporting monitor to include Wi-Fi connectivity. With the added ability to stream and/or record inspections to the latest iOS or Android device.
