| Catalog Number | Model No. | Description | How Opened | Thread Direction | Oil Thru Head | Dies Used | Pipe Capacity | Bolt Capacity | Weight | |||
| in. | mm | in. | mm | lb. | kg | |||||||
| 97065 | 811A | 811A 1/8” - 2” NPT Die Head, Self-Opening, RH | Q.O | RH | Yes | Univ. | 1/8 - 2 | 3 - 50 | 1/4 - 2 | 6 - 50 | 13 | 5,7 |
| 97075 | 815A | 815A 1/8" - 2" NPT Die Head, Self-Opening, RH | S.O | RH | Yes | Univ. | 1/8 - 2 | 3 - 50 | 1/4 - 2 | 6 - 50 | 13 | 5,9 |
| 23282 | 842 | 842 1/8" - 2" NPT QO Universal Die Head | Q.O | LH | Yes | Univ. | 1/8 - 2 | - | - | - | 12 1/2 | 5,7 |
| 10491 | 555 | 555 1/8” - 3/4” Dual Die Head, Quick-Opening, RH | Q.O | RH | Yes | Dual/Bolt | 1/8 - 3/4 | 3 - 50 | - | - | 8 | 3,6 |
| Machine BSPT Die Heads | ||||||||||||
| Catalog Number | Model No. | Description | How Opened | Thread Direction | Oil Thru Head | Dies Used | Pipe Capacity | Bolt Capacity | Weight | |||
| in. | mm | in. | mm | lb. | kg | |||||||
| 97070 | 811A | 811A 1/8” - 2” BSPT Die Head, Self-Opening, RH | Q.O | RH | Yes | Univ. | 1/8 - 2 | 3 - 50 | 1/4 - 2 | 6 - 2 | 12 1/2 | 5,7 |
| 97080 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | S.O | RH | Yes | Univ. | 1/8 - 2 | 3 - 50 | 1/4 - 2 | 6 - 50 | 13 | 5,9 |
| 45322 | 815A | 815A 1/8" - 2" BSPT, Self-Opening, RH. Eur. RT | - | RH | Yes | - | - | - | - | - | 13 | 5,9 |
| 23297 | 856 | 856 1/8" - 2" BSPT SO Universal Die Head | S.O | LH | Yes | Univ. | 1/8 - 2 | 3 - 50 | - | - | 12 1/2 | 5,7 |
| 10491 | 555 | 555 1/8” - 3/4” Dual Die Head, Quick-Opening, RH | Q.O | RH | Yes | Dual/Bolt | 1/8 - 3/4 | 3 - 50 | - | - | 8 | 3,6 |
| Machine Bolt Die Heads | ||||||||||||
| Catalog Number | Model No. | Description | How Opened | Thread Direction | Oil Thru Head | Dies Used | Pipe Capacity | Bolt Capacity | Weight | |||
| in. | mm | in. | mm | lb. | kg | |||||||
| 97045 | 531 | 531 1/4"-1"Bolt Die Head Quick-Open R.H./L.H. | Q.O | RH/LH | Yes | 500B | - | - | 1/4 - 1 | 3 - 25 | 7 1/2 | 3,4 |
| 97050 | 532 | 532 1-1/8"-2"Bolt Die Head Quick-Open R.H./L.H. | Q.O | RH/LH | Yes | 500B | - | - | 1 1/8 - 2 | 29 - 51 | 9 | 4,1 |
| Die Head Racks for All Machine Die Heads | ||||||||||||
| Catalog Number | Model No. | Description | Weight | |||||||||
| lb. | kg | |||||||||||
| 42485 | 4U | 4V Die Head Rack (4 Heads) | 8 1/2 | 3,9 | ||||||||
| 42490 | 6U | 6V Die Head Rack (6 Heads) | 12 1/2 | 5,7 | ||||||||
- Self-Opening (SO) - Automatic release for repeatable number of threads
- Quick-Opening (QO) - Manual release for user-specified thread lengths
- Bolt - Designed for bolt threading
- Mono - Dedicated to a specific size of thread
- Semi-Automatic (SA) - Can be quickly adjusted from size to size with manual release
- Brand: RIDGID
- Product Code: SELF OPENING RH BSPT
- Catalog Number: 97065 - 97075 - 84537 - 84532

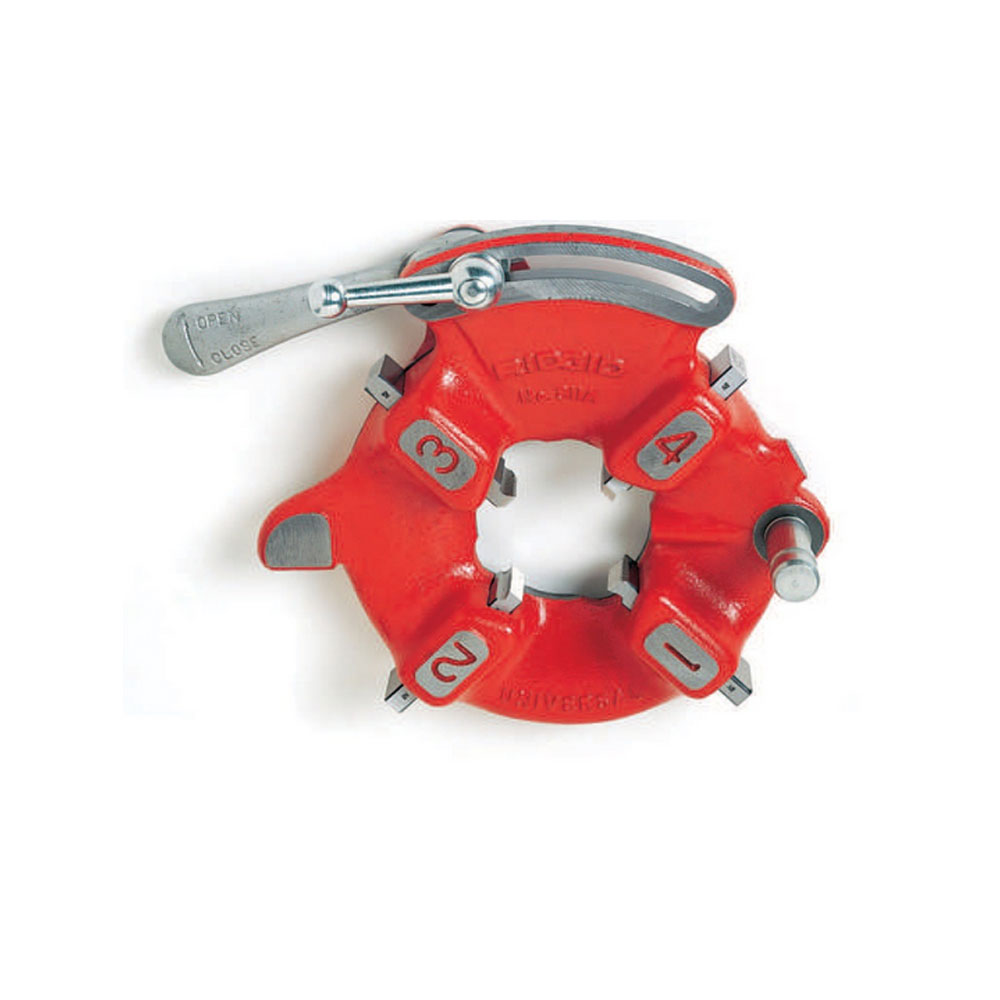

Self-Opening Die Heads can be automatically opened for 1/2 "through 2" pipe size
