CATALOG NUMBER |
MODEL NO. | DESCRIPTION | VOLTAGE (V) | WEIGHT | |
| LB. | KG | ||||
| 71702 | K-40 | Machine with: C-13IC, 5/16" x 35' (8 mm x 10.7 m) Cable with Inner Drum | 115 | 29 | 13 |
| 71722 | K-40AF | Machine with: AUTOFEED, Guide Hose, Mounting Bracket, C-13IC SB, 5/16" x 35' (8 mm x 10.7 m) Speed Bump Cable with Inner Drum | 115 | 33 | 15 |
| 71732 | K-40AF | Machine with: AUTOFEED, Guide Hose, Mounting Bracket, C-13IC SB, 5/16" x 35' (8 mm x 10.7 m) Speed Bump Cable with Inner Drum | 230 | 33 | 15 |
| 78347 | K-40B AF | Battery Powered Machine with: AUTOFEED, Guide Hose, Mounting Bracket, C-13IC SB, 5/16" x 35" (8 mm x 10.7 m) Cable with Inner Drum, (2) 14.4V Battery Packs, 14.4V Battery Charger | - | 24 | 11 |
| 71742 | K-40AF | Machine with: – AUTOFEED – Guide Hose – Mounting Bracket – C-13IC-SB, 5⁄16" x 35' (8 mm x 10,7 m) Speed Bump CabIe with Inner Drum | - | 33 | 15 |
| 230 V | |||||
| 71717 | K-40 AF 110 V | Machine with: AUTOFEED, Guide Hose, Mounting Bracket, C-13IC SB, 5/16" x 35' (8 mm x 10.7 m) Speed Bump Cable with Inner Drum | - | - | - |
|
CABLES
|
|||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 50647 | S-1 | 1/4" (6 mm) x 15' (4,6 m) with Funnel Auger | 2 1/4 | 1 | |
| 50652 | S-2 | 1/4" (6 mm) x 25' (7,6 m) with Funnel Auger | 3 1/2 | 2 | |
| 50657 | S-3 | 1/4" (6 mm) x 35' (10,7 m) with Funnel Auger | 5 | 2 | |
| 62225 | C-1 | 5⁄16" (8 mm) x 25' (7.6 m) with Bulb Auger | 3 1/2 | 2 | |
| 56782 | C-1IC | 5/16" (8 mm) x 25' (7.6 m) Inner Core with Bulb Auger | 4 | 2 | |
| 89400 | C-21 | 5/16" (8 mm) x 50' (15,2 m) with Bulb Auger | 7 | 3 | |
| 56792 | C-13IC | 5/16" x 35' (8 mm x 10.7 m) Inner Core with Bulb Auger | 5 1/2 | 2 | |
| 95847 | C-13ICSB | 5/16" x 35' (8 mm x 10.7 m) Inner Core Speed Bump with Bulb Auger | 5 1/2 | 2 | |
| 62235 | C-2 | 5/16" (8 mm) x 25' (7,6 m) with Drop Head Auger | 3 1/2 | 2 | |
| 56787 | C-2IC | 5/16" (8 mm) x 25' (7.6 m) Inner Core with Drop Head Auger | 4 | 2 | |
| 89405 | C-22 | 5/16" (8 mm) x 50' (15,2 m) with Drop Head Auger | 7 | 3 | |
| 56797 | C-23IC | 5/16" (8 mm) x 35' (10,7 m) Inner Core with Drop Head Auger | 5 1/2 | 2 | |
| 62245 | C-4 | 3/8" (10mm) x 25' (7,6 m) with Male Coupling | 4 1/2 | 2 | |
| 62250 | C-5 | 3/8" (10mm) x 35' (10,7 m) with Bulb Auger | 8 1/4 | 4 | |
| 62260 | C-6 | 3/8" (10 mm) x 35' (10,7 m) with Male Coupling | 8 1/4 | 4 | |
| 96037 | C-6IC | 3/8" (10mm) x 35' (10,7 m) Inner Core with Male Coupling | 8 1/2 | 4 | |
|
TOOLS
|
|||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | REPLAC. BLADE(S) | ||
| 62990 | T-201 | Straight Auger, 5" (125 mm) Long | - | ||
| 62995 | T-202 | Bulb Auger, 1 1⁄8" (29 mm) O.D. | - | ||
| 63000 | T-203 | Bulb Auger 7⁄8" (22 mm) O.D. | - | ||
| 54837 | T-204 | “C” Cutter 1" (25 mm) | 54832 | ||
| 63005 | T-205 | “C” Cutter, 1 3⁄8" (35 mm) | 97835 | ||
| 63010 | T-206 | Funnel Auger, 3" (80 mm) Long | - | ||
| 63030 | T-210 | Spade Cutter, 1" (25 mm) | 97905 | ||
| 63035 | T-211 | Spade Cutter, 1 3⁄8" (35 mm) | 97825 | ||
| 63040 | T-212 | Spade Cutter, 1 3⁄4" (45 mm) | 92850 | ||
| 63045 | T-213 | 4-Blade Cutter, 1" (25 mm) | 97795 | ||
| 63050 | T-214 | 4-Blade Cutter, 1 3⁄8" (35 mm) | 97910 | ||
| 63055 | T-215 | 4-Blade Cutter, 1 3⁄4" (45 mm) | 97915 | ||
| 63065 | T-217 | Drop Head Auger, 4" (110 mm) Long | - | ||
| 55457 | T-225 | Retrieving Auger | - | ||
| 48482 | T-250 | Tool Set includes: T-203, T-205, T-210, T-217, A-13 | |||
| 52812 | T-230 | H-D “C” Cutter, 2" (50 mm) | 92815 | ||
| 52817 | T-231 | H-D “C” Cutter, 2 1⁄2" (65 mm) | 92820 | ||
| 52822 | T-232 | H-D “C” Cutter, 3" (80 mm) | 92835 | ||
| 59230 | A-13 | 3/8" Cable Pin Key | - | ||
|
ACCESSORIES
|
|||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | |||
| 26558 | A-40AF | AUTOFEED Assembly & Guide Hose for K-40 Includes Mounting Bracket | |||
| 23913 | A-39AF | Replacement AUTOFEED Cartridge | |||
| 71757 | A-40G | A-40G Guide Hose Assembly | |||
| 72702 | A-40B | Mounting Bracket | |||
| 83407 | 14.4V Battery Pack | ||||
| 83417 | 115V Charger | ||||
| 71847 | Cable Torque Arm | ||||
| 68917 | Drum Liner | ||||
| 76597 | Top Roller Bearing Housing Assy. | ||||
| 76817 | C-6 Cable Kit incl. Inner Drum, C-6 Cable Torque Arm, T-250 Tool Set | ||||
| 98072 | C-6IC Cable Kit including: Inner Drum, C-6IC Cable, Torque Arm, T-250 Tool Set | ||||
| 41937 | - | Leather Drain Cleaning Gloves | |||
| 70032 | - | PVC Drain Cleaning Gloves | |||
- 175-watt induction motor quietly delivers enough torque to clear even the toughest blockages.
Premium-quality, compression-wound inner core cable combines strength and flexibility to resist kinking. - Two-piece “twist lock” drum housing will not dent or corrode and allows easy access to the inner drum and cable.
- Special inner drum design virtually eliminates cable flip-over inside the drum and drum leakage.
- Two-way AUTOFEED control advances and retrieves the drain cleaning cable with a simple push of a lever keeping you and the work area clean.
- Includes RIDGID® drain cleaning gloves and operator’s manual.
- Brand: RIDGID
- Product Code: K-40
- Catalog Number: 71702 - 71722 - 71732

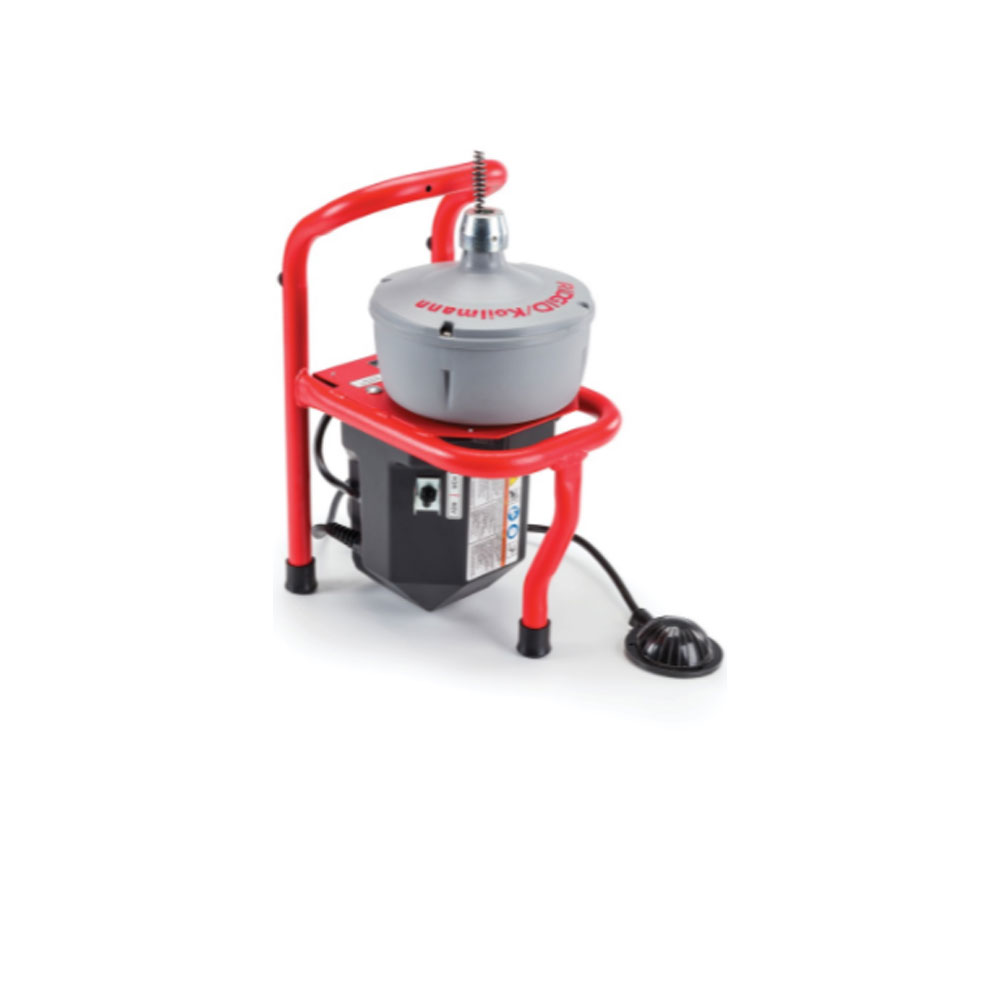

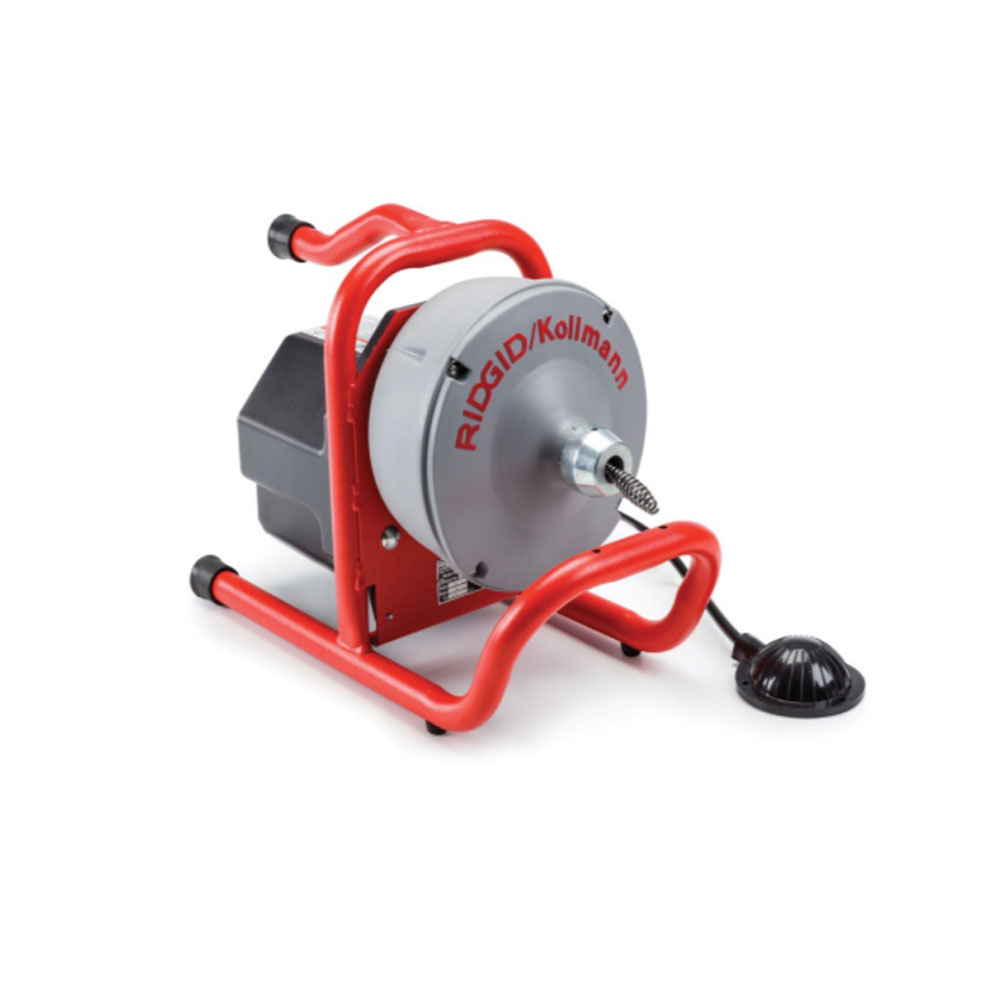

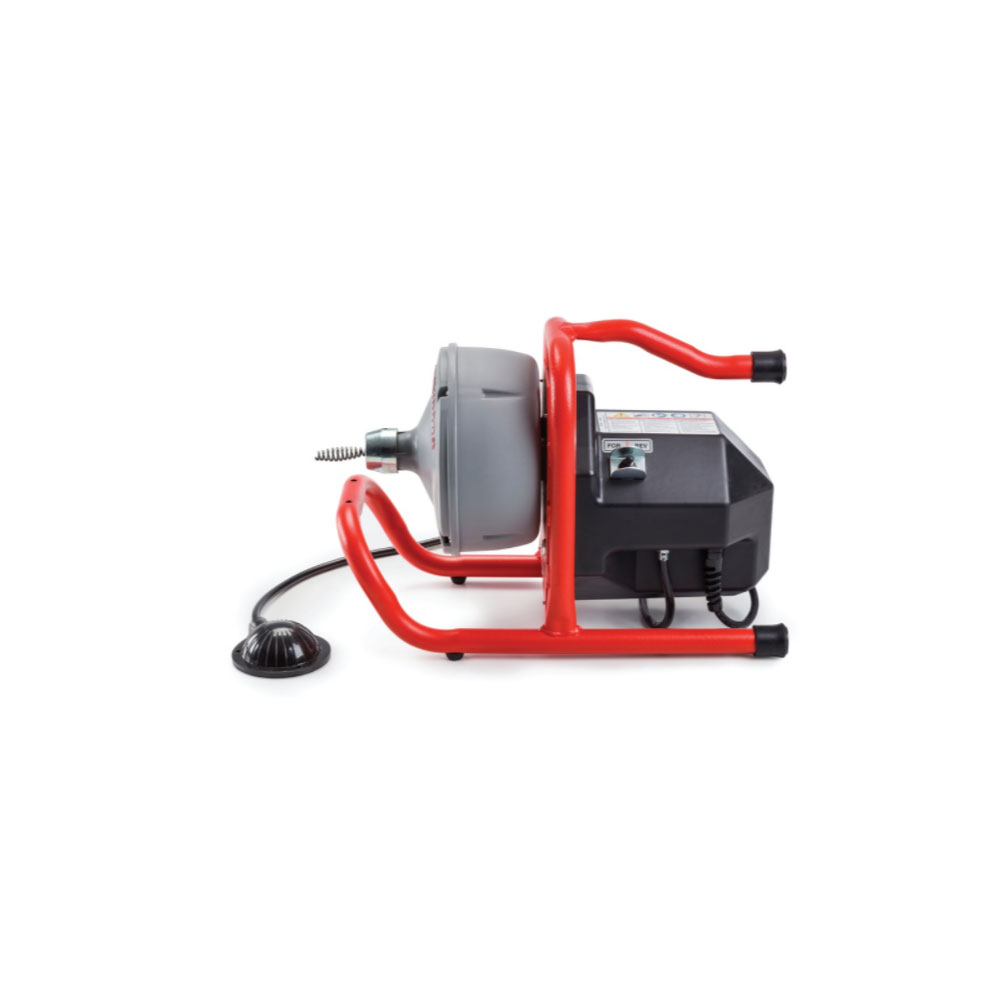

- The K-40 sits flat on the floor or countertop and also tips onto its back for easy access to sink drains and bathtubs full of water. It practically eliminates job site cleanup thanks to the patented guide hose two-way AUTOFEED® control. It completely contains the rotating cable and eliminates any waste water splashing or spraying.
