| Cutting Capacity | 2 1⁄2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe | |||
| Powered by a model 700 Power Drive (not included). Power Drive RPM – 26-30 (no load). | ||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 50767 | 258 | Pipe Cutter | 105 | 48 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 66687 | - | Cuter Wheel Assy | 13 | 6 |
| 50812 | E-258 | Cutter Wheel Std. | 2 | 1 |
| 58222 | E258-T | Cutter Wheel – Thin | 2 | 1 |
| 54397 | - | Transport Cart | 24 | 11 |
| 60002 | 258PS | Ball transfer Pipe Support 2 1/2" (65mm) to 12" (300mm) | 21 | 10 |
| 61757 | - | Pipe Roller for Beveling (for Model 258 only) (Quantity 2) | 13 | 6 |
- Square cut 21ft (6m) or nipple lengths of pipe without effort.
- Easily cuts by displacing instead of removing pipe material.
- No abrasive dust, dangerous sparks, or open flame.
- Quickly cuts steel pipe with minimal burr.
- Great for cutting pipe for groove joining.
- Heavy-duty design is perfect for field or shop use.
- Adaptable for beveling.

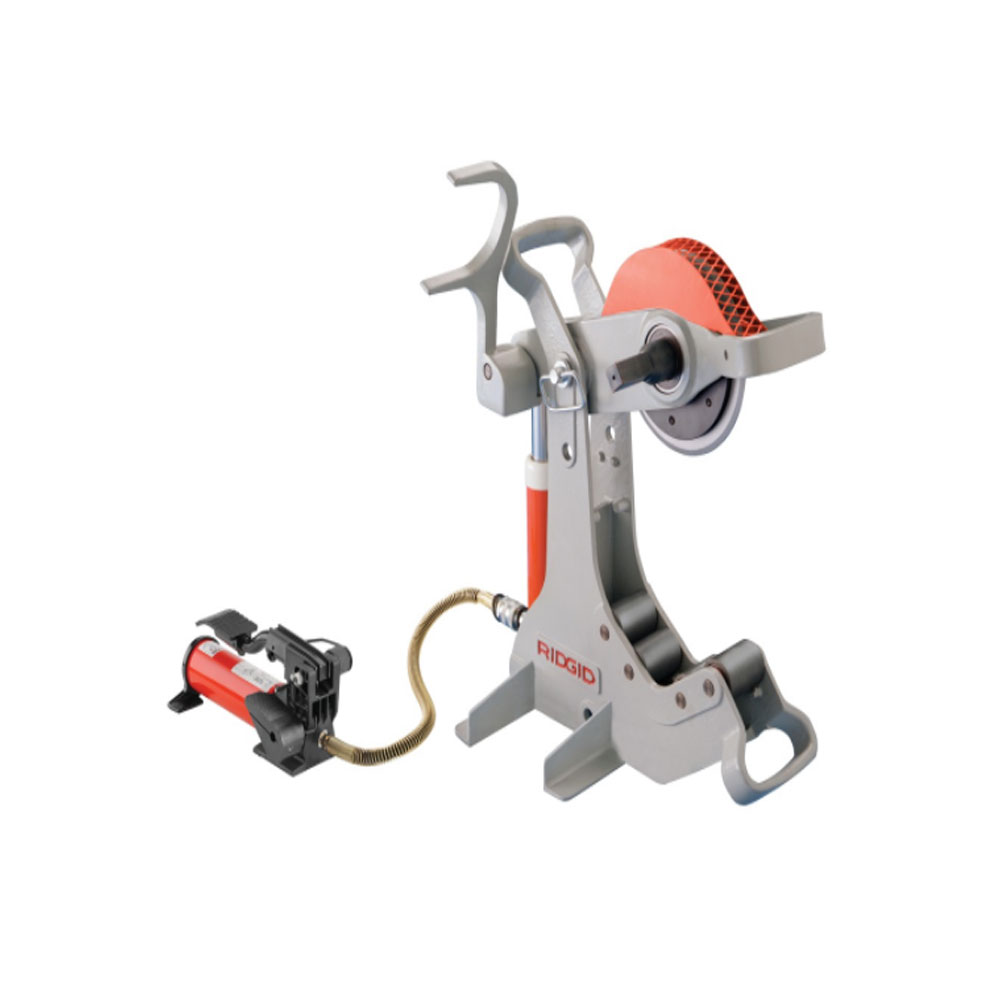

The RIDGID® Model 258 Power Pipe Cutter cuts 2 1⁄2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe, galvanized pipe, rigid conduit, etc. at the job site or in the shop. Powered by the RIDGID No. 700 Power Drive, the 258 is a displacement cutter that provides square cuts. The operator controls the feeding rate by pumping the hydraulic foot pump throughout the operation. A square cut with minimal burr on either 21 ft (6m) or nipple lengths of pipe is achieved quickly** without abrasive dust, sparks, or open flame. Also, the RIDGID Pipe Roller for beveling can be used to rotate the pipe while second operator uses a grinder to bevel the pipe.
- Brand: RIDGID
- Product Code: 258 (2 1/2-8)
- Catalog Number: 50767 - 66687 - 50812 - 58222
No abrasive dust, dangerous sparks, or open flame.
