CATALOG NUMBER |
MODEL NO. | SCREW DIAMETER | USE DRILL | FLUTE DIAMETER | LENGTH OVERALL | WEIGHT | MAX. DEPTH | ||||||
| IN. | MM | IN. | MM | IN. | MM | IN. | MM | OZ. | G | IN. | MM | ||
| 35535 | 1 | 1/4 | 6 | 1/8 | 3 | 0.139 | 3.5 | 2 5/16 | 59 | 1/2 | 14 | 1 | 25 |
| 35540 | 2 | 5/16 | 8 | 3/16 | 5 | 0.205 | 5.2 | 2 3/4 | 70 | 1 | 28 | 1 | 25 |
| 35545 | 3 | 3/8 | 10 | 1/4 | 6 | 0.272 | 6.9 | 3 1/16 | 78 | 1 1/4 | 35 | 1 | 25 |
| 35550 | 4 | 7/16 | 11 | 5/16 | 8 | 0.338 | 8.6 | 3 5/16 | 84 | 1 3/4 | 50 | 1 | 25 |
| 35555 | 5 | 1/2 - 9/16 | 13 - 14 | 11/32 | 9 | 0.374 | 9.5 | 3 3/4 | 95 | 2 1/4 | 64 | 1 | 25 |
| 35560 | 6 | 5/8 | 16 | 7/16 | 11 | 0.471 | 12.0 | 4 1/8 | 105 | 3 | 85 | 2 | 51 |
| 35565 | 7 | 3/4 | 19 | 1/2 | 13 | 0.538 | 13.7 | 4 1/2 | 114 | 4 | 113 | 2 | 51 |
| 35570 | 8 | 7/8 - 1 | 22 - 25 | 5/8 | 16 | 0.665 | 16.9 | 4 3/4 | 121 | 6 1/2 | 184 | 3 | 76 |
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |||||||||||
| OZ. | G | ||||||||||||

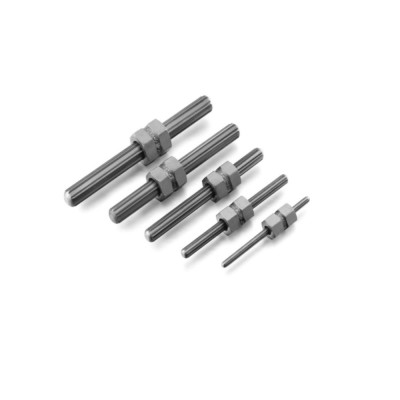

| 35575 | Includes Nos. 3, 4 and 5 | 8 | 227 | ||||||||||
| 35580 | Inlcudes Nos. 1, 2, 3, 4 and 5 | 8 | 227 | ||||||||||
