| FREQUENCIES | |||
| Direct Connect (pre-programmed) | 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz, 262 kHz.* | ||
| Direct Connect (user programmed) | Any Frequency from 10 Hz – 490 kHz* | ||
| Induction | 8 kHz or 33 kHz. | ||
| * Up to 93 kHz for devices sold in Europe and Australia and New Zealand. | |||
| OTHER SPECIFICATIONS | |||
| Max Power | 10 watts. | ||
| Bluetooth Max Wireless Range | 200 yards (183 m). | ||
| Batteries sold separately. | |||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 49338 | ST-33Q+ Line Transmitter with Bluetooth | 11.1 | 5.0 |
| 49343 | ST-33Q+ Line Transmitter with Bluetooth | 11.1 | 5.0 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

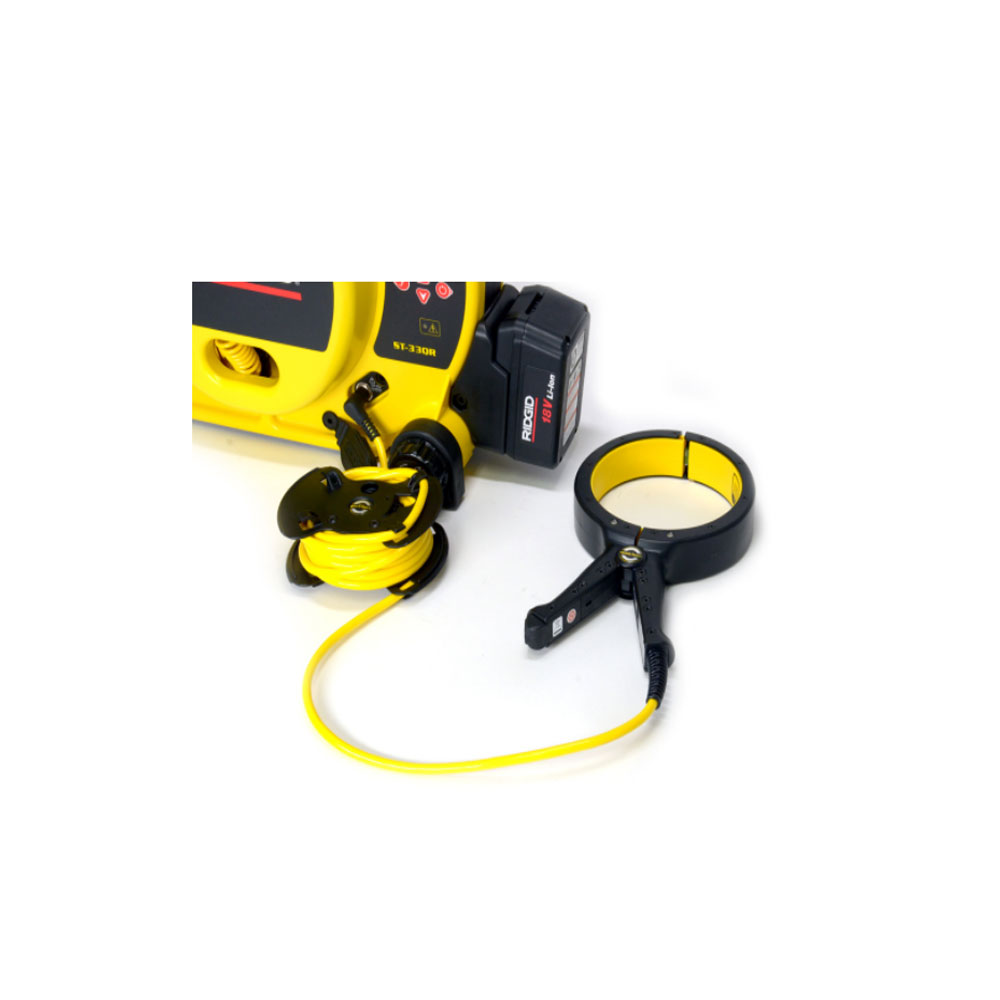

| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 2 | 0.90 |
| 44853 | Set of (2) 2.0Ah Batteries & (1) 120V Charger | 4 | 1.70 |
| 43323 | 18 V 2.0 Ah Li-Ion Battery Pack | - | 0.46 |
| 43328 | 18 V 4.0 Ah Li-Ion Battery Pack | 2 | 0.76 |
| 43333 | 230 V Advanced Lithium Charger | 1 | 0.50 |
- Distance - Induce over 8 times more current than traditional transmitters. More current means you can walk and trace further than ever before.
- Versatility - Power options include Lithium-Ion 18 V rechargeable battery, six D-cell batteries, or an external 10-28 VDC power source.
- Accuracy - Induce more current at lower frequencies. Lower frequencies are less prone to jump onto other lines in congested areas reducing distortion and increasing accuracy.
- Speed - Use with a SR-24 Bluetooth-enabled locator, to control the ST-33Q+ settings wirelessly from the SR-24 receiver. Change transmitted frequency remotely from up to 200 yards away.

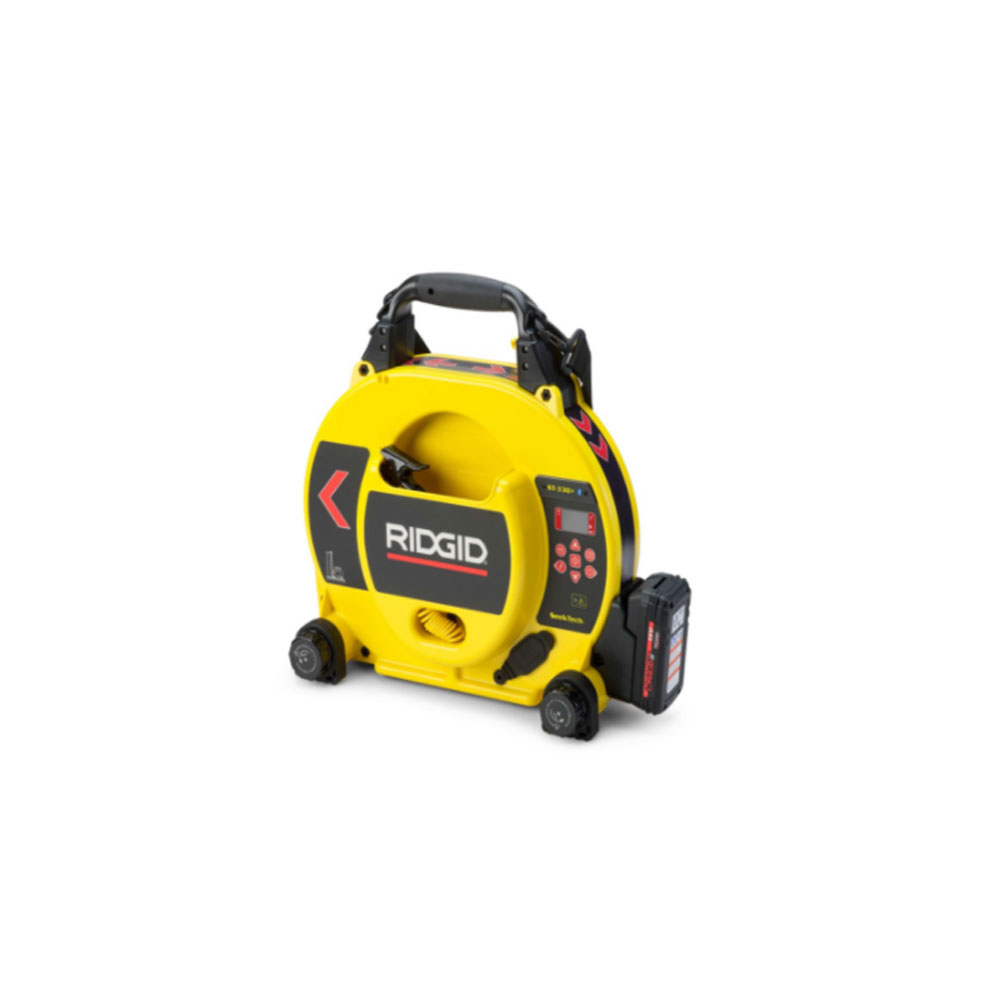

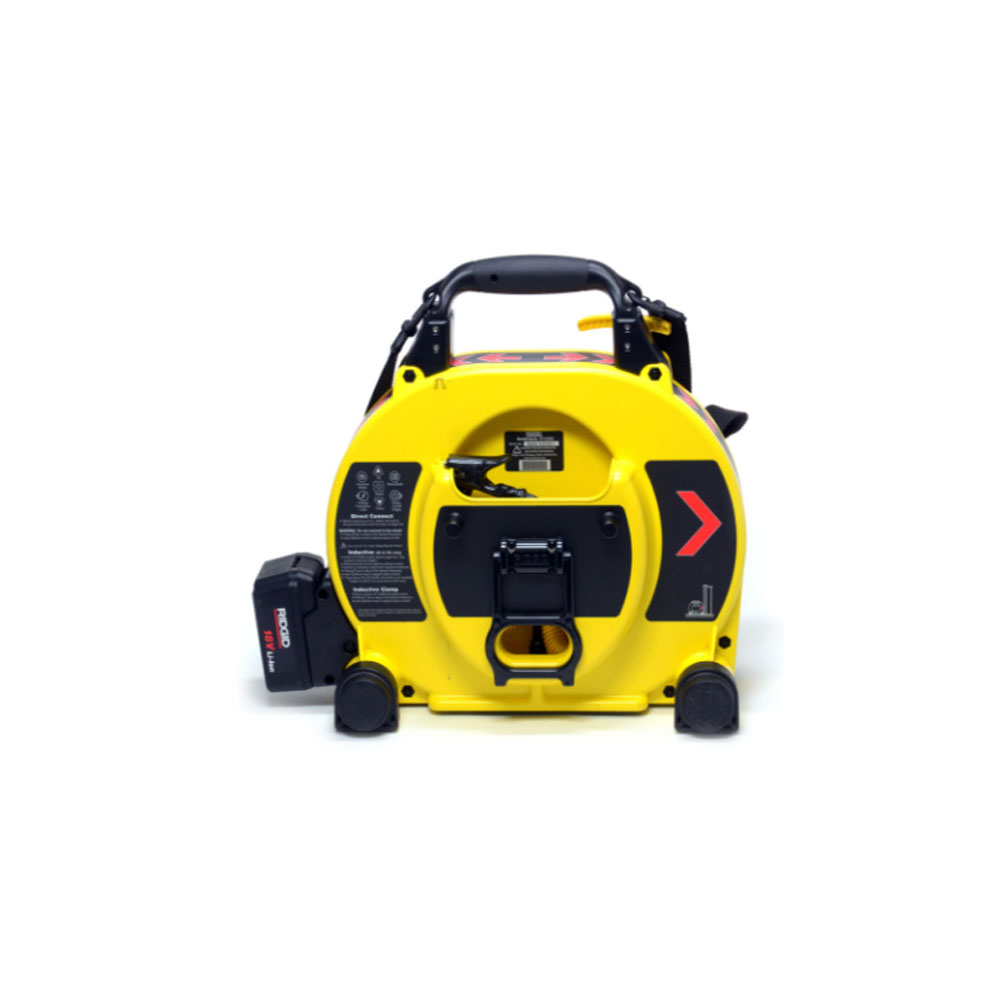

The RIDGID® ST-33Q+ Line Transmitter with Bluetooth is the ideal transmitter for inducing current onto a target line. It will also direct connect using any frequency from 10Hz to 490kHz* with power up to 10 Watts. The ST-33Q+ also allows the flexibility of using D-Cell alkaline batteries or 18V rechargeable RIDGID batteries for minimal interruptions on the job. The new Bluetooth feature on the ST-33Q+ allows you to finish complex locates faster by wirelessly changing the transmitted frequency from the SR-24 receiver from up to 200 yards away.
- Brand: RIDGID
- Product Code: ST-33Q+
- Catalog Number: 49338 - 49343 - 20973
- The RIDGID® ST-33Q+ Line Transmitter with Bluetooth is the ideal transmitter for inducing current onto a target line. It will also direct connect using any frequency from 10Hz to 490kHz* with power up to 10 Watts.
