| CATALOG NUMBER | DESCRIPTION | PIPE CAPACITY | WEIGHT | ||
| IN. | MM | LB. | KG | ||

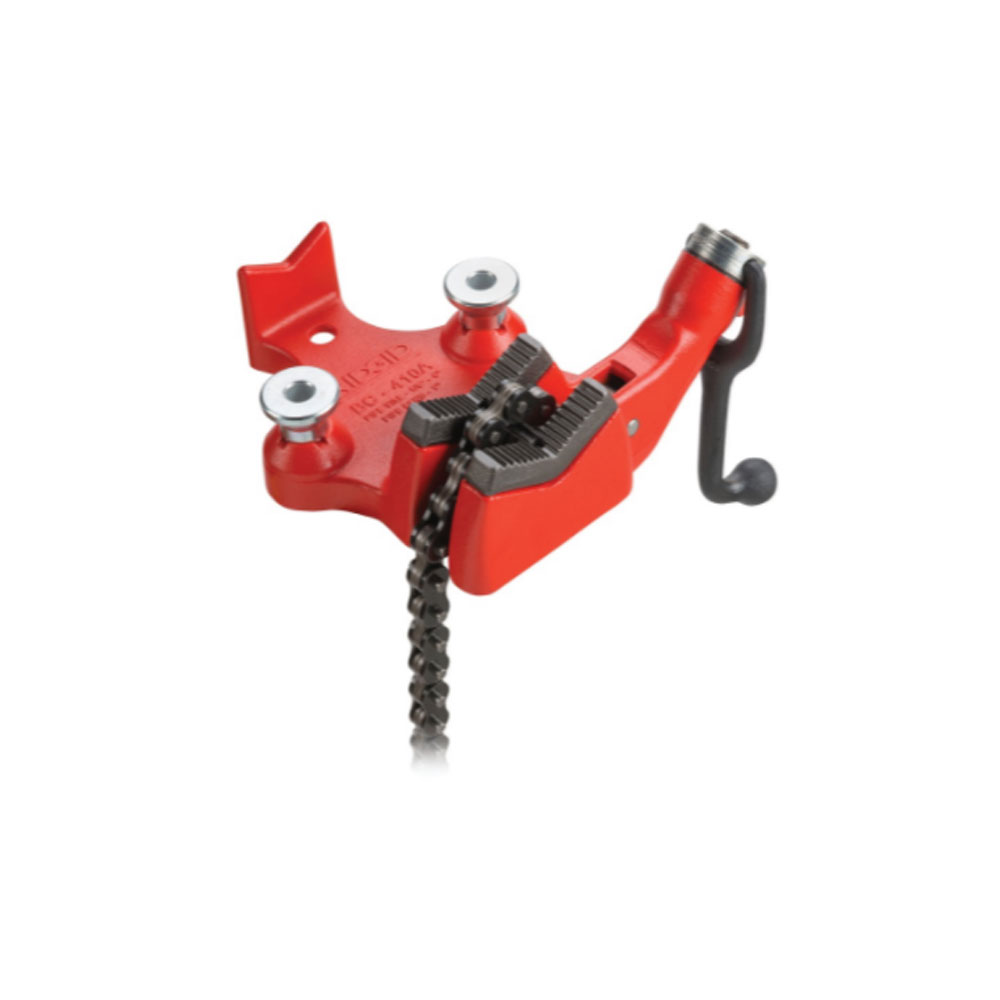

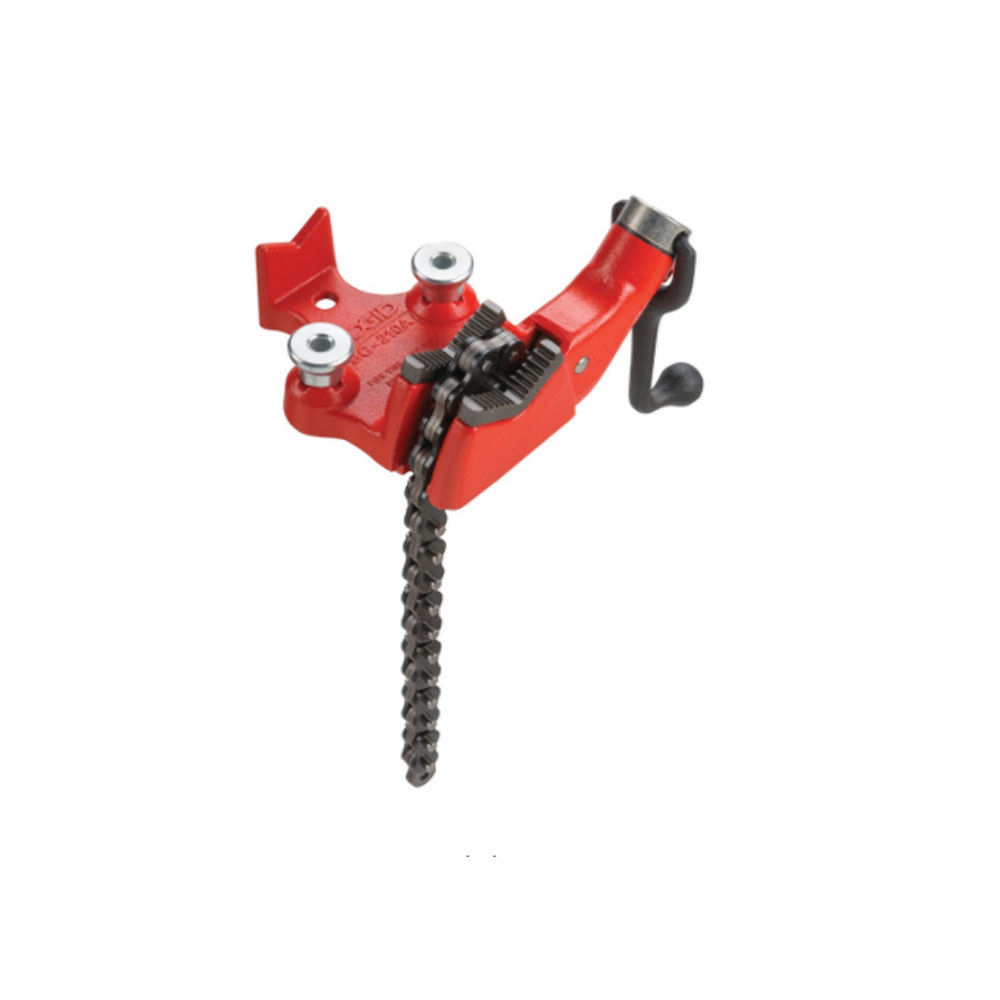

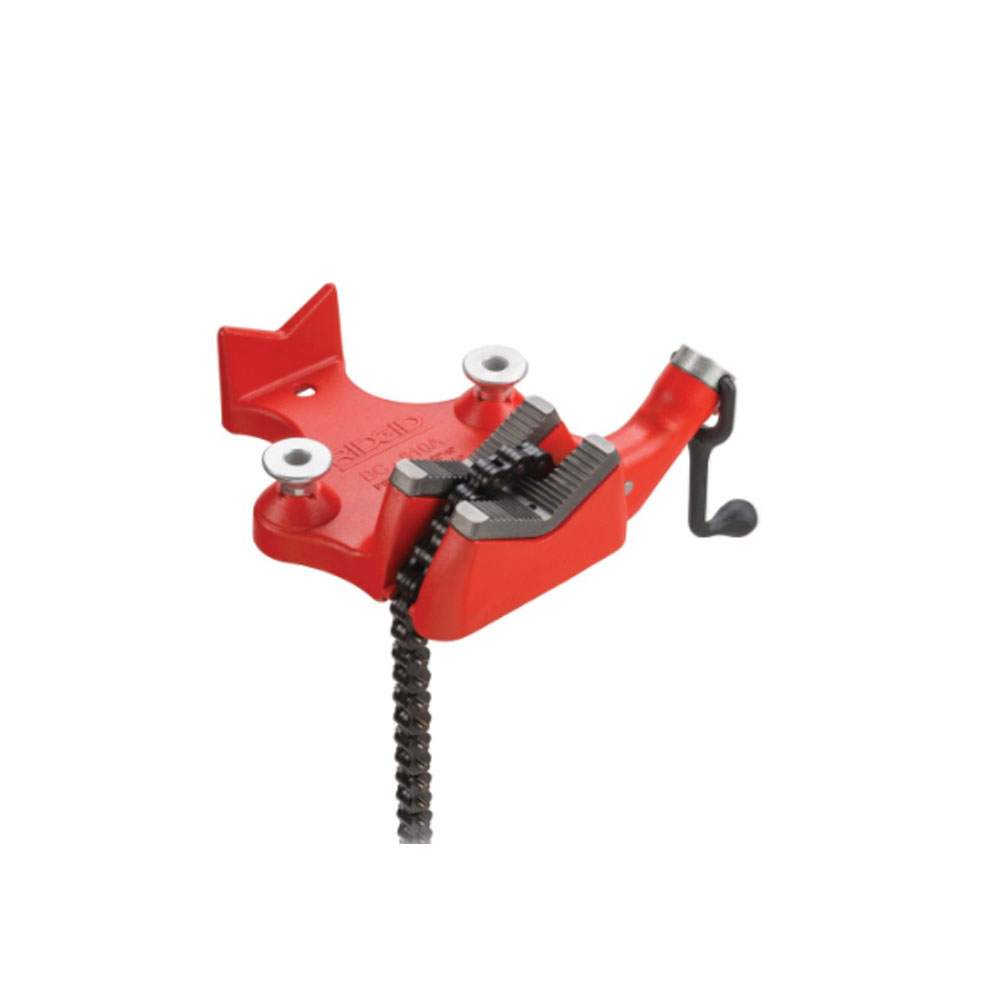

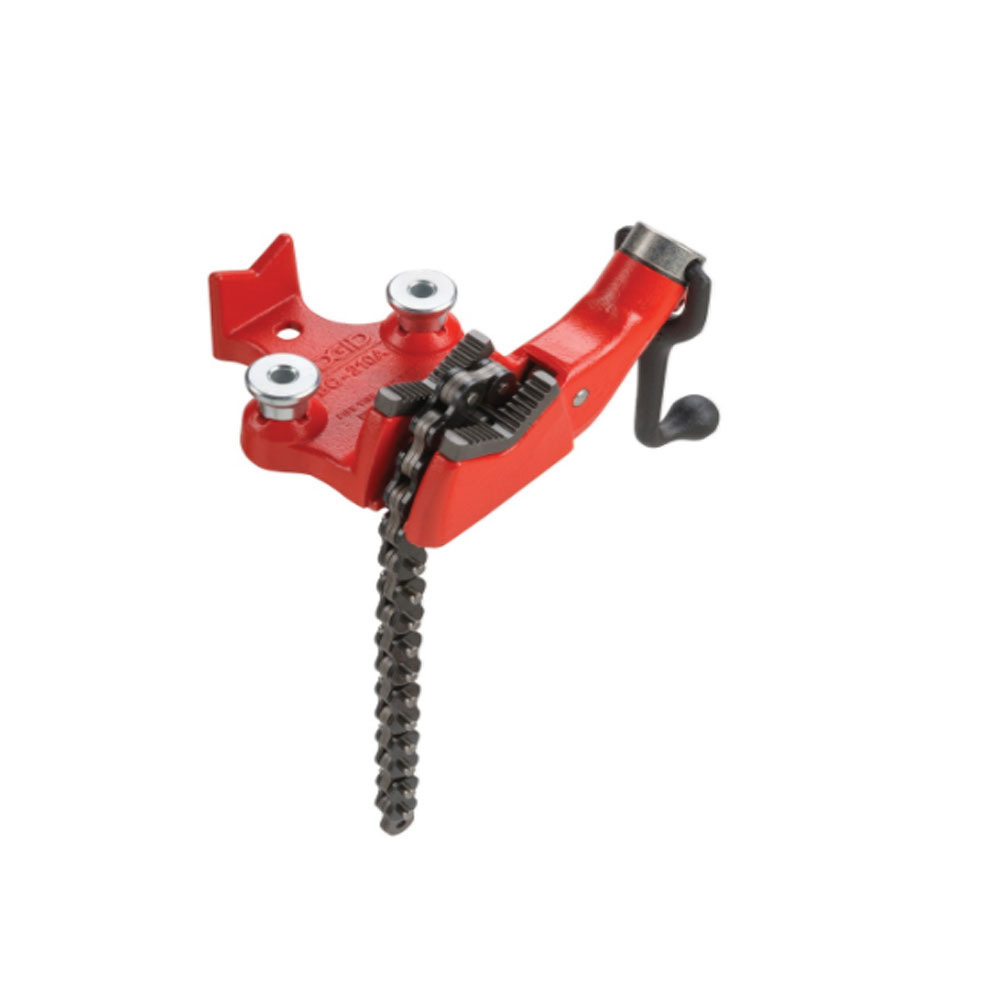

| 40185 | BC210A 1/8" - 2-1/2" Top Screw Bench Chain Vise | 1/8 - 2 1/2 | 6 - 60 | 7 3/4 | 3.5 |
| 40195 | BC410P 1/8" - 4" Top Screw Bench Chain Vise | 1/8 - 4 | 6 - 100 | 14 3/4 | 6.7 |
| 40190 | BC210PA 1/2" - 2-7/8" OD Top Screw Bench Chain Vise for Plastic Pipe * | 1/2 - 2 7/8 | 15 - 70 | 7 3/4 | 3.5 |
| 40200 | BC210PA 1/2" - 4-1/2" OD Top Screw Bench Chain Vise for Plastic Pipe * | 1/2 - 4 1/2 | 15 - 110 | 15 | 6.8 |
| 40205 | BC510A 1/8" - 5" Top Screw Bench Chain Vise | 1/8 - 5 | 6 - 125 | 14 3/4 | 6.7 |
| 40210 | BC610A 1/4" - 6" Top Screw Bench Chain Vise | 1/4 - 6 | 8 - 150 | 24 1/2 | 11.1 |
| 40215 | BC810A 1/2" - 8" Top Screw Bench Chain Vise | 1/2 - 8 | 15 - 200 | 37 1/4 | 16.9 |

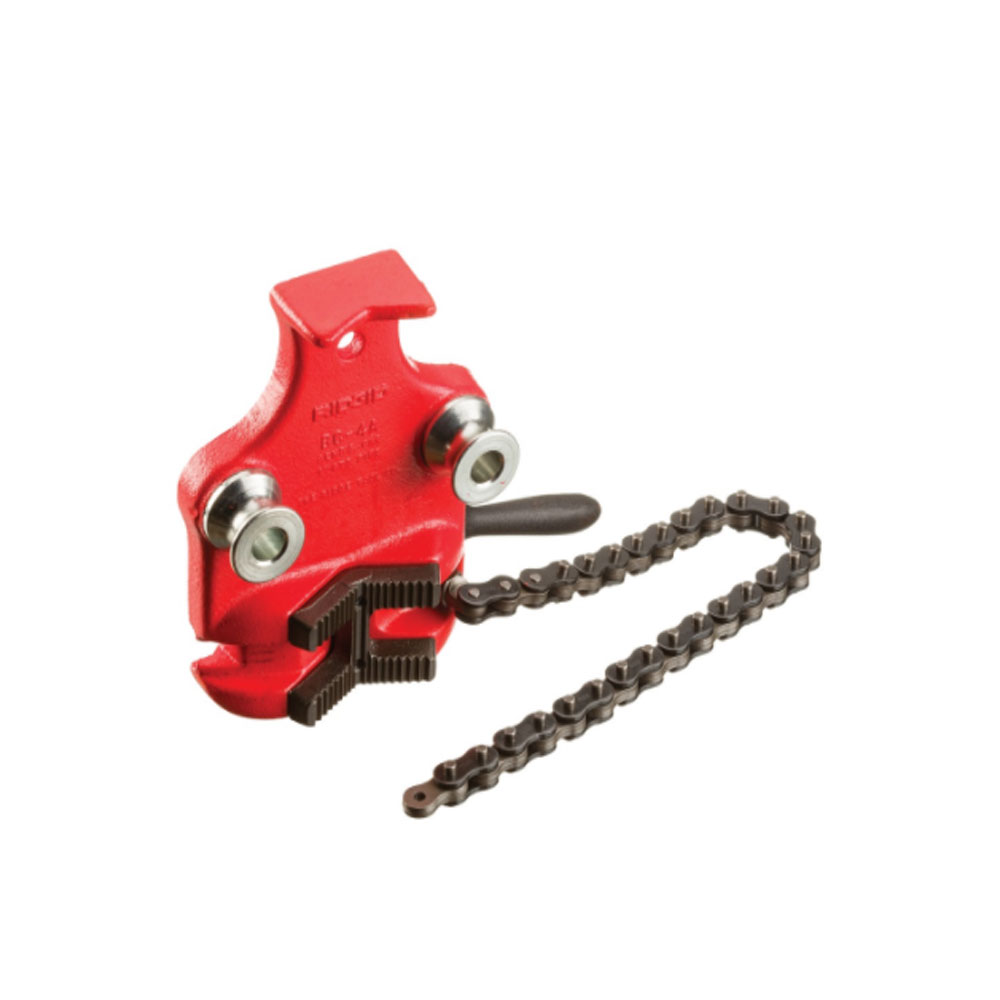

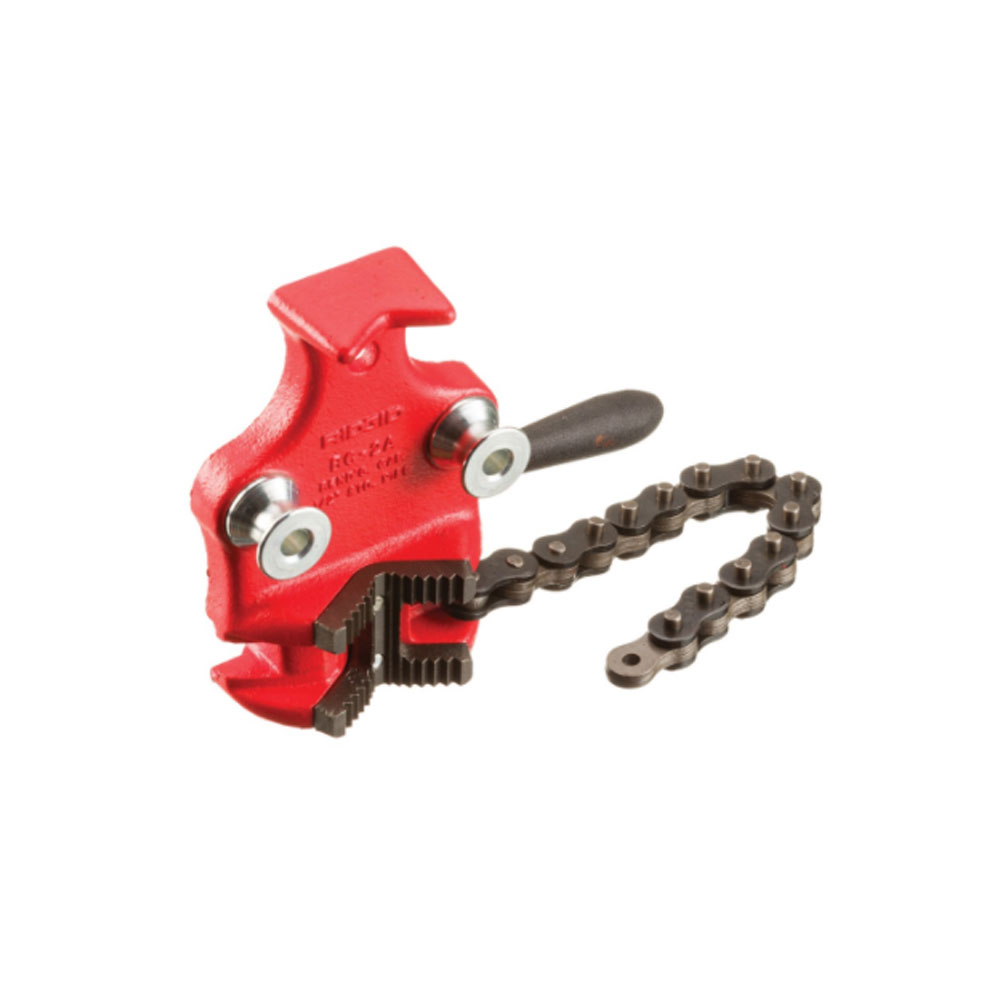

| 40175 | BC2A 1/8" - 2" Bottom Screw Bench Chain Vise | 1/8 - 2 | 6 - 50 | 6 | 2.7 |
| 40180 | BC4A 1/8" - 4" Bottom Screw Bench Chain Vise | 1/8 - 4 | 6 - 100 | 13 1/4 | 6.0 |

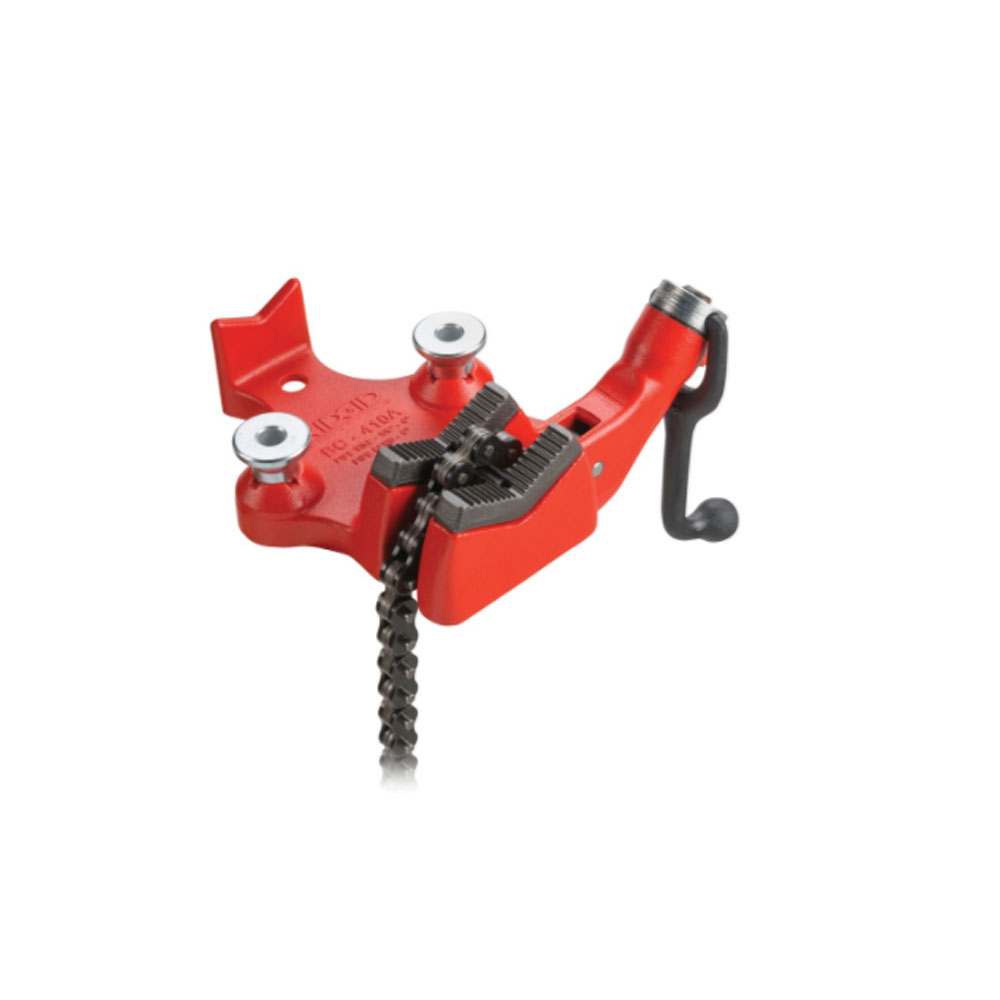

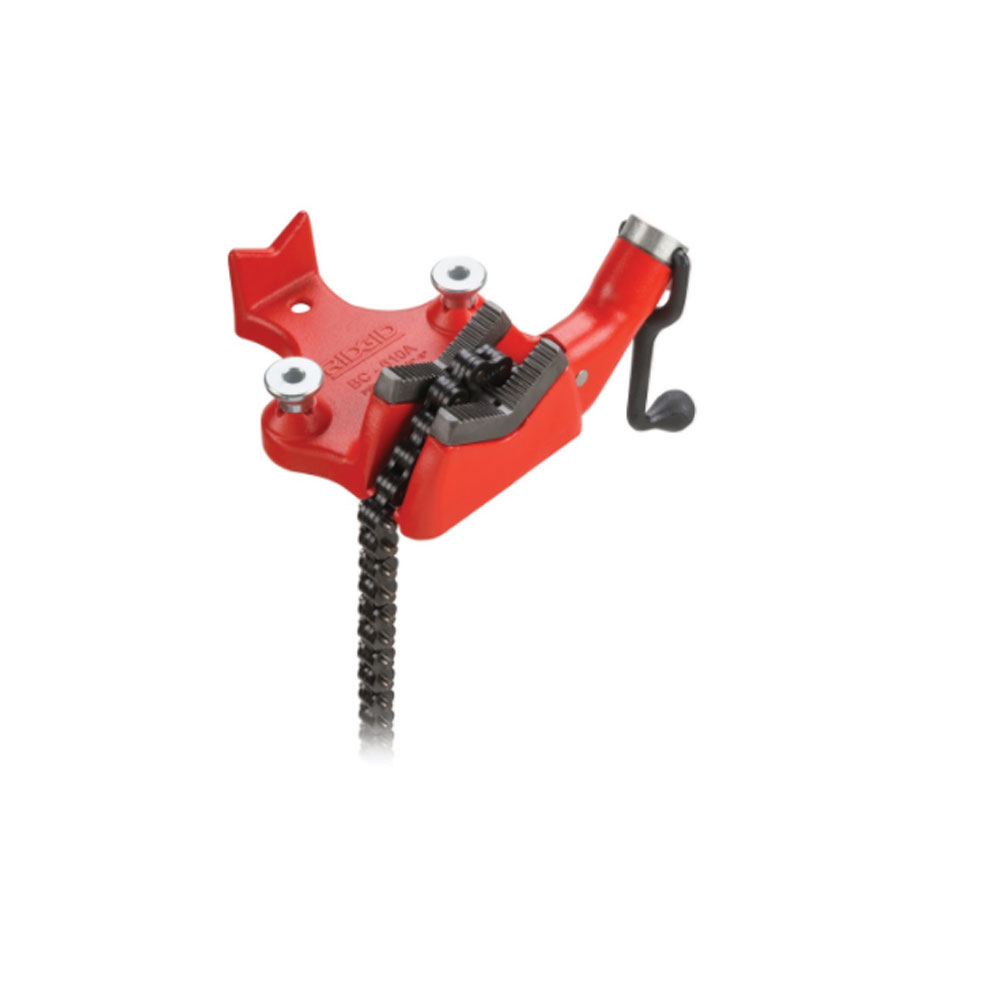

- Crank handle is anchored to base.
- Rugged cast-iron base has handy pipe rest and bender. Capacities of 1/8" through 8".

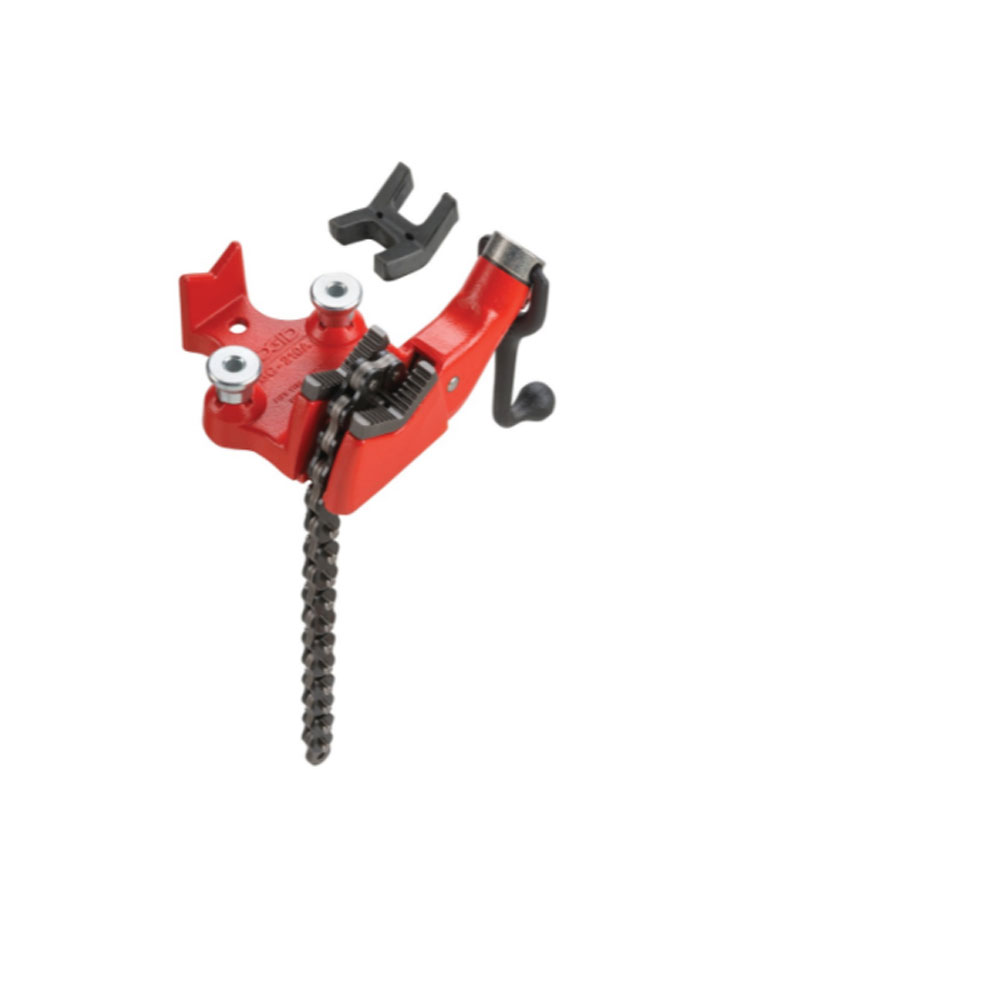

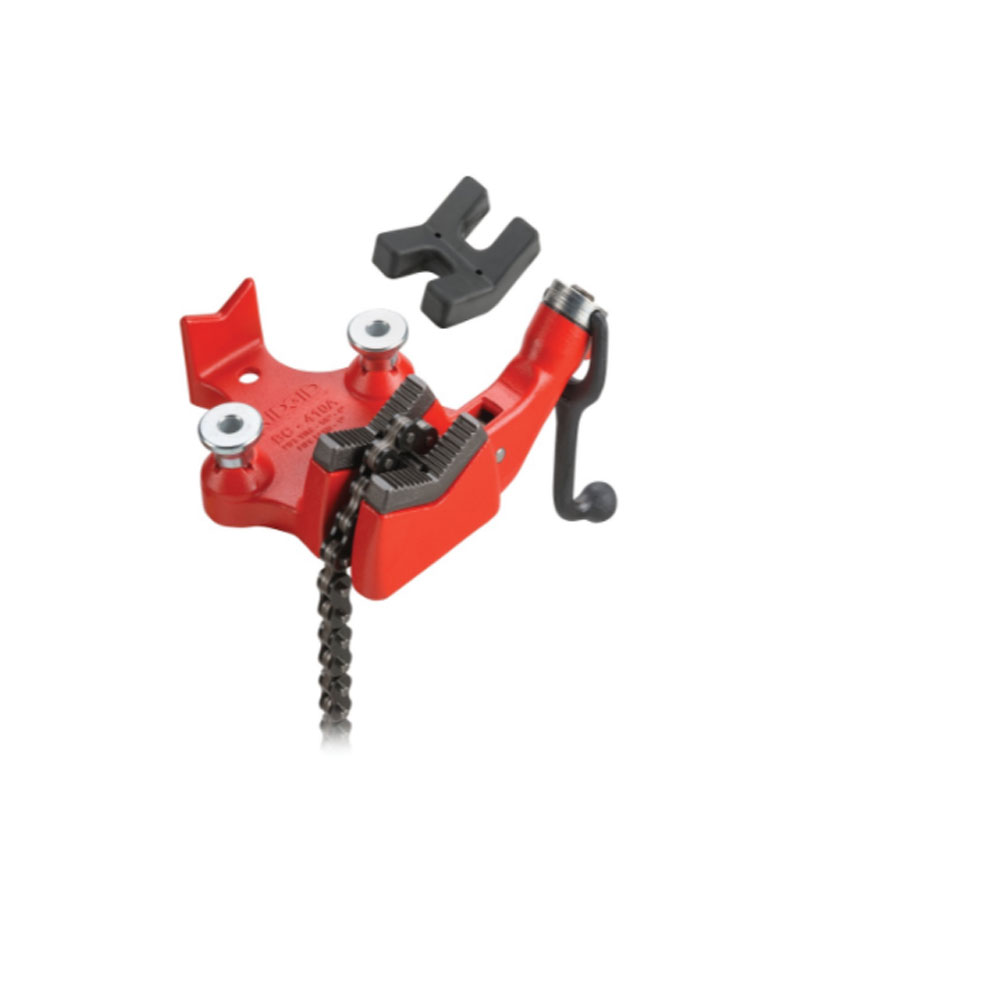

- Two models available for plastic pipe. Toothless jaws are neoprene-coated to prevent scoring of pipe.
- Brand: RIDGID
- Product Code: VISE PIPE TOP SCREW BENCH CHAIN
- Catalog Number: 40185 - 40195 - 40190 - 40200
Two models available for plastic pipe. Toothless jaws are neoprene-coated to prevent scoring of pipe.
