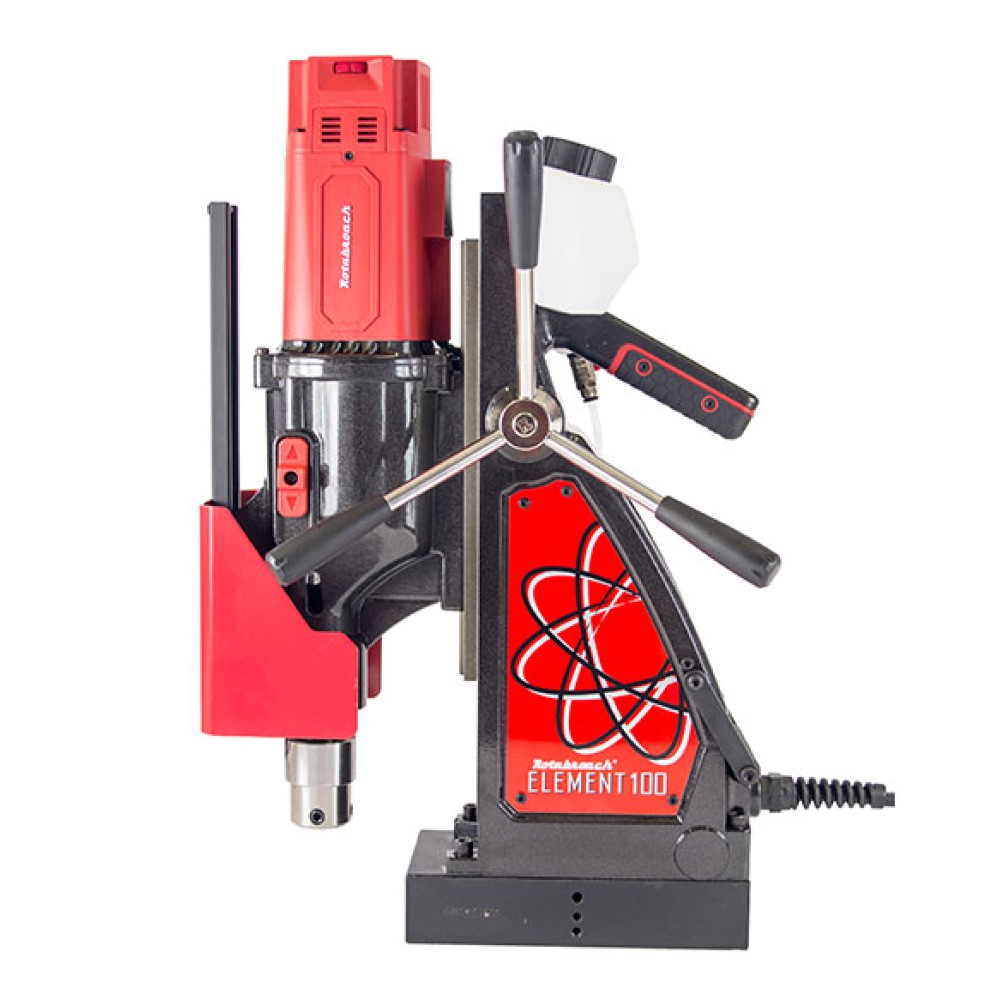

ELEMENT 100

  • ELEMENT 100
Model Number Element 100/1 / Element 100/3
Motor Specification 110V 2000W / 230V 2000W
No Load RPM Gear 1: 45-129 RPM
Gear 2: 70-208 RPM
Gear 3: 150-434 RPM
Gear 4: 240-700 RPM
Max Hole Cutting Capacity ø100 x 100mm Deep ? 31.75 with MT Drill
Overall Dimensions Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 24.8kg
Magnetic Adhesion 20,000N
Magnet Size 228mm x 114mm
Safety Features Cutsmart? Technology / Fixed Guard / Magnetic Detection
Model Number Element 100/1 / Element 100/3

Rotabroach’s largest machine with large diameter drilling and cutting depths.

Suitable for drilling up to 100mm diameter by 100mm depth.

The ‘Element 100’ offers forward and reverse functionality for tapping.

The ‘Element 100’ can be supplied as a swivel base or a non-swivel base.

The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • ROTABROACH

  • Product Code:
  • ELEMENT-100

    Rotabroach’s largest machine with large diameter drilling and cutting depths.

    Suitable for drilling up to 100mm diameter by 100mm depth.

    The ‘Element 100’ offers forward and reverse functionality for tapping.
