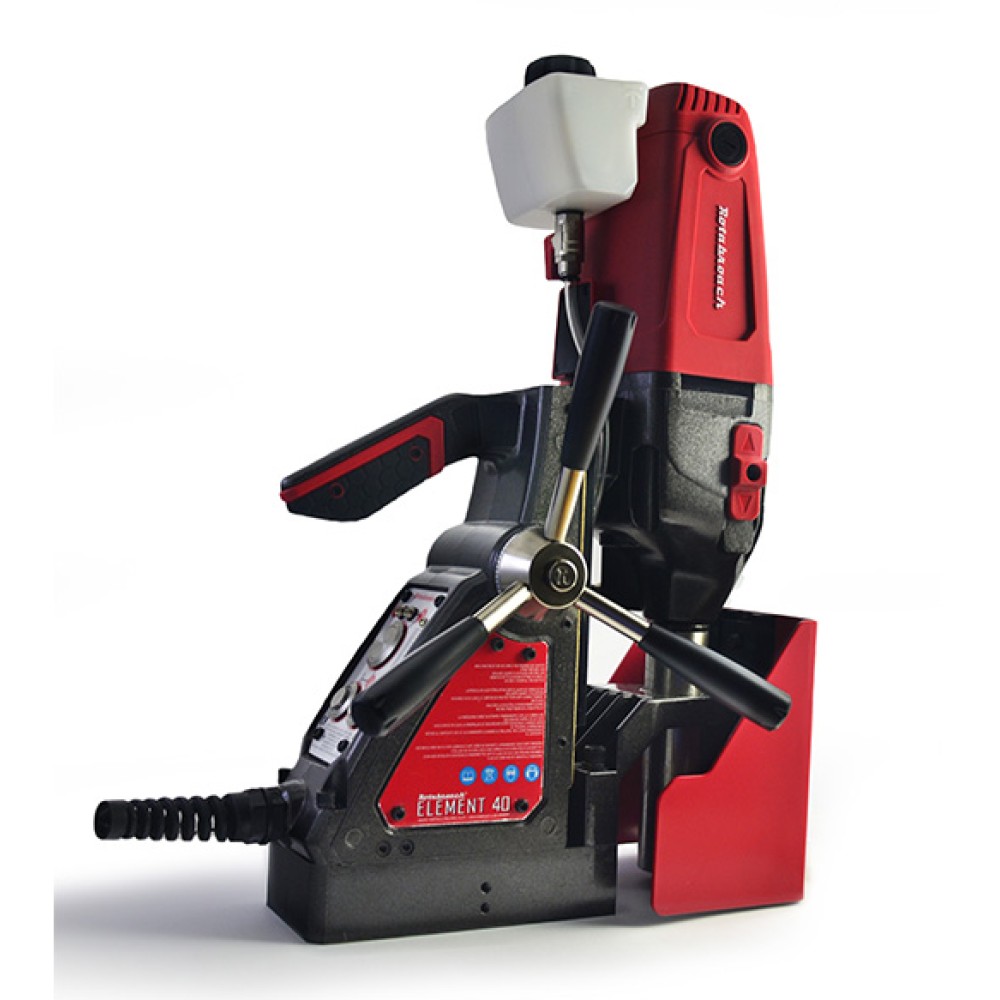

ELEMENT 40

  • ELEMENT 40

Model Number

Element 40/1 / Element 40/3

Motor Specification

110V 1200W / 230V 1200W

No Load RPM

Low Gear: 300 RPM

High Gear: 600 RPM

Max Hole Cutting Capacity

ø40 x 50mm deep

Drill Chuck Capacity

ø13mm

Overall Dimensions

Height: 510mm / Width: 185mm with Capstan / Length: 285mm with Guard

Machine Weight

13.65kg

Magnetic Adhesion

10,000N

Magnet Size

180mm x 90mm

Safety Features

Cutsmart? Technology / Fixed Guard /Magnetic Detection/ Mechanical Clutch

  • The ‘Element 40’ has a powerful, two speed mechanical gearbox.
  • Small in size but this machine revels in the harshest of environments.
  • Suitable for drilling up to 40mm diameter by 50mm depth.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • ROTABROACH

  • Product Code:
  • ELEMENT-40

    Suitable for drilling up to 40mm diameter by 50mm depth.
