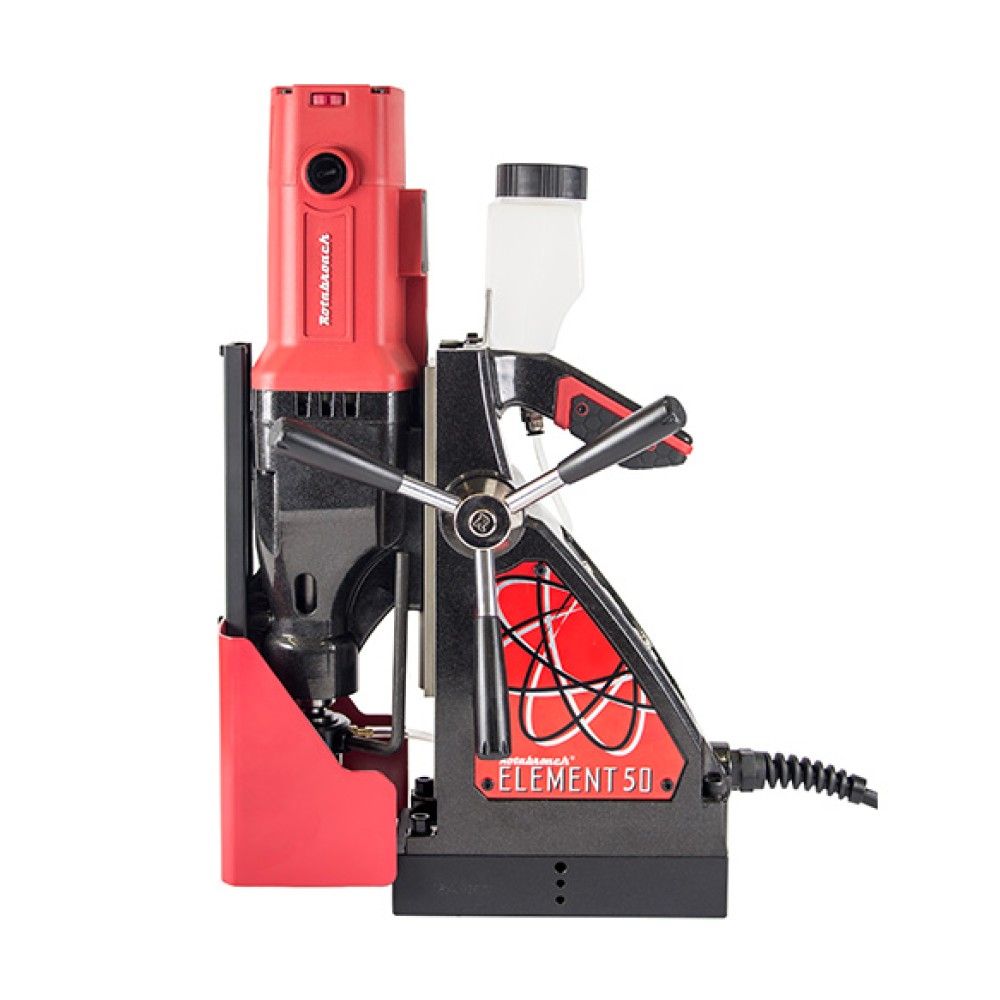

ELEMENT 50

  • ELEMENT 50

Model Number

Element 50/1 / Element 50/3

Motor Specification

110V 1500W / 230V 1500W

No Load RPM

Low Gear: 100-265 RPM

High Gear: 200-500 RPM

Max Hole Cutting Capacity

ø50 x 50mm Deep ? 23mm with MT Shank Drill

Overall Dimensions

Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard

Machine Weight

15.8kg

Magnetic Adhesion

13,500N

Magnet Size

200mm x 98mm

Safety Features

Cutsmart? Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch

Model Number

Element 50/1 / Element 50/3

  • The ‘Element 50’ is one of Rotabroach’s most versatile machines.
  • Small in size, with reversible features to allow tapping.
  • Suitable for drilling up to 50mm diameter by 50mm depth.
  • The ‘Element 50’ can be supplied as a non-tapping machine.
  • The Elements use a dual motor protection system prolonging the machines life.
