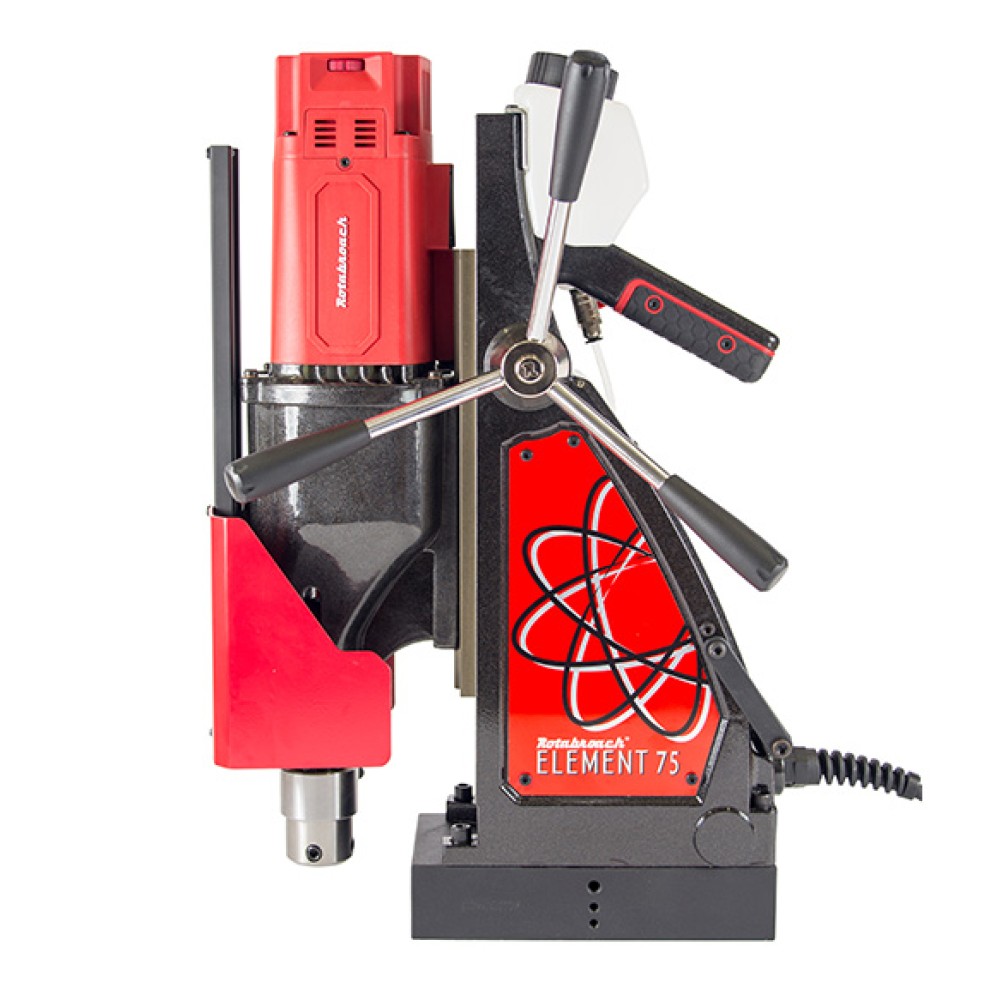

ELEMENT 75

  • ELEMENT 75
Model Number Element 75/1 / Element 75/3
Motor Specification 110V 1800W / 230V 1800W
No Load RPM Low Gear: 70 -180 RPM
High Gear: 200-500 RPM
Max Hole Cutting Capacity ø75 x 75mm Deep ? 26mm with MT Drill
Overall Dimensions Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 23.5kg
Magnetic Adhesion 18,500N
Magnet Size 220mm x 114mm
Safety Features Cutsmart? Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
Model Number Element 75/1 / Element 75/3

For heavy duty operations the ‘Element 75’ is a must for drilling larger holes.

Compact, durable and more portable than other larger machines.

Suitable for drilling up to 75mm diameter by 75mm depth.

The ‘Element 75’ offers forward and reverse functionality.

The ‘Element 75’ can be supplied as a swivel base or a non-swivel option.

The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • ROTABROACH

  • Product Code:
  • ELEMENT-75

    For heavy duty operations the ‘Element 75’ is a must for drilling larger holes.

    Compact, durable and more portable than other larger machines.

    Suitable for drilling up to 75mm diameter by 75mm depth.
