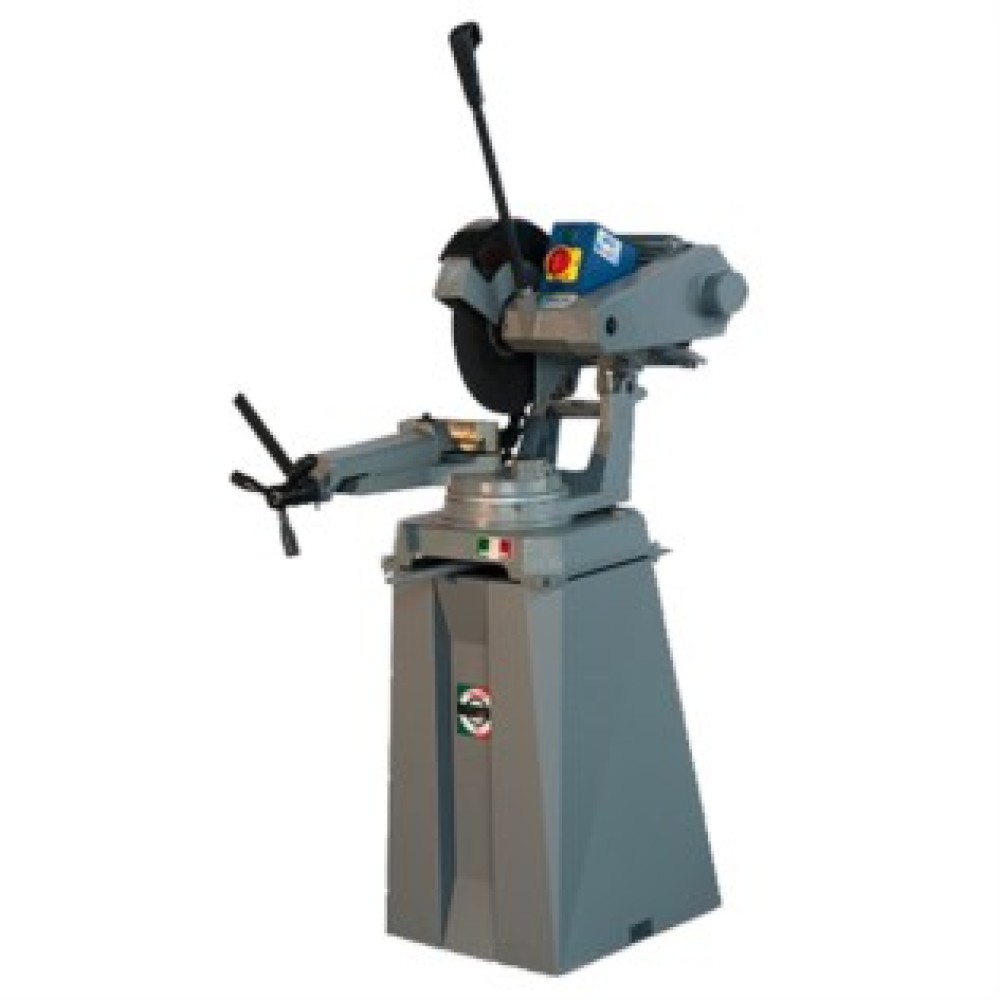

33 MINOR

  • 33 MINOR

3Ph Electric motor

0.75 - 0.95 kW

1Ph Electric motor

0.9 kW

Gearbox in oil bath

1:33 Rapp

Diameter of blade disc

250 mm

3Ph Blade revolution

42 ? 84 rpm

1Ph Blade revolution

41 rpm

Vice opening

100 mm

Coolant tank capacity

3 lt

Working height with pedestal

940 mm

Machines dimension with pedestal

770 x 94 0x 1550 mm

Weight

95 kg

  • TECHNICAL FEATURES
    Robust cast-iron bench.
    Vice and cutting head in cast-iron providing high stability and vibration free cutting.
    Motor guard.
    Device for parallel cut.
    Quick lock vice.
    Severe tests on mechanical tolerances, electric installation and final performance test.
    Hinged pins.
  • OPTIONAL EQUIPMENT
    Blade disc abrasive 350 mm.
    Pedestal in steel plate.
  • STANDARD EQUIPMENT
    Instruction manual.
    Set of service spanners.
    Pedestal included.

Write a review

Note: HTML is not translated!
    Bad           Good

  • Product Code:
  • 33 MINOR

    Cutting cycle:
    Two ways miter cutting (from 0° to 45°)
    Circular saw for metals
