3Ph Electric motor |
0.5 - 0.75 kW |
|
1Ph Electric motor |
0.9 kW |
|
Electropump |
0.07 kW |
|
Gearbox reduction ratio |
28/1 l |
|
Drill Chuck Capacity |
ø13mm |
|
Flywheel diameter |
265 mm |
|
Blade dimension |
2085 x 20 x 0,9 mm |
|
Cutting speed |
30/60 m/1' |
|
Vice opening |
205 mm |
|
Sawframe inclination |
45° |
|
Working height |
920 mm |
|
Machine dimension |
1300 x 720 x 1450 mm |
|
Weight |
200 kg |
- OPTIONAL EQUIPMENT
Blade disc Carbide 450 mm - STANDARD EQUIPMENT
Instruction manual
Set of service spanners
Pedestal included
- Brand: STHEMMA -THOMAS
- Product Code: ZIP-22

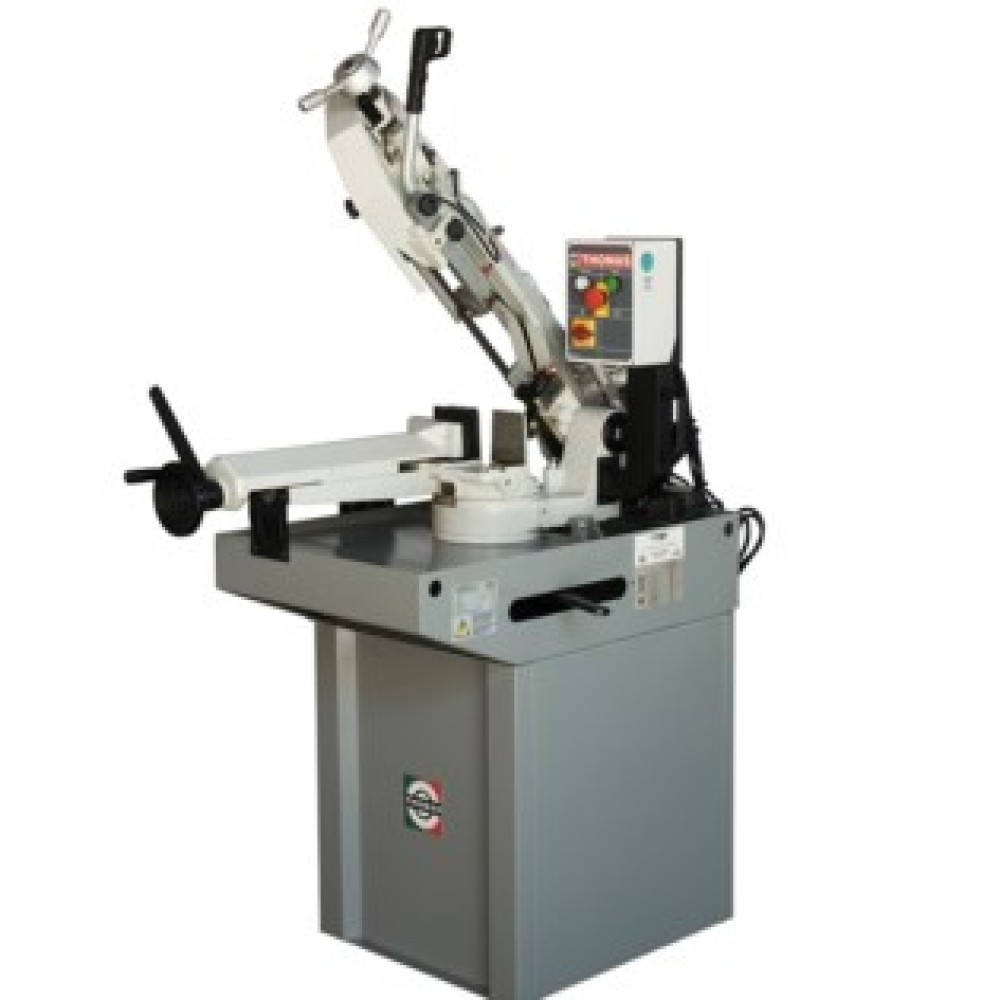

The sawing machine is basically built in two parts: the machine body including motor and trasmission organs wich the upper part including the vices, the countervice and the protection cover are assembled
