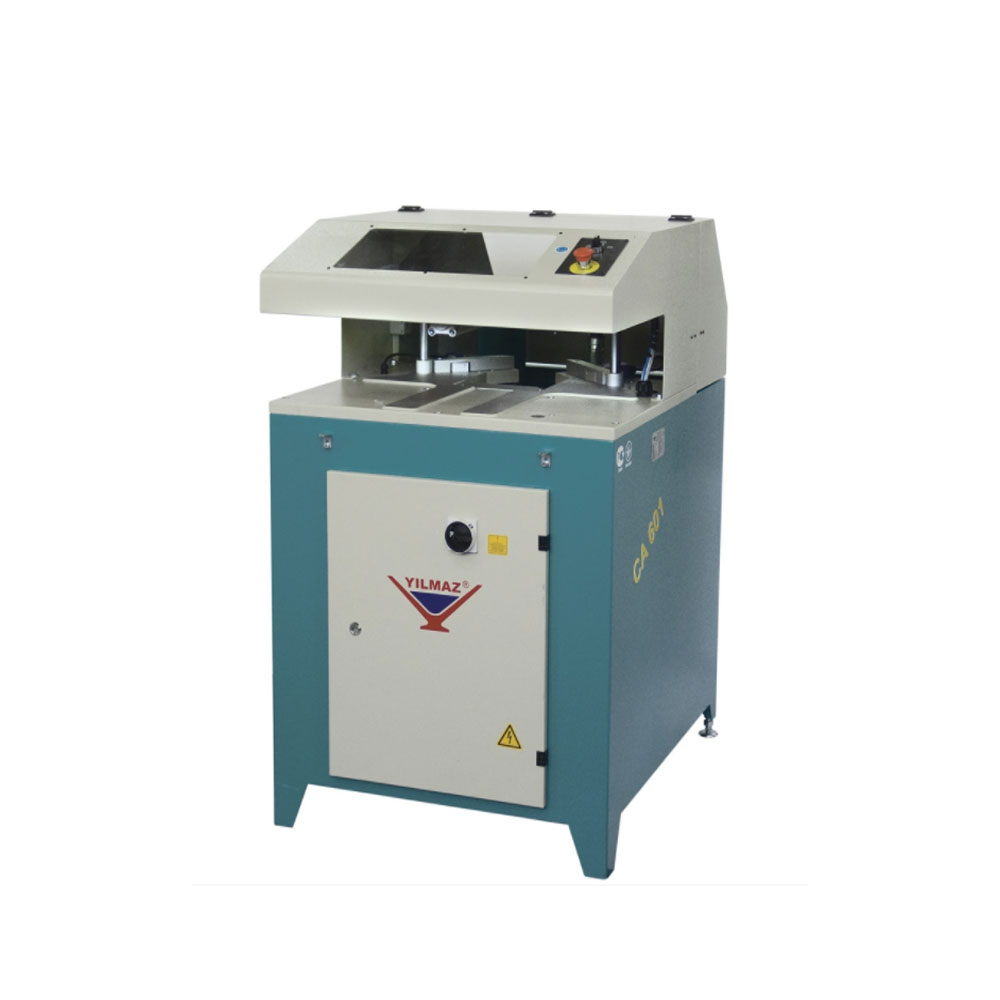

CA 601 - SEMI OTOMATIK SINGLE CORNER PVC CLEANING MACHINE

1200W 400W 50~60 Hz
230V AC P N PE 400V AC 3P PE
3000 D/dak RPM
D: 215 d: 32 mm.
36 Lt/dak.
6~8 Bar
W: 92 L: 101 H: 143 cm
249 kg.
198 kg.
  • High quality stripping and cleaning operations
    by means of the hydro-pneumatic system
  •  Profile processing capability up to 180 mm of
    height
  •  Practical change of cutter provides ease of
    operation
  •  Fixing the workpiece firmly by means of the
    vertical and horizontal clamps
  •  PLC operation system
  •  Centering system to fit the profiles properly
    on the setsquare
  •  Robust machine stand
  •  Stripping blade levels are adjustable
    according to laminated and un laminated
    profiles
  •  Pneumatic tool fixing and releasing system
    • Single or multi cleaning operations can be
    processed
  •  Automatic start up feature when profile
    placed on the table
  •  Stops automatically after stripping and
    cleaning operation

STANDARD ACCESSORIES

  •  Air gun
  • OPTIONAL ACCESSORIES
  •  Corner cleaning cutters

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • CA 601

    After welding clean up down and corner sides of 90º PVC Profiles after welding.
