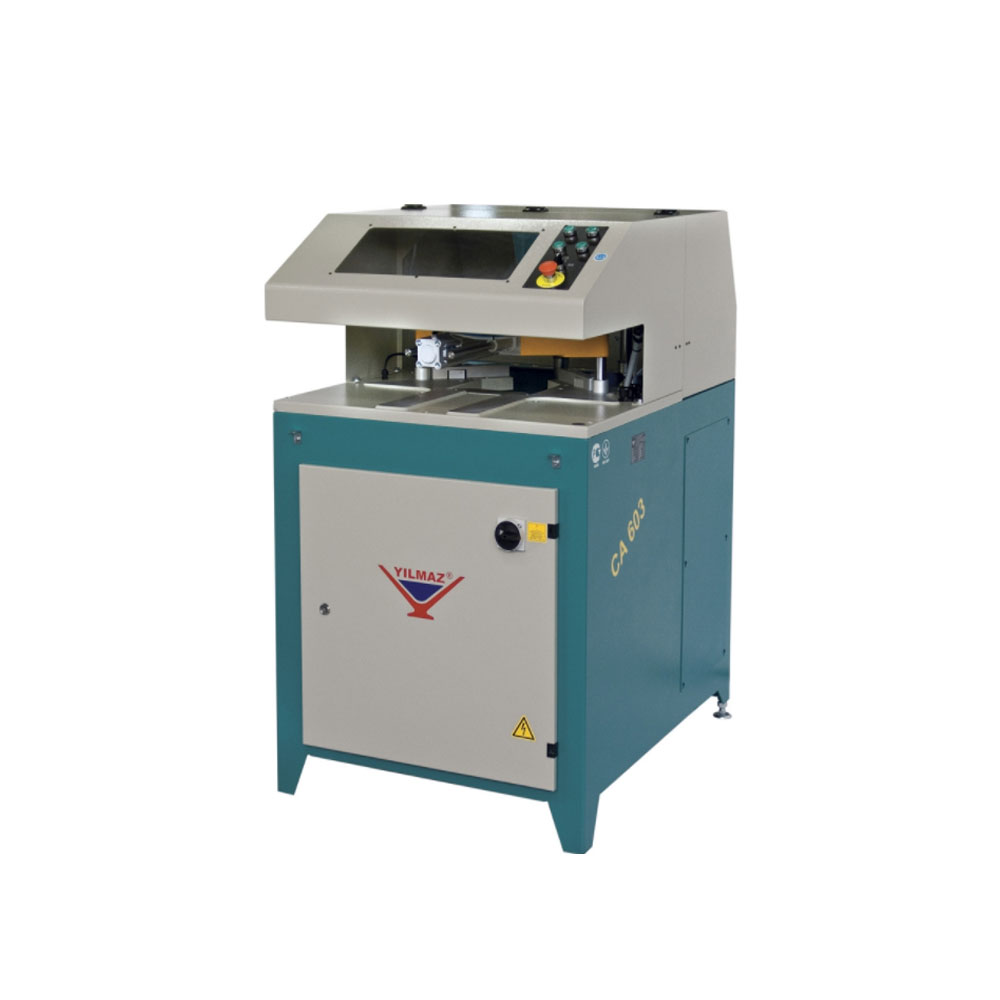

CA 603 - PVC CORNER CLEANING MACHINE (4 - 6 CUTTERS)

1200Wx 2~3 400V AC 50-60 Hz.
3000 D/dak RPM
max D:230 d: 32 mm.
48 Lt/dak.
6~8 Bar
W: 88 L:116 H:149 cm.
313 kg.
258 kg.
  • High quality stripping and cleaning
    operations by means of the hydro-pneumatic
    system
  •  Profile processing capability up to 180 mm of
    height
  •  Practical change of cutter provides ease of
    operation
  •  Fixing the workpiece firmly by means of the
    vertical and horizontal clamps
  •  Stops automatically after stripping and
    cleaning operation
  •  PLC operation system
  •  Centering system to fit the profiles properly
    on the setsquare
  •  Robust machine stand
  •  Pneumatic tool fixing and releasing system
  •  Stripping blade levels are adjustable
    according to laminated and un laminated
    profiles
  •  Processing capability of 2 different PVC
    profile
  •  4 different cutter set can be mounted on a
    modul (CA 603)
  •  6 different cutter set can be mounted on a
    modul (CA 605)

STANDARD ACCESSORIES

  •  Air gun

OPTIONAL ACCESSORIES

  •  Corner cleaning cutters

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • CA 603

    CA 603 and CA 605 Single Corner Cleaning Machines are used for striping of bottom and top surfaces and
    cleaning outer corners of 90° PVC welded profiles
