| 10 kW - 230/400V 3P 50~60 Hz |
| 2440 dev/dak. RPM |
| 6 Bar |
| 51 lt. |
| X: 750 mm Y: 310 mm Z: 310 mm |
| 18000 dev / dak. |
| 15.650x3.200x2.100 |
| 3200 |
| 3070 |
- Servo control system providing motion in 8 axis,
- Windows based PC
- Touchscreen panel
- Barcode printer
- Writing information barcode on last profile
- Following the processing situation of the PVC profile on the PC screen simultaneously
- 10 pieces of profile loading capacity of conveyor unit in the range of min. 800 / max. 6500 mm
- Technical support via remote access
- Cutting storage capacity of 6500 rows
- Interface software integrated with all CAD programs
- Simultaneous milling and cutting operation
- Clear user interface
- Conveyor unit with profile feeding capacity of 10 pieces
- Integration with four corner PVC welding and cleaning line
- Drop down cutting unit with servo system having +/- 0.1⁰ accuracy between 30⁰ – 150⁰
- Performing required operation on every surface of profile
- Performing every necessary operations (except notching) for window profiles
- Frame and sash profile recognition system
- Profile width and height dimension control system
- Handling chip and scrap profiles by using conveyor and storage
- Processing capacity of 1200 -1800 running meters / 8 hours
- Automatic lubrication system
- Low pressure control
- LED interior lighting
- Saw diameter: 500 mm
- Minimum profile dimension to be hold (W x H): 40 mm, 40 mm
- Maximum profile dimension to be hold (W x H) : 130 mm x 140 mm
- Maximum profile length to be processed (L max): 6500 mm
- Minimum profile length to be processed (L min): 700 mm
- Brand: YILMAZ
- Product Code: PIM 6508

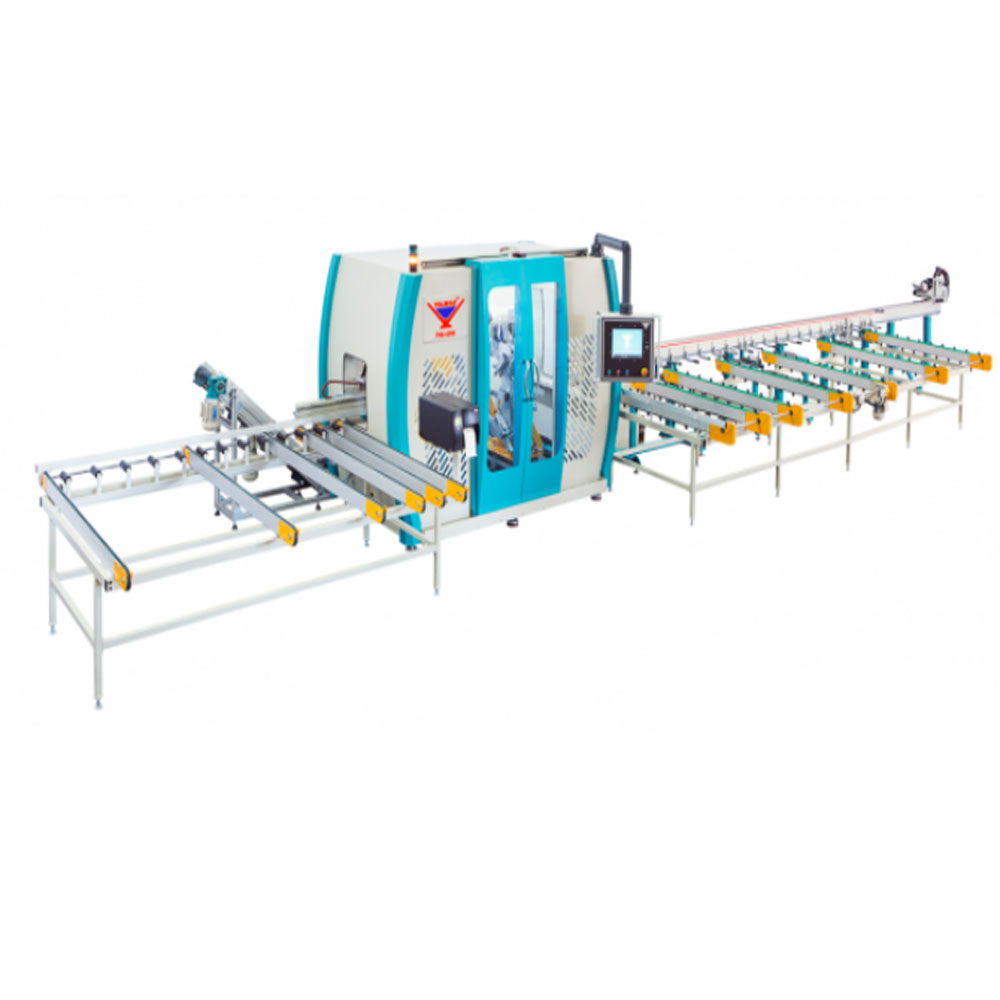

Designed to perform any kind of cutting, drilling, marking, and slotting operations on PVC profiles by means of servo controlled engines motors
