| 2,2 kW 50 Hz 400V AC 3P PE |
| 3000 RPM |
| D=420 mm. d=30/32mm. |
| 6-8 BAR |
| 7 lt./ min. |
| W= 750 H= 1120 L = 1550 |
| 240 |
|
200
|
- Performing of different cutting operations are possible by means of the pivoting and tilting features
- Powerful cutting operations by means of the 2.2 kW, 3000 rpm motor
- Smooth movement, high precision and great sensitivity provided with gas spring , linear bearings and ergonomic handle
- 2 x pneumatic vertical clamps
- Cast iron construction of the body that is strong and lasting
- Robust mechanical construction enables the ease of adjustment for the requested cutting angles
- Location points at 15°-22,5°-30°-45°-60°-90°
- Pivoting range from 45° to 60° infinitely adjustable
- Tilting range from 90° to 45° left
OPTIONAL
- Saw blades for aluminum or timber
- Spray saw blade lubrication system
- Dynamic motor brake unit (1.5 kW-7.5 kW)
- Laser marking indicating the cutting line
- Digital display for ease adjustment of
pivoting angle - DKN 300 conveyor (3m, 4.5m or 6m)
CUTTING CAPACITY (WXH)
- 90⁰ : 410 x 170 mm
- 45⁰ : 285 x 170 mm
- 60⁰ : 205 x 170 mm
- 45⁰ : 410 x 95 mm ( tilting )
- Brand: YILMAZ
- Product Code: RYK 420

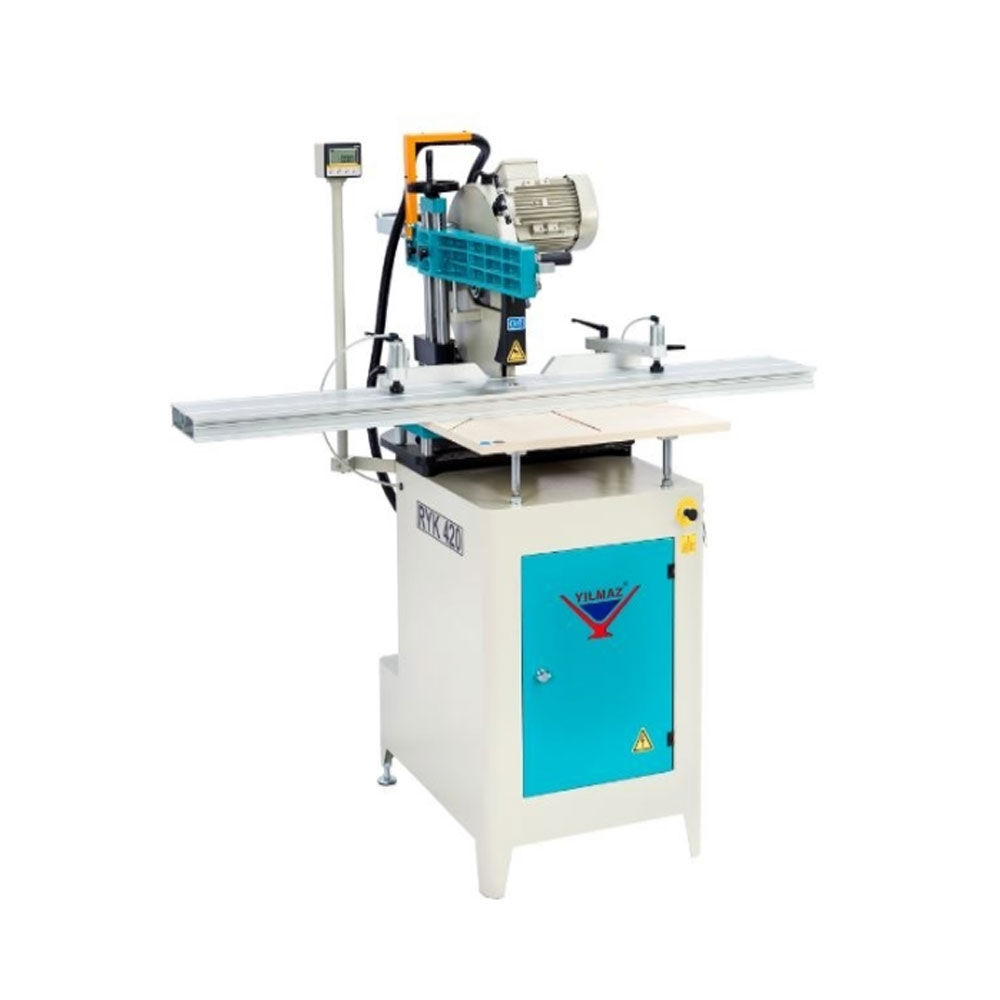

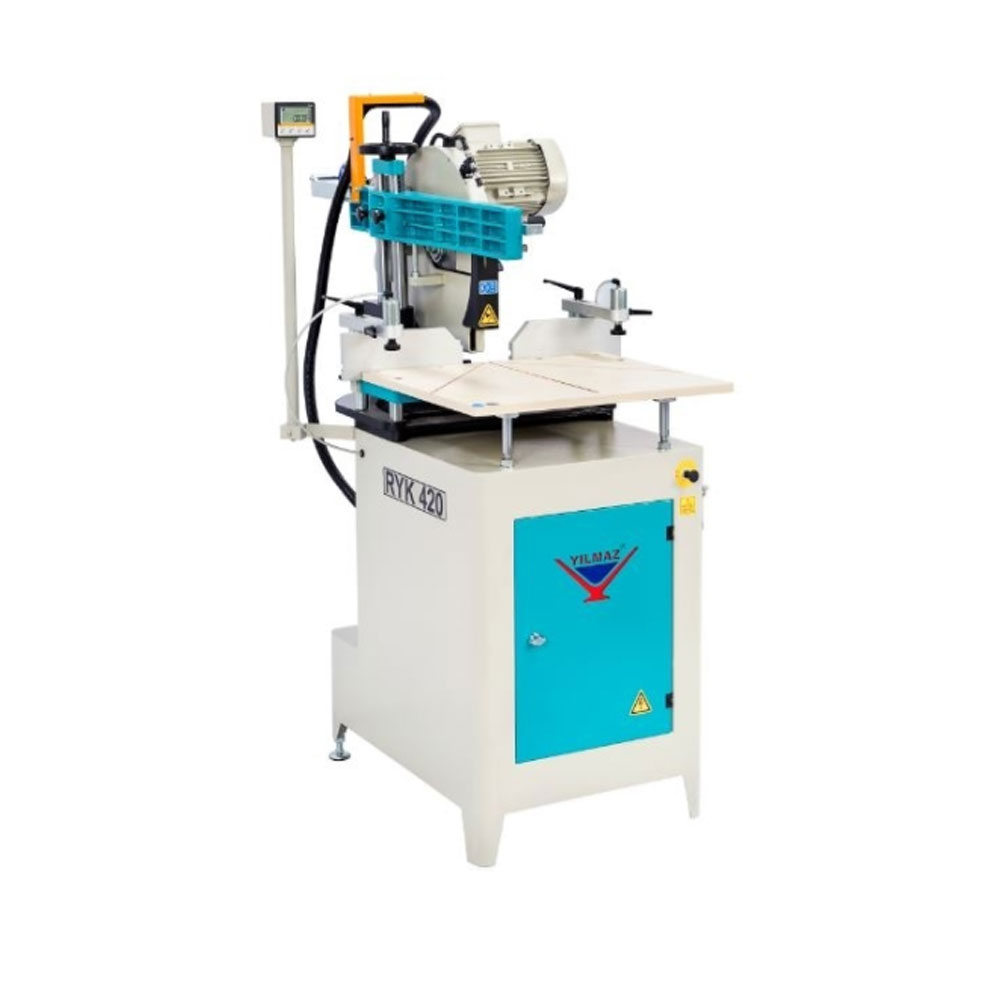

RYK 420 Radial Saw Machine is designed for the straight or angular cutting operations of the large size of materials made of PVC, aluminum and timbers RYK 420 allows straight and angular cuttings by means of the pivoting table and tilting head.
