Outside:7.1ⅹ3.7ⅹ3.52 (m)
Inside :6ⅹ3.48ⅹ2.7 (m)
Total powder(kw) 7
Wallboard:EPS powder coated panel,50mm thick,steel 0.4mm thick,with metal edge cover
Basement:All grids.
Intake fan 1 set of 5.5kw.with M style pre-filter
Fan capacity: 18000M3/h
Ceiling light:40pcs 36w Philip lamp.
Installation style:6 post to support the air room.(suspend to the ceiling of the workshop for optional)
Motor Voltage 380V/50HZ/3PH (Other voltage for option, but USD200 added)
Control box: Chinese components ,motor direct start

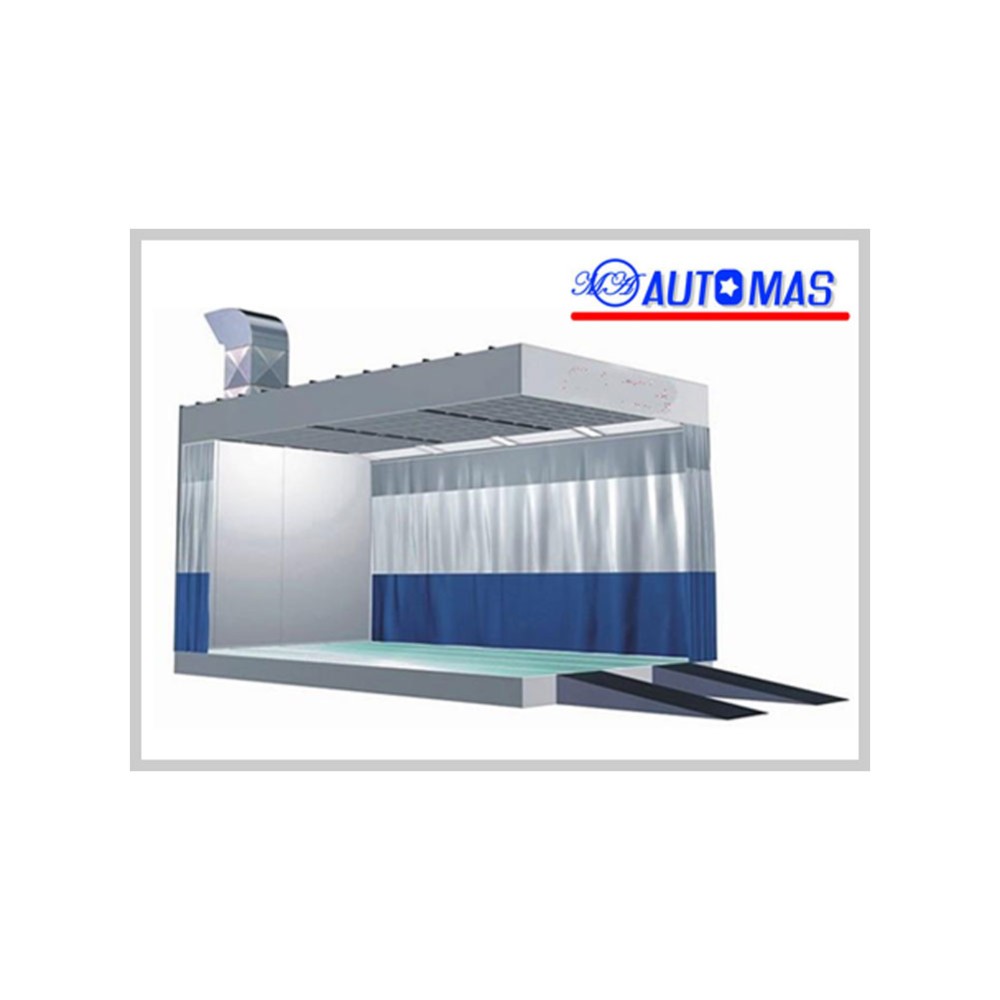

- TYPE：spray booth
