| Pipe Capacity | 1/8" - 2" (3mm-50mm). | ||||||||||||||
| Bolt Capacity | 1/4" - 2" (6mm-50mm). | ||||||||||||||
| Motor Control | Heavy-duty rotary forward/off/reverse and integral foot switch. | ||||||||||||||
| Chuck | Hammer-type with replaceable, rocker-action jaw inserts. | ||||||||||||||
| Oiling System | Through-the-head, with integral oil reservoir with self-priming, constant-flow, gerotor pump. | ||||||||||||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT | ||||
| LB. | KG | ||||||||||||||
| 66947 | 300 Compact | 1/2" - 2" NPT Hammer Chuck | 811A | 36 | 115 | 50 - 60 | 1 | Universal | 15 | 1/2 HP | 115 | 52.3 | |||

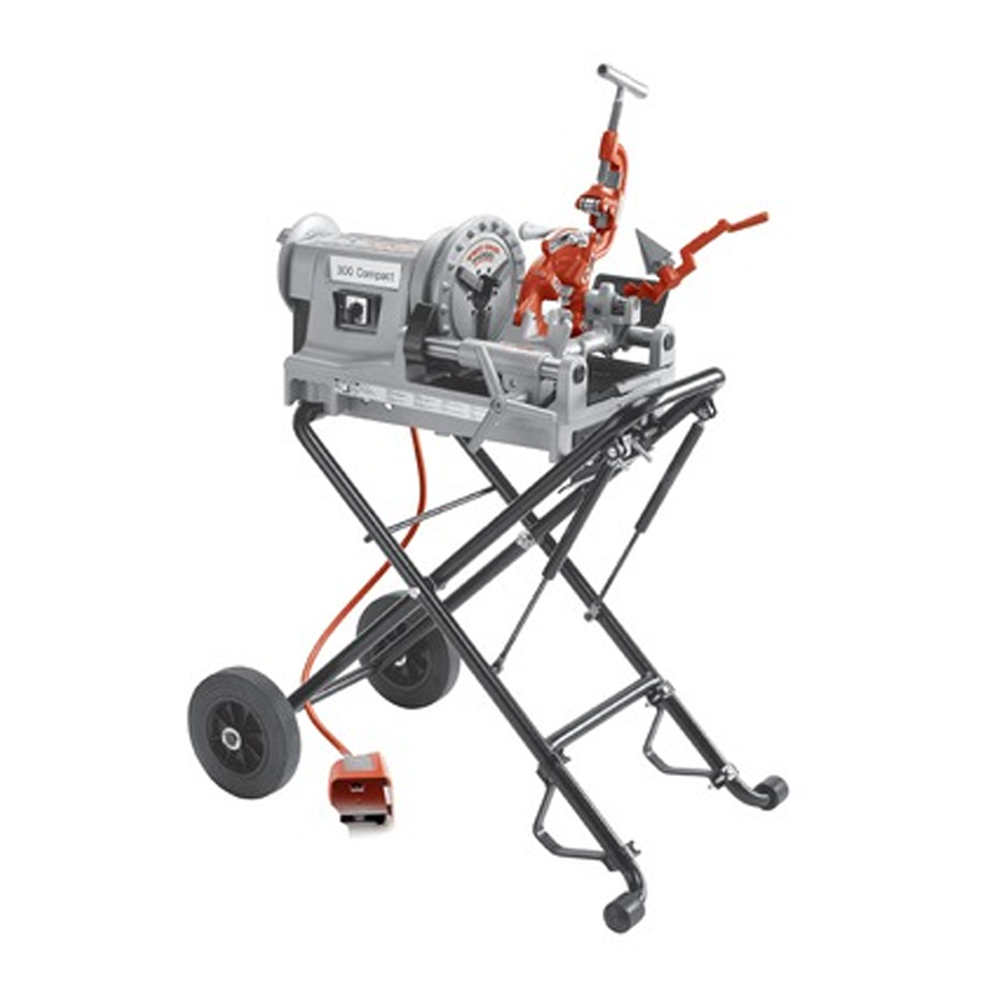

| 67182 | 300 Compact Kit | 1/2" - 2" NPT Hammer Chuck w/ 250 Folding Wheel Stand | 811A | 36 | 115 | 50 - 60 | 1 | Universal | 15 | 1/2 HP | 160 | 72.7 | |||
| 73447 | 300 Compact * | 1/2" - 2" NPT Hammer Chuck | 811A | 52 | 115 | 50 - 60 | 1 | Universal | 18 | 1/2 HP | 115 | 52.3 | |||
| 75602 | 300 Compact Kit * | 1/2" - 2" NPT Hammer Chuck w/ 250 Folding Wheel Stand | 811A | 52 | 115 | 50 - 60 | 1 | Universal | 18 | 1/2 HP | 160 | 72.7 | |||
| 58752 | 300 Compact | 1/2" - 2" BSPT Hammer Chuck (Australia) | 811A | 36 | 230 | 50 - 60 | 1 | Universal | 7.5 | 1/2 HP | 115 | 52.3 | |||
| 58757 | 300 Compact | 1/2" - 2" NPT Hammer Chuck (Export Only) | 811A | 36 | 230 | 50 - 60 | 1 | Universal | 7.5 | 1700 W | 115 | 52.3 | |||
|
20 AMP, 115V circuit required.
|
|||||||||||||||
|
DIE HEADS
|
|||||||||||||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||||||||||||
| LB. | KG | ||||||||||||||
| 84537 | 816 | 816 1/8” - 3/4” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | |||||||||||
| 97045 | 531 | 531 1/4"-1"Bolt Die Head Quick-Open R.H./L.H. | 7 1/2 | 3.4 | |||||||||||
| 97050 | 532 | 532 1-1/8"-2"Bolt Die Head Quick-Open R.H./L.H. | 9 | 4.1 | |||||||||||
| 97065 | 811A | 811A 1/8” - 2” NPT Die Head, Self-Opening, RH | 13 | 5.7 | |||||||||||
| 97075 | 815A | 815A 1/8" - 2" NPT Die Head, Self-Opening, RH | 13 | 5.9 | |||||||||||
| 84532 | 817 | 817 1” - 2” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | |||||||||||
| 97070 | 811A | 811A 1/8” - 2” BSPT Die Head, Self-Opening, RH | 12 1/2 | 5.7 | |||||||||||
| 97080 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | 13 | 5.9 | |||||||||||
|
ACCESSORIES
|
|||||||||||||||
- Heavy-duty proven performance.
- Lightweight, portable design.
- Fast transport and set-up.
- Self-contained oil system with adjustable flow control.
- Versatility for threading and grooving.
- Quiet operation.
- Brand: RIDGID
- Product Code: MACHINE 300 COMPACT (29878-58757)
- Catalog Number: 29878 - 58757 - 66947 - 67182 - 73447 - 75602
Self-contained oil system with adjustable flow control.
