| Pipe Capacity | 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader. | |||||||||||||||||||
| Bolt Capacity | 1/4"-2” (8 mm-50 mm). | |||||||||||||||||||
| Switches | Forward/off/reverse and integral safety foot switch. | |||||||||||||||||||
| Chuck | Automatic with four reversible forged jaws. | |||||||||||||||||||
| Rear Centering Device | Automatic, centering only. | |||||||||||||||||||
| Cutters | Self-centering, full-floating. Two models available: | |||||||||||||||||||
| Model 820 Wheel-Type Cutter, pipe capacity 1/8-2'' (6-50 mm), bolt capacity 1/4-1'' (8-25 mm). | ||||||||||||||||||||
| Model 821 Blade Type Cutter, pipe capacity 1/2-2'' (15-50 mm). | ||||||||||||||||||||
| Reamer | 5-flute cone, RH, 1/8"-2" (3 mm-50 mm). | |||||||||||||||||||
| Oil Pump | Self-priming gerotor oil pump. | |||||||||||||||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | |||||||||||||
| KG | ||||||||||||||||||||
| 84097 | 535A | 1/2" - 2" NPT Automatic Chuck Machine | 811A | 16/46/58 | 120 | 60 | 1 | 159 | ||||||||||||
| 91142 | 535A | Automatic Chuck Machine Only - No Die Head or Dies | 16/46/58 | 120 | 60 | 1 | 155 | |||||||||||||
| 91322 | 535A | 1/2" - 2" NPT Automatic Chuck Machine | 816/817 | 16/46/58 | 115 | 60 | 1 | 163 | ||||||||||||
|
Machines listed as
1/2"-2" include standard equipment. Machine only includes standard
equipment less all die heads and dies. Please use catalog item numbers when
ordering
|
||||||||||||||||||||
|
MODEL 535A
MACHINE ACCESSORIES |
||||||||||||||||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||||||||||||||||
| LB. | KG | |||||||||||||||||||
| 42365 | 341 | 341 Reamer Assy | 6 3/4 | 3.2 | ||||||||||||||||
| 42390 | 820 | 820 Cutter Assy | 8 1/2 | 3.9 | ||||||||||||||||
| 92457 | 100A | 100A Universal Leg & Tray Stand | 75 | 34.5 | ||||||||||||||||
| 92462 | 150A | 150A Universal Wheel & Tray Stand | 103 | 46.7 | ||||||||||||||||
| 92467 | 200A | 200A Universal Wheel & Cabinet Stand | 104 | 47.2 | ||||||||||||||||
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" - 2" NPT | 10 1/2 | 4.8 | ||||||||||||||||
| 35867 | 839 | 839 Adapter Kit for Model 1822/535A Machine | 16 1/2 | 7.5 | ||||||||||||||||
| 97882 | 535A | Kit 141 on 535 Auto Chuck with High-Clearance Carriage | 12 | 5.4 | ||||||||||||||||
| 12138 | 535A | 535A Left Hand Threading Kit | 2 1/2 | 1.2 | ||||||||||||||||
| 42485 | 4U | 4V Die Head Rack (4 Heads) | 8 1/2 | 3.9 | ||||||||||||||||
| 42490 | 6U | 6V Die Head Rack (6 Heads) | 12 1/2 | 5.7 | ||||||||||||||||
| 97065 | 811A | 811A 1/8” - 2” NPT Die Head, Self-Opening, RH | 13 | 5.7 | ||||||||||||||||
| 97075 | 815A | 815A 1/8" - 2" NPT Die Head, Self-Opening, RH | 13 | 5.9 | ||||||||||||||||
| 23282 | 842 | 842 1/8" - 2" NPT QO Universal Die Head | 12 1/2 | 5.7 | ||||||||||||||||
| 97070 | 811A | 811A 1/8” - 2” BSPT Die Head, Self-Opening, RH | 12 1/2 | 5.7 | ||||||||||||||||
| 97080 | 815A | 815A 1/8" - 2" BSPT Die Head, Self-Opening, RH | 13 | 5.9 | ||||||||||||||||
| 97045 | 531 | 531 1/4"-1"Bolt Die Head Quick-Open R.H./L.H. | 7 1/2 | 3.4 | ||||||||||||||||
| 97050 | 532 | 532 1-1/8"-2"Bolt Die Head Quick-Open R.H./L.H. | 9 | 4.1 | ||||||||||||||||
| 84537 | 816 | 816 1/8” - 3/4” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | ||||||||||||||||
| 84532 | 817 | 817 1” - 2” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | ||||||||||||||||
| 23297 | 856 | 856 1/8" - 2" BSPT SO Universal Die Head | 12 1/2 | 5.7 | ||||||||||||||||
FeaturesAutomatic chuck.
Large 6.6 l (1.75 gallon) oil reservoir.
Large chip tray.
Generous top cover area for keeping tools and fittings handy.
High clearance carriage.
Can be used with geared threader Model 141.
Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
Length gauge for quick, accurate cut-off.
Steel Cabinet Features
- 17-gauge steel walls and welded construction.
- Two internal and one external storage shelves.
- Oversized bi-fold door with steel clasp.
- Cut-outs for power cord and foot switch storage.
- Two drain plugs for easy cleaning.

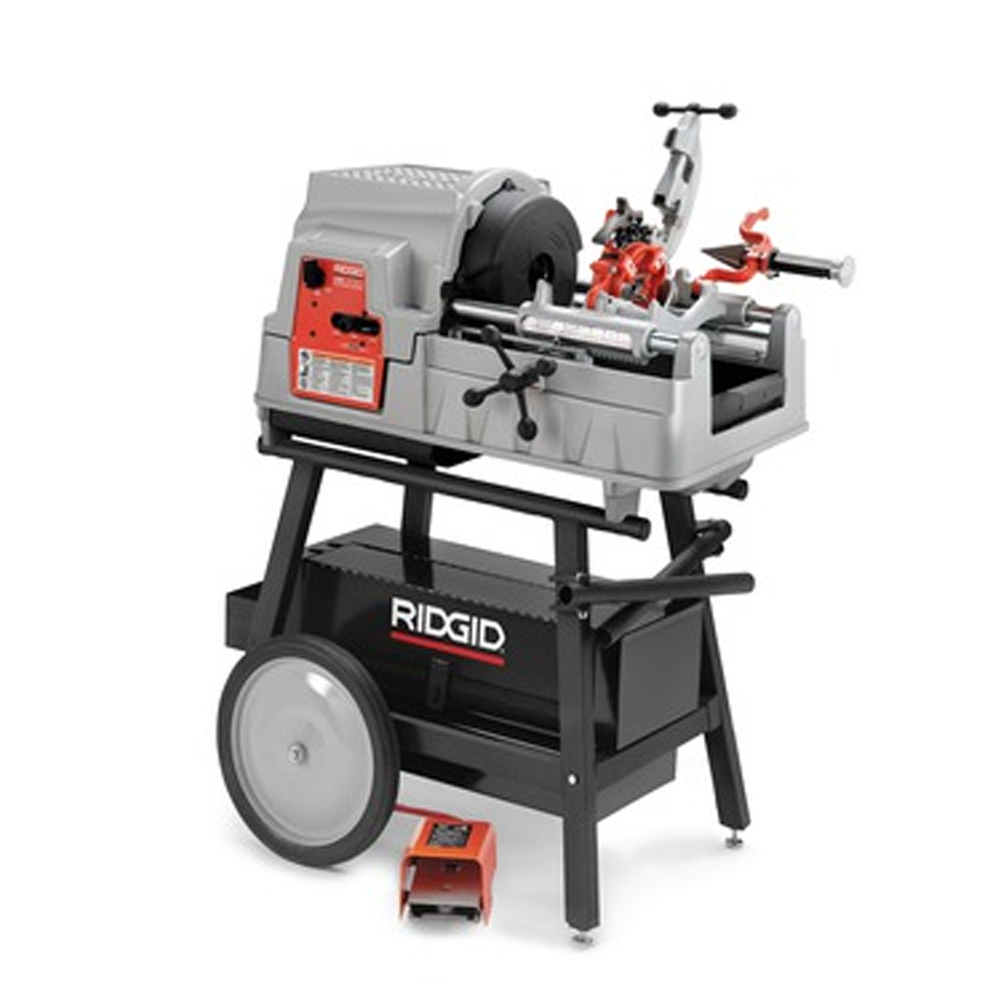

- Brand: RIDGID
- Product Code: 535 AUTOMATIC MACHINES
- Catalog Number: 84097 - 91142 - 91322 - 42365
The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive
