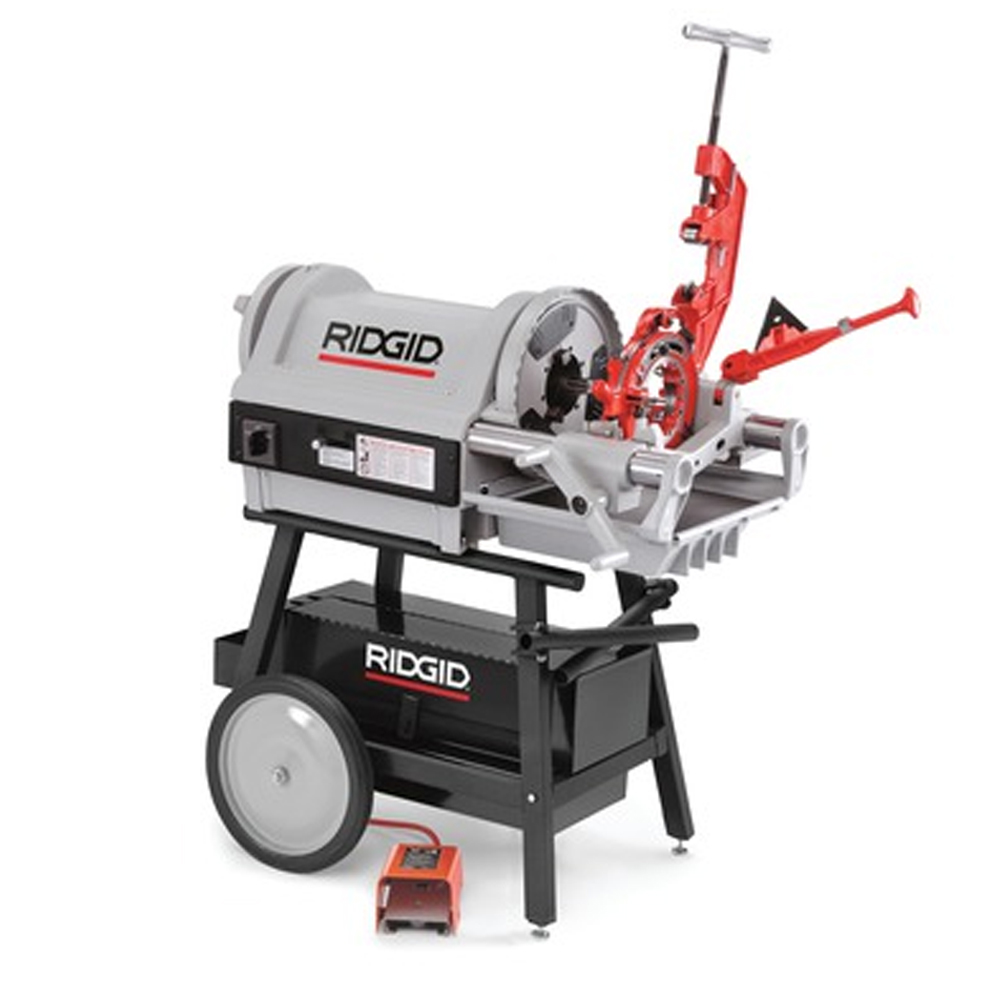

1224 MACHINE PIPE THREADING

  • 1224 MACHINE PIPE THREADING


Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4"-2" (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head

  • The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
  • An induction motor helps minimize noise
  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
  • 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
  • Constant and proper lubrication of dies and workpiece with through-head oiling


Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • RIDGID

  • Product Code:
  • MACHINE(29863-28959) 1224 BSPT PIPE THREADING
  • Catalog Number:
  • 26092 - 26097 - 26127 - 26112 - 29863-28959-

    he Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
