| Pipe Capacity | 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader. | |||||||||||
| Bolt Capacity | 1/4"-2” (8 mm-50 mm). | |||||||||||
| Switches | Forward/off/reverse and integral safety foot switch. | |||||||||||
| Chuck | Automatic with four reversible forged jaws. | |||||||||||
| Rear Centering Device | Automatic, centering only. | |||||||||||
| Cutters | Self-centering, full-floating. Two models available: | |||||||||||
| Model 820 Wheel-Type Cutter, pipe capacity 1/8-2'' (6-50 mm), bolt capacity 1/4-1'' (8-25 mm). | ||||||||||||
| Model 821 Blade Type Cutter, pipe capacity 1/2-2'' (15-50 mm). | ||||||||||||
| Reamer | 5-flute cone, RH, 1/8"-2" (3 mm-50 mm). | |||||||||||
| Oil Pump | Self-priming gerotor oil pump. | |||||||||||
| RH/LH combination reamer available. | ||||||||||||
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT | |
| LB. | KG | |||||||||||
| 84097 | 535A | 1/2" - 2" NPT Automatic Chuck Machine | 811A | 16/46/58 | 120 | 60 | 1 | Induction | 18 | 2 HP | 350 | 159 |
| 91142 | 535A | Automatic Chuck Machine Only - No Die Head or Dies | 16/46/58 | 120 | 60 | 1 | Induction | 18 | 2 HP | 340 | 155 | |
| 91322 | 535A | 1/2" - 2" NPT Automatic Chuck Machine | 816/817 | 16/46/58 | 115 | 60 | 1 | Induction | 18 | 2 HP | 360 | 163 |
- Automatic chuck
- Large 6.6 l (1.75 gallon) oil reservoir
- Large chip tray
- Generous top cover area for keeping tools and fittings handy
- High clearance carriage
- Can be used with geared threader Model 141
- Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
- Length gauge for quick, accurate cut-off
Steel Cabinet Features
- 17-gauge steel walls and welded construction
- Two internal and one external storage shelves
- Oversized bi-fold door with steel clasp
- Cut-outs for power cord and foot switch storage
- Two drain plugs for easy cleaning
- Brand: RIDGID
- Product Code: 535 BSPT
- Catalog Number: 84097 - 91142 - 91322 - 42365

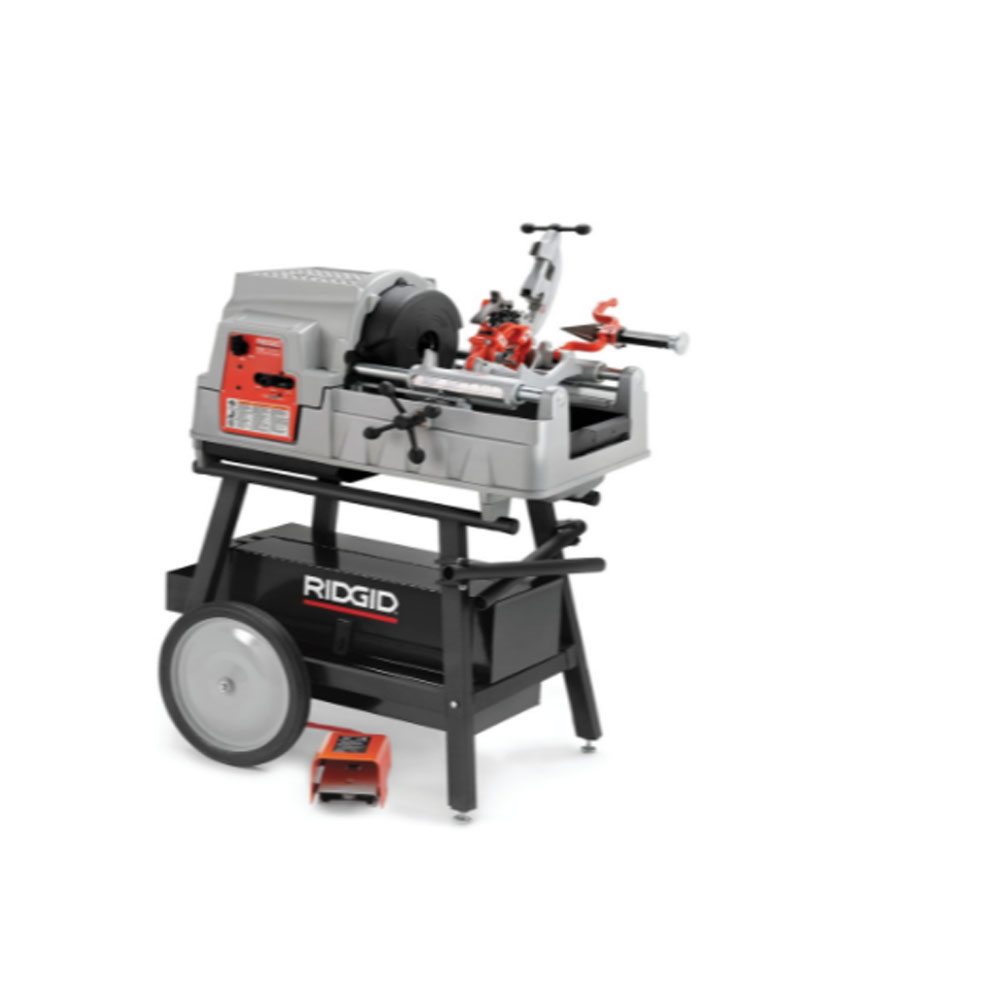

The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading
