NESTING “K”

  • NESTING “K”
DESCRIPTION MW 12.25K MW 15.38K MW 18.38K MW 21.38K Unit of measurement
Working Area X-Y-Z 2500-1250-145 3800-1550-145 3800-1550-145 3800-1550-145 mm
Boring head - total spindles 5 (std) - 10 (opt.) 5 (std) - 10 (opt.) 5 (std) - 10 (opt.) 5 (std) - 10 (opt.)
Electrospinde - max power 9 - ISO 30 9 - ISO 30 9 - ISO 30 9 - ISO 30 kW
Tools magazine- max tools n. 8 10 12 14
Max. tool diam. 120 120 120 120 mm
Vacuum pump - max. capacity 2 x 300 (opt.) 2 x 300 (opt.) 2 x 300 (opt.) 2 x 300 (opt.) m3/h

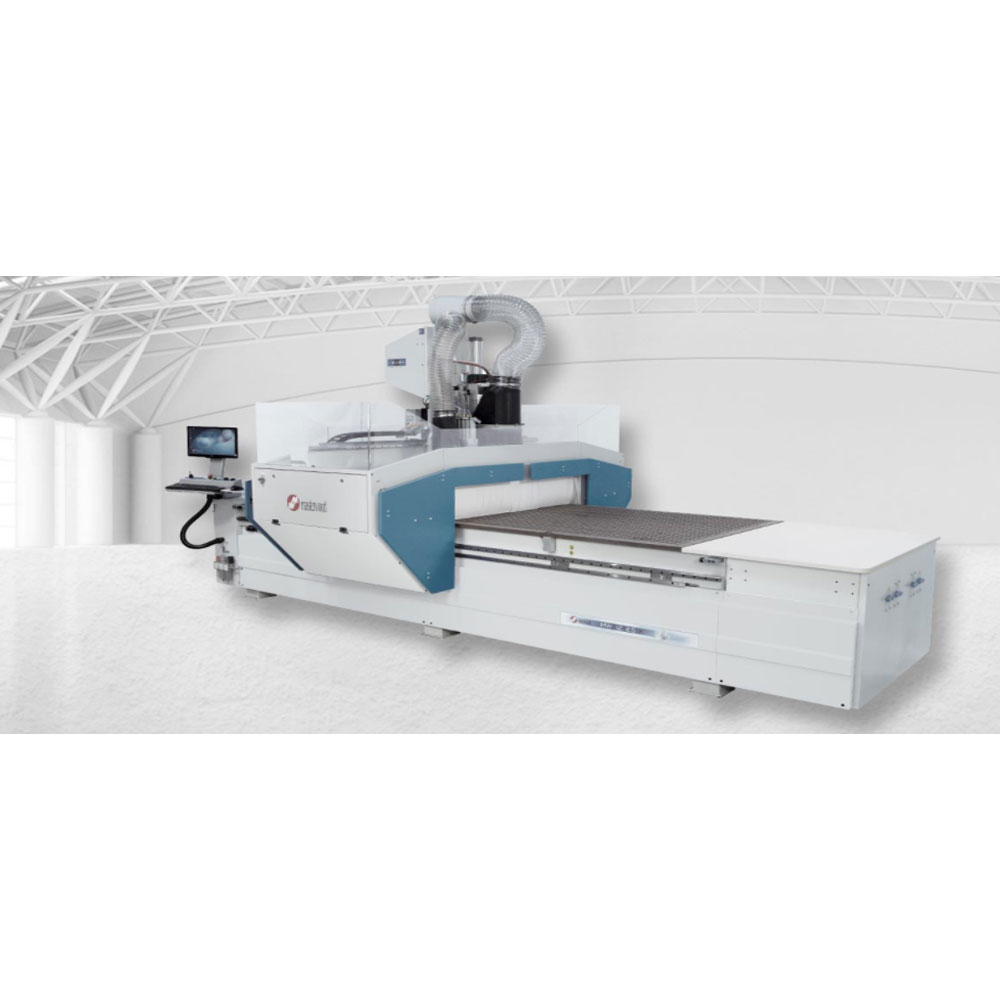

  • The Nesting K series consists of 3-axis machining centers for "nesting" operations on large panels.
  • All in one in many respects.
  • ALL-IN-ONE because Nesting K concentrates within itself many processes: sawing, drilling and milling.
  • ALL-IN-ONE because Nesting K, starting from large panels and thanks to special optimization software, allows to get the greatest number of pieces, minimizing waste.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • Masterwood

  • Product Code:
  • “K”
    • The Nesting K series consists of 3-axis machining centers for "nesting" operations on large panels.
