NESTING “M”

  • NESTING “M”
DESCRIPTION MW 12.25M MW 15.38M MW 18.38M MW 21.31M MW 21.42M MW 21.75M
Working Area X-Y-Z (mm) 2500-1300-200 3800-1595-200 3800-1595-200 3100-2195-200 4200-2195-200 7500-2195-200
Boring head - total spindles 43027 43027 43027 43027 43027 43027
Electrospinde - max power (kW) 12 (14 opt.) - HSK 63F 12 (14 opt.) - HSK 63F 12 (14 opt.) - HSK 63F 12 (14 opt.) - HSK 63F 12 (14 opt.) - HSK 63F 12 (14 opt.) - HSK 63F
Tools magazine- max tools n. 16 16 16 16 16 16
Max. tool diam. (mm) 160 160 160 160 160 160
Vacuum pump - max. suction capacity (m3/h) 2 x 360 (opt.) 2 x 360 (opt.) 2 x 360 (opt.) 2 x 360 (opt.) 2 x 360 (opt.) 2 x 360 (opt.)

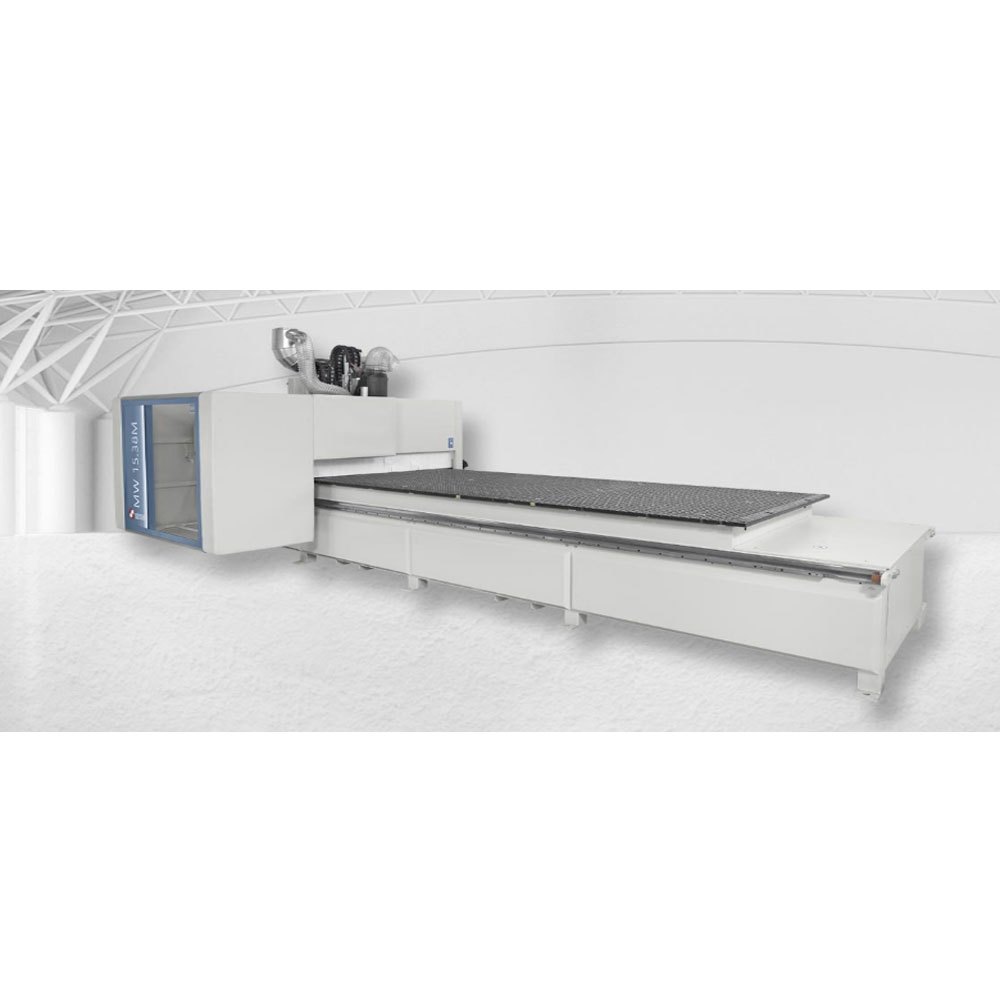

  • The Nesting M series consists of 3/4-axis machining centers for "nesting" operations, best suited to be part of higly automated production lines.
  • Available (optional) automatic vacuum subdivision on the working area in order to optimize the workpiece holding.
  • Automatic loading and unloading systems for large productivity.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • Masterwood

  • Product Code:
  • “M”
    • The Nesting M series consists of 3/4-axis machining centers for "nesting" operations, best suited to be part of higly automated production lines.
