| Capacity | 1/8"-1-1/4" (3mm - 32mm) 11 R Die Heads. | |||||||||
| Weight | 12.7 lbs. (5.8 kg), Power Drive only. | |||||||||
| Size | 20 in. (508 mm) L x 3.75 in. (95 mm) W x 7.50 in (191 mm) H. | |||||||||
| Controls | Forward/reverse slide switch. On/off two-step momentary contact. | |||||||||
| Gear Head | Die cast aluminum permanently greased. | |||||||||
| Body & Handle | Durable heavy-duty fiberglass reinforced plastic. | |||||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | AMP DRAW (A) | POWER | WEIGHT | |
| LB. | KG | |||||||||
| 44913 | 600-I | Power Drive (Only) Case & Support Arm | 36 | 115 | 60 | 1 | 12 | 1/2 HP | 29.1 | 13.2 |

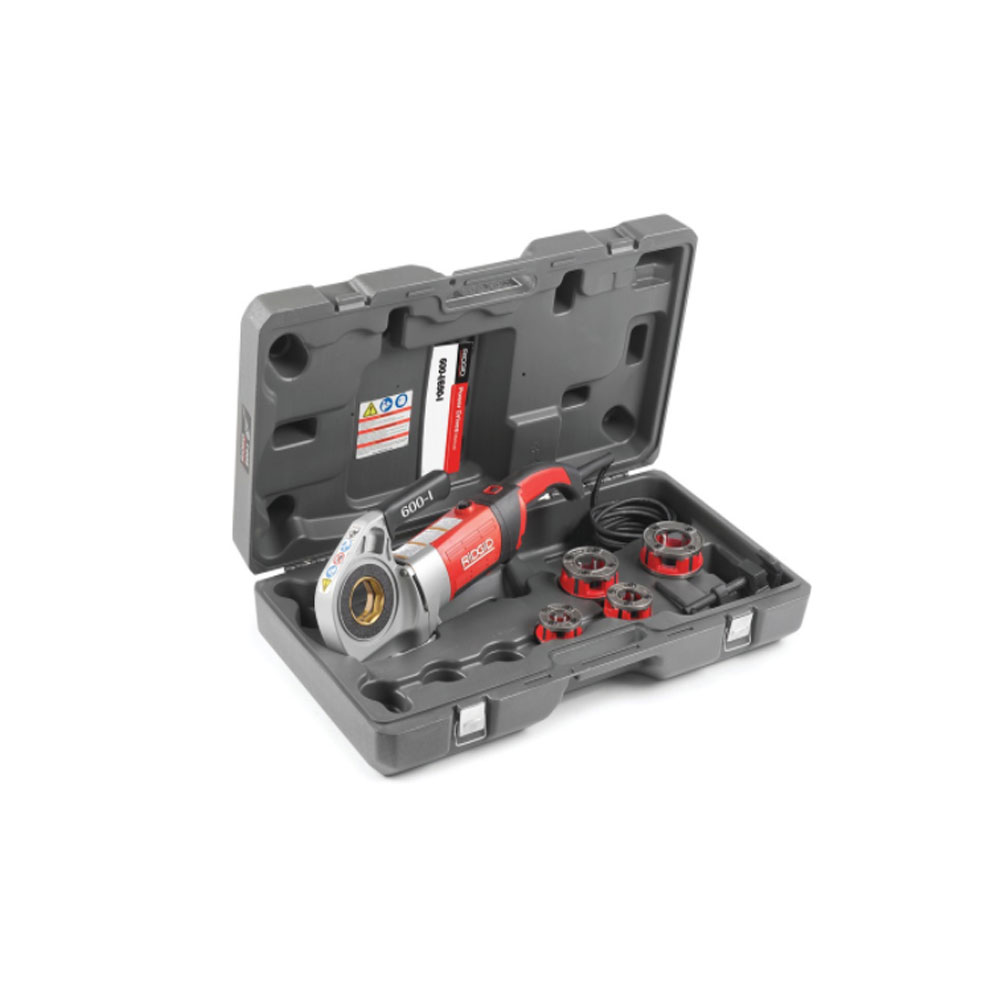

| 44918 | 600-I | Power Drive w/ 1/2"-1 1/4" NPT 11R Die Heads, Case and Support Arm | 36 | 115 | 60 | 1 | 12 | 1/2 HP | 41.0 | 18.6 |
|
ACCESSORIES
|
||||||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||||||
| LB. | KG | |||||||||

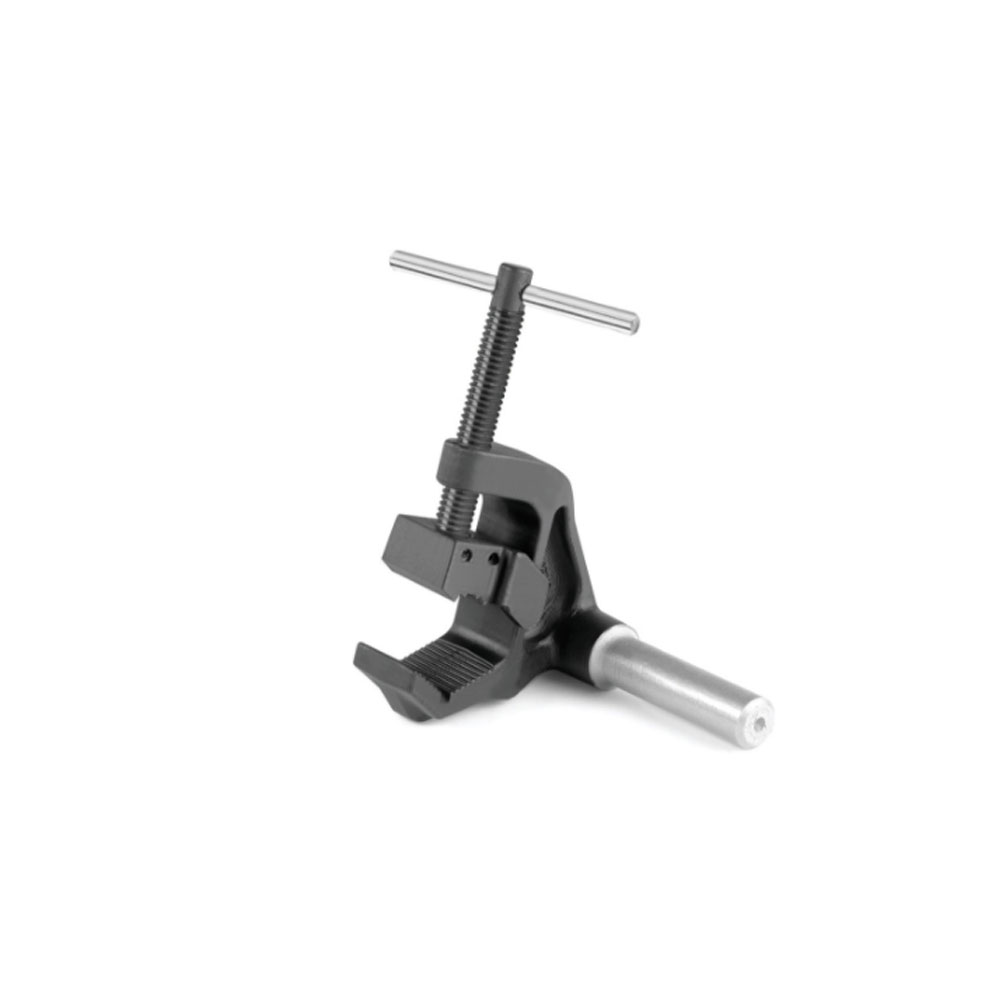

| 45923 | 602 | 602 Support Arm | - | 1.8 | ||||||
| 46668 | 600-I Carrying Case | - | - | |||||||
| 10883 | 418 | Oiler with One Gallon Premium Thread Cutting Oil | 20.5 | 9.4 | ||||||
| 16703 | 425 | 425 1/8" - 2-1/2" Portable TRISTAND Chain Vise | 32.0 | 14.5 | ||||||
| 36273 | 460-6 | 460-6 1/8" - 6" Portable TRISTAND® Chain Vise | 42.8 | 19.4 | ||||||
| 73442 | 418 | 418 Oiler | 20.5 | 9.4 | ||||||
|
FREQUENTLY
PURCHASED DIES
|
||||||||||
|
CATALOG NUMBER |
DESCRIPTION | |||||||||
| 37825 | 12R ½” NPT DIES | |||||||||
| 37830 | 12R 3/4” NPT DIES | |||||||||
| 37840 | 12R 1-1/4” NPT DIES | |||||||||
| 37870 | 12R ½” NPT HIGH SPEED DIES | |||||||||
| 37875 | 12R 3/4” HIGH SPEED NPT DIES | |||||||||
| 37880 | 12R 1” NPT HIGH SPEED DIES | |||||||||
| 37885 | 12R 1-1/4” HIGH SPEED NPT DIES | |||||||||
- Lightweight and easy to handle for service and repair.
- Over molded handle and contoured grip provide optimal control.
- Screw-in brush covers reduce service time.
- Durable die cast gear housing and fiberglass reinforced plastic body to withstand demanding jobsite conditions.

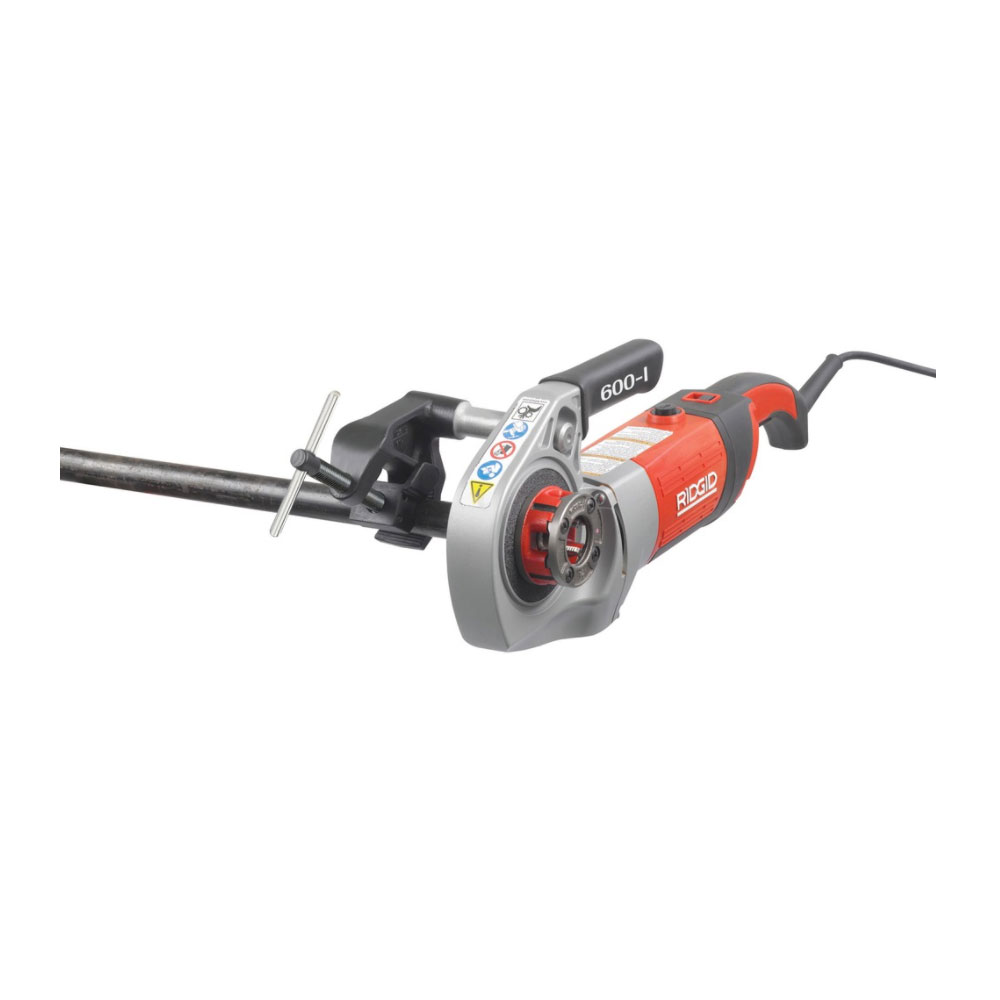

- Dual "V" Jaw Support Arm firmly prevents slipping.
- Brand: RIDGID
- Product Code: 600-I
- Catalog Number: 37825 - 37830 - 37840

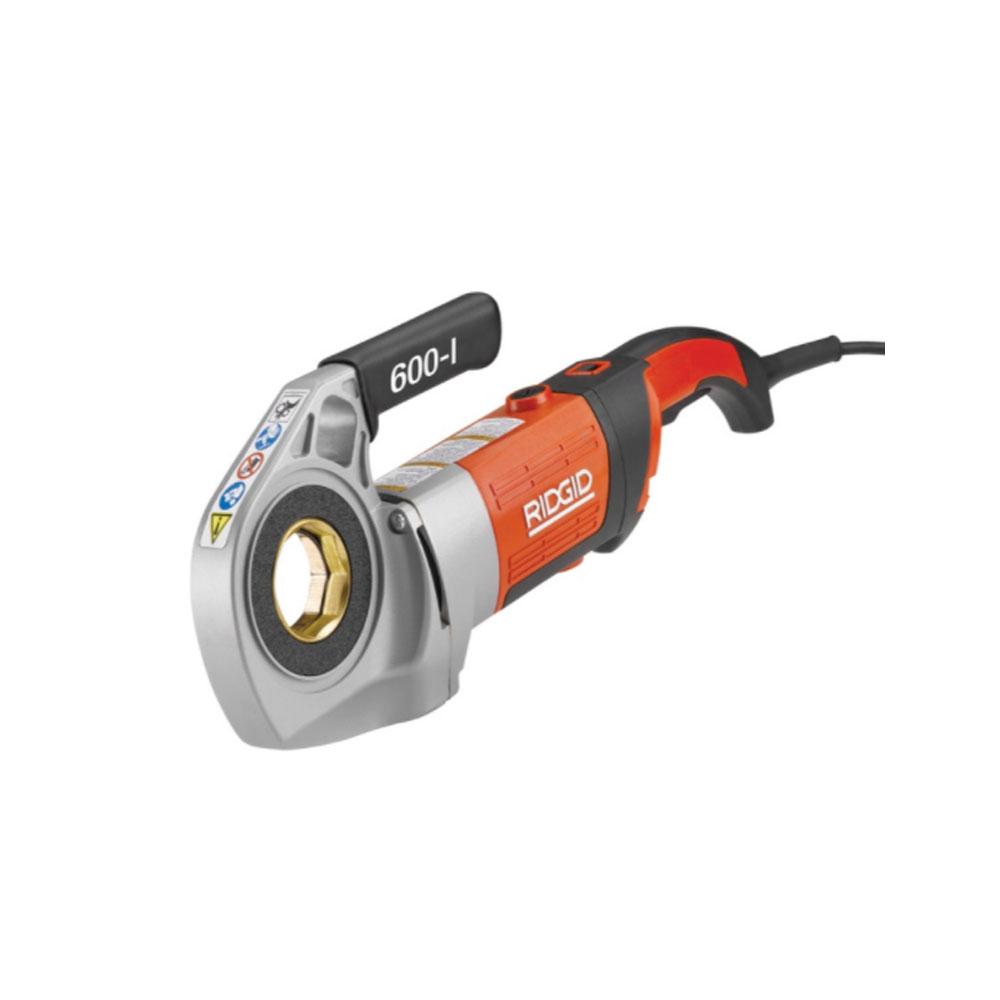

- The lightest and easiest to handle RIDGID® Power Drive.
