| Application – | ASTM F 1807 black copper crimp ring system | ||||
|
CATALOG NUMBER |
DESCRIPTION | LENGTH | WEIGHT | ||
| IN. | MM | LB. | KG | ||
| 23448 | 1/2" PEX Crimp Tool | 14 1/4 | 361.95 | 2 7/8 | 1.24 |
| 23458 | 3/4" PEX Crimp Tool | 14 3/4 | 374.65 | 2 7/8 | 1.24 |
| 23463 | 1" PEX Crimp Tool | 15 1/4 | 387.35 | 3 | 1.36 |
| 23468 | 1/2" & 3/4" PEX Combo Tool | 15 1/2 | 393.70 | 3 1/2 | 1.58 |
|
CLOSE QUARTERS
TOOLS
|
|||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |||
| LB. | KG | ||||
| 43853 | 1/2" Close Quarters Manual PEX Crimp Tools | 2 1/10 | 0.95 | ||
| 43858 | 3/4" Close Quarters Manual PEX Crimp Tools | 2 3/10 | 1.04 | ||
|
ACCESSORIES
|
|||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |||
| LB. | KG | ||||
| 23478 | 1" ASTM F 1807 Gauge | 1 | 0.45 | ||
| 29583 | 3/8" - 1" ASTM F 1807 Gauge | 1 | 0.45 | ||

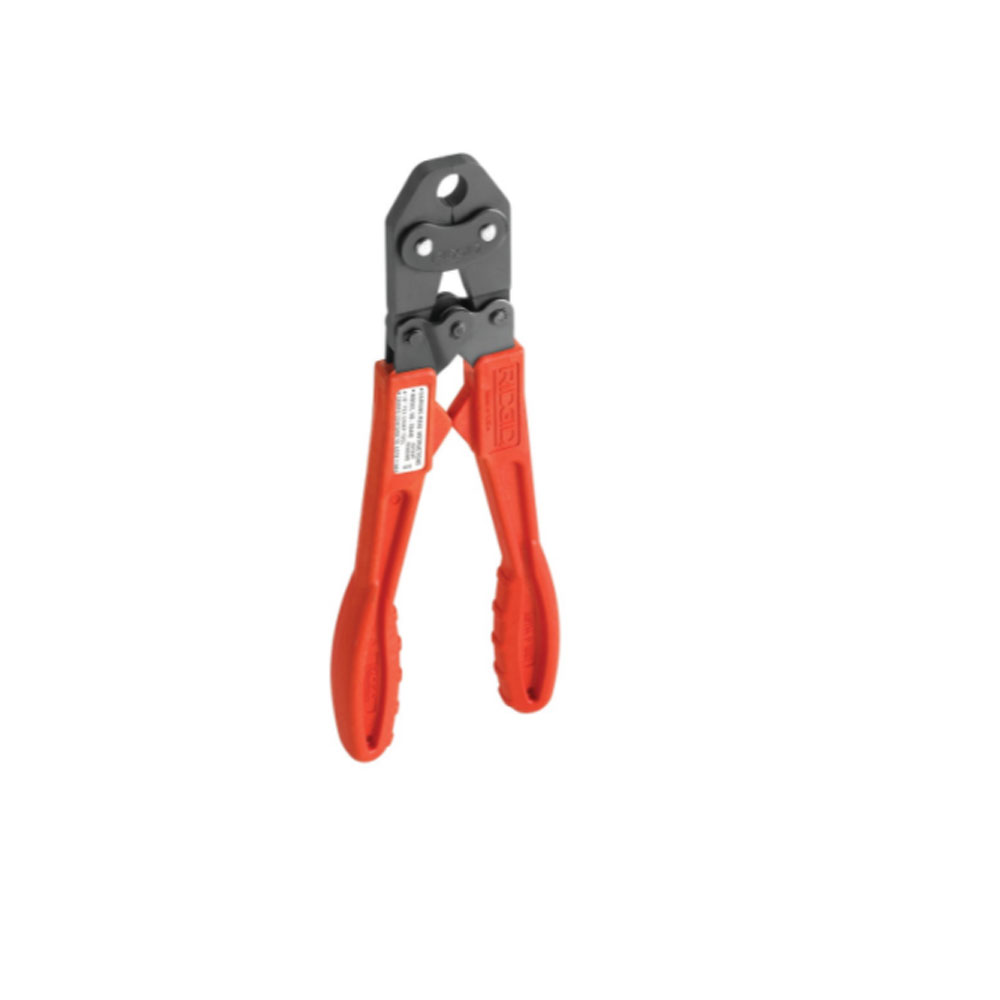

Traditional ASTM F1807 PEX Crimp Tools
- For use with ASTM F1807 black copper crimp ring system for PEX tubing.
- Over 20% lighter than traditional PEX crimp tools.
- Up To 33% less force required to produce a crimp, compared to traditional PEX crimp tools.
- Compact tool length for access to tight spaces.
- Four tools available in (3) sizes: 1⁄2", 3⁄4", 1" and a Combo 1⁄2" and 3⁄4" Tool.
- Easily adjustable lock screw for tool calibration.
- All tools come with a Go/No-Go gauge.

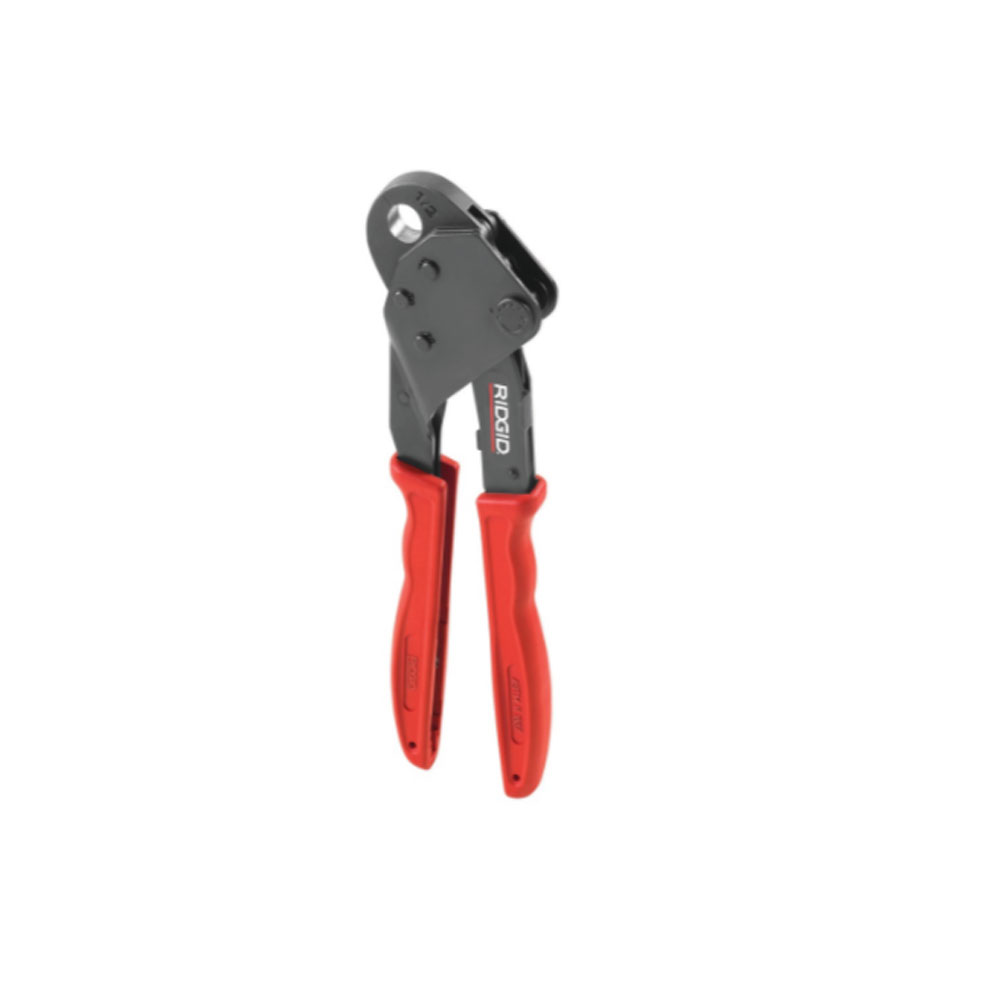

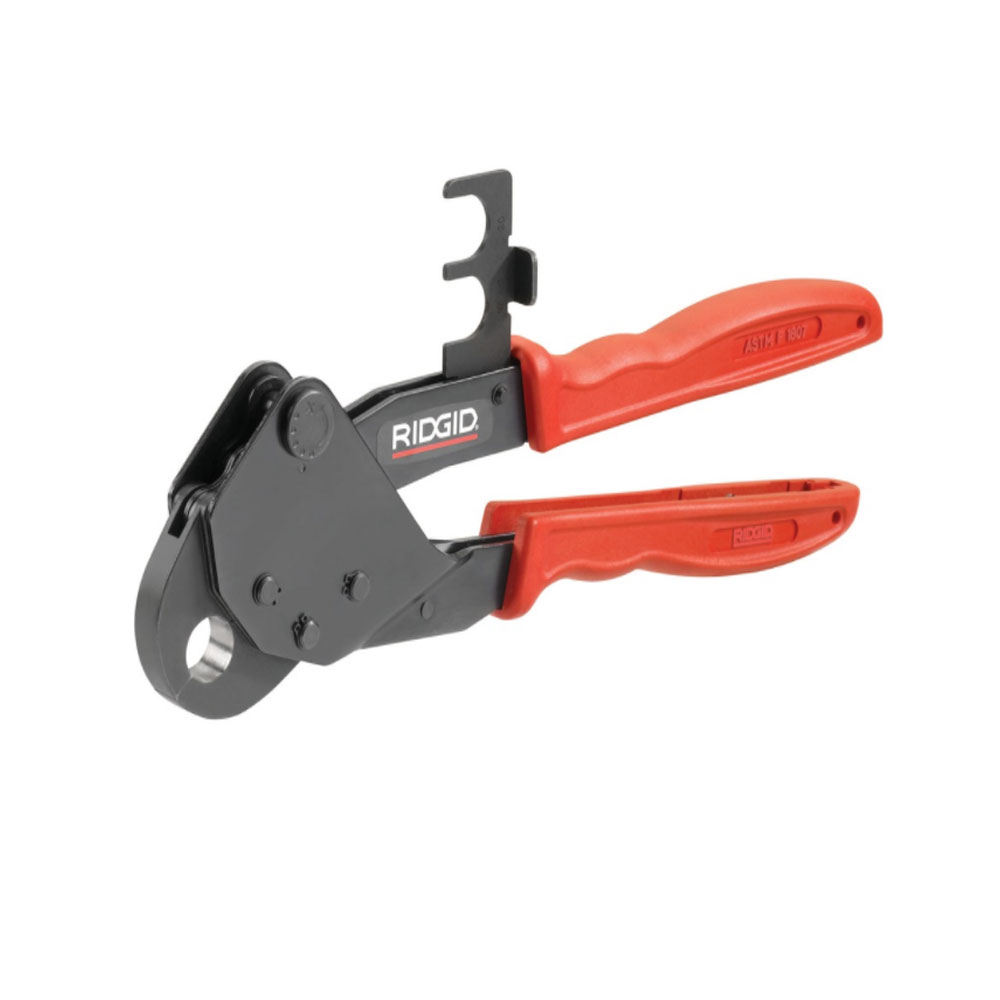

Close Quarters ASTM F1807 PEX Crimp Tools
- For use with ASTM F1807 copper crimp ring PEX tubing connections.
- Durable, glass-filled polycarbonate E3™ (Expert Engineered Ergonomics) handles provide increased comfort.
- Available in ½” and ¾” sizes.
- Easily adjustable cam for tool calibration.
- Integrated Go/No-Go Gauge folds into handle for easy storage.
Traditional ASTM F1807 PEX Crimp Tools RIDGID
- Traditional PEX Crimp Tools are available from 1/2" to 1" and are ideal for making PEX tubing connections in potable water and radiant heating applications. Over 20% lighter than other traditional-style crimp tools, these tools feature E3 ergonomic handles and come standard with a Go/No-Go gauge.
Close Quarters ASTM F1807 PEX Crimp Tools
- Close Quarters Manual PEX Crimp Tools are the newest addition to the RIDGID Crimp Tool line. With handle openings up to 71% smaller than traditional PEX crimp tools, you can maneuver into tight spaces with ease. You’ll always be prepared with a built-in Go/No-Go gauge – an exclusive feature with RIDGID crimp tools.
- Brand: RIDGID
- Product Code: ASTM F 1807 PEX
- Catalog Number: 23448 - 23458 - 23468
- RIDGID® Traditional and Close Quarter crimp tools are the right choices for ASTM F1807 fittings.
