| Capacity | 1/2” to 1 1/4” for copper & and stainless steel, 3/8" - to 1 1/2" for PEX. | |||
| Head Rotation | 270° barrel/jaw swivel. | |||
| Battery | 18V Advanced Lithium 2. | |||
| Battery Charger | 120V. | |||
| Hydraulic Ram Output | 5,400 lbs. (24kN). | |||
| Weight | 6.2 lbs/2.8 kg (with Advanced Lithium 2 battery). | |||
| Operating Temperature Range | +15˚F to +122˚F (-10˚C to 50˚C). | |||
| Approximate Cycle Time | 4-5 seconds. | |||
| Compatibility | Uses all RIDGID Compact Series pressing attachments. | |||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||

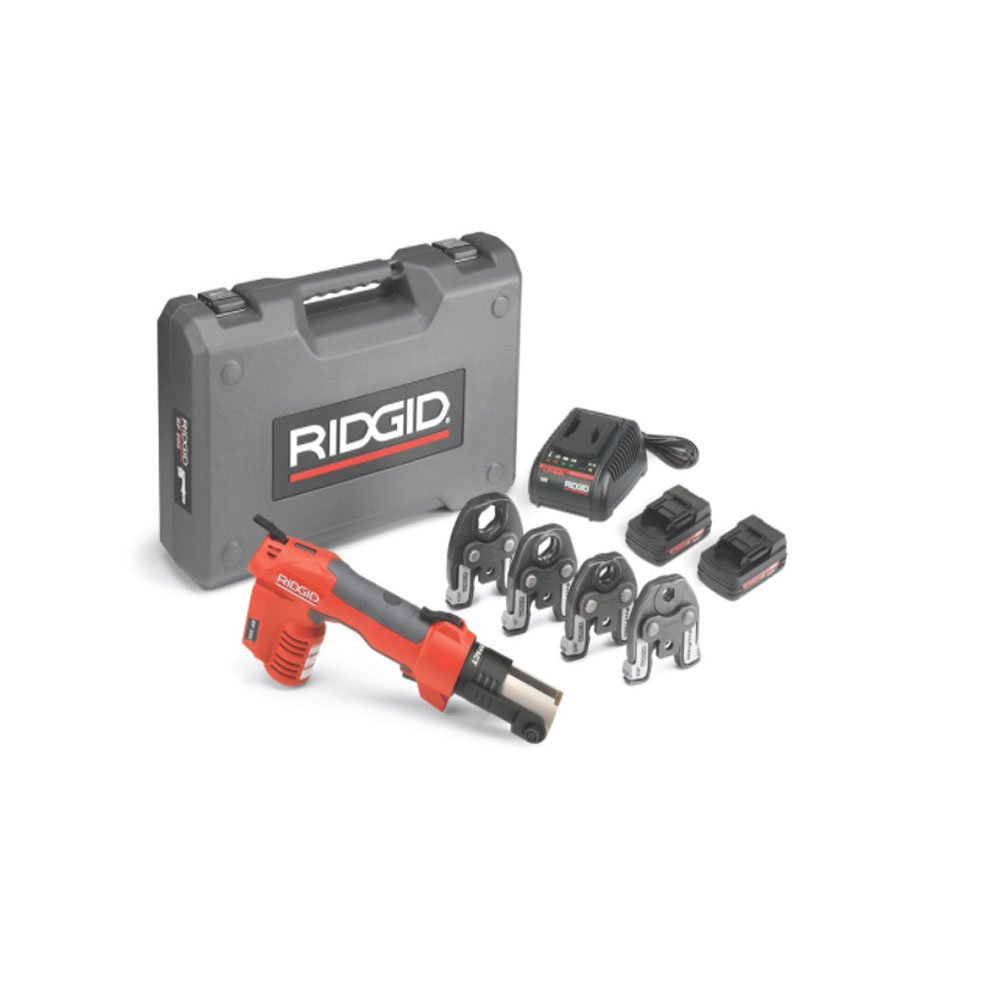

| 43428 | RP 200-B | RP 200 Battery Press Tool Kit w/ProPress Jaws (1/2" – 1 1/4") | 26.0 | 11.8 |
| 43433 | RP 200-B | RP 200 Battery Press Tool Kit w/ProPress Jaws (1/2" – 1") | 24.0 | 10.9 |
| 43438 | RP 200-B | RP 200 Battery Press Tool Kit w/PureFlow PEX Jaws (1/2", 3/4", 1") | 24.0 | 10.9 |
| 43443 | RP 200-B | RP 200 Battery Press Tool Kit (No Jaws) | 16.0 | 7.2 |
| 43448 | RP 200-B | RP 200 Battery Press Tool Only | 12.0 | 5.4 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 43458 | Advanced Lithium Battery Charger (N. America) | 1.8 | 0.8 | |
| 44693 | 18V Advanced Lithium 2.0Ah Battery | 1.0 | 0.5 | |
| 44698 | 18V Advanced Lithium 4.0Ah Battery | 1.5 | 0.7 | |
| 44798 | Charger Replacement Cord (N. America) | 0.3 | 0.1 | |
| 43453 | Carrying Case | 1.0 | 0.4 | |
| 44848 | Set of (1) 2.0Ah Battery & (1) 120V Charger | 2.8 | 1.3 | |
| 44853 | Set of (2) 2.0Ah Batteries & (1) 120V Charger | 3.8 | 1.7 | |
| 43323 | 18 V 2.0 Ah Li-Ion Battery Pack | - | 0.5 | |
| 43328 | 18 V 4.0 Ah Li-Ion Battery Pack | 1.5 | 0.8 | |
- The inline design allows access into tighter spaces, enabling press connections in difficult to reach areas.
- The tool kit comes standard with two 18V Advanced Lithium 2 batteries that can produce over 200 presses per charge for jobsite efficiency.
- To maximize uptime, large capacity 18V Advanced Lithium 4 batteries are available and can achieve over 400 presses per charge.
- Brand: RIDGID
- Product Code: RP 200-B
- Catalog Number: 43428 - 43433 - 43438
- The RIDGID® RP 200-B is the newest addition to the press tool line and gives contractors another option for a fast and reliable way to join copper, stainless steel and PEX.
