| Capacity | ½" to 4" for Copper and Stainless Steel, ½" to 2" for PEX. | ||
| Head Rotation | 180˚ barrel/jaw swivel. | ||
| Hydraulic Ram Output | 7,200 lbs. (32kN). | ||
| Weight | 8.3 lbs./3.76 kg with Advanced Lithium 2 battery, 9.5 lbs./4.3 kg with AC power adapter. | ||
| Operating Temperature Range | 15˚F to 122˚F (-10˚C to 50˚C). | ||
| Approximate Cycle Time | 4-5 seconds. | ||
| Longest Service Interval in the Industry | 42,000 cycles. | ||
| Compatibility | Uses RIDGID Standard Series pressing jaws and attachments. For use with copper and stainless steel tubing, steel pipe, PEX and cutting soil pipe. | ||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

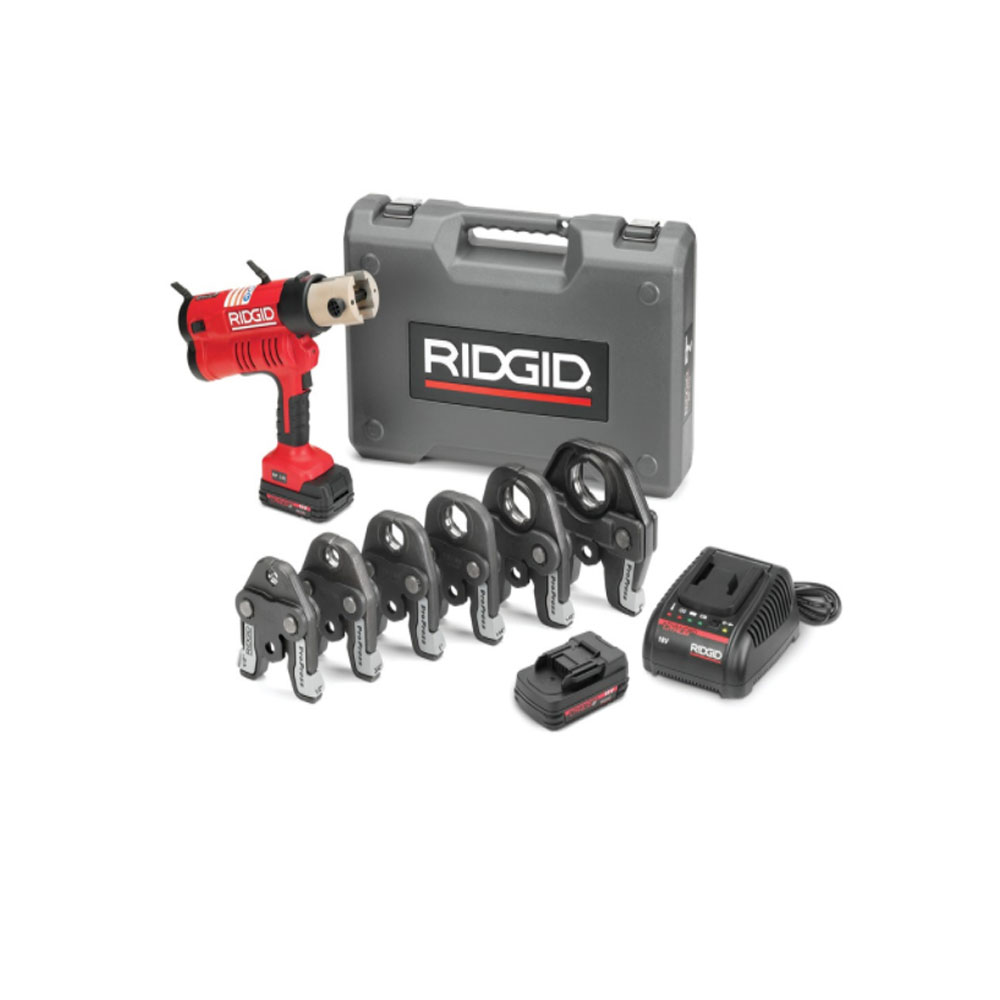

| 43348 | RP 340 Battery Press Tool Kit (No Jaws) | 19.0 | 8.6 |
| 43353 | RP 340 Battery Press Tool Kit w/ProPress Jaws (1/2"-1") | 31.0 | 14.1 |
| 43358 | RP 340 Battery Press Tool Kit w/ProPress Jaws (1/2"-2") | 51.0 | 23.1 |
| 43363 | RP 340 Corded Press Tool Kit (No Jaws) | 16.0 | 7.2 |
| 43368 | RP 340 Corded Press Tool Kit w/ProPress Jaws (1/2"-1") | 28.0 | 12.7 |
| 43373 | RP 340 Corded Press Tool Kit w/ProPress Jaws (1/2"-2") | 48.0 | 21.8 |
| 43248 | RP 340-B + Case + Battery + Charger + V 15 - 22 - 28 mm Jaws | 31.0 | 14.1 |
| 44483 | RP 340 Press Tool Only | 7.3 | 3.3 |
| 43378 | RP 340 Press Tool Carrying Case | 8.0 | 3.6 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 43378 | RP 340 Press Tool Carrying Case | 8.0 | 3.6 |
| 44693 | 18V Advanced Lithium 2.0Ah Battery | 1.0 | 0.5 |
| 44698 | 18V Advanced Lithium 4.0Ah Battery | 1.5 | 0.7 |
| 43458 | Advanced Lithium Battery Charger (N. America) | 1.8 | 0.8 |
| 44798 | Charger Replacement Cord (N. America) | 0.3 | 0.1 |
| 44468 | 120V AC Power Adapter | 1.0 | 0.4 |
| 44848 | Set of (1) 2.0Ah Battery & (1) 120V Charger | 2.8 | 1.3 |
| 44853 | Set of (2) 2.0Ah Batteries & (1) 120V Charger | 3.8 | 1.7 |
| 43323 | 18 V 2.0 Ah Li-Ion Battery Pack | - | 0.5 |
| 43328 | 18 V 4.0 Ah Li-Ion Battery Pack | 1.5 | 0.8 |
- 30% smaller tool increases maneuverability.*
- 17% lighter tool reduces operator fatigue.*
- 31% longer service interval (up to 42,000 cycles) maximizes uptime.*
- More than 400 presses per charge using Advanced Lithium 4 Battery.

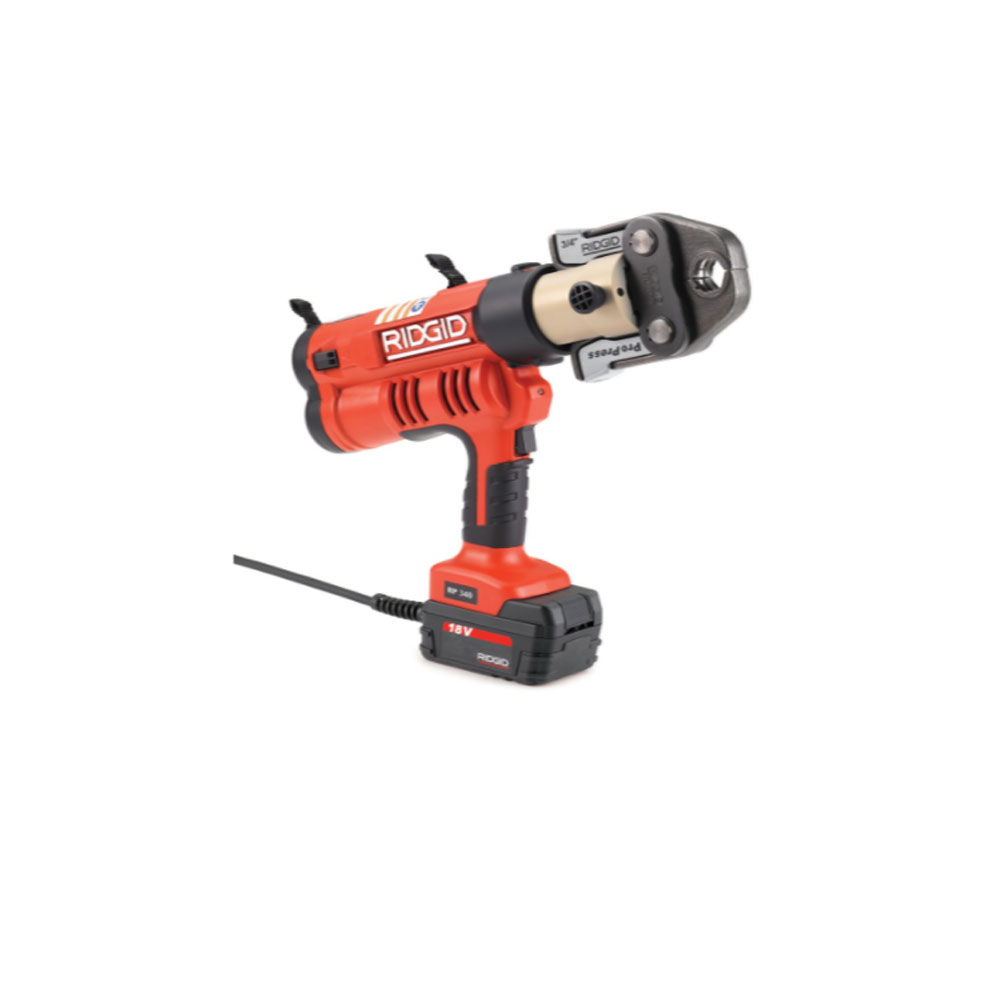

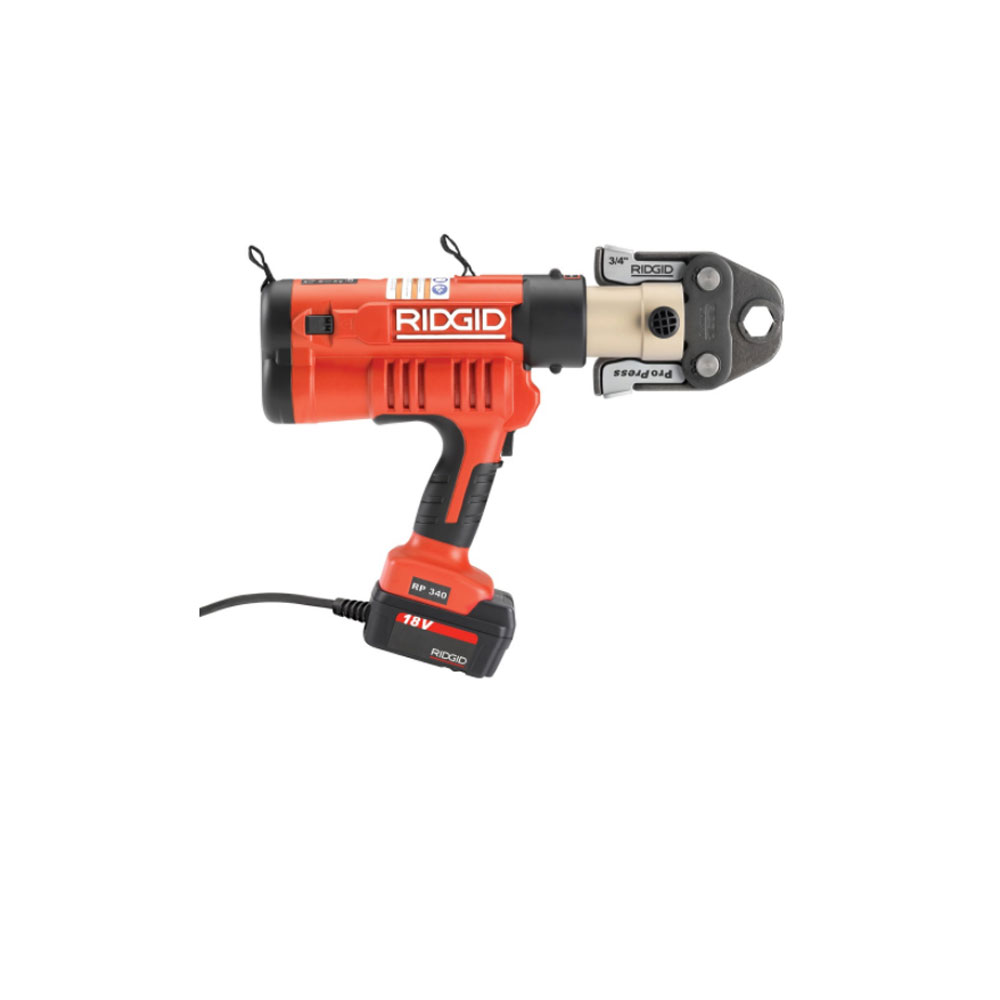

- Ultimate flexibility with the ability to switch between battery and AC power on the same tool.
LED-light for continued operations in no or low-light environments.

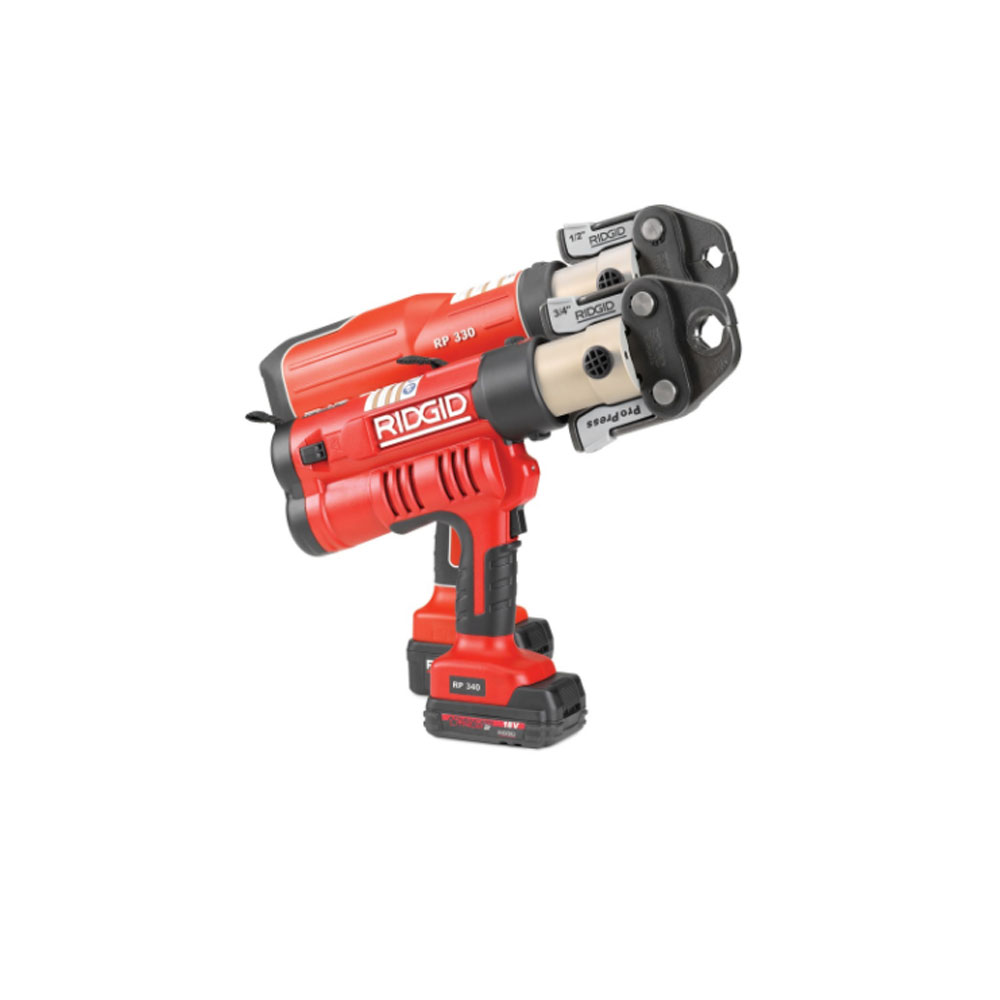

*Versus RP 330-B.
**AC battery adaptor is not available in Australia.
- Brand: RIDGID
- Product Code: RP 340
- Catalog Number: 43348 - 43353 - 43358

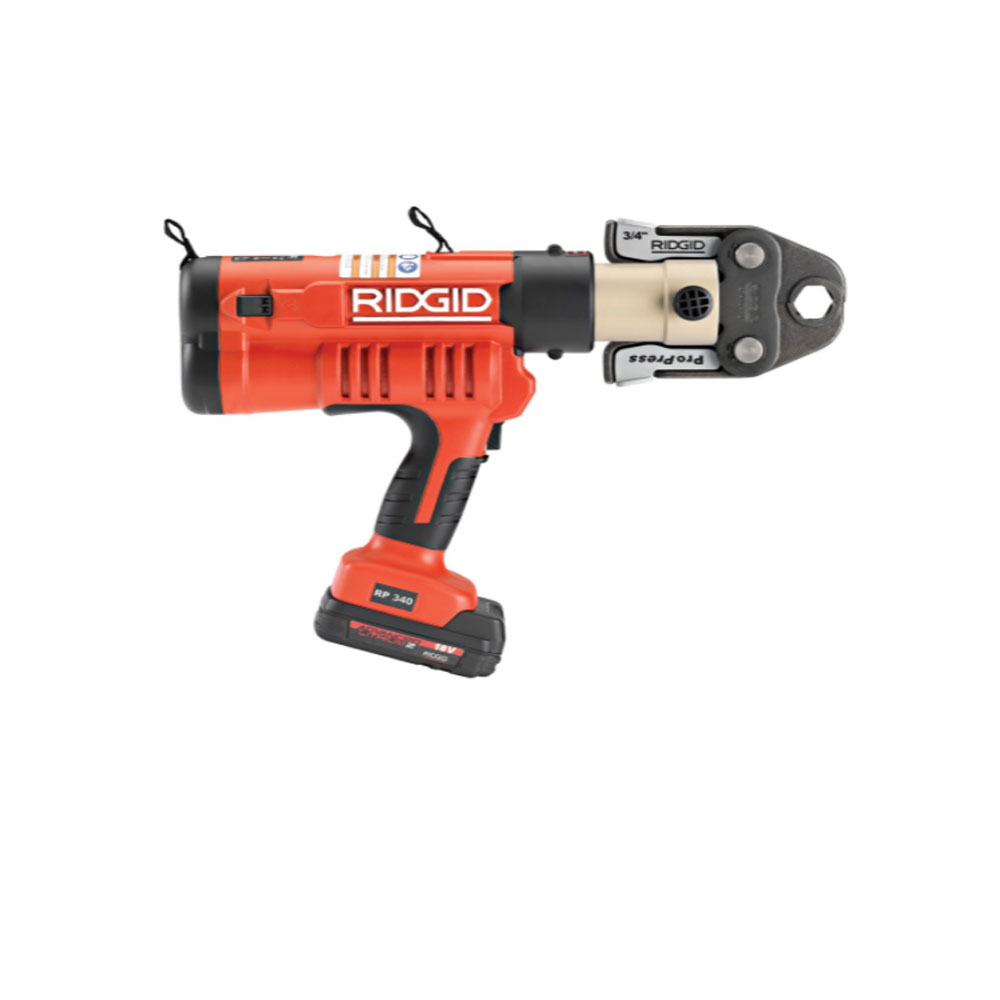

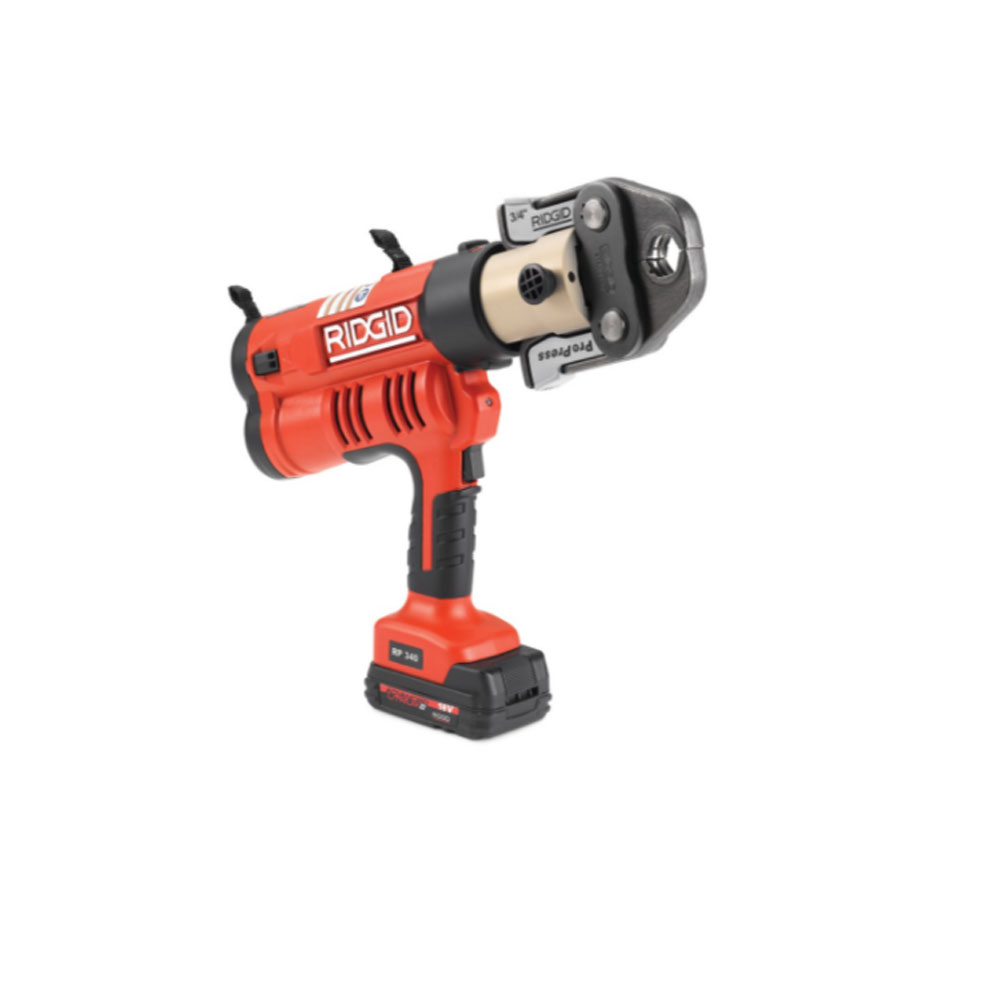

- Introducing the next generation of RIDGID® Pressing Technology. Built to impress.
