| Powerful | 15 amp 2HP motor. | ||||
| Speed | 1,300 RPM. | ||||
| Miter cut | up to 45°. | ||||
| Blade dimensions | 14" x 80T x 0.087" x 1". | ||||
| Spindle lock. | |||||
| Dust collector. | |||||
| Built-in maintenance tools. | |||||
| Exclusive quick-acting vise. | |||||
| Approved by CSA to CSA and UL standards. | |||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 71687 | 614 | Dry-Cut Saw, 115V, 60Hz | 47 | 21 | |
| 72862 | 614 | Dry-Cut Saw, 230V, 60Hz | 47 | 21 | |
|
ACCESSORIES
|
|||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 71697 | 12" Carbide-Tipped Blade 60 Tooth for 590 | 2 | 0.90 | ||
| 71692 | 14" Carbide-Tipped Blade 80 Tooth for 614 | 3 | 1.30 | ||
|
Model 614
Capacity |
|||||
| Cutting Angle | Working Geometry | ||||
| 90° Cuts | 5 1/8" O.D. 130 mmm | 3 3/4" x 7" 95 mm x 180mm | 4 3/4" x 4 3/4" 120mm x 120mm | ||
| 45° Cuts | 4 1/8" O.D. 105 mmm | 3 1/3" x 4" 80 mm x 100mm | 4 3/4" x 4 3/4" 90mm x 90mm | ||

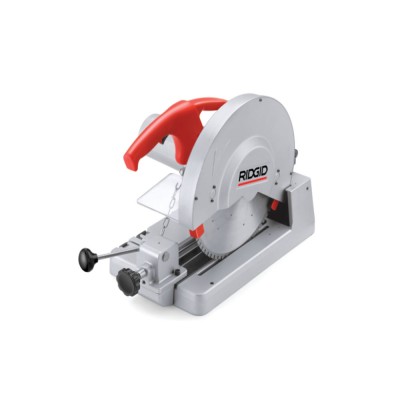

- The Model 614 features carbide-tipped blades to cut different materials and geometric configurations without cutting fluid. Cutting with the Model 614 generates no burr, abrasive dust or heat, providing clean and fast cuts on steel, copper, plastic and wood. Either straight or miter, the Model 614 offers the largest cutting capacity in its class.
- Brand: RIDGID
- Product Code: 614
- Catalog Number: 71687 - 72862 - 71697
- The Model 614 features carbide-tipped blades to cut different materials and geometric configurations without cutting fluid.
