CATALOG NUMBER |
MODEL NO. | CATALOG NO. | PIPE SIZE | LENGTH OVERALL | USE DRILL | WEIGHT | ||||
| IN. | MM | IN. | MM | IN. | MM | OZ. | G | |||
| 35595 | 80 | 1/8 | 3 | 2.2 | 56 | 1/4 | 6 | 3/4 | 21 | |
| 35600 | 81 | - | 1/4 | 6 | 2.5 | 62 | 3/8 | 9 | 1 1/2 | 43 |
| 35605 | 82 | - | 3/8 | 10 | 2.8 | 69 | 1/2 | 12 | 2 1/2 | 61 |
| 35610 | 83 | 35640 | 1/2 | 12 | 3.0 | 65 | 5/8 | 16 | 4 | 113 |
| 35615 | 84 | 35645 | 3/4 | 20 | 3.2 | 81 | 1 3/16 | 20 | 7 1/2 | 213 |
| 35620 | 85 | 35650 | 1 | 25 | 3.5 | 87 | 1 1/16 | 26 | 12 1/2 | 354 |
| 35625 | 86 | 35655 | 1 1/4 | 32 | 3.8 | 94 | 1 3/8 | 34 | 20 | 567 |
| 35630 | 87 | 35660 | 1 1/2 | 40 | 4.0 | 100 | 1 9/16 | 39 | 26 | 737 |
| 35635 | 89 | 35665 | 2 | 50 | 4.5 | 112 | 2 1/16 | 52 | 50 | 1,417 |
| 35640 | 83E | - | 1/2 | - | 3.0 | 65 | 5/8 | - | 4 | 113 |
| 35645 | 84E | - | 3/4 | - | 3.2 | 81 | 1 3/16 | - | 120 | 3,401 |
| 35650 | 85E | - | 1 | - | 3.5 | 87 | 1 1/16 | - | 200 | 5,669 |
| 35655 | 86E | - | 1 1/4 | - | 3.8 | 94 | 1 3/8 | - | 320 | 9,071 |
| 35660 | 87E | - | 1 1/2 | - | 4.0 | 100 | 1 9/16 | - | 416 | 11,793 |
| 35665 | 89E | - | - | - | - | - | - | - | - | - |
|
PIPE EXTRACTOR
SETS
|
||||||||||
|
CATALOG NUMBER |
MODEL NO. | CAPACITY/PIPE SIZE | SET INCLUDES | WEIGHT | ||||||
| IN. | MM | OZ. | G | |||||||
| 35670 | 880 | 0.1 - 0.5 | 3 - 12 | Nos. 80 to 83 Inclusive | 8 | 227 | ||||
| 35675 | 881 | 0.2 - 0.8 | 6 - 20 | Nos. 81 to 84 Inclusive | 16 | 454 | ||||
| 35680 | 882 | 0.2 - 1.0 | 6 - 25 | Nos. 81 to 85 Inclusive | 28 | 794 | ||||
| 35685 | 883 | 0.1 - 1.0 | 3 - 25 | Nos. 80 to 85 Inclusive | 28 | 794 | ||||

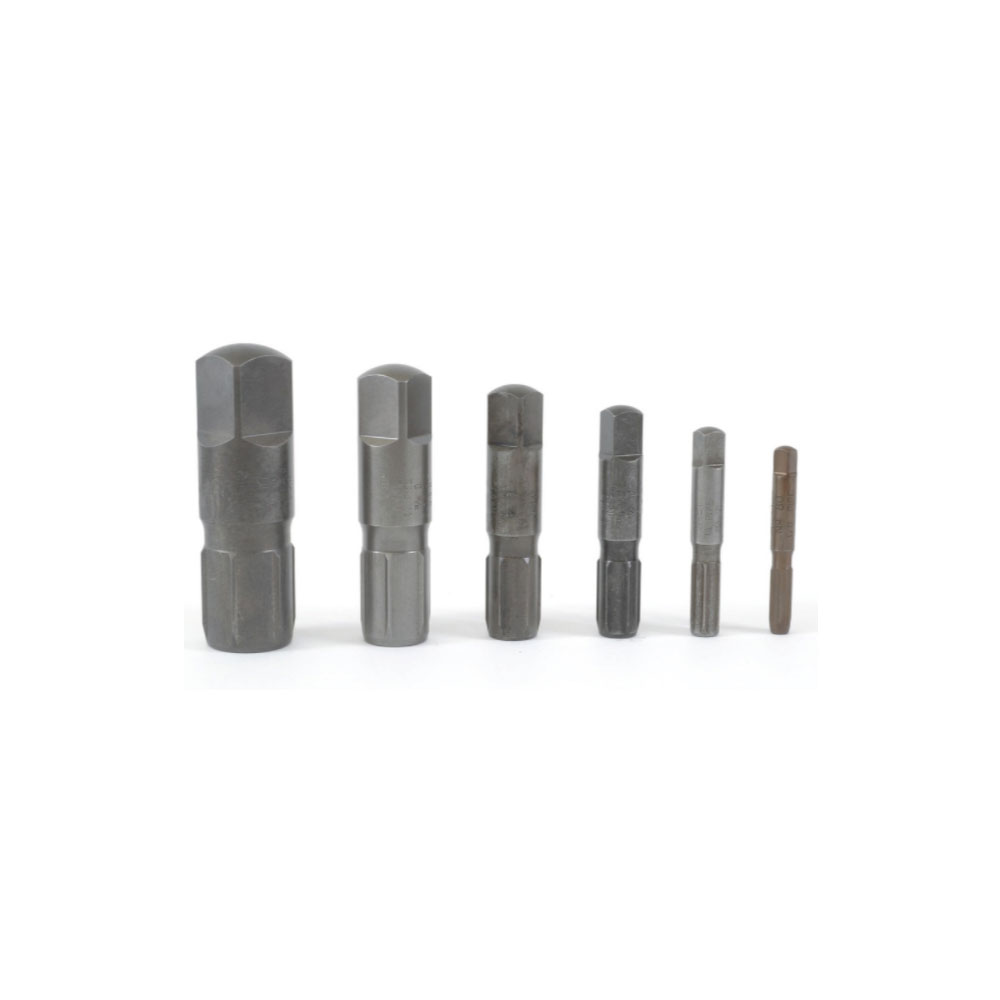

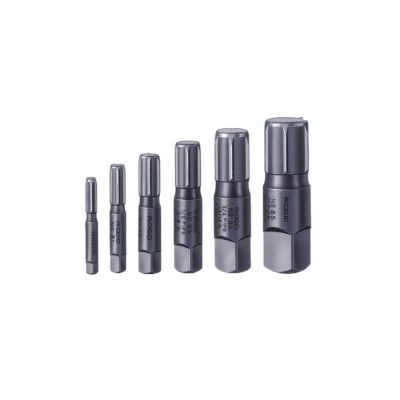

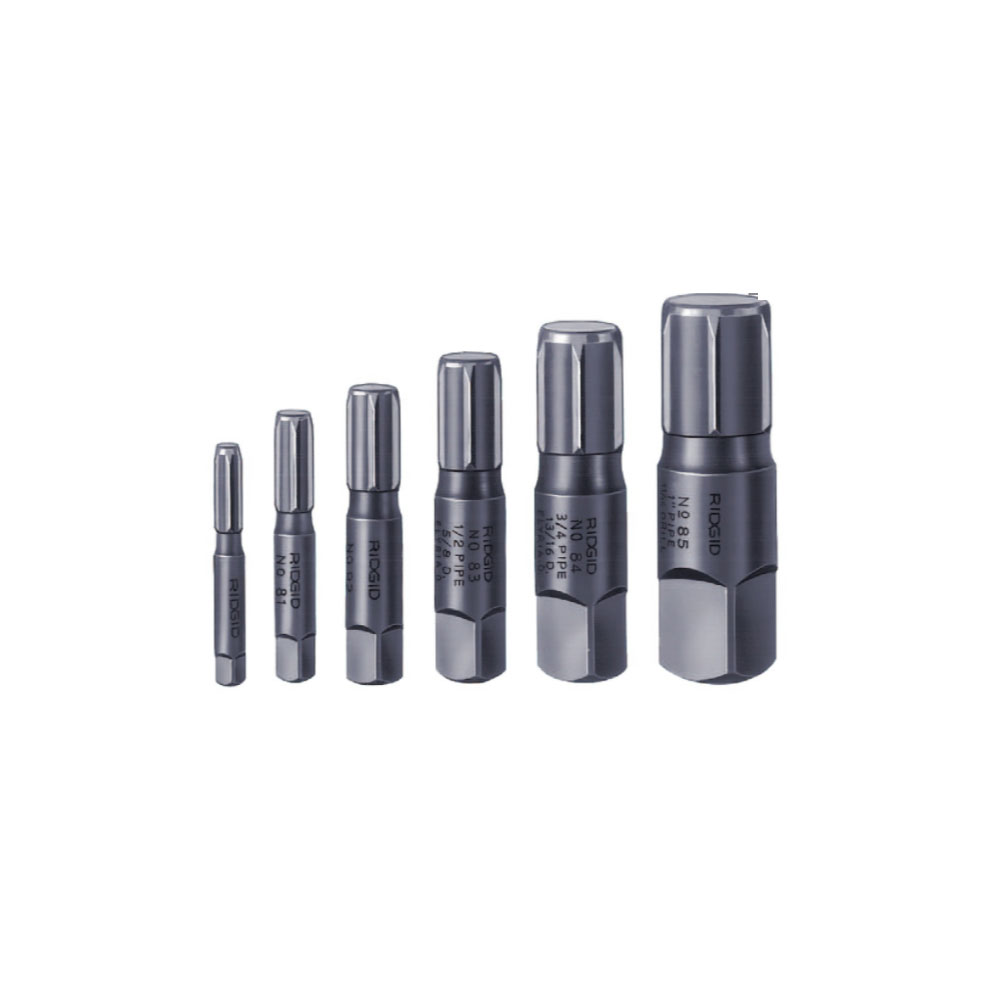

- RIDGID® pipe extractors make easy work of removing broken threaded ends of pipe, pipe plugs and fittings. Available for schedule 40 and 80 pipe.
- Each is plainly marked showing drill size used when solid ends of plugs and fittings must be drilled to receive extractor.
- Brand: RIDGID
- Product Code: Pipe Extractors
- Catalog Number: 35595 - 35600 - 35605
- RIDGID® pipe extractors make easy work of removing broken threaded ends of pipe, pipe plugs and fittings. Available for schedule 40 and 80 pipe.
