| Display | 3.5" color LCD (320 x 240 resolution). | |||||
| Camera Head | 17 mm diameter, aluminum construction. | |||||
| Lighting | 4 LEDs with adjustable brightness. | |||||
| Cable Reach | 3' (90 cm) expandable to 30' (9 m) with optional extensions. | |||||
| Image/Video Format | Still Image - JPEG (640 x 480). Video - MP4 (640 x 480 resolution). | |||||
| Video Output | 3' (90 cm) RCA cable included (640 x 480 resolution). | |||||
| Waterproof | Camera and cable to 10' (3 m) when properly assembled. | |||||
| Power Source | 3.7V Li-Ion battery or 5V AC adapter. | |||||
| Image Rotation | 4 x 90˚. | |||||
| Digital Zoom | Yes. | |||||
| Internal Memory | 235 MB. | |||||
| SD-card | Up to 32 GB (4 GB card included). | |||||
| Integrated audio recorder, speaker and headset. | ||||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 37098 | 6 mm Imager with 1 m Cable * | 3/4 | 0.34 |
| 37093 | 6 mm Imager with 4 m Cable * | 22/25 | 0.40 |
| 37108 | 3' Cable Universal Extension | 7/10 | 0.32 |
| 37113 | 6' Cable Universal Extension | 1 2/5 | 0.64 |
| 30208 | Car Charger (DC) Adaptor | 13/50 | 0.12 |
|
|
|||
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 37103 | 17 mm Replacement Imager | 0.7 | 0.3 |
| 37123 | Mirror, Hook & Magnet for 17mm Camera Head | 0.1 | 0.0 |
| 37083 | micro CA-300 3.7 Li-Ion battery | 0.2 | 0.1 |
| 37088 | micro CA-300 3.7V Battery Charger | 0.2 | 0.1 |

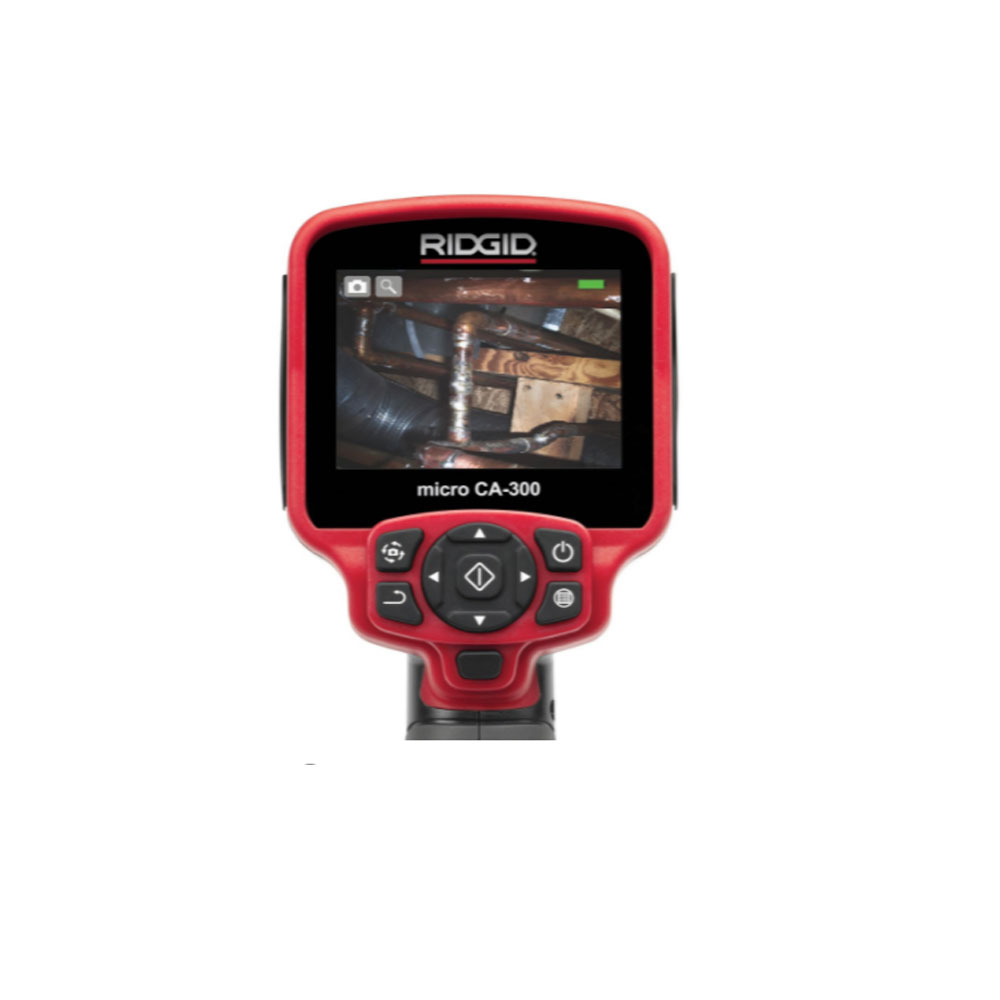

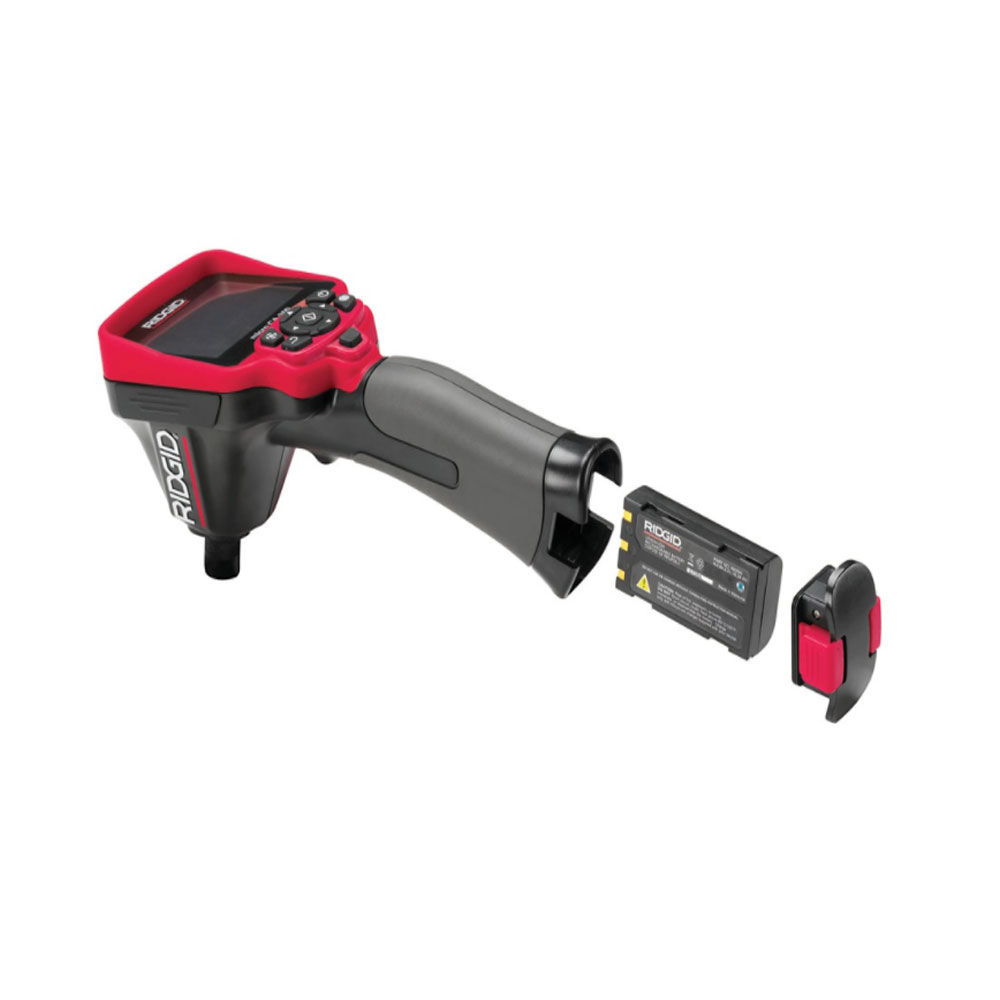

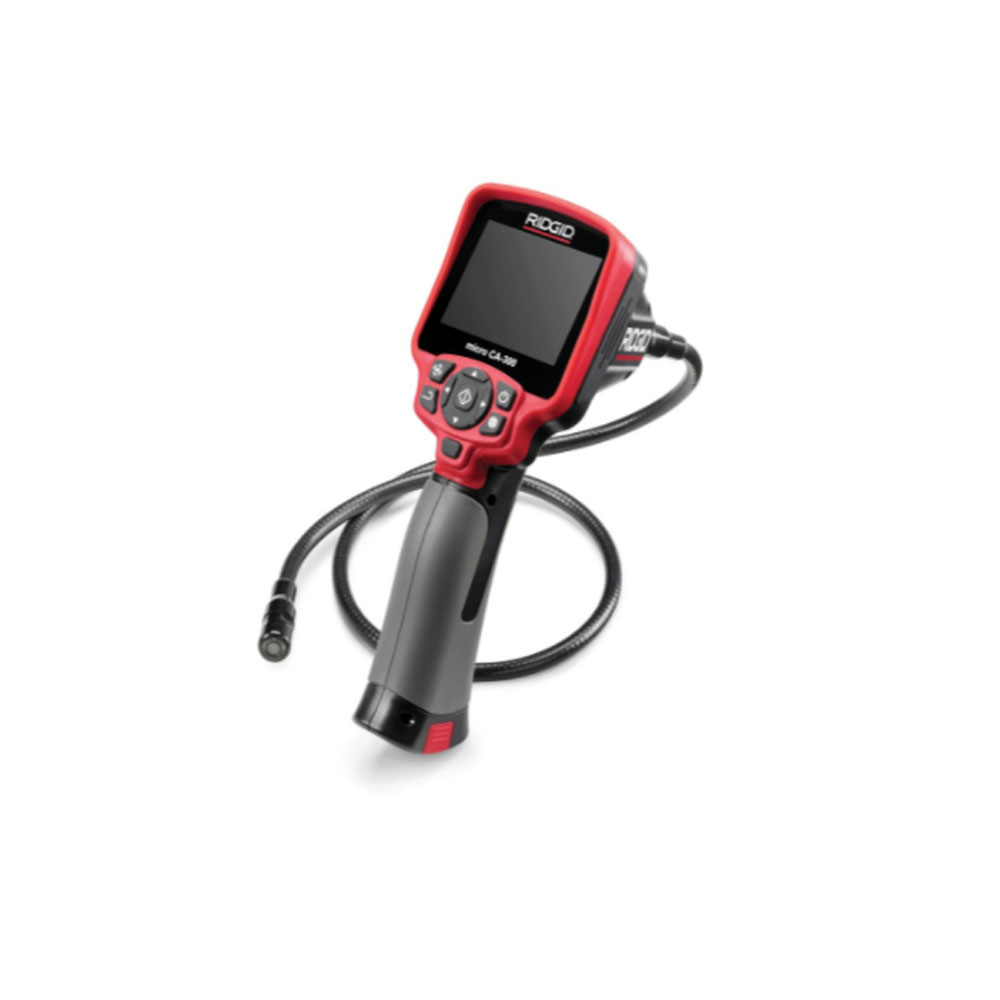

Documentation made easy with the RIDGID® micro CA-300 Inspection Camera, the next evolution of the microEXPLORER®. Easily record still images and videos of problems in hard-to-reach areas and save these on the internal memory (235 MB) or the included 4 GB SD-card. Comfortable pistol-grip design, large screen and rugged anodized aluminum camera head with four bright LEDs make it easy to detect and diagnose the unreachable. Get the perfect view with enhanced features like image rotation and digital zoom. Besides the replaceable 3.7V Li-Ion battery, the micro CA-300 can also be powered with the included AC Adapter which is ideal for time consuming (drain) inspection jobs or when you simply run out of battery.
- Brand: RIDGID
- Product Code: MICRO CA-300
- Catalog Number: 37098 - 37093 - 37108 - 37113
Documentation made easy with the RIDGID® micro CA-300 Inspection Camera, the next evolution of the microEXPLORER®
