| Display | 3.5" color LCD (320 x 240 resolution). |
| Camera Head | 17 mm diameter, aluminum construction. |
| Lighting | 4 LEDs with adjustable brightness. |
| Cable Reach | 3' (90 cm) expandable to 30' (9 m) with optional extensions. |
| Video Output | 3' (90 cm) RCA cable (included). |
| Image Rotation | 4 x 90°. |
| Waterproof | Camera head and cable to 10' (3 m). |

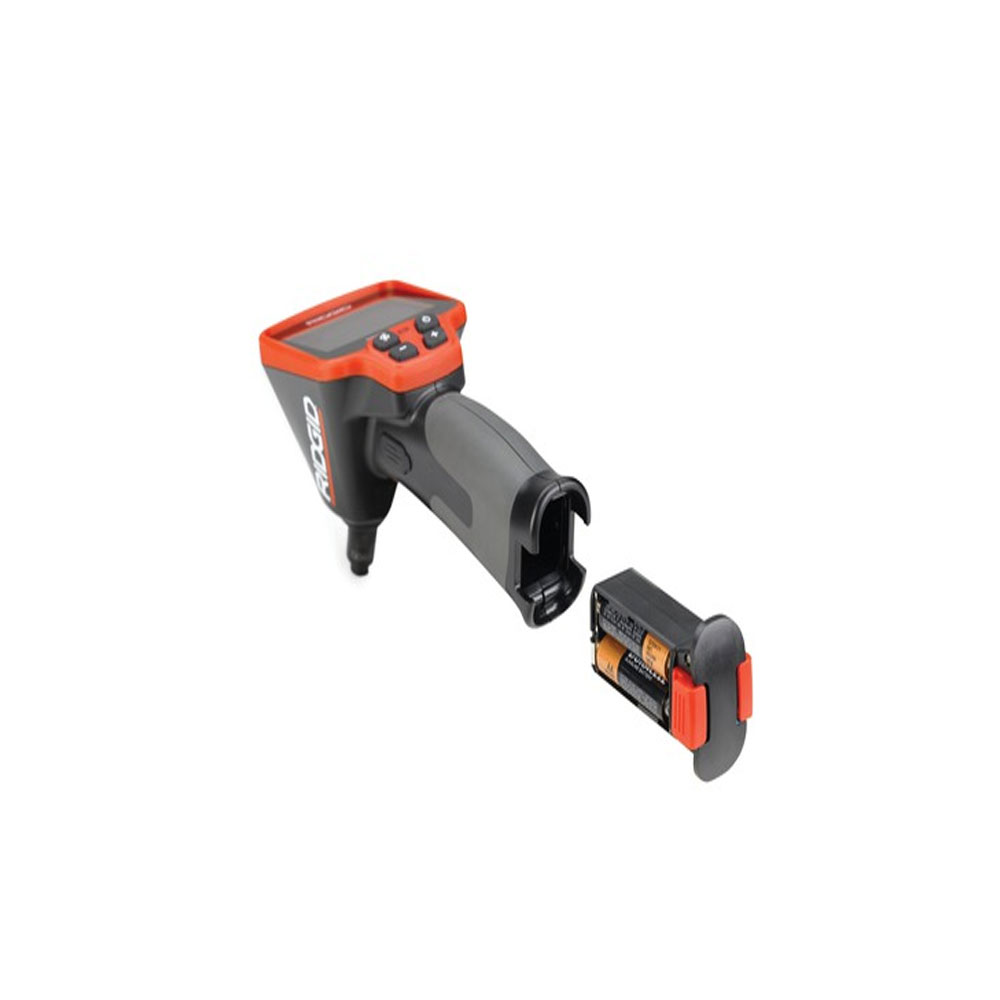

| Power Source | 4 AA batteries. |
| Attachments | Mirror, hook and magnet. |
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 36738 | micro CA-100 Inspection Camera | 5.5 | 2.5 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

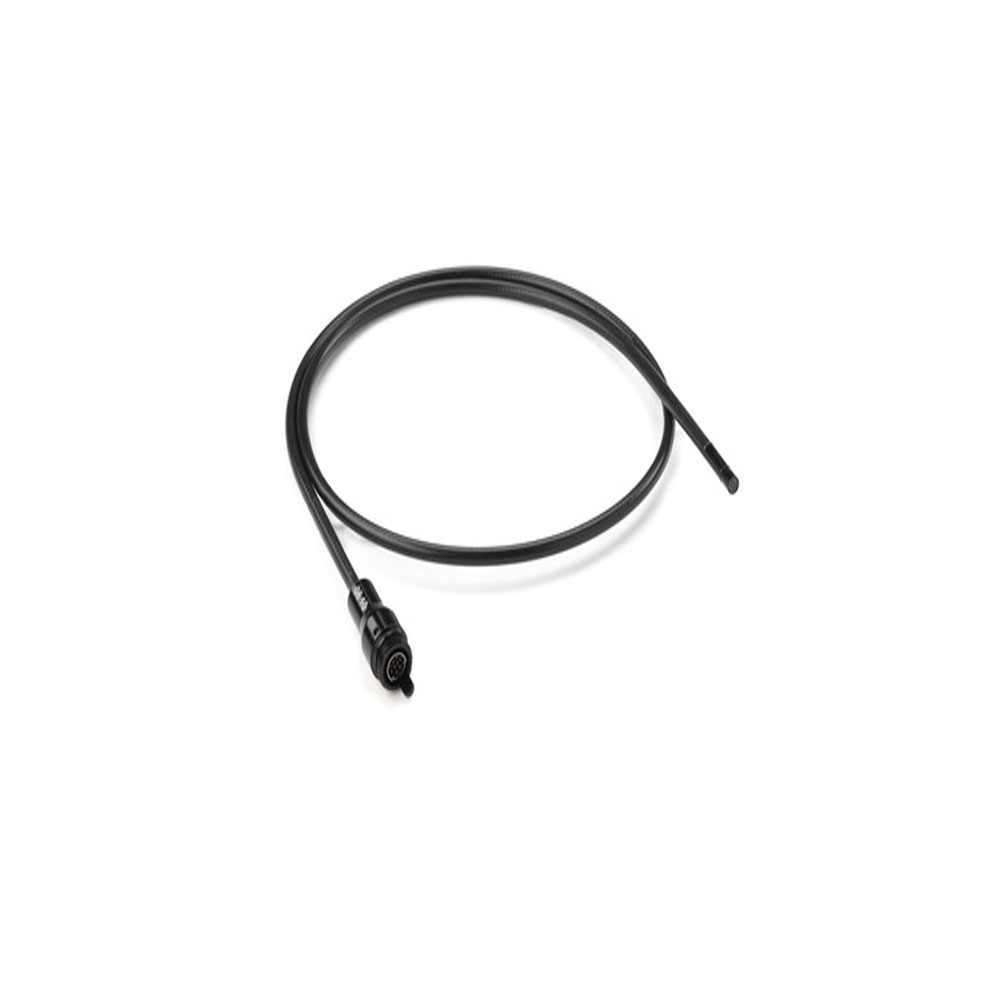

| 37108 | 3' Cable Universal Extension | 0.7 | 0.3 |

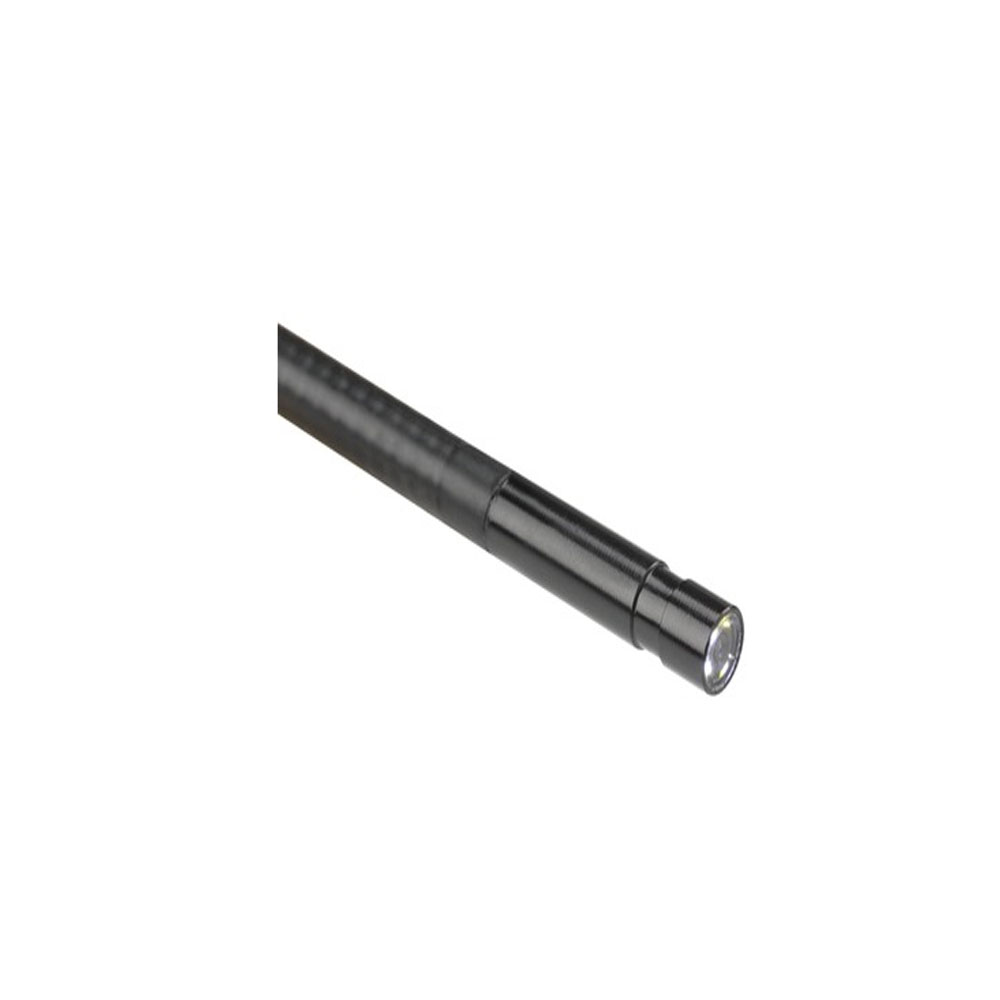

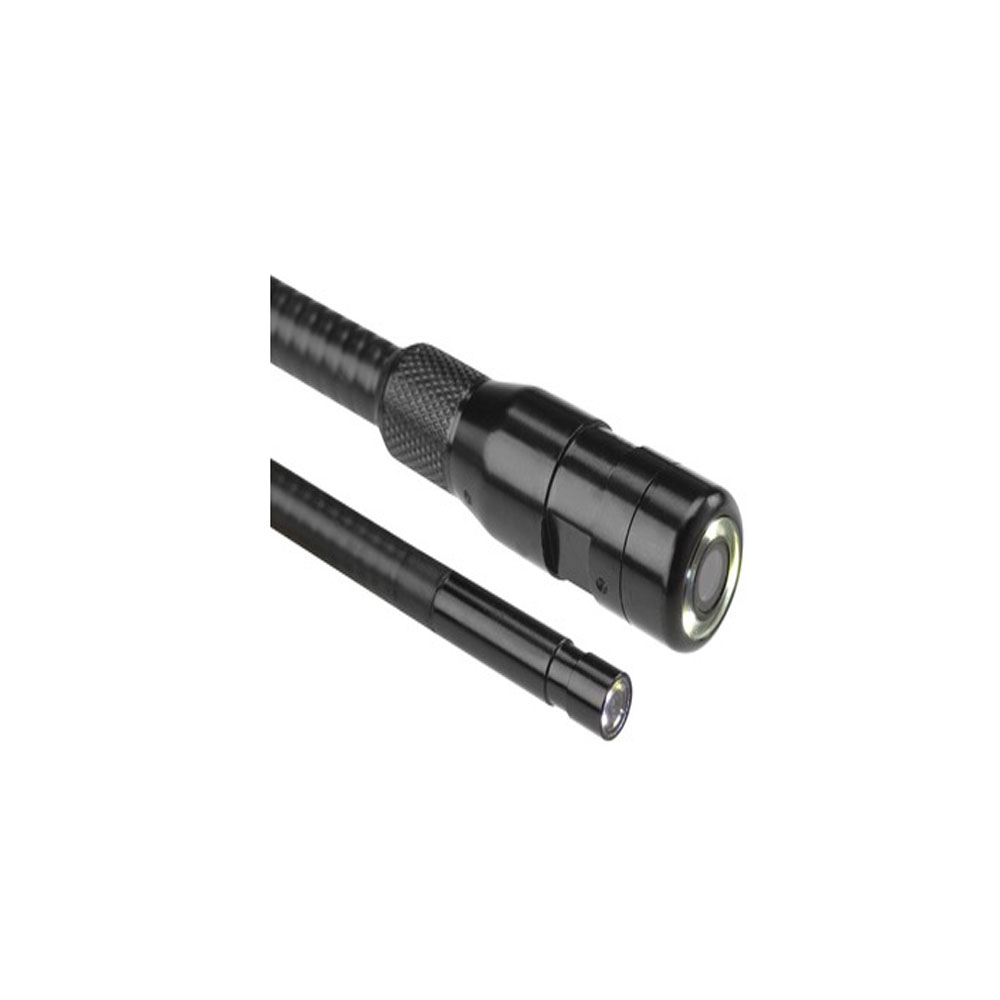

| 37098 | 6 mm Imager with 1 m Cable * | 0.8 | 0.3 |

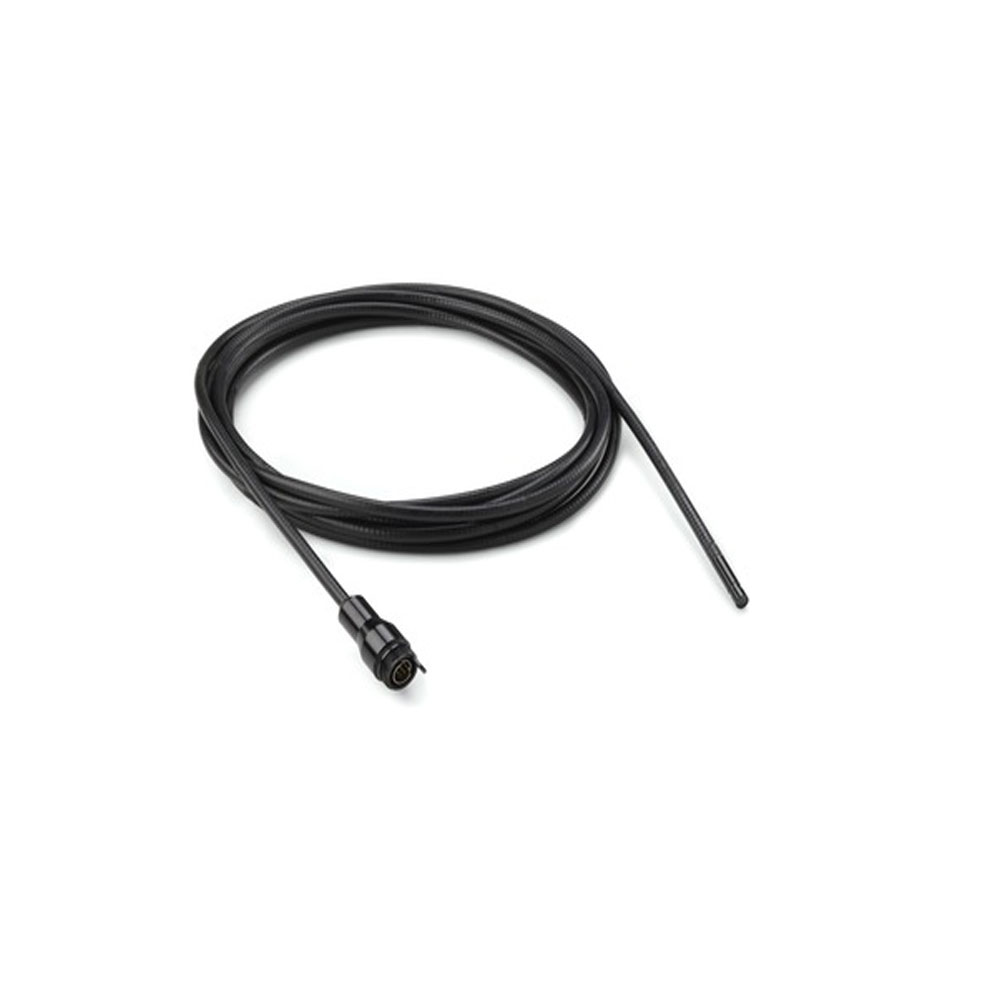

| 37093 | 6 mm Imager with 4 m Cable * | 0.9 | 0.4 |

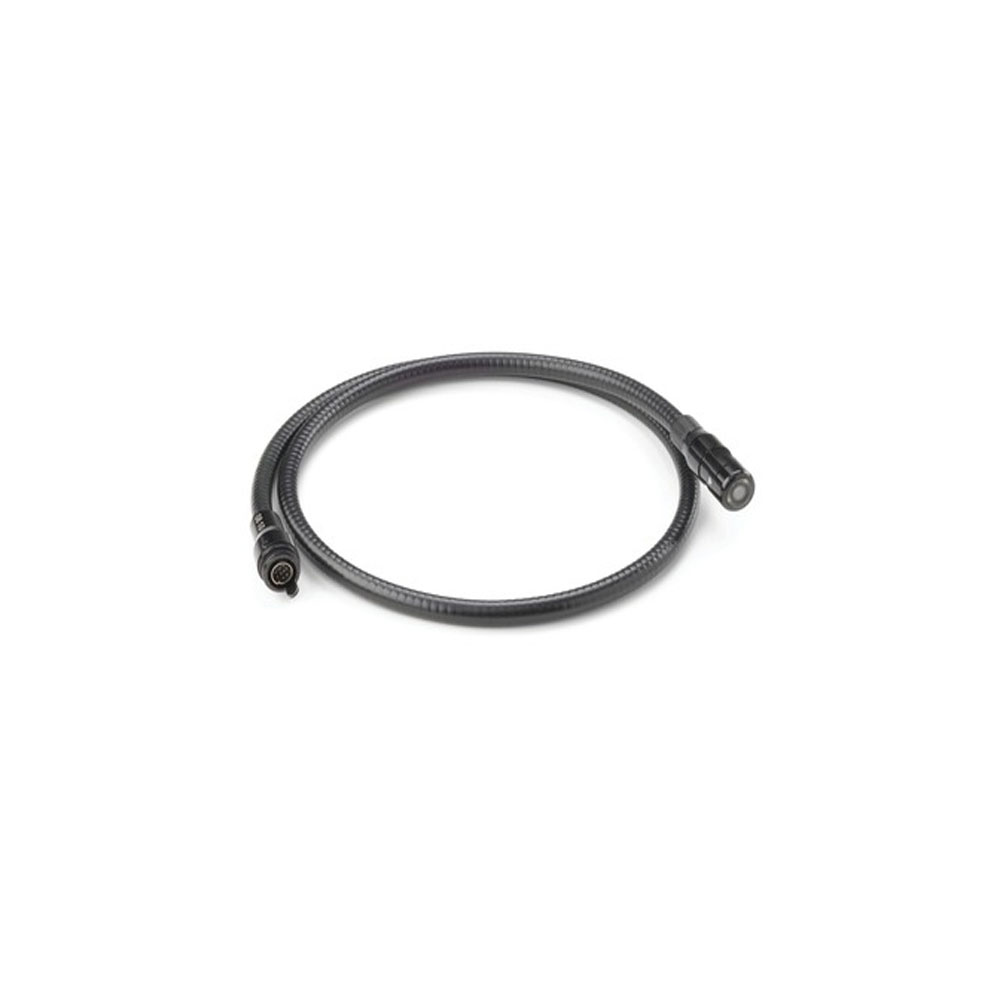

| 31128 | Universal 3' (90 cm) Cable Extension | 0.7 | 0.3 |
| 37113 | 6' Cable Universal Extension | 1.4 | 0.6 |
|
|
|||
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

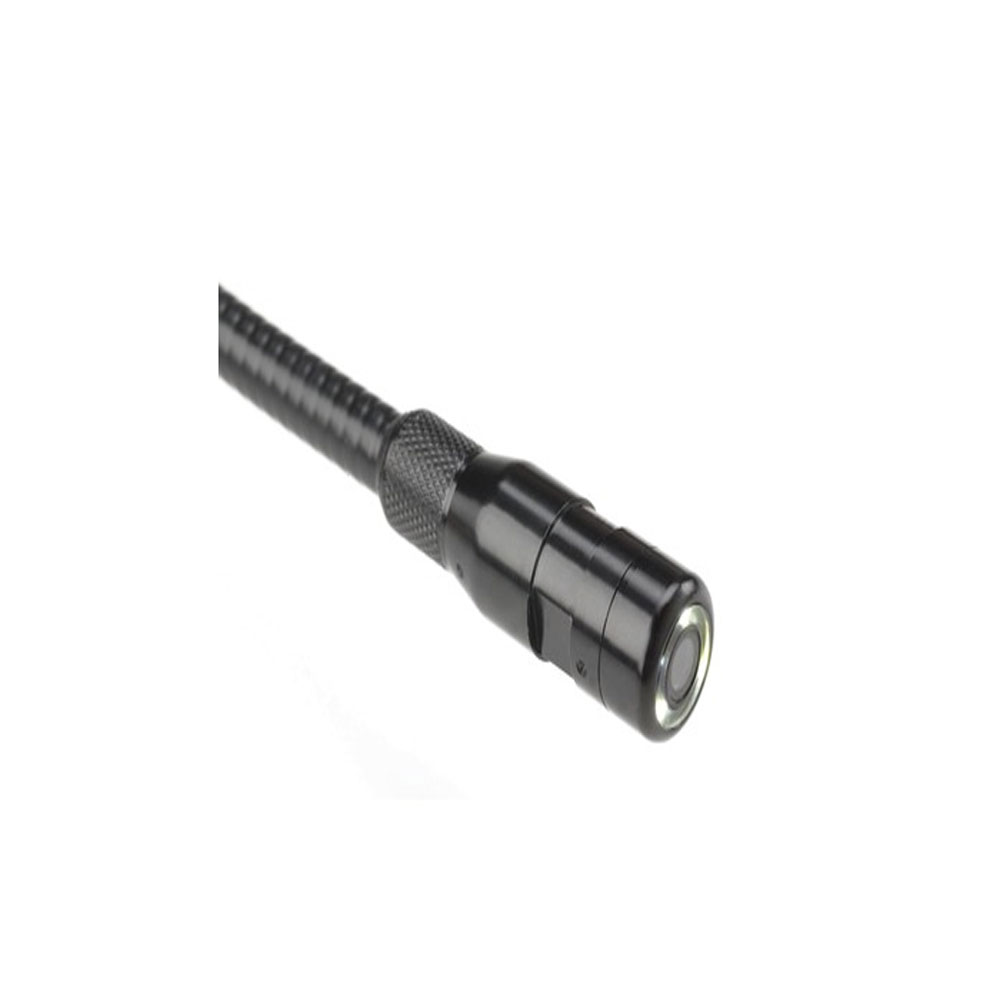

| 37103 | 17 mm Replacement Imager | 0.7 | 0.3 |

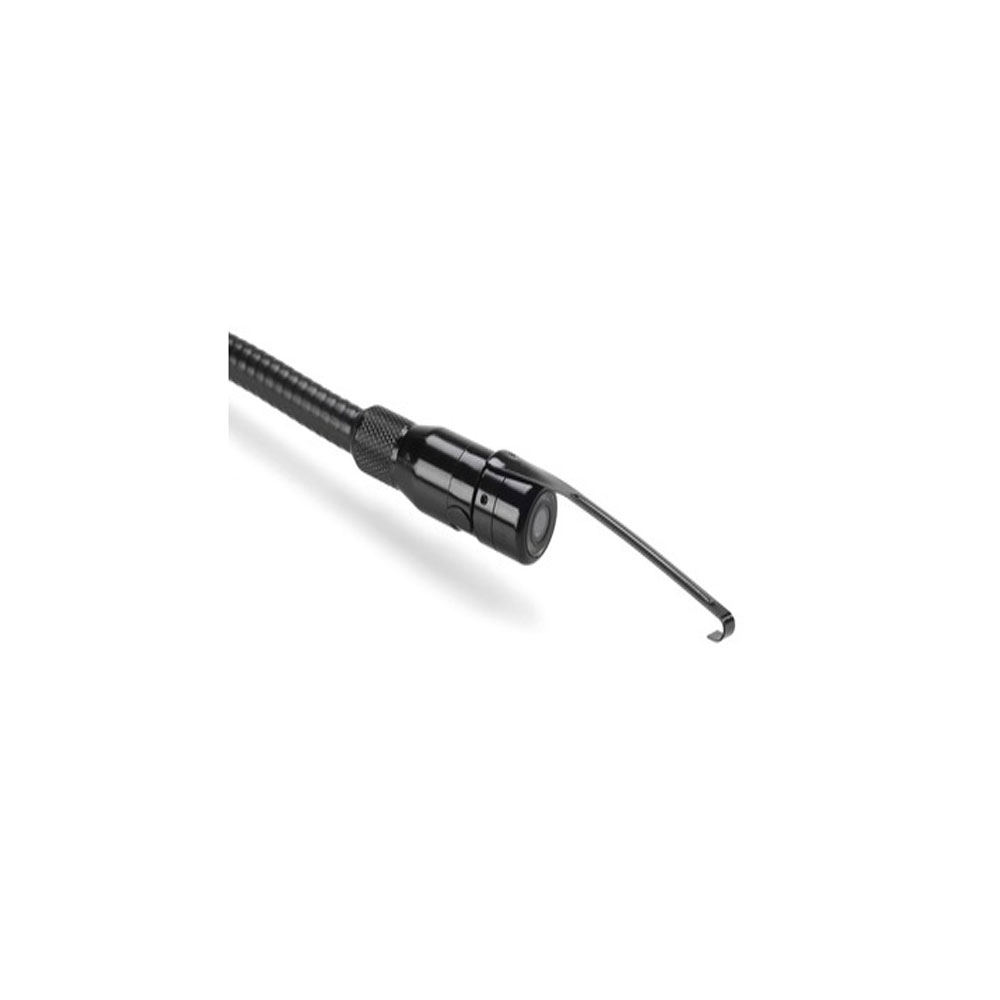

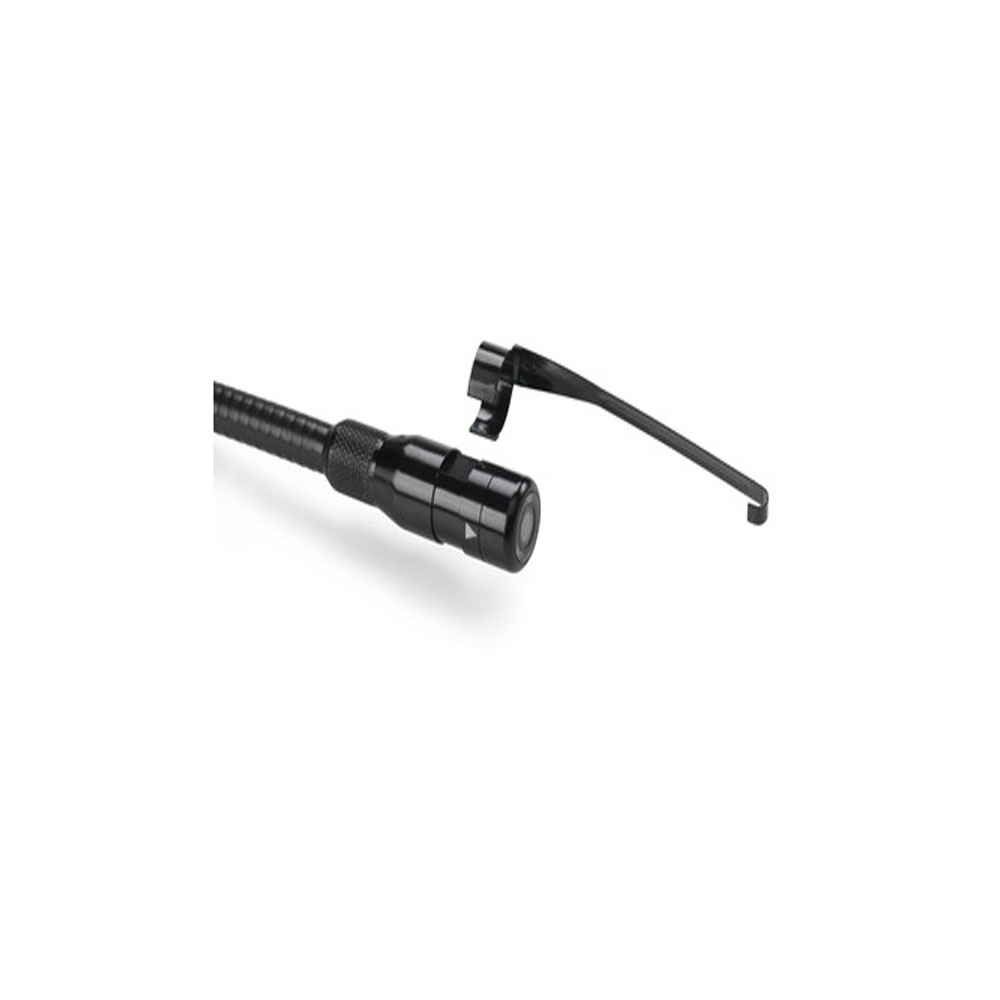

| 37123 | Mirror, Hook & Magnet for 17mm Camera Head | 0.1 | 0.0 |

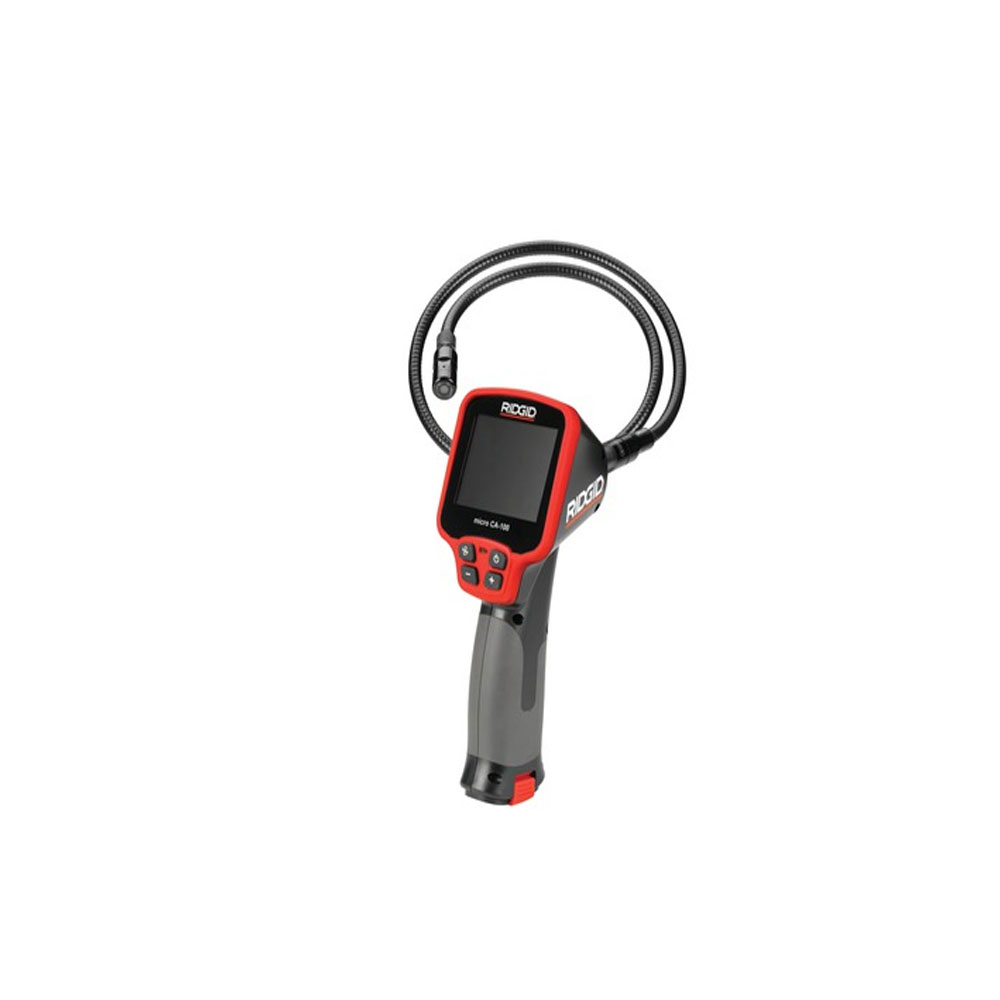

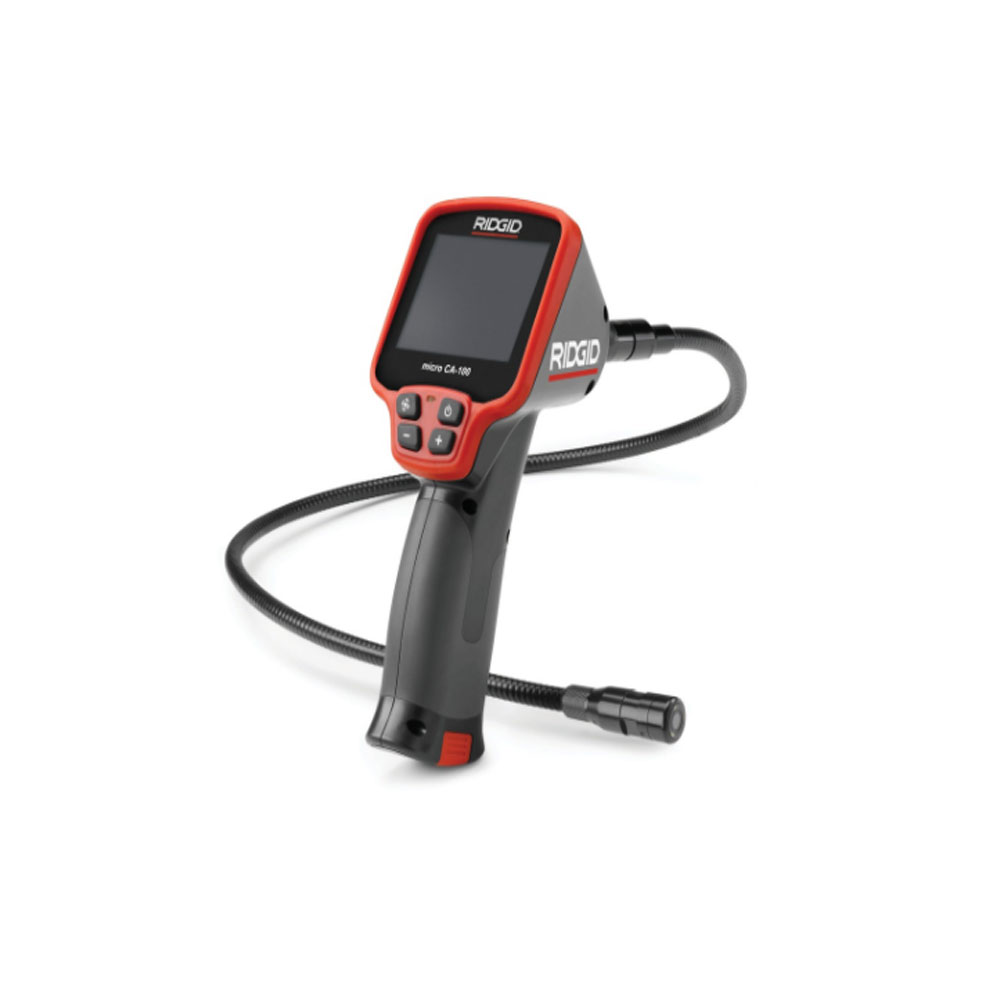

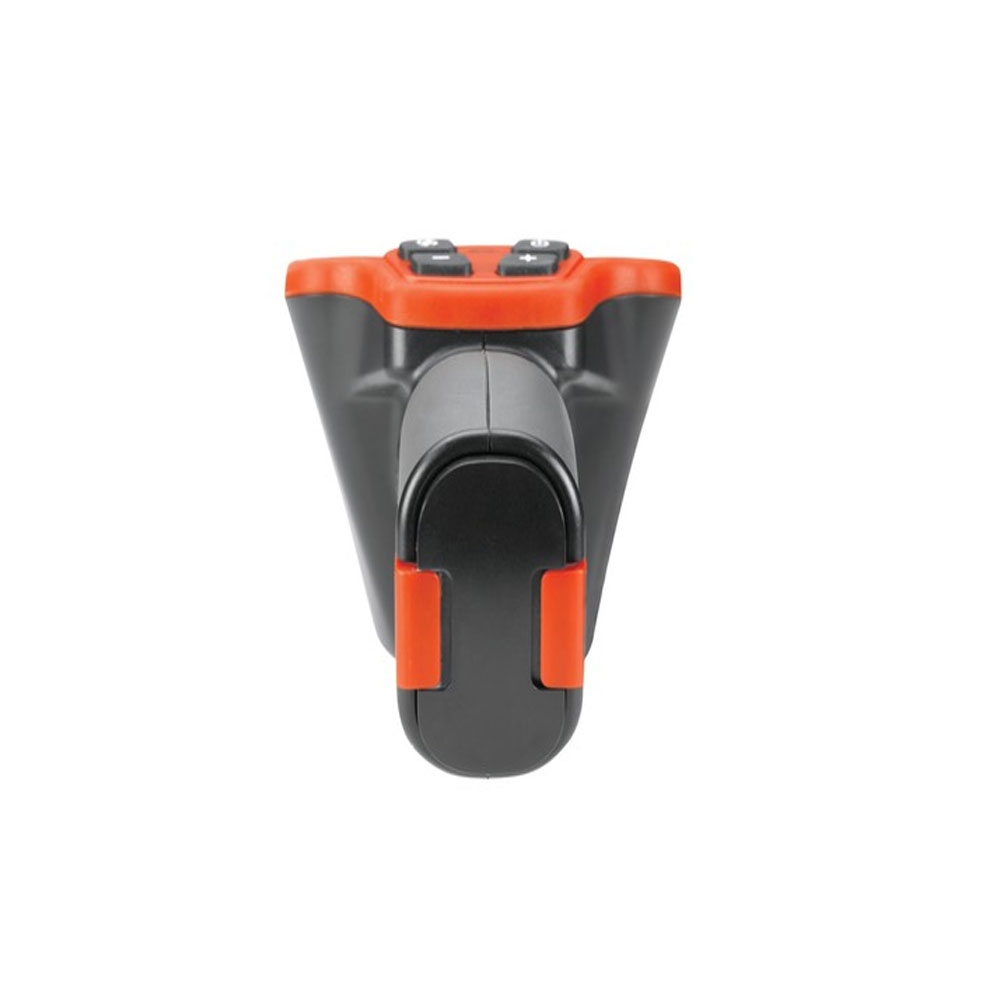

Its comfortable pistol-grip design, one-hand controls, and large screen make it easy to see into the tightest spots. The micro CA-100 comes standard with a rugged 0.7" (17 mm) anodized aluminum camera head with four super bright LEDs to see into the darkest areas. Easily rotate the active image counter-clockwise to see in any situation. With an available 6 mm camera accessory, the micro CA-100 Inspection Camera allows you to service and identify problems in more places. The RIDGID micro CA-100 Inspection Camera provides solutions whenever and wherever you need them.
- Brand: RIDGID
- Product Code: CA-100
- Catalog Number: 36738 - 37108 - 37098 - 37093
The RIDGID® micro CA-100 Inspection Camera, the next evolution of the SeeSnake® micro Inspection Camera, allows you to perform more detailed visual inspections in even harder-to-reach areas.
