CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | VOLTAGE (V) | WEIGHT | |
LB. | KG | ||||
23692 | K-1500A | Machine with A-1 Mitt, A-12 Pin Key, and Rear Guide Hose | 115 | 135 | 61.30 |
23702 | K-1500A | Machine with A-1 Mitt, A-12 Pin Key,and A-34-12 Rear Guide Hose, Plus: Seven Sections 1 1/4" (32 mm) (C-14) Cable, Total 105 Feet, Two A-8 Cable Carriers, Nine-Piece 1 1/4" Tool Set * | 115 | 256 | 116.10 |
23712 | K-1500A | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 1 1/4" (32 mm) (C-11) Cable, Total 105 Feet, Two A-8 Cable Carriers, Nine-Piece 1 1/4" Tool Set * | 115 | 256 | 116.10 |
27592 | K-1500A | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 1 1/4" (32 mm) (C-11) Cable, Total 105 Feet, Two A-8 Cable Carriers, Nine-Piece 1 1/4" Tool Set * | 220 | 256 | 116.10 |
27612 | K-1500A | Machine with A-1 Mitt, A-12 Pin Key, and Rear Guide Hose | 220 | 135 | 61.30 |
|
|||||
MACHINE
OPTIONS -B FRAME
|
|||||
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | VOLTAGE (V) | WEIGHT | |
LB. | KG | ||||
23697 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose | 115 | 135 | 61.3 |
23707 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 11/4" (32 m) (C-14) Cable Total 105' (32 m), Two A-8 Cable Carriers, Nine-Piece 11/4" Tool Set | 115 | 256 | 116.1 |
23717 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 11/4" (32 m)(C-11) Cable, Total 105' (32 m), Two A-8 Cable Carriers, Nine-Piece 11/4" Tool Set | 115 | 256 | 116.1 |
27597 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 11/4" (32 m) (C-11) Cable, Total 105' (32 m), Two A-8 Cable Carriers, Nine-Piece 11/4" Tool Set | 220 | 256 | 116.1 |
27617 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose | 220 | 135 | 61.3 |
27637 | K-1500B | Machine with A-1 Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus: Seven Sections 11/4" (32 mm) (C-11) Cable, Total 105' (32 m), Two A-8 Cable Carriers, Nine-Piece 11/4" Tool Set | 220 | 256 | 116.1 |
33922 | K-1500B Special Kit | Machine with A-1 Mitt, A-12 Pin Key, A-34-12 Rear Guide Hose, four Sections 11/4" (32mm) (C11) Cable, Total 60' (18m), one A-8 Cable Carrier, T-3 funnel auger, T-50-1 shark tooth cutter and hex key. | 220 | 210 | 95.0 |
CABLES AND
LEADERS
|
|||||
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||
LB. | KG | ||||
24226 | C-11 PC | 15' (4,6 m) Standard All- Purpose Wind 3/8" Pitch with Plastic Core, Good For 4" Traps | 17 3/5 | 8.0 | |
25036 | C-10 PC | 7/8" (22 mm) x 15' Cable with Inner Core (4,6 m) | 10 | 4.5 | |
Requires A-368-X Jawset | |||||
62275 | C-10 | 7/8" (22 m) x 15' (4,6 m) All- Purpose Wind Requires A-368-X Jawset | 9 1/2 | 4.3 | |
62280 | C-11 | 1 1/4" (32 mm) x 15' (4,6 m) Standard All-Purpose Wind. 3⁄8" (10 mm) Pitch. Good for 4" (110 mm) Traps, 3" (75 mm) - 8" (200 mm) Lines | 16 | 7.3 | |
62285 | C-12 | 15' (4,6 m) Extra-Heavy- Duty Wind. 3/8" (10 mm) Pitch. Recommended For 4" (110 mm) - 10" (250 mm) Long Runs, No 4" (110 mm) Traps | 19 | 8.6 | |
62295 | C-14 | 15' (4,6) Heavy-Duty Wind. 1/2" (13 mm) Pitch. Recommended For 3" (75 mm) - 10" (250 mm) Lines Through Cleanout, No 4" (110 mm) Traps | 16 | 6.8 | |
62300 | C-15 | 15' (4,6) Extra-Flexible Wind. 1⁄2" (13 mm) Pitch. Recommended For 3" (75 mm) - 6" (150 mm) Lines Good for Traps | 12 | 5.5 | |
63090 | T-27 | 1 1⁄4" (32 mm) x 25" (63,5 cm) Leader | 2 3/4 | 1.2 | |
CABLE KITS
|
|||||
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||
LB. | KG | ||||
61625 | A-61 | Standard Equipment Tool Kit for K-60-SE, includes: –T-101 Straight Auger –T-102 Funnel Auger –T-107 Spade Cutter –T-125 Retrirving Auger –T-150-1 Sharktooth Cutter –A-3 Tool Box –A-12 Pin Key | 8 | 3.60 | |
61630 | A-62 | Standard Equipment Cable Kit for K-60-SE, includes: – Five Sections C-10, 7⁄8" (22 mm) x 15' (4,6 m) Cable – A-8 Cable Carrier | 43 | 19.50 | |
ACCESSORIES
|
|||||
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||
LB. | KG | ||||
59205 | A-1 | Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
59295 | A-2 | Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
59225 | A-12 | 1/2" Cable Pin Key | 1/2 | 0.2 | |
59240 | A-17 | Manhole Guide Pipe | 23 | 10.4 | |
59300 | A-20 | 8-Foot (2,4 m) Front Guide Hose Assembly | 25 | 11.4 | |
59320 | A-369X | Jaw Assembly 1-1/4" Cable | 3/4 | 0.3 | |
59325 | A-368X | Jaw Assembly 7/8" Cable | 3/4 | 0.3 | |
59360 | A-3 | Tool Box | 5 | 2.3 | |
59395 | A-34-12 | 12-Foot (3,7 m) Rear Guide Hose | 20 | 9.1 | |
59400 | A-34-16 | 16-Foot (4,9 m) Rear Guide Hose | 26 1/2 | 12.0 | |
59415 | A-34-10 | 10-Foot (3,1 m) Rear Guide Hose | 13 3/8 | 6.2 | |
59440 | A-4 | Trap Spoon (30", 76 cm) | 1 3/4 | 0.8 | |
59470 | A-8 | Cable Carrier 60' (18 m) Capacity 1 1/4" (32 mm) | 5 1/2 | 2.5 | |
59475 | A-9 | Cable Carrier 150-Foot (45,7) Capacity 11⁄4" (32 mm) | 14 | 6.4 | |
62467 | A-1HD | Heavy-Duty Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
62472 | A-2HD | Heavy-Duty Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
TOOLS
|
|||||
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | REPLAC. BLADE(S) | ||
59480 | T-11 | “H” Cutter, 2 1⁄2" (65 mm) | 97800 | ||
59485 | T-12 | “H” Cutter, 3 1⁄2" (89 mm) | 97945 | ||
61770 | T-15A | Expanding Cutter, 4" - 6" (110-150 mm) | 62970 | ||
61790 | T-4 | Heavy-Duty Funnel Auger | - | ||
61800 | T-2 | Heavy-Duty Straight Auger | - | ||
61825 | T-15B | Expanding Cutter, 6" - 8" (150-200 mm) | 62980 | ||
61970 | T-13 | Sawtooth Cutter, 2 1⁄2" (65 mm) | 98070 | ||
61975 | T-14 | Sawtooth Cutter, 3 1⁄2" (89 mm) | 98075 | ||
62840 | T-1 | Straight Auger | - | ||
62845 | T-10 | Grease Cutter, 4 1⁄2" (114 mm) | 97865 | ||
63105 | T-3 | Funnel Auger | - | ||
63190 | T-5 | A-3565 Key | - | ||
63195 | T-6 | Funnel Retrieving Auger Run Machine In Reverse | - | ||
63200 | T-7 | Hook Auger | - | ||
63205 | T-8 | Grease Cutter, 2 1⁄2" (65 mm) | 97920 | ||
63210 | T-9 | Grease Cutter, 3 1⁄2" (89 mm) | 97925 | ||
59625 | T-21 | Spiral Sawtooth Cutter, 2 1⁄2" (65 mm) | 97970 | ||
59765 | T-24 | 4-Blade Cutter, 21⁄2" (65 mm) | 97940 | ||
59770 | T-25 |
- The finest all-around sewer and drain cleaning machine. One man can easily clean the heaviest blockages – indoors or out. High-speed cleaning gets the job done faster and better.
- Wheels to the job site – sets up fast, cleans up fast.

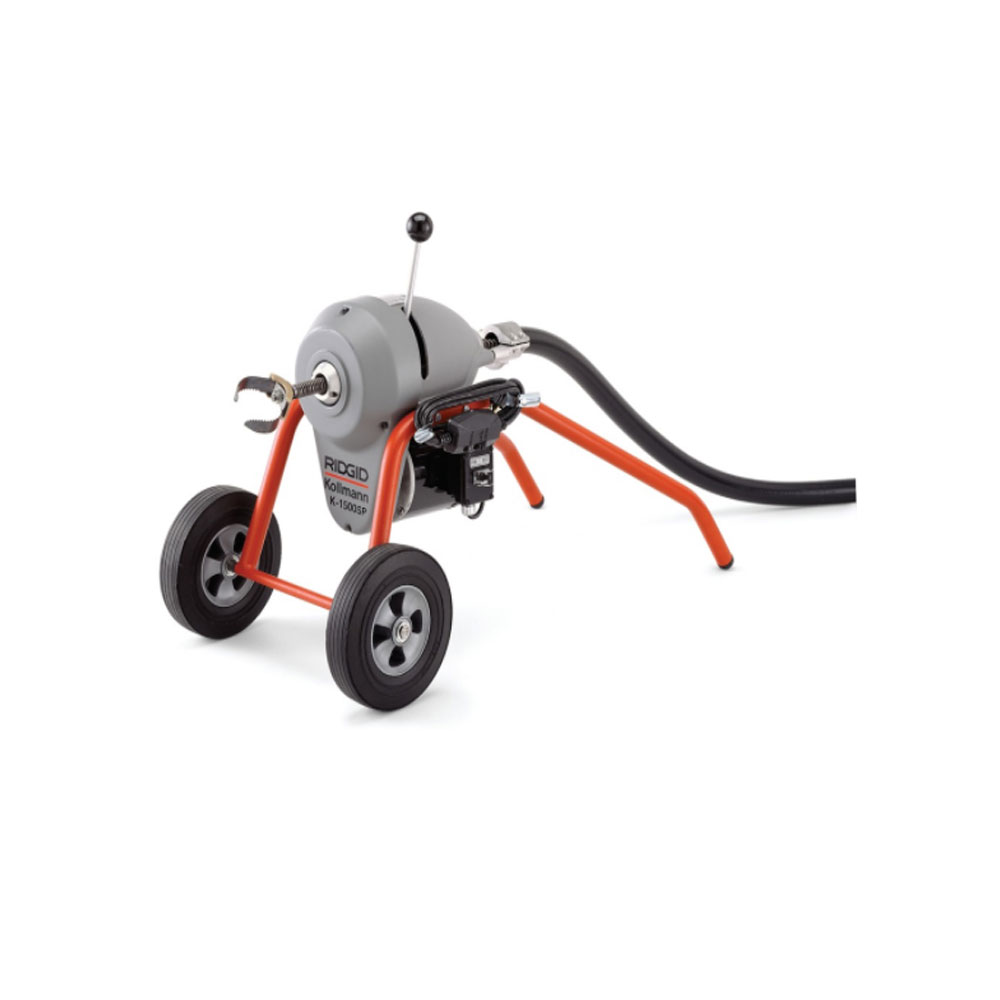

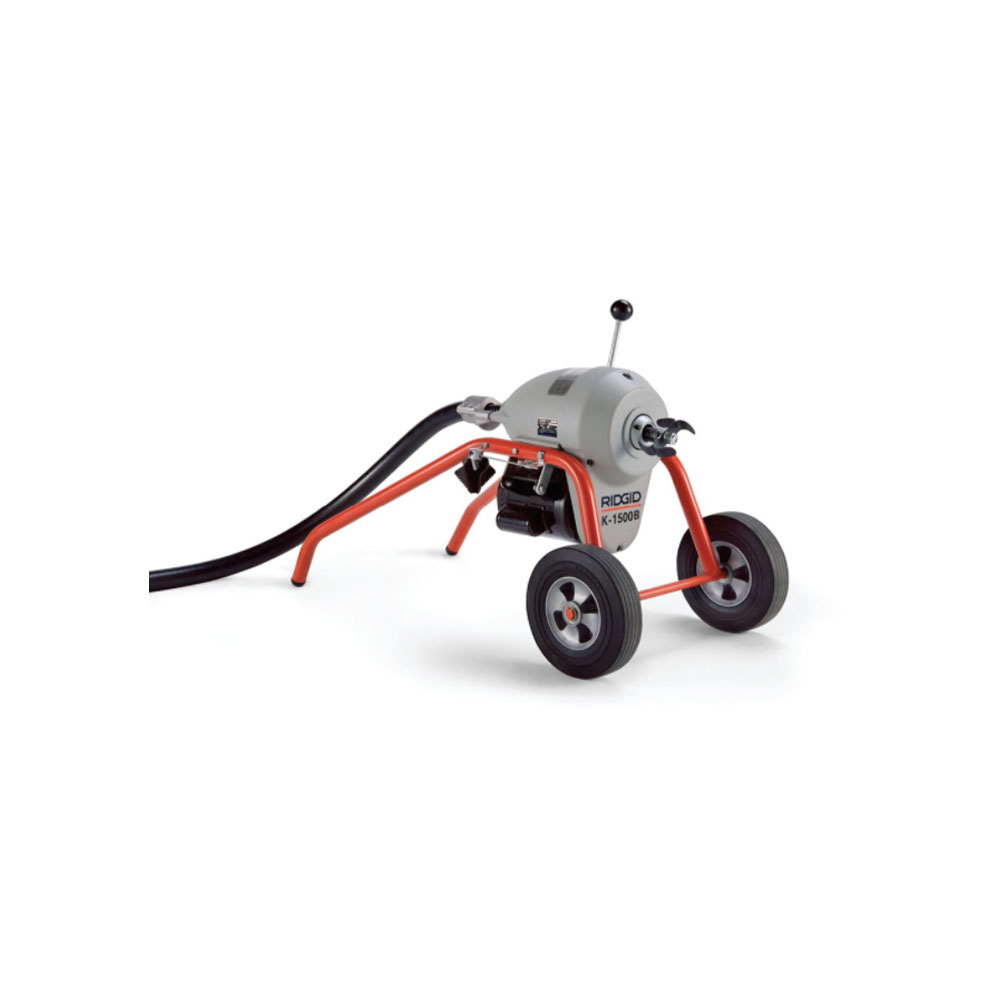

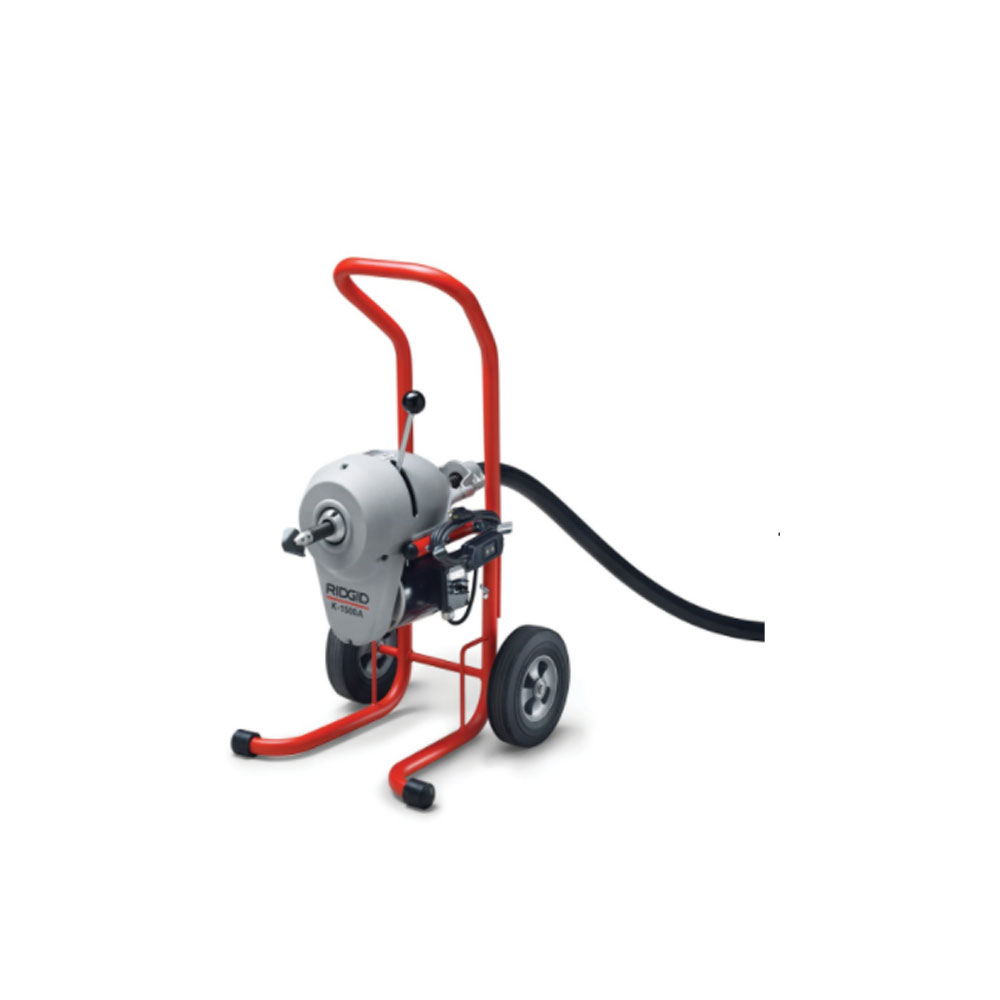

- Low-profile “B” frame design will fit most crawl spaces. Loads and unloads from truck easily. Upright “A” frame features cable carrier storage during transport, ideal for in-house applications.
- Equipped to run, easy to handle, 15’ (4.6 m) sections of 1 1/4" (32 mm) cable to clean 3" to 8" (32 m to 200 mm) lines to 200’ (61 m).
- Easy clutch jaw change-out adapts K-1500 to run 15’ (4.6) sections of 7/8" (22 mm) cable through 2" to 4" (50 to 100 mm) lines up to 175’ (53 m).
- Equipped with 3/4 HP motor. CSA approved. Approved to UL standards (NRTLC).
- Brand: RIDGID
- Product Code: K-1500
- Catalog Number: 23692 - 23702 - 23712
- 2" to 8" (50 mm to 200 mm) Drain and Sewer Lines
