CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | VOLTAGE (V) | WEIGHT | |
| LB. | KG | ||||
| 43507 | K-1500SP | 120V-60Hz Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose | 115 | 141 | 64 |
| 46907 | K-1500SP | 120V-60Hz Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose, A-34-12 Rear Guide Hose, 150' (45.7m), Ten Sections of C-11, 1 1/4" (32 mm) Cable, Three A-8 Cable Carriers, A-3 Tool Box, Eight-Piece 1 1/4" (32 mm) Tool Package | 115 | 317 | 144 |
| 91027 | K-1500SPB | 120V-60Hz Machine with A-1 RIDGID Drain Cleaning Mitt and A-12 Pin Key Plus : - A-34-12 Rear Guide Hose - C-14 Three Carrier Cable Combination Kit | 115 | 297 | 135 |
| 43512 | K-1500SP-B | 240V-50Hz Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose | 230 | 141 | 64 |
| 45312 | K-1500A Only | Machine with A-1 RIDIGD Drain Cleaning Mitt, A-12 Pin Key, and A 34-12 Rear Guide Hose | 230 | 132 | - |
| 45317 | K-1500SP-A | Machine with A-1 RIDIGD Drain Cleaning Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus SE Tool Kit (see below). | 230 | 254 | 120 |
|
MACHINE
OPTIONS - A FRAME
|
|||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | VOLTAGE (V) | WEIGHT | |
| LB. | KG | ||||
| 46837 | K-1500SPA | 120V Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose | 115 | 150 | 68 |
| 46902 | K-1500SPA | 120V Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose, A-34-12 Rear Guide Hose, 150' (45.7), Ten Sections of C-11, 1 1/4" (32 mm)Cable, Three A-8 Cable Carriers, A-3 Tool Box, Eight-Piece 1 1/4" (32 mm) Tool Package | 115 | 326 | 148 |
| 91032 | K-1500SPA | 120V Machine with A-1 Operator’s Mitt and A-12 Pin Key, Plus: A-34-12 Rear Guide Hose & C-14 Three Carrier Cable Combination Kit | 115 | 317 | 144 |
| 45307 | K-1500A SE | Machine with A-1 RIDIGD Drain Cleaning Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus SE Tool Kit (see below). | 115 | 254 | 115 |
| 45317 | K-1500SP-A | Machine with A-1 RIDIGD Drain Cleaning Mitt, A-12 Pin Key, and A-34-12 Rear Guide Hose, Plus SE Tool Kit (see below). | 230 | 254 | 120 |
|
CABLES AND
LEADERS
|
|||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 24226 | C-11 PC | 15' (4,6 m) Standard All- Purpose Wind 3/8" Pitch with Plastic Core, Good For 4" Traps | 17 3/5 | 8.0 | |
| 25036 | C-10 PC | 7/8" (22 mm) x 15' Cable with Inner Core (4,6 m) | 10 | 4.5 | |
| Requires A-368-X Jawset | |||||
| 62275 | C-10 | 7/8" (22 m) x 15' (4,6 m) All- Purpose Wind Requires A-368-X Jawset | 9 1/2 | 4.3 | |
| 62280 | C-11 | 1 1/4" (32 mm) x 15' (4,6 m) Standard All-Purpose Wind. 3⁄8" (10 mm) Pitch. Good for 4" (110 mm) Traps, 3" (75 mm) - 8" (200 mm) Lines | 16 | 7.3 | |
| 62285 | C-12 | 15' (4,6 m) Extra-Heavy- Duty Wind. 3/8" (10 mm) Pitch. Recommended For 4" (110 mm) - 10" (250 mm) Long Runs, No 4" (110 mm) Traps | 19 | 8.6 | |
| 62295 | C-14 | 15' (4,6) Heavy-Duty Wind. 1/2" (13 mm) Pitch. Recommended For 3" (75 mm) - 10" (250 mm) Lines Through Cleanout, No 4" (110 mm) Traps | 16 | 6.8 | |
| 62300 | C-15 | 15' (4,6) Extra-Flexible Wind. 1⁄2" (13 mm) Pitch. Recommended For 3" (75 mm) - 6" (150 mm) Lines Good for Traps | 12 | 5.5 | BUY NOW |
| 63090 | T-27 | 1 1⁄4" (32 mm) x 25" (63,5 cm) Leader | 2 3/4 | 1.2 | |
|
ACCESSORIES
|
|||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 59470 | A-8 | Cable Carrier 60' (18 m) Capacity 1 1/4" (32 mm) | 5 1/2 | 2.5 | |
| 59475 | A-9 | Cable Carrier 150-Foot (45,7) Capacity 11⁄4" (32 mm) | 14 | 6.4 | |
| 59415 | A-34-10 | 10-Foot (3,1 m) Rear Guide Hose | 13 3/8 | 6.2 | |
| 59395 | A-34-12 | 12-Foot (3,7 m) Rear Guide Hose | 20 | 9.1 | |
| 59400 | A-34-16 | 16-Foot (4,9 m) Rear Guide Hose | 26 1/2 | 12.0 | |
| 59300 | A-20 | 8-Foot (2,4 m) Front Guide Hose Assembly | 25 | 11.4 | |
| 59205 | A-1 | Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
| 59295 | A-2 | Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
| 62467 | A-1HD | Heavy-Duty Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
| 62472 | A-2HD | Heavy-Duty Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.2 | |
| 59360 | A-3 | Tool Box | 5 | 2.3 | |
| 59225 | A-12 | 1/2" Cable Pin Key | 1/2 | 0.2 | |
| 59440 | A-4 | Trap Spoon (30", 76 cm) | 1 3/4 | 0.8 | |
| 59240 | A-17 | Manhole Guide Pipe | 23 | 10.4 | |
| 59320 | A-369X | Jaw Assembly 1-1/4" Cable | 3/4 | 0.3 | |
| 59325 | A-368X | Jaw Assembly 7/8" Cable | 3/4 | 0.3 | |
|
TOOLS
|
|||||
|
CATALOG NUMBER
|
MODEL NO. | DESCRIPTION | REPLAC. BLADE(S) | ||
| 59480 | T-11 | “H” Cutter, 2 1⁄2" (65 mm) | 97800 | ||
| 59485 | T-12 | “H” Cutter, 3 1⁄2" (89 mm) | 97945 | ||
| 59625 | T-21 | Spiral Sawtooth Cutter, 2 1⁄2" (65 mm) | 97970 | ||
| 59765 | T-24 | 4-Blade Cutter, 21⁄2" (65 mm) | 97940 | ||
| 59770 | T-25 | 4-Blade Cutter, 3 1⁄2" (89 mm) | 97975 | ||
| 59775 | T-26 | 4-Blade Cutter, 4 1⁄2" (114 mm) | 97805 | ||
| 59780 | T-26A | 4-Blade Cutter, 5 1⁄2" (140 mm) | 97980 | ||
| 61770 | T-15A | Expanding Cutter, 4" - 6" (110-150 mm) | 62970 | ||
| 61790 | T-4 | Heavy-Duty Funnel Auger | - | ||
| 61800 | T-2 | Heavy-Duty Straight Auger | - | ||
| 61825 | T-15B | Expanding Cutter, 6" - 8" (150-200 mm) | 62980 | ||
| 61850 | T-17 | Spiral Bar Cutter, 6" (150 mm) | 97955 | ||
| 61855 | T-18 | Spiral Bar Cutter, 8" (200 mm) | 97960 | ||
| 61960 | T-16 | Spiral Bar Cutter, 4" (110 mm) | 97855 | ||
| 61970 | T-13 | Sawtooth Cutter, 2 1⁄2" (65 mm) | 98070 | ||
| 62840 | T-1 | Straight Auger | - | ||
| 62845 | T-10 | Grease Cutter, 4 1⁄2" (114 mm) | 97865 | ||
| 63075 | T-22 | Spiral Sawtooth Cutter, 3" (75 mm) | 97970 | ||
| 63085 | T-23 | Spiral Sawtooth Cutter, 4" (110 mm) | 97850 | ||
| 63105 | T-3 | Funnel Auger | - | ||
| 63110 | T-31 | Chain Knocker, For 3"- 4" Pipe (75-110 mm) | 97985 | ||
| 63115 | T-32 | Chain Knocker, For 6" Pipe (150 mm) | 97990 | ||
| 63120 | T-33 | Chain Knocker, For 8" Pipe (200 mm) | 97995 | ||
| 63145 | T-38 | Flue Brush, 1 1⁄2" (40 mm) | - | ||
| 63150 | T-39 | Flue Brush, 2" (50 mm) | - | ||
| 63155 | T-40 | Flue Brush, 2 1⁄2" (65 mm) | - | ||

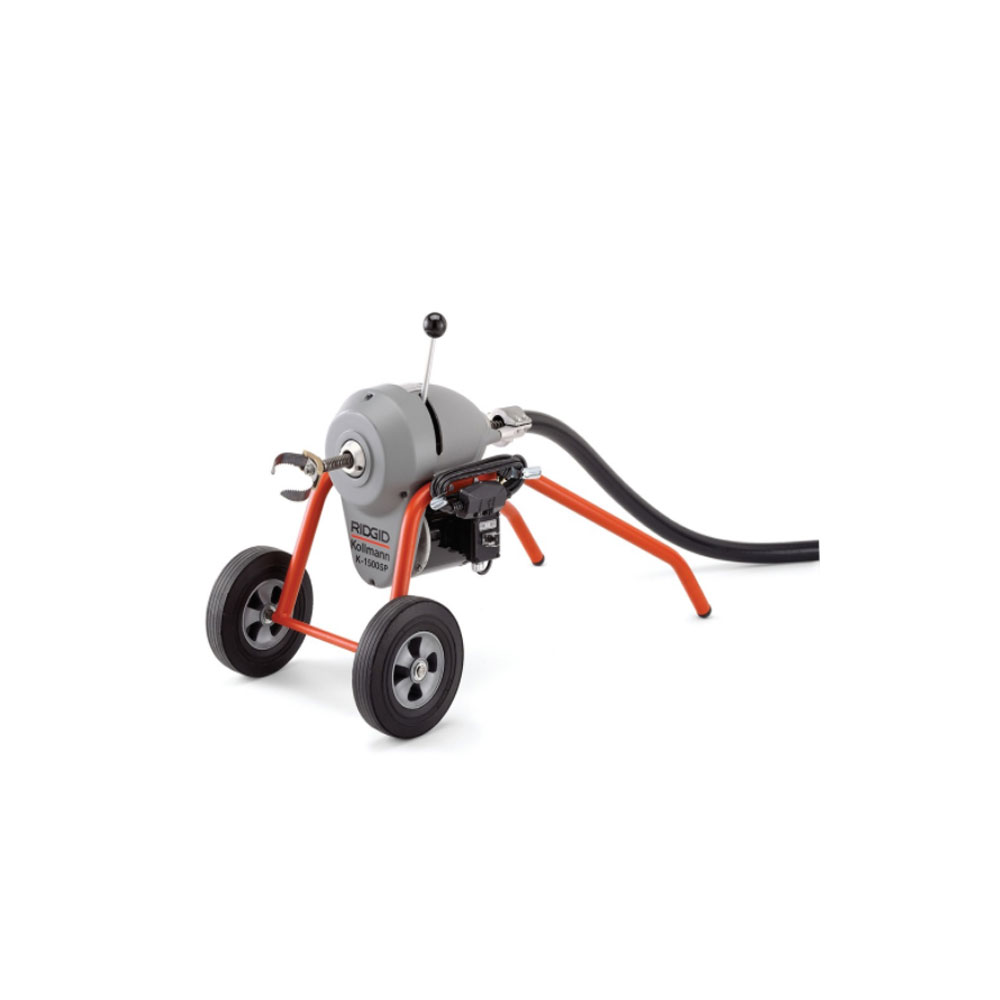

- The finest all-around sewer and drain cleaning machine. One man can easily clean the heaviest blockages – indoors or out. High-speed cleaning gets the job done faster and better.
- Unique, easy-to-use, instant-acting cable clutch maximizes operator control: Pull handle down and cable spins at 600 RPM Release handle, cable stops instantly.
- Wheels to the job site – sets up fast, cleans up fast.
- Equipped to run, easy to handle, 15' (4.6 m) sections of 1 1⁄4" (32 mm) cable to clean 3" (75 mm) to 10" (250 mm) lines to 300' (91 m).
- Easy clutch jaw change-out adapts K-1500 to run 15' (4.6 m) sections of 7⁄8" (22 mm) cable through 2" (50 mm) to 4" (110 mm) lines up to 175' (53 m).
- Equipped with full 1500-watt motor and heavy-duty rotary switch.
- 10" solid ball bearing wheels.
- Low profile frame design will fit most crawl spaces
- Includes A-1 RIDGID® drain cleaning mitt and operators manual
- Approved by CSA to CSA and UL Standards (115V only)
- Brand: RIDGID
- Product Code: K-1500SP
- Catalog Number: 43507 - 46907 - 91027
- 2" to 10" (50 mm to 250 mm) Drain and Sewer Lines
